Hybrid Solar Kit Deye 10kw Single-phase With 18 panels Tongwei 630W and Battery Deye 16kwh

Detailed technical characteristics

Full system data

• Total photovoltaic power: 11,34kwp (18 x 630w)
• Nominal output power AC: 10.000W
• Storage capacity: 16kWh Nomales / 14,4kWh useful
• Charging current / system download: 160A (battery limit; the inverter supports 220A)
• Strings configuration: 3 strings of 6 panels (one by MPPT)
• Type of network: Single-phase 220 / 230V (L + N + PE)

Hybrid Inverter Deye SUN-10K-SG02LP1-EU-AM3

• Nominal AC power (input / output:) 10.000W
• Maximum apparent power: 11.000VA
• Power peak in isolated mode: 2 times the nominal for 10 s
• Maximum Entry FV Power: 15.000W
• Maximum access FV power: 20.000W
• Tension FV maximum input: 500V
• Starting voltage: 125V
• MPPT voltage range: 150-425V
• Nominal FV voltage: 370V
• Number of MPPT / strings by MPPT: 3/2 + 2 + 2
• Maximum FV Operation Current: 26A + 26A + 26A
• Maximum current of short circuit: 44A + 44A + 44A
• Type of compatible battery: Lead-acid or ion-lithium
• Battery voltage range: 40-60V
• Maximum loading / unloading current: 220A
• Nominal and maximum AC current (input / output:) 45.5A / 43,5A
• Maximum continuous network step (network A consumption:) 60A
• Maximum efficiency: 97,6%
• European efficiency: 96,5%
• MPPT efficiency: more than 99%
• Harmonic distortion (THDI:) less than 3%
• Adjustable power factor: 0.8 inductive to 0.8 capacitive
• Parallel operation: up to 16 units (on-grid and off-grid)
• Protection against electric arc (AFCI:) optional
• Communication: RS485 / RS232 / CAN
• Monitoring: GPRS / WIFI / Bluetooth / 4G / LAN (optional)
• Surge protection: Type II in DC and AC
• Degree of protection: IP65
• Operating temperature: from -40 to 60 ° C (reduction of power above 45 ° C)
• Noise: less than 45db
• Refrigeration: Intelligent ventilation by air
• Topology: Transformer
• Dimensions: 420 x 670 x 233 mm
• Weight: 35,6kg
• Network regulations: UNE 217002, VDE-AR-N 4105, VDE 0126, IEC 61727/62116, CEI 0-21, G99, C10-11
• Warranty: 5 or 10 years, according to the place of final installation

Solar Panel Tongwei TNC 2.0 Twmnh-66HD630

• Maximum power (PMAX:) 630W
• Tension in open circuit (VOC:) 49,50V
• Short circuit current (ISC:) 16,18A
• Tension at the maximum power point (VMP:) 41,10V
• Current at the point of maximum power (imp:) 15,33A
• Efficiency of the module: 23,3%
• Power tolerance: 0 to + 3%
• Power BNPI (1000W / m² Frontal + 135W / m² rear:) 695,4W
• Power with rear gain of 5% / 15% / 25%: 661W / 724W / 787W
• Bribiality coefficient (PMAX:) 80 ± 5%
• PMAX temperature coefficient: -0,28%/°C
• VOC temperature coefficient: -0,24%/°C
• ISC Temperature Coefficient: + 0,046%/°C
• Type of Cell: TNC N-type, 132 stockings cells (6 x 22)
• Front glass: 2.0 mm with antireflective coating, semi-polished
• Rear glass: 2.0 mm semi-polished
• Setting: Anodized aluminum alloy
• Connection box: IP68, 3 diodes
• Cable section: 4,0mm²
• Maximum mechanical load: 5,400 PA front / 2.400 BA rear
• Maximum system tension: 1.500V DC
• Maximum fuse in series: 30A
• Operating temperature: from -40 to 70 ° C
• Dimensions: 2.382 x 1.134 x 30 mm
• Weight: 32,2kg
• Product guarantee: 12 years
• Linear power guarantee: 30 years (1% the first year, 0.4% per year; 87.40% at 30 years)

Lithium battery Deye RW-F16

• Chemistry: LiFePO4 (Lithium Ferrophosphate)
• Capacity: 314Ah
• Nominal voltage: 51,2V
• Operating voltage range: 44,8-57,6V
• Nominal energy: 16kwh
• Useful energy: 14,4kwh (90% Dod)
• Maximum continuous loading / unloading: 160A / 160A
• Current loading / unloading: 300A / 300A (10 s)
• Depth of discharge: 90%
• Lifetime: 6,000 cycles or more (25 ° C, 0.5C / 0.5C, 90% DOD, 70% EOL)
• Scalability: up to 32 units in parallel (512KWh)
• Communication: CAN 2.0, RS485
• Integrated protection: Smart BMS circuit breaker and BMS
• Charging temperature: from 0 to 55 ° C
• Discharge temperature: from -20 to 55 ° C
• Degree of protection: IP20 (installation indoors)
• Assembly: Wall or floor
• Dimensions: 480 x 830 x 235 mm (without support or base)
• Weight: 122kg
• Certifications: UN38.3, MSDS
• Warranty: 5 years

Benefits of the Solar Kit Deye 10kW with 16kwh RW-F16 battery and 18 Tongwei panels

Almost a third of the production available at night

The 14.4kwh useful of the RW-F16 equivalent to almost a third of the estimated daily production of the field of 11,34kwp. This proportion allows most of the evening and night consumption to be covered with stored solar energy, and not with energy purchased from the network. It is the configuration with the most autonomy of our kits Deye of 10kw. Compare capabilities in the section of lithium batteries.

Integration Deye without intermediaries

Inverter and battery communicate by CAN natively: the SUN-10K-SG02LP1-EU-AM3 read the BMS of the RW-F16, manage your load according to your parameters and displays your status on the same monitoring platform. A single manufacturer for the two teams facilitates the start-up and management of any incident.

Sustained power and covered peaks

With 160A continuous, some 8,2kw, the battery holds most of the power of inverter of 10kw, and his 300a peaks for 10 seconds cover starts compressors, , heat pumps or engines. The inverter, from the SG02LP1 series inverters hybrid single-phase of Deye, sum 60a network step, , 6 programmable time slots, entrance to diesel generator and parallel up to 16 teams.

Generation Tongwei in three MPPT

The 18 panels TNC 2.0 they are distributed in three strings of 6 modules, one by MPPT, which allows to cover several roof orientations without losses between Strings. With 132 average N-type cells, , double glass of 2.0 mm, , temperature coefficient of -0.28%/°C and bifiality of 80 ± 5%, they are modules designed to last. Check the full range of solar panels.

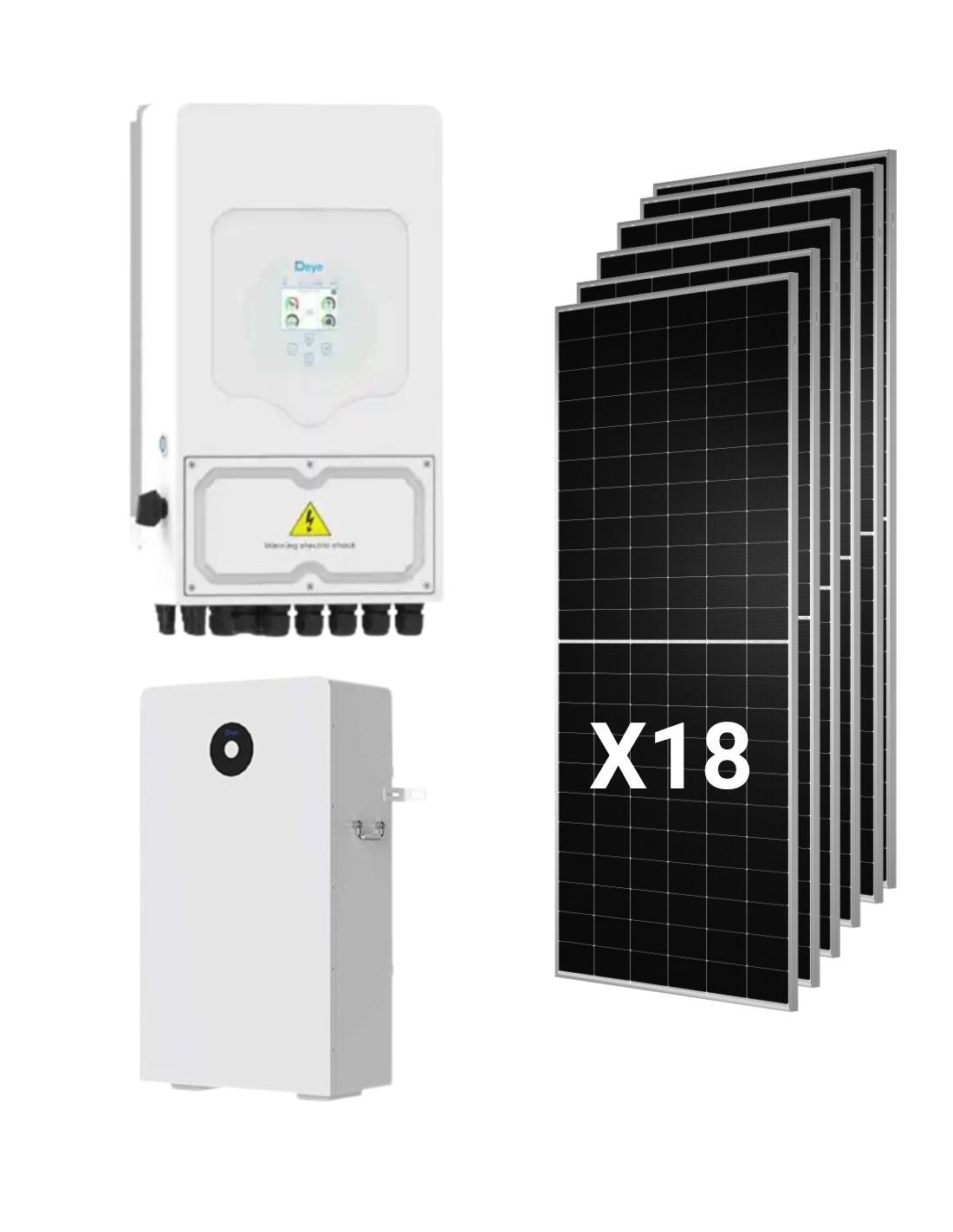

The kit includes

• 1 x Hybrid Inverter Deye SUN-10K-SG02LP1-EU-AM3 of 10.000W, , single-phase.
• 18 x Solar Panel Tongwei TNC 2.0 TWMNH-66HD630 of 630W, N-type bifacial.
• 1 x Lithium battery Deye RW-F16 of 16kwh and 314Ah, with integrated automatic switch.

Complete installation in Tienda Solar with structures for solar panels for cover or floor and with all the electrical material.

Engineering data

Strings: 3 x 6 panels

Each MPPT receives 6 series panels, who work 246,6V, inside the MPPT window 150-425V. In open circuit, each string reaches 297V in STC and some 322V at -10 ° C, calculated with the VOC coefficient -0,24%/°C, away from the 500V maximum. The current of 15,33A by string is below the 26A of each entrance, and the 11.340Wp from the field they are inside the 15,000w FV Entrance, with a DC / AC ratio of 1,13.

RW-F16 battery with inverter SUN-10K

The battery operates between 44.8 and 57.6V, inside the window of 40-60V of the inverter. In this kit the current limit puts the battery, with 160A continuous, in front of the 220A admit inverter. Communication is done by CAN 2.0 or RS485.

Production and Reference Autonomy

With 5 hours solar peak and a global performance of 80%, the field of 11,34kwp would produce some 45kwh a day of average annual. The 14.4kwh useful of the battery would give for some 14 hours with a mean night consumption of 1kw. These figures are guidance; in the Blog Tienda Solar you will find guides from our experts to calculate them with your home data.

Assembly of the RW-F16

Is installed on wall or in soil, in interior for their protection IP20. Measures 480 x 830 x 235 mm without support or base and weight 122kg, so it is convenient to check the resistance of the wall or soil and perform the maneuver between at least two people.

Who is this kit for?

Homes with a lot of evening demand

Homes with aerotermia, , induction, , air conditioning or electric car nocturnal recharge, where much of the consumption arrives when there is no sun.

Who wants to reduce the invoice to the maximum

With almost a third of the stored production and a battery capable of moving most of the power of the inverter, the kit minimizes the energy purchased from the network.

Solutions Installers Deye

Inverter and Battery of the same manufacturer simplify the configuration, monitoring and after-sales. For other combinations, consult all of our solar kits or the range of inverters solar.

Frequently Asked Questions (FAQ)

1. Why choose the RW-F16 versus two batteries SE-G5.1 Pro-B?

The RW-F16 it offers more useful energy (14,4kwh versus 9,2kwh) in a single team and with a single connection. The two SE-G5.1 PRO-B admits more maximum current as a whole (200A versus 160Aand have 10 years warranty in front of the 5 years of the RW-F16, in addition to weigh less per module.

2. Can the battery feed the 10KW of the inverter?

Almost. Delivery 160A continuous, some 8,2kw at nominal tension, and 300a peaks for 10 seconds. For most homes it is enough; The consumption that exceed that out-of-sun power are covered from the network.

3. Can the capacity be extended?

Yes. The RW-F16 supports up to 32 units in parallel, with a maximum of 512kwh. With two units, the available current would exceed the 220A that manages the inverter.

4. How are the 18 panels connected?

On 3 strings of 6 panels, one by MPPT. Each String works for some 246,6V and it does not exceed the 322V in circuit open at -10 ° C.

5. Does it work for a blackout?

Yes. The inverter operate isolated with the energy of the panels and the battery, and it admits twices of double their nominal power for 10 seconds. With 14.4kwh useful, autonomy is wide, although it will always depend on consumption.

6. Is it legalizable to compensate surpluses?

The inverter includes the spanish standard UNE 217002 among its certifications. An authorized installer must process legalization and compensation, and verify that supply single-phase admits a team of 10kw.

7. What guarantees do the components have?

The tongwei panels have 12 years of product guarantee and 30 years of linear power; the rW-F16 BATTERY, , 5 years; and the inverter Deye, , 5 or 10 years according to the final installation site. The 18 panels occupy some 49m² of cover without counting separations.
