Hybrid Solar Kit Deye 10kw Single-phase with 18 panels Tongwei 630W and Battery V-TAC 14,33KWh

Detailed technical characteristics

Full system data

• Total photovoltaic power: 11,34kwp (18 x 630w)
• Nominal output power AC: 10.000W
• Storage capacity: 14,33kwh nominal (a few 12,9kwh at 90% dod, estimated value)
• Charging current / system download: 140A (battery limit; the inverter supports 220A)
• Strings configuration: 3 strings of 6 panels (one by MPPT)
• Type of network: Single-phase 220 / 230V (L + N + PE)

Hybrid Inverter Deye SUN-10K-SG02LP1-EU-AM3

• Nominal AC power (input / output:) 10.000W
• Maximum apparent power: 11.000VA
• Power peak in isolated mode: 2 times the nominal for 10 s
• Maximum Entry FV Power: 15.000W
• Maximum access FV power: 20.000W
• Tension FV maximum input: 500V
• Starting voltage: 125V
• MPPT voltage range: 150-425V
• Nominal FV voltage: 370V
• Number of MPPT / strings by MPPT: 3/2 + 2 + 2
• Maximum FV Operation Current: 26A + 26A + 26A
• Maximum current of short circuit: 44A + 44A + 44A
• Type of compatible battery: Lead-acid or ion-lithium
• Battery voltage range: 40-60V
• Maximum loading / unloading current: 220A
• Nominal and maximum AC current (input / output:) 45.5A / 43,5A
• Maximum continuous network step (network A consumption:) 60A
• Maximum efficiency: 97,6%
• European efficiency: 96,5%
• MPPT efficiency: more than 99%
• Harmonic distortion (THDI:) less than 3%
• Adjustable power factor: 0.8 inductive to 0.8 capacitive
• Parallel operation: up to 16 units (on-grid and off-grid)
• Protection against electric arc (AFCI:) optional
• Communication: RS485 / RS232 / CAN
• Monitoring: GPRS / WIFI / Bluetooth / 4G / LAN (optional)
• Surge protection: Type II in DC and AC
• Degree of protection: IP65
• Operating temperature: from -40 to 60 ° C (reduction of power above 45 ° C)
• Noise: less than 45db
• Refrigeration: Intelligent ventilation by air
• Topology: Transformer
• Dimensions: 420 x 670 x 233 mm
• Weight: 35,6kg
• Network regulations: UNE 217002, VDE-AR-N 4105, VDE 0126, IEC 61727/62116, CEI 0-21, G99, C10-11
• Warranty: 5 or 10 years, according to the place of final installation

Solar Panel Tongwei TNC 2.0 Twmnh-66HD630

• Maximum power (PMAX:) 630W
• Tension in open circuit (VOC:) 49,50V
• Short circuit current (ISC:) 16,18A
• Tension at the maximum power point (VMP:) 41,10V
• Current at the point of maximum power (imp:) 15,33A
• Efficiency of the module: 23,3%
• Power tolerance: 0 to + 3%
• Power BNPI (1000W / m² Frontal + 135W / m² rear:) 695,4W
• Power with rear gain of 5% / 15% / 25%: 661W / 724W / 787W
• Bribiality coefficient (PMAX:) 80 ± 5%
• PMAX temperature coefficient: -0,28%/°C
• VOC temperature coefficient: -0,24%/°C
• ISC Temperature Coefficient: + 0,046%/°C
• Type of Cell: TNC N-type, 132 stockings cells (6 x 22)
• Front glass: 2.0 mm with antireflective coating, semi-polished
• Rear glass: 2.0 mm semi-polished
• Setting: Anodized aluminum alloy
• Connection box: IP68, 3 diodes
• Cable section: 4,0mm²
• Maximum mechanical load: 5,400 PA front / 2.400 BA rear
• Maximum system tension: 1.500V DC
• Maximum fuse in series: 30A
• Operating temperature: from -40 to 70 ° C
• Dimensions: 2.382 x 1.134 x 30 mm
• Weight: 32,2kg
• Product guarantee: 12 years
• Linear power guarantee: 30 years (1% the first year, 0.4% per year; 87.40% at 30 years)

V-TAC LITHIUM BATTERY VT-14033

• Type: Ion-lithium battery, structure 16 cells in series (16S1P)
• Nominal capacity: 280Ah
• Nominal voltage: 51,2V
• Nominal energy: 14,33kwh
• Standard loading / unloading current: 130A
• Maximum loading / discharge continuous current: 140A
• Standard load voltage: 57,6V
• Load limit voltage: 57,6V
• End voltage discharge: 43,2V
• Recommended load method: 130a constant current until 57,6V and constant voltage of 57.6V until 14A
• Internal resistance: 16mω
• Lifetime: 8,000 cycles or more (25 ° C, 90% DOD; 80% EOL)
• Communication: CAN
• Charging temperature: from 0 to 60 ° C
• Discharge temperature: from -20 to 60 ° C
• Degree of protection: IP20 (installation indoors)
• Dimensions (background x wide x high:) 660 x 154 x 900 mm
• Available colors: White (SKU 12713) and Black (SKU 12714)

Benefits of the Solar Kit Deye 10kW with V-TAC battery 14,33KWh and 18 Tongwei panels

More than a quarter of production, stored

With 14,33kwh nominal and some 12,9kWh Usage at 90% download, the V-TAC VT-14033 can save more than one fourth part of the estimated daily production of the field of 11,34kwp. It is a very balanced proportion for a house that consumes both day and night, and exceeds the configuration of two 5,12kwh batteries. Compare options in our section of lithium batteries.

Simplest installation

All capacity is on a single team 280Ah: a single connection to inverter, without parallel cables between modules and with communication by CAN. For the installer, it means less assembly time; For the user, less space occupied and fewer elements to review.

Enough power for the night

The 140A continuous of the battery, some 7,2kw, and the 130A of standard current they allow to keep a good part of the demand for a house with aerotermia, , induction or air conditioning. Your internal resistance of 16MΩ reduces losses to high currents. What exceeds that power is covered from the network thanks to 60a network step of the inverter.

Deye of 10kw with three MPPT

The SUN-10K-SG02LP1-EU-AM3 provides 10,000W nominal, , double peaks of its power for 10 seconds, , 6 programmable time slots, entrance to diesel generator, , coupling AC and parallel up to 16 teams. Their 3 MPPT receive the 18 panels Tongwei TNC 2.0 in three strings of 6, with 132 average N-type cells, , double glass of 2.0 mm, , bifiality of 80 ± 5% and the 87.40% of the guaranteed power at age 30. Consult more inverters hybrid and solar panels in our store.

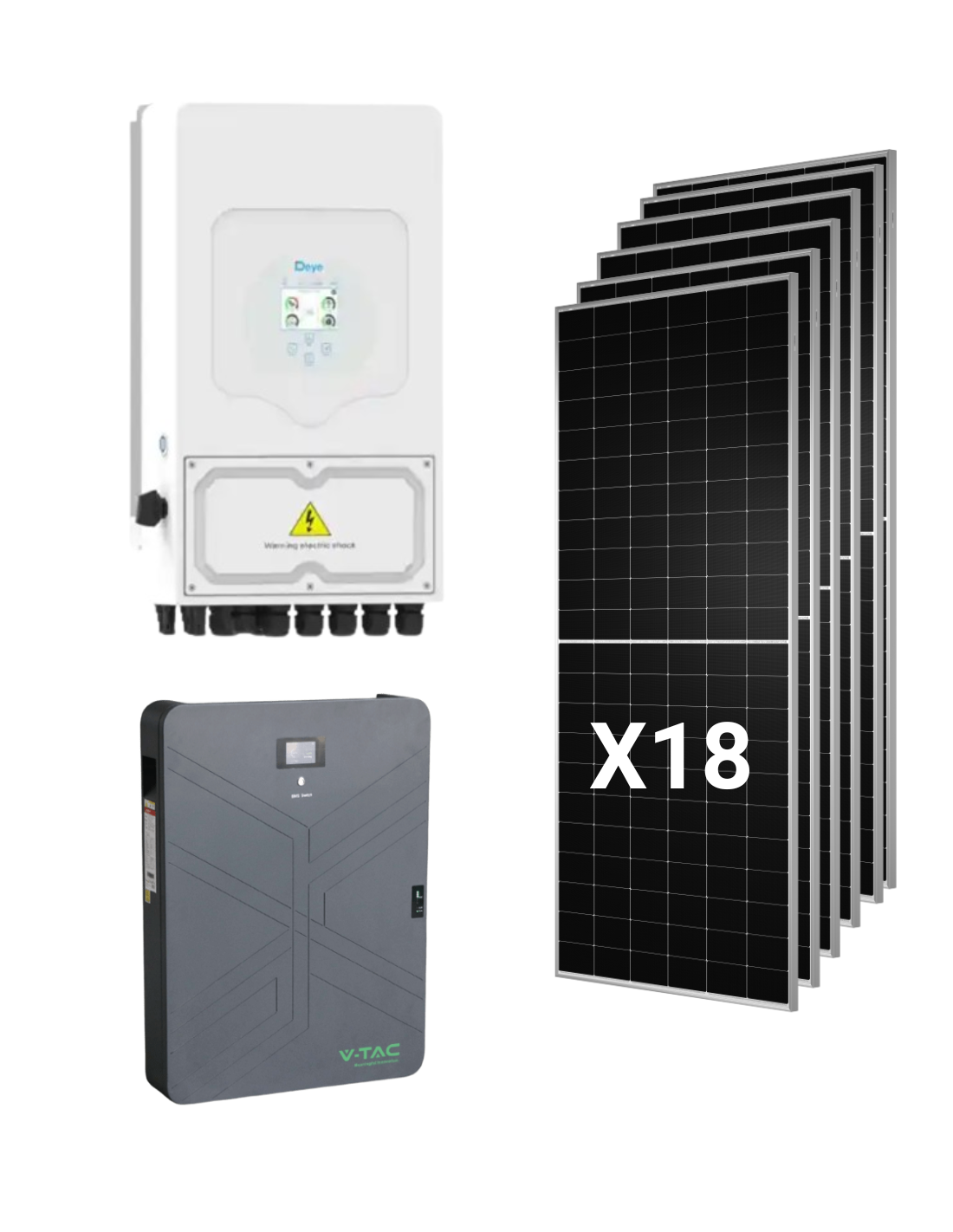

Kit content

• 1 x Hybrid Inverter Deye SUN-10K-SG02LP1-EU-AM3 of 10.000W, , single-phase.
• 18 x Solar Panel Tongwei TNC 2.0 TWMNH-66HD630 of 630W, N-type bifacial.
• 1 x V-TAC LITHIUM BATTERY VT-14033 of 14,33kwh and 280Ah to 51,2V.

On Tienda Solar you have also structures for solar panels for cover or floor and wiring and the necessary protections.

System design sheet

Fotovoltaic field in 3 x 6

• Configuration: 6 series panels by MPPT, three strings in total.
• Tension of work by String: 246,6V, within the MPPT range 150-425V.
• Tension in open circuit: 297V in STC and some 322V at -10 ° C, with the VOC coefficient -0,24%/°C; well below the 500V maximum.
• Current by String: 15,33A, in front of 26A by MPPT.
• Power FV: 11.340Wp upon 15.000W of maximum input, with DC / AC ratio of 1,13.

V-TAC battery and compatibility with the inverter

The battery works between 43,2V (end of discharge) and 57,6V (load), within the range of 40-60V of the inverter, and communicates with him by CAN. The system current limit sets the battery, with 140A, in front of the 220A of the inverter. The manufacturer recommends loading to 130A in constant current until 57,6V and end in constant tension until the current goes down 14A.

Estimated production and autonomy

As a reference, with 5 hours solar peak and a performance of 80%, the 11,34kwp would produce some 45kwh a day. With some 12,9kWh Usage (estimate from the nominal capacity and 90% reference discharge), the battery would cover some 13 hours of nocturnal consumption with an average of 1kw. In the Blog Tienda Solar our experts explain how to adjust these calculations to your home.

Battery installation

The VT-14033 measures 660 x 154 x 900 mm (background x wide x high) and has iP20 Protection, so it should be installed in interior. Burden 0 and 60 ° C and download between -20 and 60 ° C.

Who is it ideal for?

Homes that consume a lot when the sun falls

Families that cook, air conditioning or load the car in the afternoon take advantage of the maximum 14,33kwh battery after a day of production.

Small businesses with equipment running out of time

Shops or workshops with refrigeration cameras, , alarms or night lighting cover those consumption with stored energy.

Installers that prioritize assembly speed

A single large-capacity battery and a configuration of Strings validated simplify the project. For other combinations, review our solar kits or the range of inverters solar.

Frequently Asked Questions (FAQ)

1. What is the difference between this kit and the 2 batteries Deye of 5,12kwh?

The V-TAC VT-14033 it offers more capacity (14,33kwh versus 10,24kwh) in a single team and with a single connection. The two batteries Deye they admit more maximum current as a whole (200A versus 140A), but the V-TAC provides more stored energy and a simpler assembly.

2. Can the battery feed the inverter at full power?

Not at all. The battery delivery up 140A continuous, some 7,2kw, in front of the 10kw nominal inverter. It is enough for most of the nocturnal demand of a home; The upper peaks are covered from the network.

3. How much useful energy do you have?

Nominal capacity is 14,33kwh. With the 90% depth of discharge that uses V-TAC as a reference of useful life, they get some 12,9kwh per cycle; the final value depends on the configuration of the inverter.

4. How are the 18 panels connected?

On 3 strings of 6 panels, one by MPPT, with some 246,6V of work and a maximum of some 322V in circuit open at -10 ° C. Each string can be installed in a different orientation.

5. Does it work in case of light cut?

Yes. The inverter can work on isolated with panels and battery, and admits twices of double their nominal power for 10 seconds. Autonomy depends on the consumption and state of charge.

6. Can it be legalized to compensate surpluses?

The inverter includes the spanish standard UNE 217002 among its network certifications. An authorized installer must proceed legalization and compensation, and confirm that your supply single-phase admits a team of 10kw.

7. What guarantees does the kit have?

The tongwei panels include 12 years of product guarantee and 30 years of linear power guarantee, and the inverter Deye, , 5 or 10 years according to the final installation site. The V-TAC battery is covered by the manufacturer's warranty; Consult us the conditions before purchase. The 18 panels occupy some 49m² deck.
