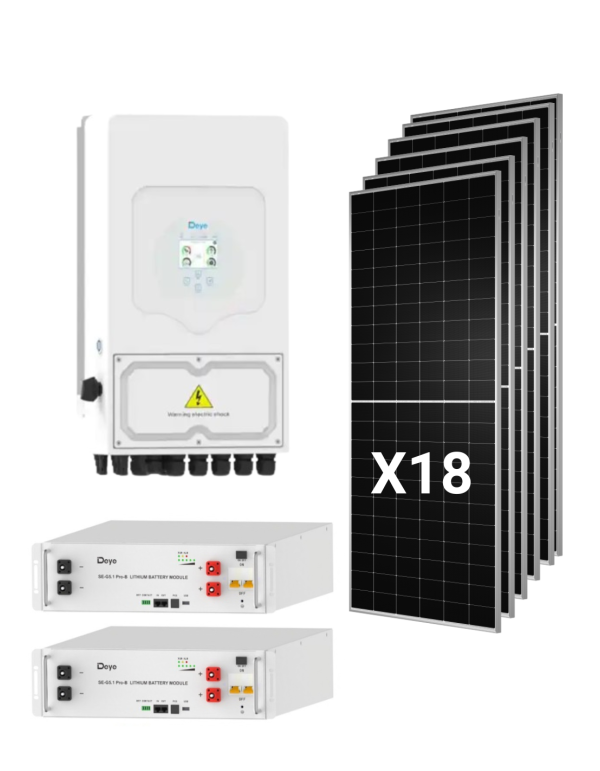

Hybrid Solar Kit Deye 10kw Single-phase With 18 panels Tongwei 630W and 2 Batteries 5,12KWh

Detailed technical characteristics

Full system data

• Total photovoltaic power: 11,34kwp (18 x 630w)
• Nominal output power AC: 10.000W
• Storage capacity: 10,24kWh Nomales / 9,2kWh useful (2 x 5,12kwh)
• Maximum current of the battery bank: 200A (the inverter supports 220A)
• Strings configuration: 3 strings of 6 panels (one by MPPT)
• Type of network: Single-phase 220 / 230V (L + N + PE)

Hybrid Inverter Deye SUN-10K-SG02LP1-EU-AM3

• Nominal AC power (input / output:) 10.000W
• Maximum apparent power: 11.000VA
• Power peak in isolated mode: 2 times the nominal for 10 s
• Maximum Entry FV Power: 15.000W
• Maximum access FV power: 20.000W
• Tension FV maximum input: 500V
• Starting voltage: 125V
• MPPT voltage range: 150-425V
• Nominal FV voltage: 370V
• Number of MPPT / strings by MPPT: 3/2 + 2 + 2
• Maximum FV Operation Current: 26A + 26A + 26A
• Maximum current of short circuit: 44A + 44A + 44A
• Type of compatible battery: Lead-acid or ion-lithium
• Battery voltage range: 40-60V
• Maximum loading / unloading current: 220A
• Nominal and maximum AC current (input / output:) 45.5A / 43,5A
• Maximum continuous network step (network A consumption:) 60A
• Maximum efficiency: 97,6%
• European efficiency: 96,5%
• MPPT efficiency: more than 99%
• Harmonic distortion (THDI:) less than 3%
• Adjustable power factor: 0.8 inductive to 0.8 capacitive
• Parallel operation: up to 16 units (on-grid and off-grid)
• Protection against electric arc (AFCI:) optional
• Communication: RS485 / RS232 / CAN
• Monitoring: GPRS / WIFI / Bluetooth / 4G / LAN (optional)
• Surge protection: Type II in DC and AC
• Degree of protection: IP65
• Operating temperature: from -40 to 60 ° C (reduction of power above 45 ° C)
• Noise: less than 45db
• Refrigeration: Intelligent ventilation by air
• Topology: Transformer
• Dimensions: 420 x 670 x 233 mm
• Weight: 35,6kg
• Network regulations: UNE 217002, VDE-AR-N 4105, VDE 0126, IEC 61727/62116, CEI 0-21, G99, C10-11
• Warranty: 5 or 10 years, according to the place of final installation

Solar Panel Tongwei TNC 2.0 Twmnh-66HD630

• Maximum power (PMAX:) 630W
• Tension in open circuit (VOC:) 49,50V
• Short circuit current (ISC:) 16,18A
• Tension at the maximum power point (VMP:) 41,10V
• Current at the point of maximum power (imp:) 15,33A
• Efficiency of the module: 23,3%
• Power tolerance: 0 to + 3%
• Power BNPI (1000W / m² Frontal + 135W / m² rear:) 695,4W
• Power with rear gain of 5% / 15% / 25%: 661W / 724W / 787W
• Bribiality coefficient (PMAX:) 80 ± 5%
• PMAX temperature coefficient: -0,28%/°C
• VOC temperature coefficient: -0,24%/°C
• ISC Temperature Coefficient: + 0,046%/°C
• Type of Cell: TNC N-type, 132 stockings cells (6 x 22)
• Front glass: 2.0 mm with antireflective coating, semi-polished
• Rear glass: 2.0 mm semi-polished
• Setting: Anodized aluminum alloy
• Connection box: IP68, 3 diodes
• Cable section: 4,0mm²
• Maximum mechanical load: 5,400 PA front / 2.400 BA rear
• Maximum system tension: 1.500V DC
• Maximum fuse in series: 30A
• Operating temperature: from -40 to 70 ° C
• Dimensions: 2.382 x 1.134 x 30 mm
• Weight: 32,2kg
• Product guarantee: 12 years
• Linear power guarantee: 30 years (1% the first year, 0.4% per year; 87.40% at 30 years)

Lithium battery Deye SE-G5.1 PRO-B (2 units, data per module)

• Chemistry: LiFePO4 (lithium ferrophosphate), without cobalt
• Capacity: 100Ah
• Nominal voltage: 51,2V
• Operating voltage range: 43,2-57,6V
• Nominal energy: 5,12kwh
• Useful energy: 4,6kwh (90% Dod, 0.5c at 25 ° C)
• Recommended loading / discharge current: 50A
• Load current / maximum discharge: 100A
• Pico current (2 min, 25 ° C:) 150A
• Depth of recommended download: 90%
• Lifetime: more than 6,000 cycles (25 ° C, 0.5c, 90% DOD, 70% EOL)
• Accumulated energy: 16Mwh 70% eOL
• Scalability: up to 64 units in parallel (327KWh), 32 without external configuration
• Communication: CAN 2.0, RS485
• Charging temperature: from 0 to 55 ° C (from -20 to 55 ° C with optional heating)
• Discharge temperature: from -20 to 55 ° C
• Degree of protection: IP20 (installation indoors)
• Assembly: Wall, floor or rack 19 "
• Dimensions: 440 x 133 x 540 mm
• Weight: 45kg
• Certifications: UN38.3, IEC 62619, EC, UKCA, VDE 2510-50, CEI 0-21, UL1973, UL9540A
• Warranty: 10 years (subject to the manufacturer's conditions)

Benefits of the Solar Kit Deye 10kW with 2 Batteries of 5,12kwh and 18 Panels Tongwei

Battery inverter on the same scale of power

With a single module, storage is limited to 100A, some 5kw. When installing two SE-G5.1 Pro-B in parallel, the bank reaches 200A, around 10kw at nominal tension, practically the power of the inverter. Thus, when the sun falls, the system can respond to consumption peaks with the battery instead of resorting to the network. For continuous use, the reference is the recommended current of 2 x 50a, some 5kw, which is the one that lengthens the life of the cells.

Twin energy for evening and night

The two batteries add 9,2kWh useful, double that the version with a module, and allow to move around a fifth from daily production estimated at sun without sun. It is the difference between covering only the basic consumption and being able to maintain kitchen, , washing machine, , air conditioning and lighting in the afternoon. Compare other capabilities in our section of lithium batteries.

Inverter 10kW with three followers

The SUN-10K-SG02LP1-EU-AM3, from the SG02LP1 series inverters hybrid single-phase of Deye, it offers 10,000W nominal, , 11000VA apparent and double peaks of its power for 10 seconds. Their 3 MPPT scratch 18 panels in three independent strings, each with its own follow-up, ideal for covers with several orientations. Includes 6 slots, entrance to diesel generator, , coupling AC and parallel up to 16 teams.

Tongwei modules with 30 years of power guarantee

The 18 panels TNC 2.0 combine 132 average N-type cells, , double glass of 2.0 mm, , temperature coefficient of -0.28%/°C and bifiality of 80 ± 5%, and keep the 87.40% of the power at 30 years. Discover more models in our category solar panels.

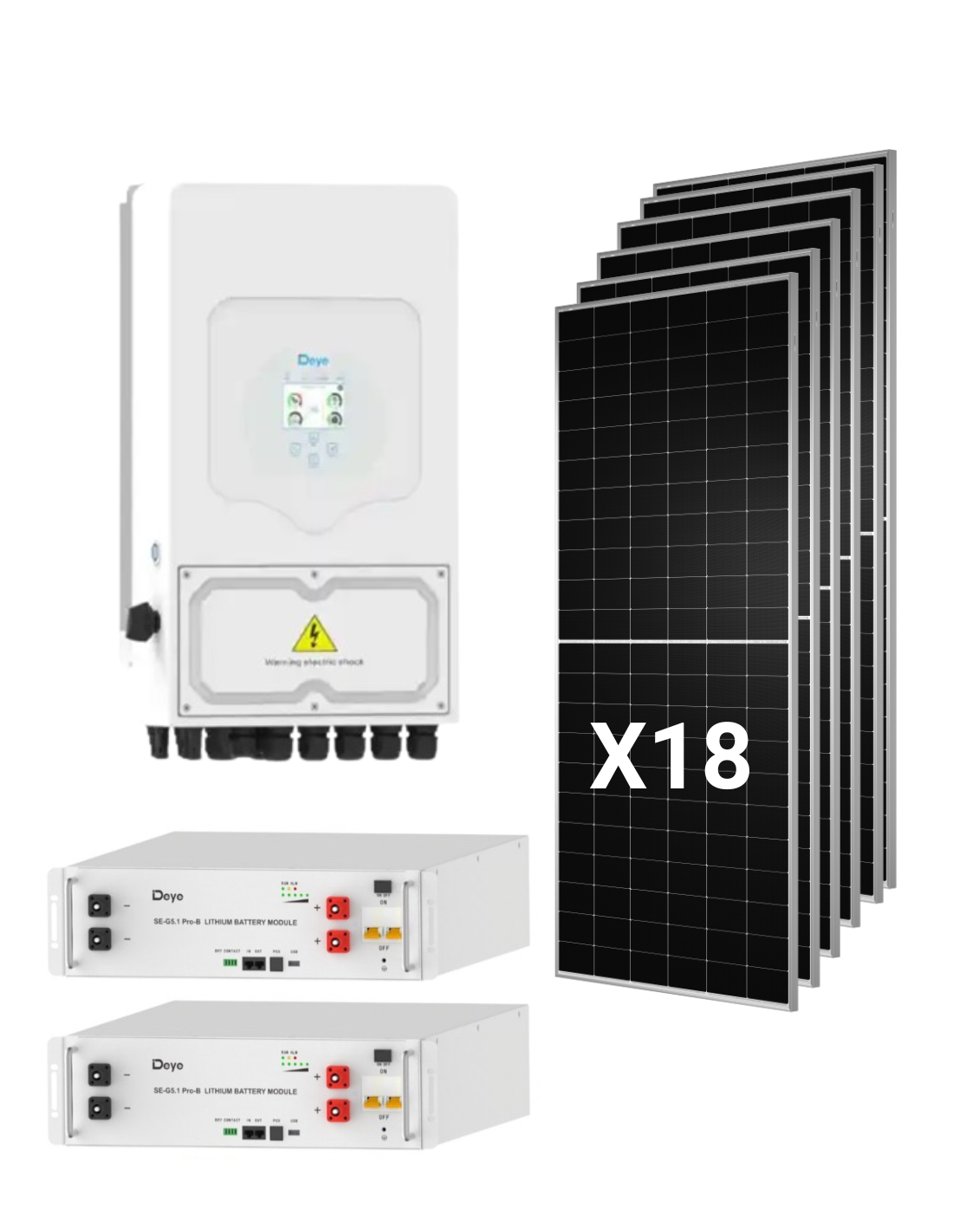

What do you receive

• 1 x Hybrid Inverter Deye SUN-10K-SG02LP1-EU-AM3 of 10.000W, , single-phase.
• 18 x Solar Panel Tongwei TNC 2.0 TWMNH-66HD630 of 630W, N-type bifacial.
• 2 x Lithium battery Deye SE-G5.1 PRO-B of 5,12kwh (10,24kwh in total). Each unit includes connection cable to inverter 3U-Lpcable1500, , 3u-LBCable parallel cable150, , looks for 19 "rack, , stacking brackets and wall brackets with screws.

You can complete your order in Tienda Solar with structures for solar panels for cover or floor and with the necessary electrical material.

Design parameters

Three Strings of six modules

The 18 panels are distributed with 6 modules in series by MPPT. Each string works 246,6V, inside the MPPT window 150-425V, and in open circuit reaches 297V in STC and some 322V at -10 ° C, applying the VOC coefficient -0,24%/°C; the margin in front of the 500V maximum is spacious. The work stream, 15,33A, it is below the 26A of each entrance, and the 11.340Wp from the field are well inside the 15,000w FV Entrance, with a DC / AC ratio of 1,13.

Connection of the battery bank

The two batteries are linked in parallel with the cable 3U-Lbcable150, which transports power and communication, and the set connects to inverter by 3U-Lpcable1500 for CAN or RS485. The Bank admits 200A loading and maximum discharge, below the 220A of the inverter. The batteries can stack on the floor, , hang on the wall or be installed in rack of 19 "; each one 45kg and, being IP20, they must be located inside.

Orientation and storage

With 5 hours solar peak and a global performance of 80%, the 11,34kwp would generate some 45kwh a day of average annual. The 9,2kWh useful of the batteries would cover some 9 hours with a mean night consumption of 1kw. Are reference values; in the Blog Tienda Solar our experts explain how to calculate production and storage for your consumption profile.

Client profiles

Families with consumption distributed throughout the day

Housing with teleworking, aerotermia or swimming pool who consume daily and also in the afternoon take advantage at the same time direct production and 9,2kwh battery.

Small businesses with late closure

Shops or offices that remain open at nightfall can cover the latest hours of activity with the energy stored during the day.

Installers looking for a solid and expandable base

Inverter, fV and balanced storage, with margin to add panels or batteries later. For other combinations, consult our solar kits or the full range of inverters solar.

Frequently Asked Questions (FAQ)

1. What changes when you have two batteries instead of one with the inverter of 10kw?

The useful energy goes from 4,6kwh to 9,2kwh and the maximum current of the bank 100A to 200A. With a battery, storage delivers some 5kw; with two, you can contribute in peaks near the 10kw of the inverter. For continuous use, the reference remains the recommended current of 2 x 50a.

2. Can I add more batteries later?

Yes. The SE-G5.1 PRO-B supports up to 32 units in parallel without external configuration and 64 in Total (327KWh). From the third battery, the current limit will mark the 220A of the inverter.

3. How do the panels connect?

On 3 strings of 6 panels, one by MPPT. Each String works for some 246,6V and it does not exceed the 322V in circuit open at -10 ° C. Each String can go in a different orientation, since the MPPTs are independent.

4. Is the system running if the light is going?

Yes. The inverter operate isolated with the energy of the panels and the batteries, and it admits twices of double their nominal power for 10 seconds. Autonomy depends on the connected charge and the bank's load state.

5. Can you legalize and benefit from surplus compensation?

The inverter includes the spanish standard UNE 217002 among its network connection certifications. Legalization and compensation should be managed through an authorized installer, which will also verify that supply single-phase admits a team of 10kw.

6. What guarantees does each component offer?

The tongwei modules have 12 years of product guarantee and 30 years of linear power. Every drums Deye is covered during 10 years, and the inverter during 5 or 10 years according to the final installation place, according to the policy of each manufacturer.

7. What surface does the photovoltaic field occupy?

The 18 panels 2.382 x 1.134 mm and 32,2kg each, they need some 49m² without counting separations. Support loads of 5,400 Pa on the front face and 2,400 Pa in the rear.
