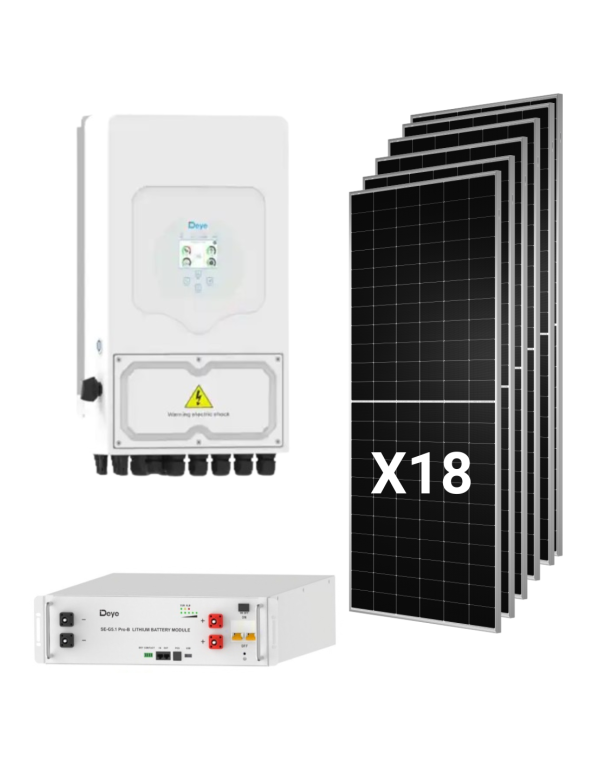

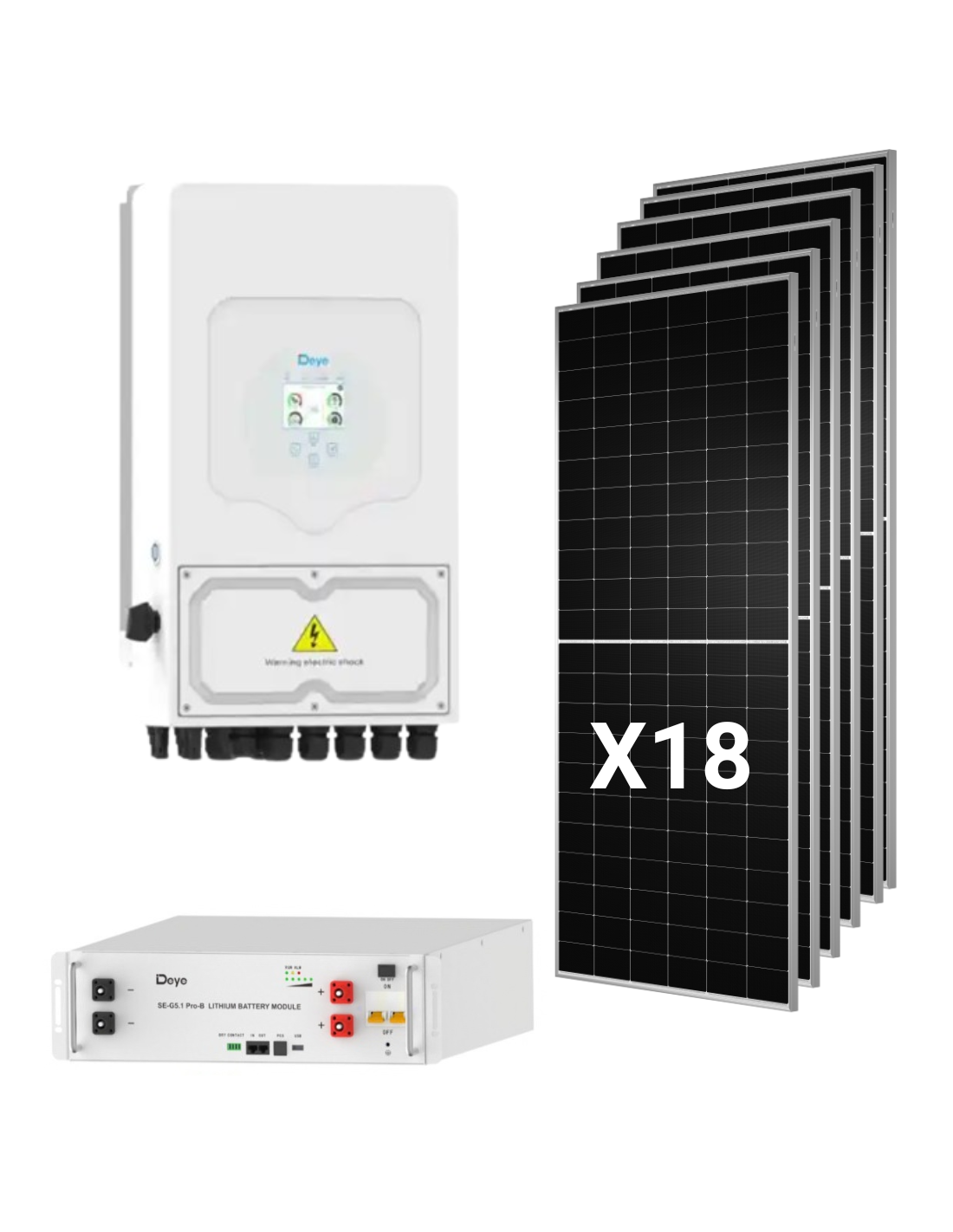

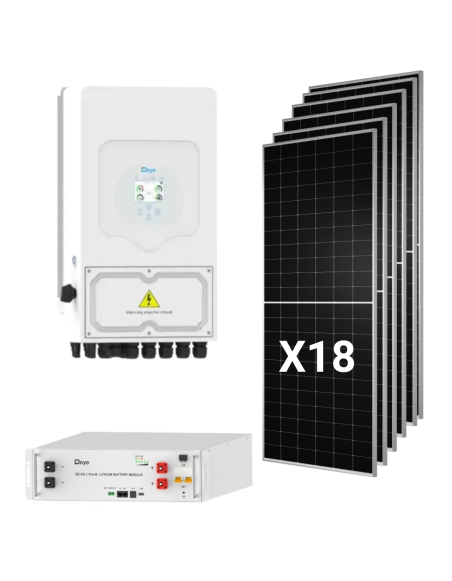

Hybrid Solar Kit Deye 10kw Single-phase with 18 panels Tongwei 630W and Battery 5,12KWh

Detailed technical characteristics

Full system data

• Total photovoltaic power: 11,34kwp (18 x 630w)
• Nominal output power AC: 10.000W
• Storage capacity: 5,12kWh Nomales / 4.6kWh useful
• Charging current / system download: 100A (battery limit; the inverter supports 220A)
• Strings configuration: 3 strings of 6 panels (one by MPPT)
• Type of network: Single-phase 220 / 230V (L + N + PE)

Hybrid Inverter Deye SUN-10K-SG02LP1-EU-AM3

• Nominal AC power (input / output:) 10.000W
• Maximum apparent power: 11.000VA
• Power peak in isolated mode: 2 times the nominal for 10 s
• Maximum Entry FV Power: 15.000W
• Maximum access FV power: 20.000W
• Tension FV maximum input: 500V
• Starting voltage: 125V
• MPPT voltage range: 150-425V
• Nominal FV voltage: 370V
• Number of MPPT / strings by MPPT: 3/2 + 2 + 2
• Maximum FV Operation Current: 26A + 26A + 26A
• Maximum current of short circuit: 44A + 44A + 44A
• Type of compatible battery: Lead-acid or ion-lithium
• Battery voltage range: 40-60V
• Maximum loading / unloading current: 220A
• Nominal and maximum AC current (input / output:) 45.5A / 43,5A
• Maximum continuous network step (network A consumption:) 60A
• Maximum efficiency: 97,6%
• European efficiency: 96,5%
• MPPT efficiency: more than 99%
• Harmonic distortion (THDI:) less than 3%
• Adjustable power factor: 0.8 inductive to 0.8 capacitive
• Parallel operation: up to 16 units (on-grid and off-grid)
• Protection against electric arc (AFCI:) optional
• Communication: RS485 / RS232 / CAN
• Monitoring: GPRS / WIFI / Bluetooth / 4G / LAN (optional)
• Surge protection: Type II in DC and AC
• Degree of protection: IP65
• Operating temperature: from -40 to 60 ° C (reduction of power above 45 ° C)
• Noise: less than 45db
• Refrigeration: Intelligent ventilation by air
• Topology: Transformer
• Dimensions: 420 x 670 x 233 mm
• Weight: 35,6kg
• Network regulations: UNE 217002, VDE-AR-N 4105, VDE 0126, IEC 61727/62116, CEI 0-21, G99, C10-11
• Warranty: 5 or 10 years, according to the place of final installation

Solar Panel Tongwei TNC 2.0 Twmnh-66HD630

• Maximum power (PMAX:) 630W
• Tension in open circuit (VOC:) 49,50V
• Short circuit current (ISC:) 16,18A
• Tension at the maximum power point (VMP:) 41,10V
• Current at the point of maximum power (imp:) 15,33A
• Efficiency of the module: 23,3%
• Power tolerance: 0 to + 3%
• Power BNPI (1000W / m² Frontal + 135W / m² rear:) 695,4W
• Power with rear gain of 5% / 15% / 25%: 661W / 724W / 787W
• Bribiality coefficient (PMAX:) 80 ± 5%
• PMAX temperature coefficient: -0,28%/°C
• VOC temperature coefficient: -0,24%/°C
• ISC Temperature Coefficient: + 0,046%/°C
• Type of Cell: TNC N-type, 132 stockings cells (6 x 22)
• Front glass: 2.0 mm with antireflective coating, semi-polished
• Rear glass: 2.0 mm semi-polished
• Setting: Anodized aluminum alloy
• Connection box: IP68, 3 diodes
• Cable section: 4,0mm²
• Maximum mechanical load: 5,400 PA front / 2.400 BA rear
• Maximum system tension: 1.500V DC
• Maximum fuse in series: 30A
• Operating temperature: from -40 to 70 ° C
• Dimensions: 2.382 x 1.134 x 30 mm
• Weight: 32,2kg
• Product guarantee: 12 years
• Linear power guarantee: 30 years (1% the first year, 0.4% per year; 87.40% at 30 years)

Lithium battery Deye SE-G5.1 PRO-B

• Chemistry: LiFePO4 (lithium ferrophosphate), without cobalt
• Capacity: 100Ah
• Nominal voltage: 51,2V
• Operating voltage range: 43,2-57,6V
• Nominal energy: 5,12kwh
• Useful energy: 4,6kwh (90% Dod, 0.5c at 25 ° C)
• Recommended loading / discharge current: 50A
• Load current / maximum discharge: 100A
• Pico current (2 min, 25 ° C:) 150A
• Depth of recommended download: 90%
• Lifetime: more than 6,000 cycles (25 ° C, 0.5c, 90% DOD, 70% EOL)
• Accumulated energy: 16Mwh 70% eOL
• Scalability: up to 64 units in parallel (327KWh), 32 without external configuration
• Communication: CAN 2.0, RS485
• Charging temperature: from 0 to 55 ° C (from -20 to 55 ° C with optional heating)
• Discharge temperature: from -20 to 55 ° C
• Degree of protection: IP20 (installation indoors)
• Assembly: Wall, floor or rack 19 "
• Dimensions: 440 x 133 x 540 mm
• Weight: 45kg
• Certifications: UN38.3, IEC 62619, EC, UKCA, VDE 2510-50, CEI 0-21, UL1973, UL9540A
• Warranty: 10 years (subject to the manufacturer's conditions)

Benefits of Hybrid Solar Kit Deye 10kW with 18 Tongwei 630W panels and 5,12kwh battery

10kw single-phase with three MPPT inputs

The SUN-10K-SG02LP1-EU-AM3 delivery 10,000W nominal and 11000VA apparent, with double peaks of its power for 10 seconds in isolated mode. Is the proper power for housing with aerotermia, , swimming pool or electric car and for small businesses that fall short with an 8kw team. Their 3 MPPT they allow distributing the panels in three independent strings, ideal for covers with various skirts or orientations. It is part of the SG02LP1 series of inverters hybrid single-phase of Deye, with 6 programmable time slots, entrance to diesel generator, , coupling AC and parallel up to 16 teams.

A field of 11,34kwp with extension margin

The 18 panels Tongwei added 11.340Wp, well below the 15.000W of the maximum fv input inverter. That leaves room for add more modules in the future if consumption increases, always respecting the tension and current limits of each MPPT. Each entry admits 26A, above the 15,33A working panel, so there is no current cut.

Double-glass N-Type panels

The modules Tongwei TNC 2.0 incorporate 132 average N-type cells, , 2.0 mm glass on both sides and iP68 connection box. Your bifiality of 80 ± 5% take advantage of the light reflected in the back side, and the linear guarantee ensures the 87.40% of the power at 30 years. Consult the entire range of solar panels.

Modular battery to grow by phases

The Deye SE-G5.1 PRO-B provides 5,12kwh nominal with chemistry LifePo4 without cobalt, , Smart BMS and format of 19 ". With a inverter capable of 220A, the system supports adding modules in parallel, up to 32 without external configuration and 64 in total, as you need it. Find more options in our category lithium batteries.

Components included

• 1 x Hybrid Inverter Deye SUN-10K-SG02LP1-EU-AM3 of 10.000W, , single-phase.
• 18 x Solar Panel Tongwei TNC 2.0 TWMNH-66HD630 of 630W, N-type bifacial.
• 1 x Lithium battery Deye SE-G5.1 PRO-B of 5,12kwh, with your series accessories: connection cable to inverter 3U-Lpcable1500, , 3u-LBCable parallel cable150, , looks for 19 "rack, , stacking brackets and wall brackets with screws.

On Tienda Solar you will find structures for solar panels for cover or floor and the rest of the electrical material for installation.

Electric kit design

Recommended configuration: 3 Strings of 6 panels

The most balanced thing is to take advantage of three MPPT with 6 series panels in each one:

• Work voltage (VMP) by String: 246,6V, within the MPPT range 150-425V.
• Tension in circuit open by String (STC:) 297V.
• Open circuit voltage estimated at -10 ° C: some 322V, calculated with the VOC coefficient -0,24%/°C, with ample margin in front of the 500V maximum.
• Current by String: 15,33A, in front of 26A by MPPT; The ISC of the panel (16,18A) it is far from the 44A supported.
• DC / AC RATIO: 1,13 (11.340WP for 10,000W nominal.)

It would also be possible to connect 2 strings of 9 panels, but the tension in open circuit on cold days, of some 483V, i would be very close to the limit of 500V of the inverter. The configuration 3 x 6 it offers more security and take the three followers.

Estimated production

With 5 hours solar peak of average and a global performance of 80%, the generator of 11,34kwp would produce some 45kwh a day of average annual, as an indicative reference. Real production will depend on the location, orientation and shadows; in the Blog Tienda Solar our experts explain step by step how to estimate it for your case.

What a single battery provides

With a module SE-G5.1 PRO-B, the system has 4.6kWh useful and a current of loading and unloading limited by the battery to 100A (50A), some 5kw from storage. In front of the 45kwh estimated newspapers, the battery keeps around a 10% of production, enough for the basic consumption of the night. If a good part of your consumption is concentrated in the afternoon, it is advisable to expand 2 or 3 batteries, which are connected in parallel with the included cables.

Who is this kit for?

Homes exceeding 8KW of demand

Homes with several simultaneous large loads, such as aerotermia, , induction and car recharge, who need a inverter of 10kw without leaping a 12KW team.

Business with consumption mainly daytime

Offices, businesses or small ships that consume especially during sun time take advantage of 11,34kwp directly, it is the most cost-effective form of self-consumption, and use the battery as support.

Installers seeking flexibility

Three MPPT, FV input margin and battery capacity 220A they allow to adapt and expand the system easily. For other powers, consult all of our solar kits or the range of inverters solar.

Frequently Asked Questions (FAQ)

1. How are the 18 panels connected to inverter Deye of 10kw?

On 3 strings of 6 panels, one by MPPT. Each String works for some 246,6V and it does not exceed the 322V in circuit open at -10 ° C. It is a configuration with wide security margin that, in addition, allows you to install each string in a different orientation.

2. Can I add more panels later?

Yes, within the limits of inverter. Admits 15,000W FV input and 2 strings by MPPT, in front of the 11.340Wp of the kit. Any extension must be calculated respecting the maximum tension of 500V and the current of 26A per entrance.

3. Is a 5,12kwh battery enough?

As a starting point, yes: it contributes 4.6kWh useful and some 5kw of discharge power. To cover the afternoon and night of a house with a inverter of 10kw, we recommend expanding 2 or 3 batteries SE-G5.1 Pro-B.

4. Does it work during a light cut?

Yes. The inverter can work on isolated feeling consumption with panels and battery, and admits twices of double their nominal power for 10 seconds. With a single battery, night autonomy is limited.

5. Can you legalize to compensate surpluses?

The inverter includes the spanish standard UNE 217002 among its network connection certifications. An authorized installer must process the legalization and compensation of surpluses, and check that your supply single-phase admits a team of 10kw.

6. What guarantee do the components have?

The tongwei panels they have 12 years of product guarantee and 30 years of linear power guarantee; the battery SE-G5.1 PRO-B, with 10 years; and the inverter Deye, with 5 or 10 years depending on the final installation site, according to the policy of each manufacturer.

7. How much space do I need on the deck?

Each panel measures 2.382 x 1.134 mm and weigh 32,2kg, so the 18 modules occupy some 49m² without counting separations. If you already have an installation with a inverter networking, the Deye supports coupling AC to integrate it.
