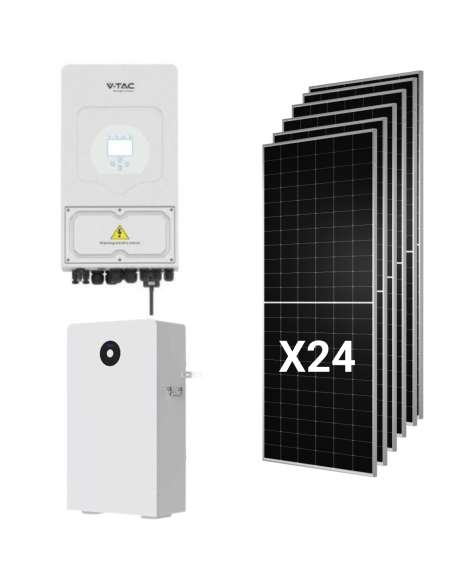

Hybrid Solar Kit Deye 12kw Single-phase With 24 Panels Tongwei 630W and Battery Deye 16kwh

Detailed technical characteristics

Full system data

• Total photovoltaic power: 15,12kwp (24 x 630w)
• Nominal output power AC: 12.000W
• Storage capacity: 16kWh Nomales / 14,4kWh useful
• Charging current / system download: 160A (battery limit; the inverter supports 250A)
• Strings configuration: 3 8 panel strings (one by MPPT)
• Type of network: Single-phase 220 / 230V (L + N + PE)

Hybrid Inverter Deye SUN-12K-SG02LP1-EU-AM3

• Nominal AC power (input / output:) 12.000W
• Maximum apparent power: 13.200VA
• Power peak in isolated mode: 2 times the nominal for 10 s
• Maximum Entry FV Power: 18.000W
• Maximum access FV power: 24.000W
• Tension FV maximum input: 500V
• Starting voltage: 125V
• MPPT voltage range: 150-425V
• Nominal FV voltage: 370V
• Number of MPPT / strings by MPPT: 3/2 + 2 + 2
• Maximum FV Operation Current: 26A + 26A + 26A
• Maximum current of short circuit: 44A + 44A + 44A
• Type of compatible battery: Lead-acid or ion-lithium
• Battery voltage range: 40-60V
• Maximum loading / unloading current: 250A
• Nominal and maximum AC current (input / output:) 54.6A / 52.2A
• Maximum continuous network step (network A consumption:) 60A
• Maximum efficiency: 97,6%
• European efficiency: 96,5%
• MPPT efficiency: more than 99%
• Harmonic distortion (THDI:) less than 3%
• Adjustable power factor: 0.8 inductive to 0.8 capacitive
• Parallel operation: up to 16 units (on-grid and off-grid)
• Protection against electric arc (AFCI:) optional
• Communication: RS485 / RS232 / CAN
• Monitoring: GPRS / WIFI / Bluetooth / 4G / LAN (optional)
• Surge protection: Type II in DC and AC
• Degree of protection: IP65
• Operating temperature: from -40 to 60 ° C (reduction of power above 45 ° C)
• Noise: less than 45db
• Refrigeration: Intelligent ventilation by air
• Topology: Transformer
• Dimensions: 420 x 670 x 233 mm
• Weight: 35,6kg
• Network regulations: UNE 217002, VDE-AR-N 4105, VDE 0126, IEC 61727/62116, CEI 0-21, G99, C10-11
• Warranty: 5 or 10 years, according to the place of final installation

Solar Panel Tongwei TNC 2.0 Twmnh-66HD630

• Maximum power (PMAX:) 630W
• Tension in open circuit (VOC:) 49,50V
• Short circuit current (ISC:) 16,18A
• Tension at the maximum power point (VMP:) 41,10V
• Current at the point of maximum power (imp:) 15,33A
• Efficiency of the module: 23,3%
• Power tolerance: 0 to + 3%
• Power BNPI (1000W / m² Frontal + 135W / m² rear:) 695,4W
• Power with rear gain of 5% / 15% / 25%: 661W / 724W / 787W
• Bribiality coefficient (PMAX:) 80 ± 5%
• PMAX temperature coefficient: -0,28%/°C
• VOC temperature coefficient: -0,24%/°C
• ISC Temperature Coefficient: + 0,046%/°C
• Type of Cell: TNC N-type, 132 stockings cells (6 x 22)
• Front glass: 2.0 mm with antireflective coating, semi-polished
• Rear glass: 2.0 mm semi-polished
• Setting: Anodized aluminum alloy
• Connection box: IP68, 3 diodes
• Cable section: 4,0mm²
• Maximum mechanical load: 5,400 PA front / 2.400 BA rear
• Maximum system tension: 1.500V DC
• Maximum fuse in series: 30A
• Operating temperature: from -40 to 70 ° C
• Dimensions: 2.382 x 1.134 x 30 mm
• Weight: 32,2kg
• Product guarantee: 12 years
• Linear power guarantee: 30 years (1% the first year, 0.4% per year; 87.40% at 30 years)

Lithium battery Deye RW-F16

• Chemistry: LiFePO4 (Lithium Ferrophosphate)
• Capacity: 314Ah
• Nominal voltage: 51,2V
• Operating voltage range: 44,8-57,6V
• Nominal energy: 16kwh
• Useful energy: 14,4kwh (90% Dod)
• Maximum continuous loading / unloading: 160A / 160A
• Current loading / unloading: 300A / 300A (10 s)
• Depth of discharge: 90%
• Lifetime: 6,000 cycles or more (25 ° C, 0.5C / 0.5C, 90% DOD, 70% EOL)
• Scalability: up to 32 units in parallel (512KWh)
• Communication: CAN 2.0, RS485
• Integrated protection: Smart BMS circuit breaker and BMS
• Charging temperature: from 0 to 55 ° C
• Discharge temperature: from -20 to 55 ° C
• Degree of protection: IP20 (installation indoors)
• Assembly: Wall or floor
• Dimensions: 480 x 830 x 235 mm (without support or base)
• Weight: 122kg
• Certifications: UN38.3, MSDS
• Warranty: 5 years

Benefits of the Solar Kit Deye 12kW with 16kwh RW-F16 battery and 24 Tongwei panels

The battery of greater capacity of this range of kits

With 16kwh nominal and 14.4kwh useful in a single module, the Deye RW-F16 it is the wider storage option of our kits Deye of 12kw. It allows to save almost one fourth part of the estimated daily production of the field of 15,12kwp and move it in the afternoon and the night. If you compare with other capabilities, visit our section of lithium batteries.

Download power for large loads

The 160A continuous of the RW-F16 equals some 8,2kw to 51,2V, and his 300a peaks for 10 seconds they absorb the compressor starts, pumps or machinery. For a large house or a small business, that's why I can keep air conditioning, , electric kitchen, , cold cameras or workshop equipment after sunset without depending on the network.

A single manufacturer in conversion and storage

The SUN-12K-SG02LP1-EU-AM3 and the RW-F16 they are understood natively by CAN: the inverter read directly the BMS battery and both are managed from the same monitoring platform. The inverter, the most powerful of the SG02LP1 series inverters hybrid single-phase of Deye, add 60a network step, , 6 programmable time slots, entrance to diesel generator, , coupling AC and parallel up to 16 teams.

15kWP spread over three MPPT

The 24 tongwei TNC 2.0 modules they are distributed in three strings of 8, one by MPPT, which allows us to take advantage of several cover orientations with minimal losses. With 132 average N-type cells, , double glass of 2.0 mm, , temperature coefficient of -0.28%/°C and bifiality of 80 ± 5%, Tongwei guarantees the 87.40% of the power at 30 years. Consult more models in our category solar panels.

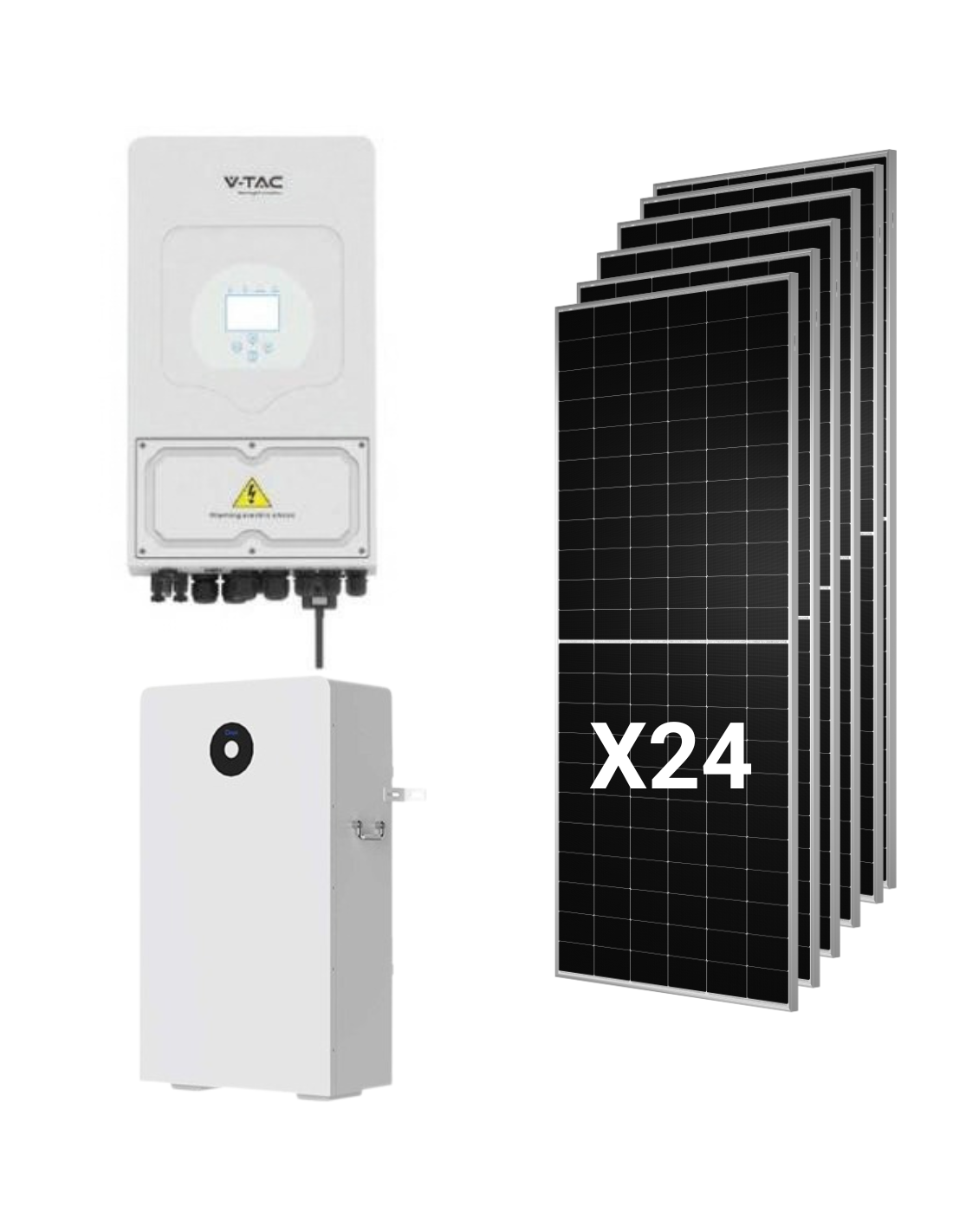

Kit content

• 1 x Hybrid Inverter Deye SUN-12K-SG02LP1-EU-AM3 of 12.000W, , single-phase.
• 24 x Tongwei Solar Panel TNC 2.0 Twmnh-66HD630 of 630W, N-type bifacial.
• 1 x Lithium battery Deye RW-F16 of 16kwh and 314Ah, with integrated automatic switch.

Complete the order in Tienda Solar with structures for solar panels for cover or floor and with all the necessary electrical material.

Calculations and configuration

Photovoltaic strings

• Configuration: 3 8 panel strings, one by MPPT.
• Tension of work by String: 328,8V, centered on the MPPT window 150-425V.
• Tension in circuit open by String: 396V in STC and some 429V at -10 ° C, with the VOC coefficient -0,24%/°C; below the maximum of 500V.
• Current by String: 15,33A, in front of 26A by MPPT; The ISC of the panel (16,18A) it is well below the 44A supported.
• Power FV: 15.120Wp upon 18.000W of maximum input, with a DC / AC ratio of 1,26.

Integration of the Battery RW-F16

The range of operation of the battery 44.8 to 57.6V, it is inside the window of 40-60V of the inverter. In this kit the current limit marks the battery, with 160A continuous, in front of the 250A of the inverter. Communication is established by CAN 2.0 or RS485.

Production, storage and autonomy

As an indicative reference, with 5 hours solar peak and a performance of 80%, the 15,12kwp would produce some 60kwh daily. The 14.4kwh useful of the battery they would cover some 14 hours with a mean night consumption of 1kw, and the rest of the production is self-conscious during the day or poured into the network. In the Blog Tienda Solar our experts explain how to calculate these values with data from your location and consumption.

Battery assembly

The RW-F16 is installed on wall or in soil, always in interior for their protection IP20. Measures 480 x 830 x 235 mm without support or base and weight 122kg, so you have to ensure that the support resists the weight and foresee at least two people for the maneuver.

Recommended applications

Small businesses with afternoon activity

Shops, restaurants, workshops or offices with prolonged schedule take advantage of the production of 15kwp during the day and the 14.4kwh useful to cover the latest hours of activity and consumption that are lit at night.

Large housing fully electrified

Houses with aerotermia, , swimming pool, , electric car and induction they need at the same time generation, power of inverter and storage; this kit brings together the three on the scale of 12kw.

Installers who work with Deye

A single manufacturer system in inverter and Battery simplifies the configuration, monitoring and after-sales. For other combinations, consult all of our solar kits or the full range of inverters solar.

Frequently Asked Questions (FAQ)

1. Why choose the RW-F16 battery in a 12KW kit?

Because it combines 14.4kwh useful with 160A continuous and 300A of peak, the greatest capacity of our kits Deye of 12kw, in a single module and with native communication with the inverter.

2. Can the battery cover the 12KW of the inverter?

Not completely. Surrender 8.2kw continuous at nominal tension, sufficient for most loads of a large house or a small business. The superior consumption without sun are covered from the network thanks to 60a network step, or expanding the bank with more batteries in parallel.

3. Can storage be expanded?

Yes. The RW-F16 supports up to 32 units in parallel, with a maximum of 512kwh. With a second unit, the current available exceeds 250A that manages the inverter.

4. How do the 24 panels connect?

On 3 8 panel strings, one by MPPT. Each String works for some 328,8V and it does not exceed the 429V in circuit open at -10 ° C. Having independent MPPT, each String can be oriented differently.

5. Does it work for a blackout?

Yes. The inverter works at isolated with the energy of the panels and the battery, and it admits twices of double their nominal power for 10 seconds. With 14.4kwh useful, autonomy is the greatest of our kits Deye of 12kw.

6. Is it legalizable to compensate surpluses?

The inverter includes the spanish standard UNE 217002 among its network connection certifications. An authorized installer must process legalization and compensation, and verify that supply single-phase admits a team of 12kw.

7. What guarantees do the components have?

Tongwei panels: 12 years of product and 30 years of linear power. . Drums Deye RW-F16: 5 years. . Inverter Deye: 5 or 10 years, depending on the final installation site. The 24 panels occupy some 65m² deck, not counting separations.
