Hybrid Solar Kit Deye 12kw Single-phase With 24 panels Tongwei 630W and Battery V-TAC 14,33KWh

Detailed technical characteristics

Full system data

• Total photovoltaic power: 15,12kwp (24 x 630w)
• Nominal output power AC: 12.000W
• Storage capacity: 14,33kwh nominal (a few 12,9kwh at 90% dod, estimated value)
• Charging current / system download: 140A (battery limit; the inverter supports 250A)
• Strings configuration: 3 8 panel strings (one by MPPT)
• Type of network: Single-phase 220 / 230V (L + N + PE)

Hybrid Inverter Deye SUN-12K-SG02LP1-EU-AM3

• Nominal AC power (input / output:) 12.000W
• Maximum apparent power: 13.200VA
• Power peak in isolated mode: 2 times the nominal for 10 s
• Maximum Entry FV Power: 18.000W
• Maximum access FV power: 24.000W
• Tension FV maximum input: 500V
• Starting voltage: 125V
• MPPT voltage range: 150-425V
• Nominal FV voltage: 370V
• Number of MPPT / strings by MPPT: 3/2 + 2 + 2
• Maximum FV Operation Current: 26A + 26A + 26A
• Maximum current of short circuit: 44A + 44A + 44A
• Type of compatible battery: Lead-acid or ion-lithium
• Battery voltage range: 40-60V
• Maximum loading / unloading current: 250A
• Nominal and maximum AC current (input / output:) 54.6A / 52.2A
• Maximum continuous network step (network A consumption:) 60A
• Maximum efficiency: 97,6%
• European efficiency: 96,5%
• MPPT efficiency: more than 99%
• Harmonic distortion (THDI:) less than 3%
• Adjustable power factor: 0.8 inductive to 0.8 capacitive
• Parallel operation: up to 16 units (on-grid and off-grid)
• Protection against electric arc (AFCI:) optional
• Communication: RS485 / RS232 / CAN
• Monitoring: GPRS / WIFI / Bluetooth / 4G / LAN (optional)
• Surge protection: Type II in DC and AC
• Degree of protection: IP65
• Operating temperature: from -40 to 60 ° C (reduction of power above 45 ° C)
• Noise: less than 45db
• Refrigeration: Intelligent ventilation by air
• Topology: Transformer
• Dimensions: 420 x 670 x 233 mm
• Weight: 35,6kg
• Network regulations: UNE 217002, VDE-AR-N 4105, VDE 0126, IEC 61727/62116, CEI 0-21, G99, C10-11
• Warranty: 5 or 10 years, according to the place of final installation

Solar Panel Tongwei TNC 2.0 Twmnh-66HD630

• Maximum power (PMAX:) 630W
• Tension in open circuit (VOC:) 49,50V
• Short circuit current (ISC:) 16,18A
• Tension at the maximum power point (VMP:) 41,10V
• Current at the point of maximum power (imp:) 15,33A
• Efficiency of the module: 23,3%
• Power tolerance: 0 to + 3%
• Power BNPI (1000W / m² Frontal + 135W / m² rear:) 695,4W
• Power with rear gain of 5% / 15% / 25%: 661W / 724W / 787W
• Bribiality coefficient (PMAX:) 80 ± 5%
• PMAX temperature coefficient: -0,28%/°C
• VOC temperature coefficient: -0,24%/°C
• ISC Temperature Coefficient: + 0,046%/°C
• Type of Cell: TNC N-type, 132 stockings cells (6 x 22)
• Front glass: 2.0 mm with antireflective coating, semi-polished
• Rear glass: 2.0 mm semi-polished
• Setting: Anodized aluminum alloy
• Connection box: IP68, 3 diodes
• Cable section: 4,0mm²
• Maximum mechanical load: 5,400 PA front / 2.400 BA rear
• Maximum system tension: 1.500V DC
• Maximum fuse in series: 30A
• Operating temperature: from -40 to 70 ° C
• Dimensions: 2.382 x 1.134 x 30 mm
• Weight: 32,2kg
• Product guarantee: 12 years
• Linear power guarantee: 30 years (1% the first year, 0.4% per year; 87.40% at 30 years)

V-TAC LITHIUM BATTERY VT-14033

• Type: Ion-lithium battery, structure 16 cells in series (16S1P)
• Nominal capacity: 280Ah
• Nominal voltage: 51,2V
• Nominal energy: 14,33kwh
• Standard loading / unloading current: 130A
• Maximum loading / discharge continuous current: 140A
• Standard load voltage: 57,6V
• Load limit voltage: 57,6V
• End voltage discharge: 43,2V
• Recommended load method: 130a constant current until 57,6V and constant voltage of 57.6V until 14A
• Internal resistance: 16mω
• Lifetime: 8,000 cycles or more (25 ° C, 90% DOD; 80% EOL)
• Communication: CAN
• Charging temperature: from 0 to 60 ° C
• Discharge temperature: from -20 to 60 ° C
• Degree of protection: IP20 (installation indoors)
• Dimensions (background x wide x high:) 660 x 154 x 900 mm
• Available colors: White (SKU 12713) and Black (SKU 12714)

Benefits of the Solar Kit Deye 12kW with battery V-TAC 14,33KWh and 24 panels Tongwei

Large capacity storage without multiplic equipment

To approach the 14,33kwh of the V-TAC VT-14033 with 5KWh modules, three batteries would be needed, with their parallel cables and their space. Here everything fits in a single team of 280Ah, with a single connection to inverter and communication by CAN. Fewer connection points means a faster assembly and fewer elements than to review in maintenance. See other storage options in our section lithium batteries.

More nocturnal power from a single battery

With 140A continuous and 130A standard current, the V-TAC can deliver around 7,2kw at nominal tension, more than double a 5KWh module working on its recommended current. In a inverter of 12kw, that allows you to keep a good part of the usual load of a large home or a small business. Your internal resistance of 16MΩ it limits losses when it works at high currents.

Inverter Deye 12kW with three MPPT

The SUN-12K-SG02LP1-EU-AM3 it is the most powerful model of the SG02LP1 single-phase series inverters hybrid of Deye. Offers 12,000W nominal, , double peaks of its power for 10 seconds, , 60a network step, , 6 programmable time slots, entrance to diesel generator and operating in parallel up to 16 teams. Their 3 26A MPPT receive the 24 panels in three strings of 8 without cutting current.

24 double glass Tongwei panels

The modules TNC 2.0 combine 132 average N-type cells, , 2.0 mm glass on both sides and iP68 connection box, with bifiality of 80 ± 5% and a linear guarantee that ensures the 87.40% of the power at 30 years. Discover the full range of solar panels.

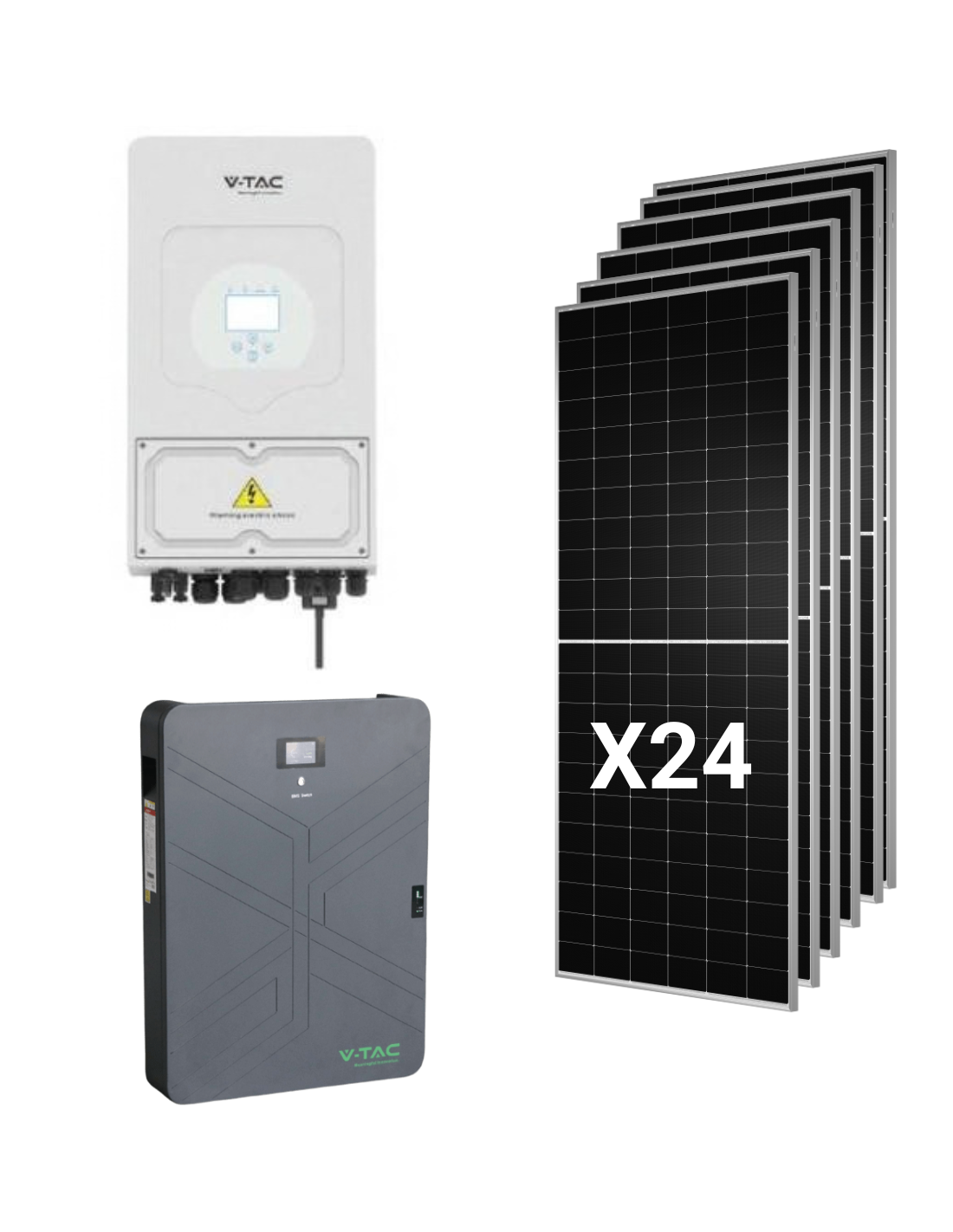

Kit content

• 1 x Hybrid Inverter Deye SUN-12K-SG02LP1-EU-AM3 of 12.000W, , single-phase.
• 24 x Tongwei Solar Panel TNC 2.0 Twmnh-66HD630 of 630W, N-type bifacial.
• 1 x V-TAC LITHIUM BATTERY VT-14033 of 14,33kwh and 280Ah to 51,2V.

Complete installation in Tienda Solar with our structures for solar panels for cover or floor and with the wiring and the necessary protections.

Technical System Details

FV field: Three Strings of eight modules

Each of the 3 MPPT receive 8 panels in series. At the point of maximum power, each string works 328,8V, within the MPPT range 150-425V. In open circuit, the tension is 396V in STC and some 429V at -10 ° C, calculated with the VOC coefficient -0,24%/°C, with margin in front of the 500V maximum. The work stream, 15,33A, he is loose in front of the 26A per entrance, and the 15.120Wp from the field enter the maximum FV power of 18,000W, with a DC / AC ratio of 1,26.

V-TAC battery with inverter Deye

The battery voltage window 43,2V to 57,6V, fits in the battery range of inverter, of 40-60V, and communication is done by CAN. The current limit is fixed by the battery, with 140A, in front of the 250A admit inverter. V-TAC recommends a load to 130A in constant current until 57,6V, followed by constant tension until the current descends 14A.

Production and Reference Autonomy

With 5 hours solar peak of average and a global performance of 80%, the field of 15,12kwp would produce some 60kwh a day. To 90% depth of discharge reference, the battery would offer some 12,9kWh Usage (estimate from its nominal capacity), near a fifth of that production, and some 13 hours supply with a medium night consumption of 1kw. These figures are guidance; in the Blog Tienda Solar you will find guides from our experts to adjust the dimensioning to your real consumption.

Battery location

The VT-14033 measures 660 x 154 x 900 mm (background x wide x high) and has iP20 Protection, so it should be installed in interior. Admits load between 0 and 60 ° C and download between -20 and 60 ° C.

Who is it going?

Business with continued consumption

Offices, businesses or workshops that maintain lit teams at the end of the day (cold chambers, servers, alarms or lighting) take advantage of the 14,33kwh battery after a day of production 15kwp.

Large homes with high demand in the afternoon

Houses with aerotermia, , induction and air conditioning that concentrate a good part of the consumption by falling the sun find a capacity and a discharge power in this battery very higher than those of a small module.

Installers who want to simplify assembly

A single large capacity battery and a validated Strings configuration reduce installation hours. For other combinations, consult all of our solar kits or the range of inverters solar.

Frequently Asked Questions (FAQ)

1. What power can V-TAC battery deliver with the inverter of 12kw?

Until 140A continuous, some 7,2kw at nominal tension. The inverter supports 250A, so in this kit the limit marks the battery. Consumptions that exceed that sun-out power are covered from the network, thanks to 60a network step of the inverter.

2. How much energy can I use the battery?

Nominal capacity is 14,33kwh. Take the 90% depth of discharge with which V-TAC defines its useful life, they get some 12,9kwh usage by cycle. The final figure depends on the discharge configuration of the inverter.

3. How are the 24 panels between MPPT?

On 3 8 panel strings, one by MPPT. Each String works for some 328,8V and it does not exceed the 429V in circuit open at -10 ° C. As the MPPTs are independent, each String can be installed in a different orientation.

4. Does it maintain the supply during a blackout?

Yes. The inverter can operate in isolated with the energy of the panels and the battery, and it admits twices of double their nominal power for 10 seconds. Autonomy will depend on the connected charge and battery status.

5. Is it legalizable to compensate surpluses?

The inverter includes the spanish standard UNE 217002 among its network connection certifications. Legalization and surplus compensation should be processed with an authorized installer, which will also check that supply single-phase admits a team of 12kw.

6. What guarantee do the components have?

The tongwei panels offer 12 years of product guarantee and 30 years of linear power guarantee, and the inverter Deye, , 5 or 10 years according to the final installation site. The V-TAC battery is covered by the manufacturer's warranty; Consult us the current conditions before buying.

7. How much surface do panels need?

The 24 modules 2.382 x 1.134 mm and 32,2kg each, they occupy some 65m² without counting separations. If you have a previous installation with a inverter networking, the Deye supports coupling AC to integrate it.
