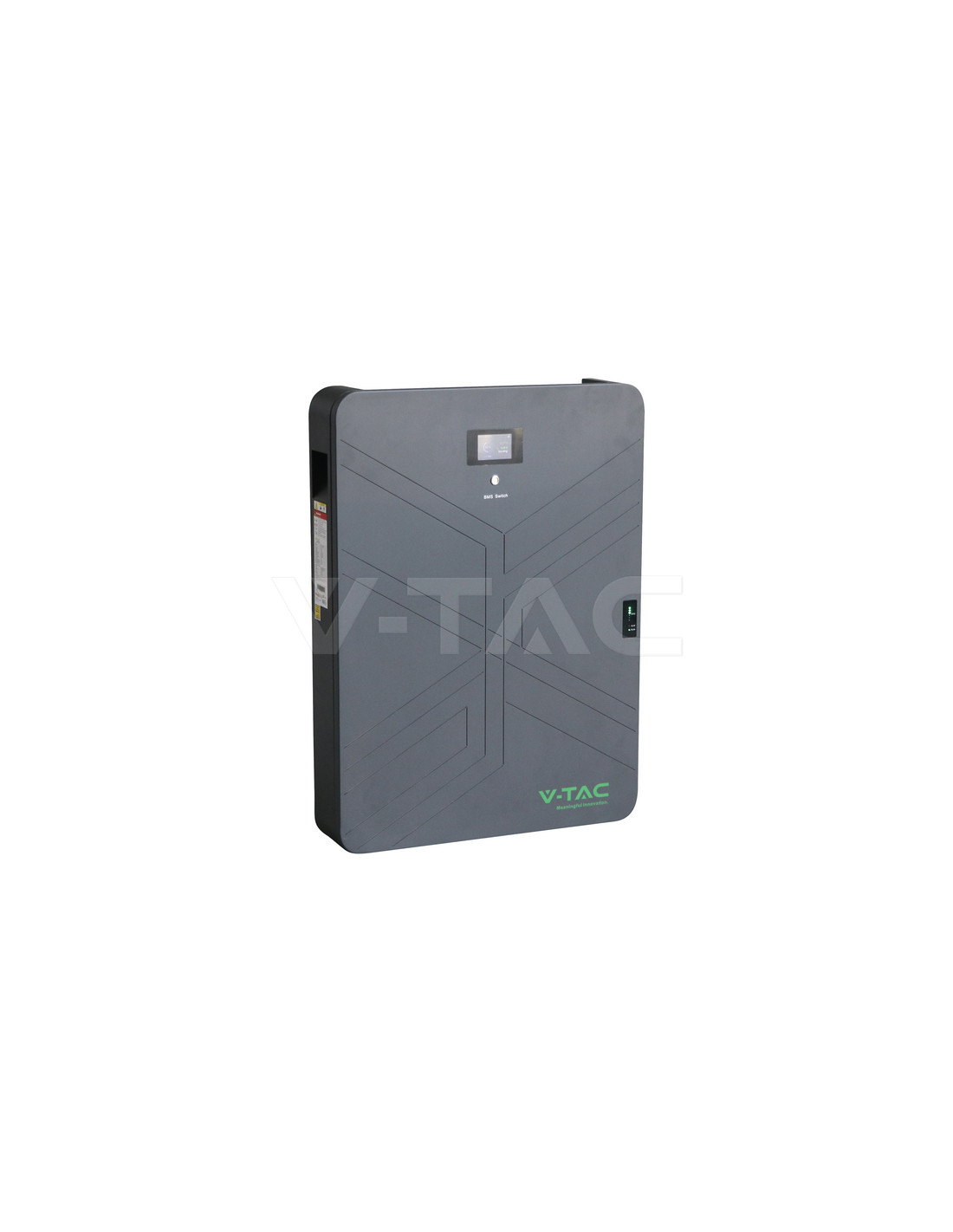

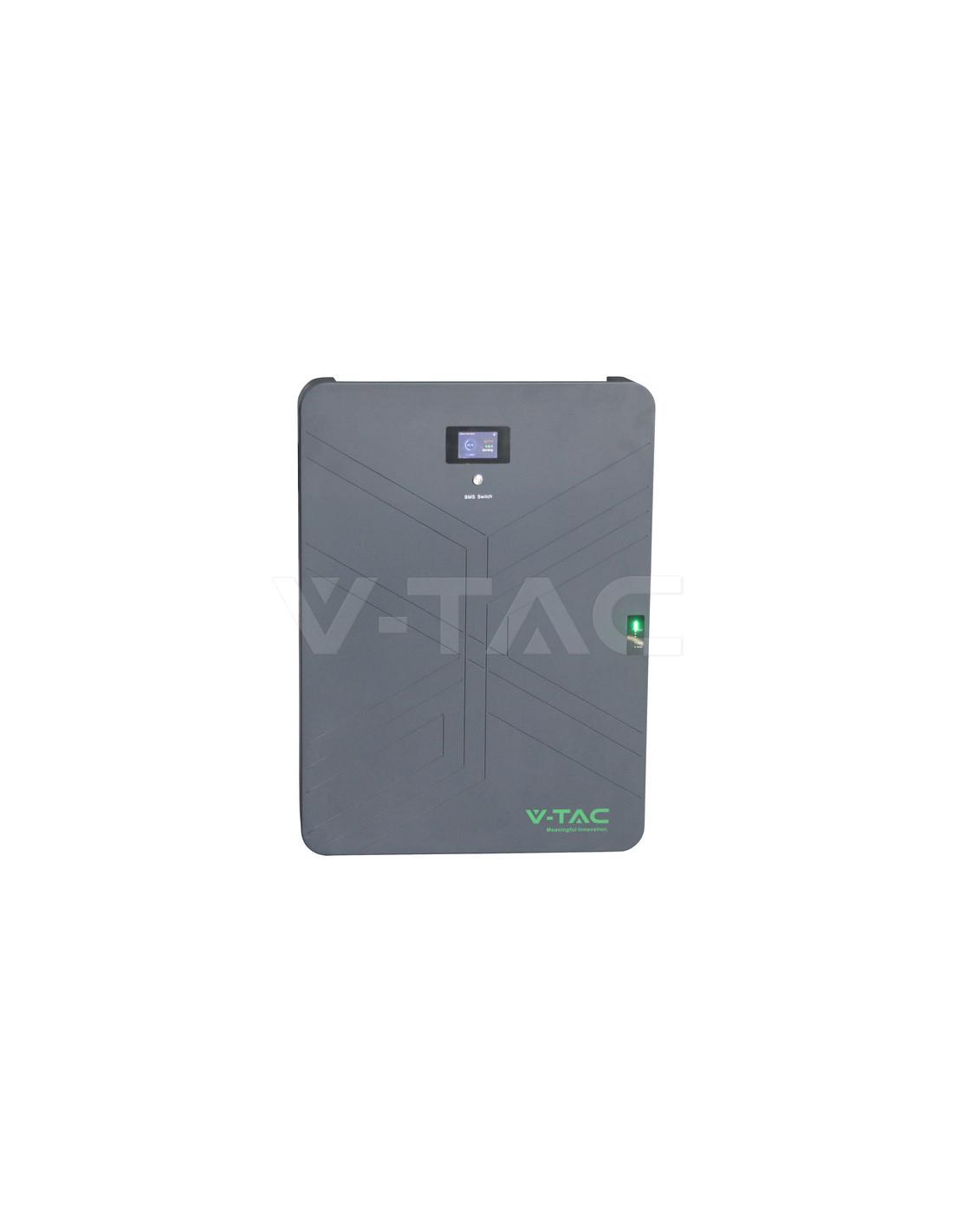

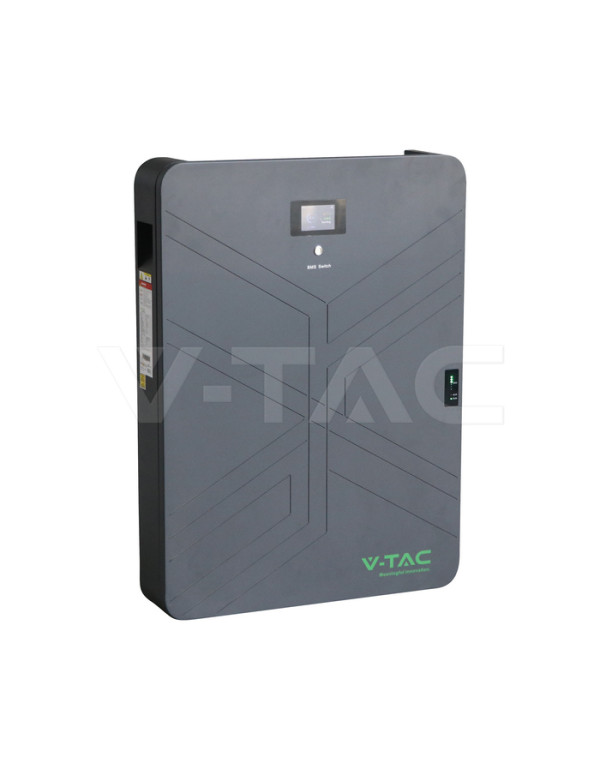

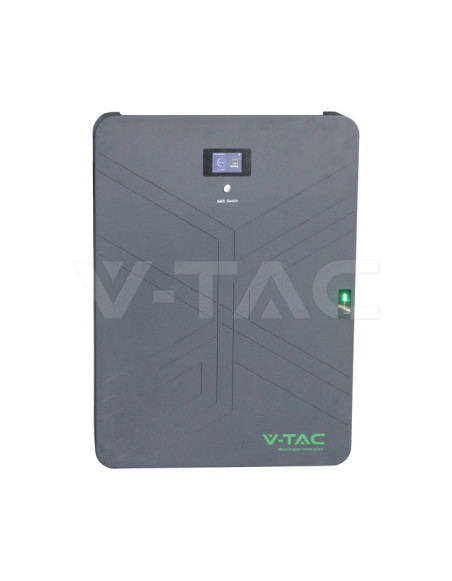

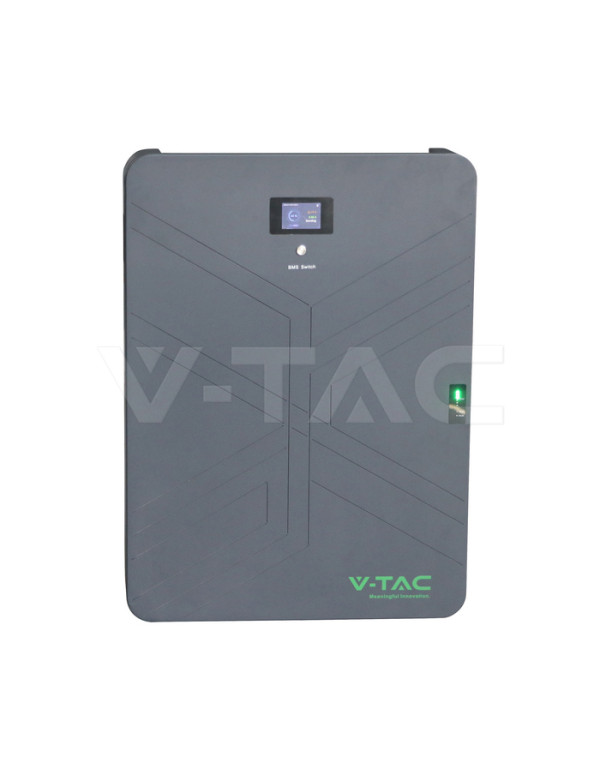

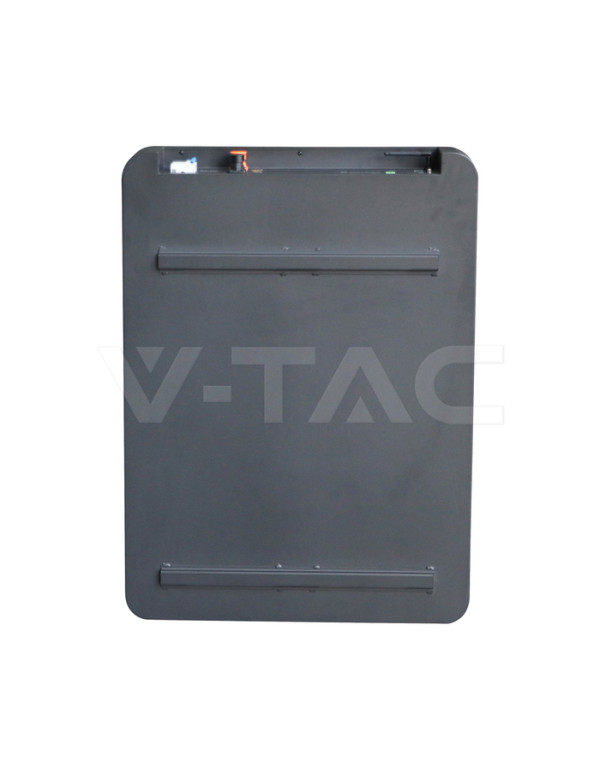

Lithium battery V-TAC 14.33KWH VT-14033 black

Benefits of Lithium Battery V-TAC VT-14033

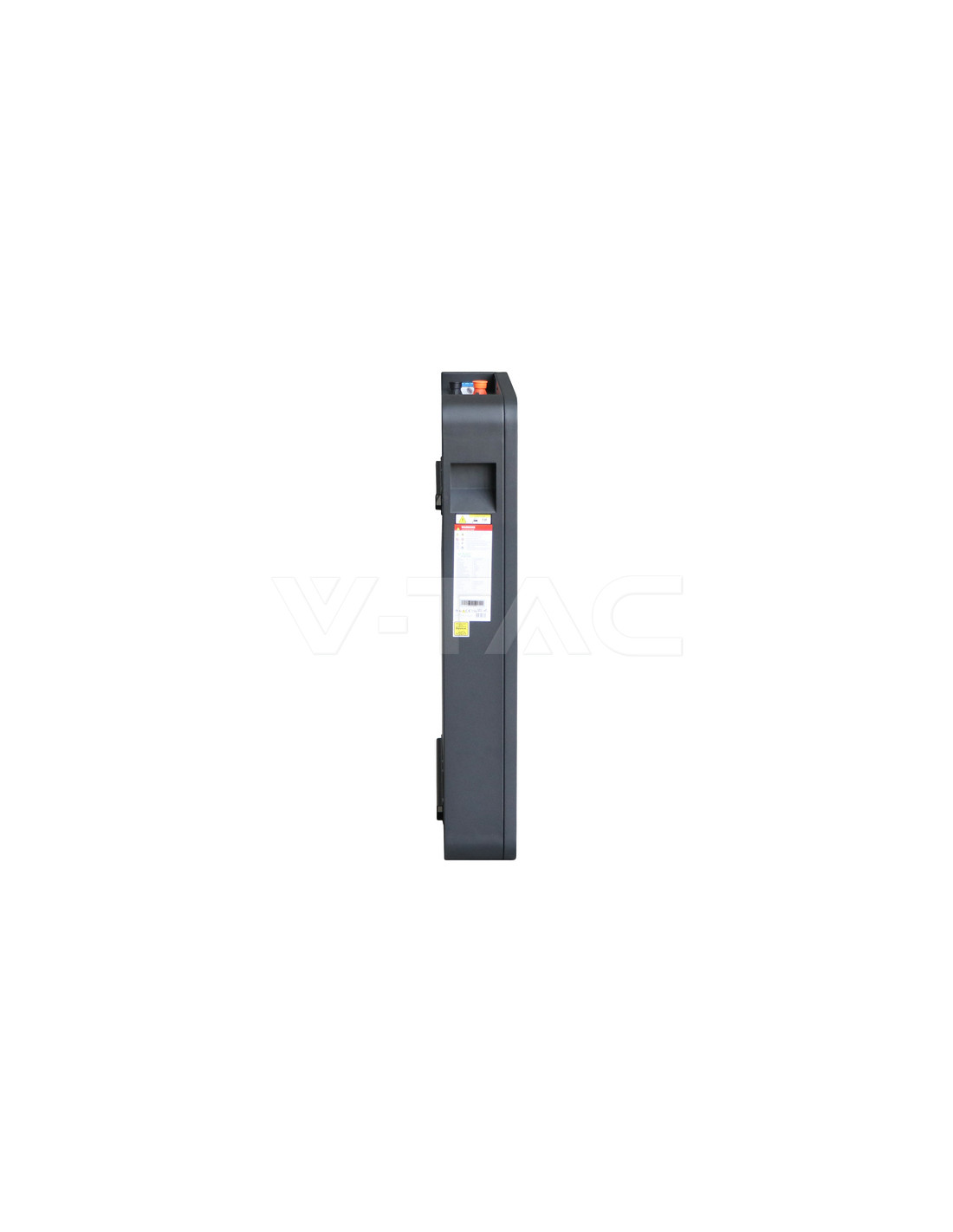

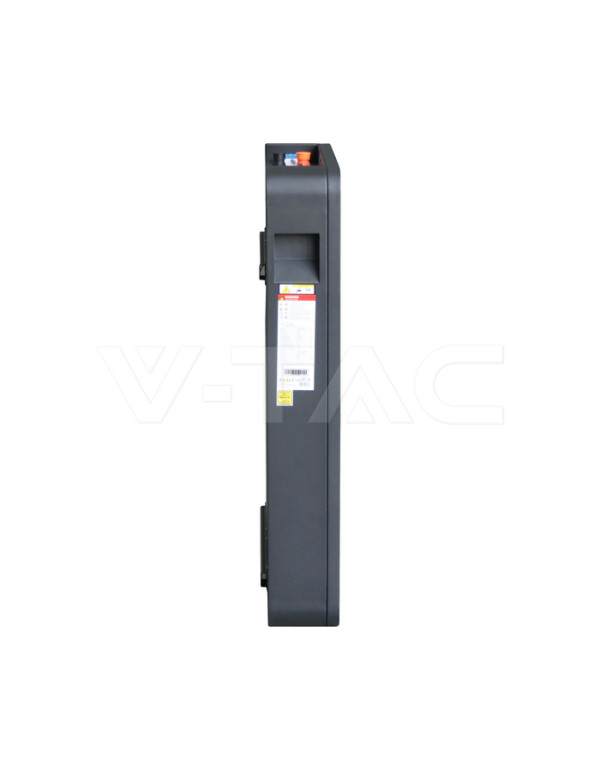

The most distinctive feature of this lithium battery is your design ultra slim: with only 154mm background, it is significantly thinner than most wall batteries in the market, facilitating its installation in corridors, storage rooms or technical rooms where the available space is limited, without renouncing a considerable capacity of 14,33kwh.

Your Lifecycle of 8000 cycles 90% of DOD exceeds many of many lithium batteries conventional market (usually around 6000 cycles), also guaranteeing that the battery retains at least the 80% of its original capacity at the end of its useful life. This combination of high discharge and high number of cycles converts it into a specially profitable long-term option for residential self-consumption installations.

With a Duty current of up to 140a, this battery can complement without problems inverters hybrid of high power, while its color finish black It offers an aesthetic alternative other than the usual white batteries, for those seeking to integrate the equipment more discreetly in spaces with dark furniture.

Important: Installation in interior

Unlike other V-TAC range batteries with protection Ip65 suitable for outdoor, the VT-14033 has a Degree of protection IP20, which means that must be installed exclusively in interior, Protected from moisture, water and environmental dust. Keep this in mind when planning the battery location within your installation.

Detailed technical characteristics

• Nominal capacity: 280ah
• Nominal voltage: 51.2v
• Nominal energy: 14,33kwh
• Standard load current: 130a
• Standard discharge current: 130a
• Maximum continuous load current: 140a
• Maximum continuous discharge current: 140a
• Communication: Can
• Internal resistance: 16mω
• Dimensions (background x wide x high): 660 x 154 x 900mm
• Degree of protection: IP20 (use indoors)
• Charging temperature range: 0 ° C ~ 60 ° C
• Discharge temperature range: -20 ° C ~ 60 ° C
• Standard load voltage: 57.6v
• Load limit voltage: 57.6v
• End voltage discharge: 43.2v
• Lifecycle: ≥8000 Cycles at 25 ° C, 90% DOD
• End of use (EOL): ≥8000 Cycles at 25 ° C, 80% EOL
• Structure: 16 cells in series, 1 in parallel
• Color: black
• Model: Vt-14033
• SKU code: 12714

Frequently Asked Questions (FAQ)

1. Can I install this battery on the outside?
No, your Degree of protection IP20 It is designed exclusively for installation in interior, Protected from moisture and environmental dust.

2. How many life cycles does this lithium battery offer?
Offers a life cycle of at least 8000 cycles At 90% depth of discharge (DOD), maintaining 80% of its original capacity at the end of its useful life.

3. What loading method does the manufacturer recommend?
The manufacturer recommends loading to constant current of 130a until reaching 57.6V, and then keep a Constant voltage of 57.6V Until the load current goes down to 14a.

4. Is it available in other colors?
Yes, this model VT-14033 is also available in finish white (same model code, different SKU).

5. With what inverters Is it compatible?
Communicate through Protocol Can, compatible with most inverters hybrid of the market that support this communication protocol. Consult more technical content in the Blog Tienda Solar.
