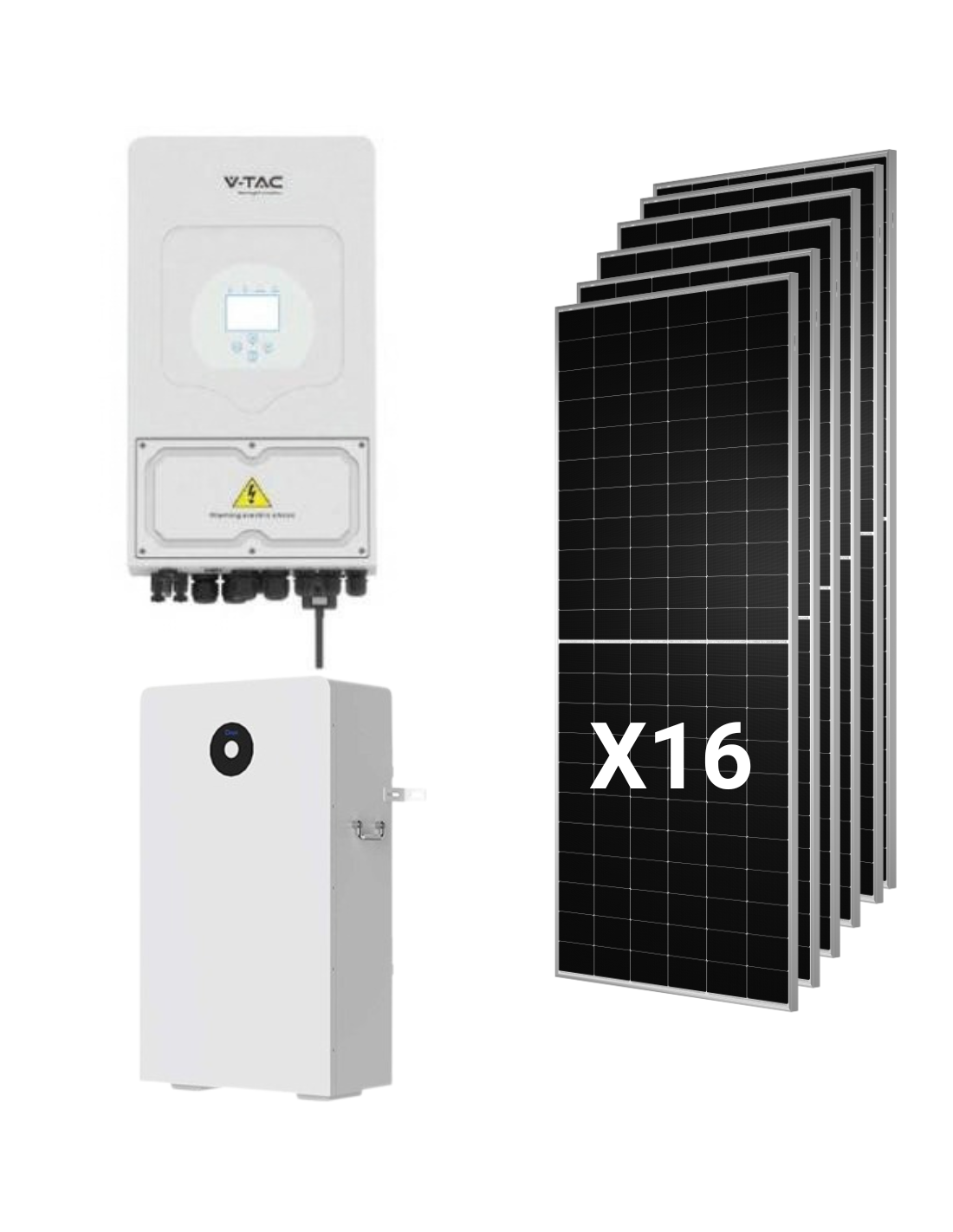

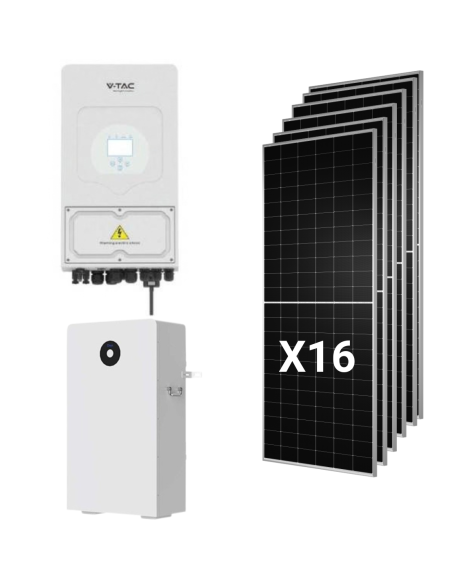

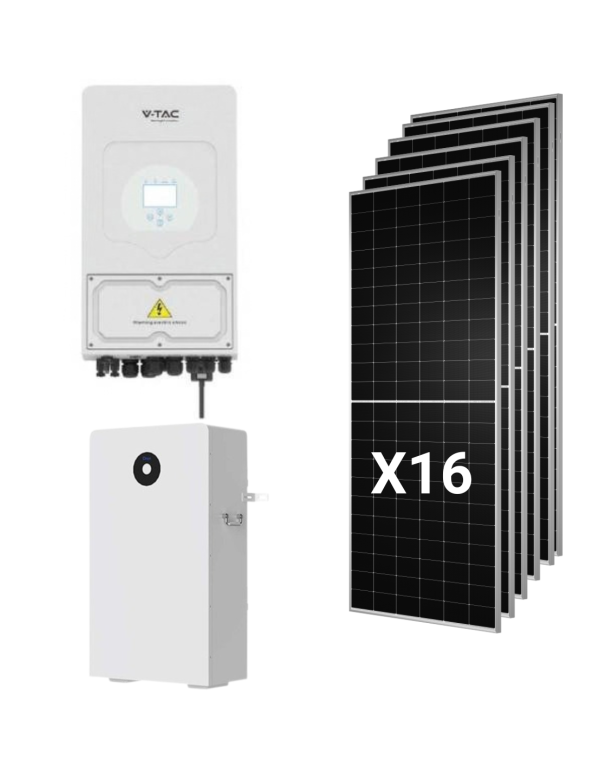

Hybrid Solar Kit Deye 8kw Single-phase with 16 Tongwei 630W panels and battery Deye 16kwh

Detailed technical characteristics

Full system data

• Total photovoltaic power: 10,08kwp (16 x 630w)
• Nominal output power AC: 8.000W
• Storage capacity: 16kWh Nomales / 14,4kWh useful
• Charging current / system download: 160A (battery limit; the inverter supports 190A)
• Strings configuration: 2 8-panel strings
• Type of network: Single-phase 220 / 230V (L + N + PE)

Hybrid Inverter Deye SUN-8K-SG05LP1-EU

• Nominal AC power (input / output:) 8.000W
• Maximum apparent power: 8.800VA
• Power peak in isolated mode: 2 times the nominal for 10 s
• Maximum Entry FV Power: 10.400W
• Tension FV maximum input: 500V
• Starting voltage: 125V
• MPPT voltage range: 150-425V
• Nominal FV voltage: 370V
• Number of MPPT / strings by MPPT: 2/2 + 2
• Maximum FV Operation Current: 26A + 26A
• Maximum current of short circuit: 34A + 34A
• Type of compatible battery: Lead-acid or ion-lithium
• Battery voltage range: 40-60V
• Maximum loading / unloading current: 190A
• Nominal current AC (input / output:) 36.4A / 34.8A
• Maximum efficiency: 97,6%
• European efficiency: 96,5%
• MPPT efficiency: more than 99%
• Harmonic distortion (THDI:) less than 3%
• Adjustable power factor: 0.8 inductive to 0.8 capacitive
• Parallel operation: up to 16 units (on-grid and off-grid)
• Communication: RS485 / RS232 / CAN
• Monitoring: GPRS / WIFI / Bluetooth / 4G / LAN (optional)
• Surge protection: Type II in DC and AC
• Degree of protection: IP65
• Operating temperature: from -40 to 60 ° C (reduction of power above 45 ° C)
• Noise: less than 30db
• Refrigeration: Intelligent ventilation by air
• Topology: Transformer
• Dimensions: 330 x 580 x 232 mm
• Weight: 24,9kg
• Network regulations: IEC 61727, IEC 62116, CEI 0-21, EN 50549, RD 140, UNE 217002, VDE-AR-N 4105, G99
• Warranty: 5 or 10 years, according to the place of final installation

Solar Panel Tongwei TNC 2.0 Twmnh-66HD630

• Maximum power (PMAX:) 630W
• Tension in open circuit (VOC:) 49,50V
• Short circuit current (ISC:) 16,18A
• Tension at the maximum power point (VMP:) 41,10V
• Current at the point of maximum power (imp:) 15,33A
• Efficiency of the module: 23,3%
• Power tolerance: 0 to + 3%
• Power BNPI (1000W / m² Frontal + 135W / m² rear:) 695,4W
• Power with rear gain of 5% / 15% / 25%: 661W / 724W / 787W
• Bribiality coefficient (PMAX:) 80 ± 5%
• PMAX temperature coefficient: -0,28%/°C
• VOC temperature coefficient: -0,24%/°C
• ISC Temperature Coefficient: + 0,046%/°C
• Type of Cell: TNC N-type, 132 stockings cells (6 x 22)
• Front glass: 2.0 mm with antireflective coating, semi-polished
• Rear glass: 2.0 mm semi-polished
• Setting: Anodized aluminum alloy
• Connection box: IP68, 3 diodes
• Cable section: 4,0mm²
• Maximum mechanical load: 5,400 PA front / 2.400 BA rear
• Maximum system tension: 1.500V DC
• Maximum fuse in series: 30A
• Operating temperature: from -40 to 70 ° C
• Dimensions: 2.382 x 1.134 x 30 mm
• Weight: 32,2kg
• Product guarantee: 12 years
• Linear power guarantee: 30 years (1% the first year, 0.4% per year; 87.40% at 30 years)

Lithium battery Deye RW-F16

• Chemistry: LiFePO4 (Lithium Ferrophosphate)
• Capacity: 314Ah
• Nominal voltage: 51,2V
• Operating voltage range: 44,8-57,6V
• Nominal energy: 16kwh
• Useful energy: 14,4kwh (90% Dod)
• Maximum continuous loading / unloading: 160A / 160A
• Current loading / unloading: 300A / 300A (10 s)
• Depth of discharge: 90%
• Lifetime: 6,000 cycles or more (25 ° C, 0.5C / 0.5C, 90% DOD, 70% EOL)
• Scalability: up to 32 units in parallel (512KWh)
• Communication: CAN 2.0, RS485
• Integrated protection: Smart BMS circuit breaker and BMS
• Charging temperature: from 0 to 55 ° C
• Discharge temperature: from -20 to 55 ° C
• Degree of protection: IP20 (installation indoors)
• Assembly: Wall or floor
• Dimensions: 480 x 830 x 235 mm (without support or base)
• Weight: 122kg
• Certifications: UN38.3, MSDS
• Warranty: 5 years

Benefits of the Solar Kit Deye 8kw with battery Deye RW-F16 16KWH and 16 panels Tongwei

Balance between generation, power and storage

In this kit the three components are sized on the same scale. The 10,08kwp of panels produce around 40kwh daily of reference, the inverter managed by 8kw of output and battery guard 14.4kwh useful, more than a third of that production. Unlike versions with small batteries, here the storage is not short or energy or power.

A battery capable of moving the inverter full

The Deye RW-F16 delivery 160A continuous and 300A peak for 10 seconds. TO 51,2V nominal, that is equivalent to some 8,2kw sustained, in line with the 8.000W nominal inverter. At night or during a blackout, the house can continue running with aerotermia, , induction or oven without depending on the network. Discover other capabilities in our category lithium batteries.

Ecosystem Deye from start-end

Being inverter and battery of the same manufacturer, communication by CAN is direct, the BMS it is integrated without adaptations and the battery status is consulted from the same monitoring platform. The SUN-8K-SG05LP1-EU, top model of the SG05LP1 series inverters hybrid single-phase of Deye, add 6 programmable time slots, entrance to diesel generator and compliance with RD 140 and UNE 217002.

Tongwei panels at full power

The 16 panels TNC 2.0 they work 15,33A, below the 26A by MPPT inverter, so all its power reaches the team even at noon. With 132 average N-type cells, , double glass of 2.0 mm, , temperature coefficient of -0.28%/°C and bifiality of 80 ± 5%, Tongwei guarantees the 87.40% of the power at 30 years. More models in our section of solar panels.

What includes the kit

• 1 x Hybrid Inverter Deye SUN-8K-SG05LP1-EU of 8.000W, , single-phase.
• 16 x Tongwei TNC 2.0 Solar Panel TWMNH-66HD630 of 630W, N-type bifacial.
• 1 x Lithium battery Deye RW-F16 of 16kwh and 314Ah, with integrated automatic switch.

On Tienda Solar you can complete the installation with structures for solar panels for tilted, flat or floor cover, and with all the necessary electrical material.

Key data for the installer

Fotovoltaic field: 2 x 8 modules

Each MPPT receives a series of 8 panels. In operation, each series is situated in 328,8V, in the center of the MPPT window of 150-425V; in open circuit reaches 396V in STC and some 429V at -10 ° C, calculated with the VOC coefficient -0,24%/°C, below the 500V maximum. The current of each series (15,33A) it is loose in front of the 26A per entrance, and the 10.080Wp totals fit in the fV input from 10,400w, with a DC / AC ratio of 1,26.

Battery RW-F16 E inverter SUN-8K

The battery work tension 44.8 to 57.6V, it is inside the battery range of inverter, of 40-60V. In this kit the current limit is fixed by the battery, with 160A continuous, in front of the 190A admit inverter. Communication is done by CAN 2.0 or RS485.

Production, storage and autonomy

As a reference, with 5 hours solar peak and a global performance of 80%, the field of 10,08kwp would generate some 40kwh a day of average annual. With 14.4kwh useful, the battery stores around a 36% of that energy, and with a mean night consumption of 1kw it would offer some 14 hours of autonomy These figures are guidance; in the Blog Tienda Solar our experts publish guides to calculate production and consumption with real data from your home.

Battery assembly

The RW-F16 notices on wall or it is placed in soil, always in interior for their protection IP20. Measures 480 x 830 x 235 mm without support or base and weight 122kg, so it is advisable to verify the supporting capacity of the support and foresee at least two people for installation.

Use

Fully electrified homes

Houses with aerotermia, , induction, , air conditioning and electric car, which need generation, power and storage to the same measure.

Maximum independence of the network

With 14.4kwh useful and a battery capable of holding the nominal power of the inverter, the kit covers most of the night consumption and offers a solid backup in isolated before supply cuts.

Installers who work with solutions Deye

A single manufacturer for inverter and Battery simplifies the configuration, monitoring and after-sales. If you are looking for other combinations, review all our solar kits or the range of inverters solar.

Frequently Asked Questions (FAQ)

1. Is the battery Deye RW-F16 suitable for a inverter of 8kw?

Yes. Admits 160A continuous, some 8,2kw at nominal tension, and 300a peaks for 10 seconds, so you can accompany SUN-8K-SG05LP1-EU in practically all its nominal power. It is the most balanced combination of this kit.

2. What difference is there against the kit Deye 8kw with 5,12kwh batteries?

The RW-F16 offers 14.4kwh useful in a single team, in front of the 4,6kwh of a SE-G5.1 Pro-B module, with more discharge power and a single connection to inverter. In return, weigh 122kg and your guarantee is 5 years, compared to 10 years of SE-G5.1 Pro-B.

3. Can I expand storage?

Yes. The RW-F16 supports up to 32 units in parallel, up to a maximum of 512kwh, and the inverter allows you to work in parallel with up to 16 teams.

4. How are the 16 panels connected?

On two series of 8 panels, one by MPPT. Each series works for some 328,8V and it does not exceed the 429V in circuit open at -10 ° C, below the limit of 500V of the inverter.

5. Does it work for a blackout?

Yes. The inverter can operate in isolated with panels and battery, and supports twices of double their nominal power for 10 seconds. With 14.4kwh useful, is the configuration with the most autonomy of the kits Deye of 8kw.

6. What guarantees does each component have?

Tongwei panels: 12 years of product and 30 years of linear power. . Drums Deye RW-F16: 5 years. . Inverter Deye: 5 or 10 years, depending on the final installation site. The conditions of each manufacturer apply.

7. Can I legalize the kit and compensate surpluses?

Yes. The inverter complies with the regulations RD 140 and UNE 217002. The legalization and processing of surplus compensation must be made through an authorized installer. The 16 panels occupy some 43m² deck, not counting separations.
