Hybrid Solar Kit Deye 6kw Single-phase with 12 panels Tongwei 630W and 2 Batteries 5,12KWh

Detailed technical characteristics

Full system data

• Total photovoltaic power: 7,56kwp (12 x 630w)
• Nominal output power AC: 6.000W
• Storage capacity: 10,24kWh Nomales / 9,2kWh useful (2 x 5,12kwh)
• Maximum current of the battery bank: 200A limited 135A for him inverter)
• Strings configuration: 2 strings of 6 panels
• Type of network: Single-phase 220 / 230V (L + N + PE)

Hybrid Inverter Deye SUN-6K-SG05LP1-EU

• Nominal AC power (input / output:) 6.000W
• Maximum apparent power: 6.600VA
• Power peak in isolated mode: 2 times the nominal for 10 s
• Maximum Entry FV Power: 7.800W
• Tension FV maximum input: 500V
• Starting voltage: 125V
• MPPT voltage range: 150-425V
• Nominal FV voltage: 370V
• Number of MPPT / strings by MPPT: 2/1 + 1
• Maximum FV Operation Current: 13A + 13A
• Maximum current of short circuit: 17A + 17A
• Type of compatible battery: Lead-acid or ion-lithium
• Battery voltage range: 40-60V
• Maximum loading / unloading current: 135A
• Nominal current AC (input / output:) 27,3 / 26.1A
• Maximum efficiency: 97,6%
• European efficiency: 96,5%
• MPPT efficiency: more than 99%
• Harmonic distortion (THDI:) less than 3%
• Adjustable power factor: 0.8 inductive to 0.8 capacitive
• Parallel operation: up to 16 units (on-grid and off-grid)
• Communication: RS485 / RS232 / CAN
• Monitoring: GPRS / WIFI / Bluetooth / 4G / LAN (optional)
• Surge protection: Type II in DC and AC
• Degree of protection: IP65
• Operating temperature: from -40 to 60 ° C (reduction of power above 45 ° C)
• Noise: less than 30db
• Refrigeration: Intelligent ventilation by air
• Topology: Transformer
• Dimensions: 330 x 580 x 232 mm
• Weight: 24,9kg
• Network regulations: IEC 61727, IEC 62116, CEI 0-21, EN 50549, RD 140, UNE 217002, VDE-AR-N 4105, G99
• Warranty: 5 or 10 years, according to the place of final installation

Solar Panel Tongwei TNC 2.0 Twmnh-66HD630

• Maximum power (PMAX:) 630W
• Tension in open circuit (VOC:) 49,50V
• Short circuit current (ISC:) 16,18A
• Tension at the maximum power point (VMP:) 41,10V
• Current at the point of maximum power (imp:) 15,33A
• Efficiency of the module: 23,3%
• Power tolerance: 0 to + 3%
• Power BNPI (1000W / m² Frontal + 135W / m² rear:) 695,4W
• Power with rear gain of 5% / 15% / 25%: 661W / 724W / 787W
• Bribiality coefficient (PMAX:) 80 ± 5%
• PMAX temperature coefficient: -0,28%/°C
• VOC temperature coefficient: -0,24%/°C
• ISC Temperature Coefficient: + 0,046%/°C
• Type of Cell: TNC N-type, 132 stockings cells (6 x 22)
• Front glass: 2.0 mm with antireflective coating, semi-polished
• Rear glass: 2.0 mm semi-polished
• Setting: Anodized aluminum alloy
• Connection box: IP68, 3 diodes
• Cable section: 4,0mm²
• Maximum mechanical load: 5,400 PA front / 2.400 BA rear
• Maximum system tension: 1.500V DC
• Maximum fuse in series: 30A
• Operating temperature: from -40 to 70 ° C
• Dimensions: 2.382 x 1.134 x 30 mm
• Weight: 32,2kg
• Product guarantee: 12 years
• Linear power guarantee: 30 years (1% the first year, 0.4% per year; 87.40% at 30 years)

Lithium battery Deye SE-G5.1 PRO-B (2 units, data per module)

• Chemistry: LiFePO4 (lithium ferrophosphate), without cobalt
• Capacity: 100Ah
• Nominal voltage: 51,2V
• Operating voltage range: 43,2-57,6V
• Nominal energy: 5,12kwh
• Useful energy: 4,6kwh (90% Dod, 0.5c at 25 ° C)
• Recommended loading / discharge current: 50A
• Load current / maximum discharge: 100A
• Pico current (2 min, 25 ° C:) 150A
• Depth of recommended download: 90%
• Lifetime: more than 6,000 cycles (25 ° C, 0.5c, 90% DOD, 70% EOL)
• Accumulated energy: 16Mwh 70% eOL
• Scalability: up to 64 units in parallel (327KWh), 32 without external configuration
• Communication: CAN 2.0, RS485
• Charging temperature: from 0 to 55 ° C (from -20 to 55 ° C with optional heating)
• Discharge temperature: from -20 to 55 ° C
• Degree of protection: IP20 (installation indoors)
• Assembly: Wall, floor or rack 19 "
• Dimensions: 440 x 133 x 540 mm
• Weight: 45kg
• Certifications: UN38.3, IEC 62619, EC, UKCA, VDE 2510-50, CEI 0-21, UL1973, UL9540A
• Warranty: 10 years (subject to the manufacturer's conditions)

Benefits of the Solar Kit Deye 6kW with 2 10,24kWh batteries and Tongwei 630W panels

The key difference of this configuration is the double storage. With 9,2kWh useful, the system can keep a good part of the midday production and return it in the afternoon and the night, which is the more consuming a home. This is translated into a greater percentage of self-consumption and in less energy purchased from the network in the most expensive hours.

More power available from the battery

Every drums Deye SE-G5.1 PRO-B supports 100A of loading and maximum discharge. With a single unit, that is the roof of the system; With two in parallel, the bank reaches 200A and the limit becomes that of inverter, of 135A. In practice, the inverter may load up when surplus surplus and sustain longer consumptions such as the heat pump, the induction plate or the oven. In addition, distributing the current between two modules makes them work more relieved, close to the 50A recommended per unit.

A inverter prepared to manage energy

The Deye SUN-6K-SG05LP1-EU is one of the inverters hybrid monophasic reference in the residential market. Allow to program 6 slots to decide when to load and when to download the battery, store a power from a diesel generator and work in parallel with up to 16 teams. Complies with the Spanish Network Regulation RD 140 and UNE 217002.

High efficiency Bifacial N-type panels

The 12 modules Tongwei TNC 2.0 combine 132 average N-type cells with a construction 2.0 mm glass-glass and one iP68 connection box. Your temperature coefficient of -0.28%/°C reduces losses in summer, and its bifiality of 80 ± 5% it allows to take advantage of the light reflected in clear roofs or floor facilities, up 724W per panel with 15% rear gain. Tongwei guarantees the 87.40% of the power at 30 years. Consult other powers in our section solar panels.

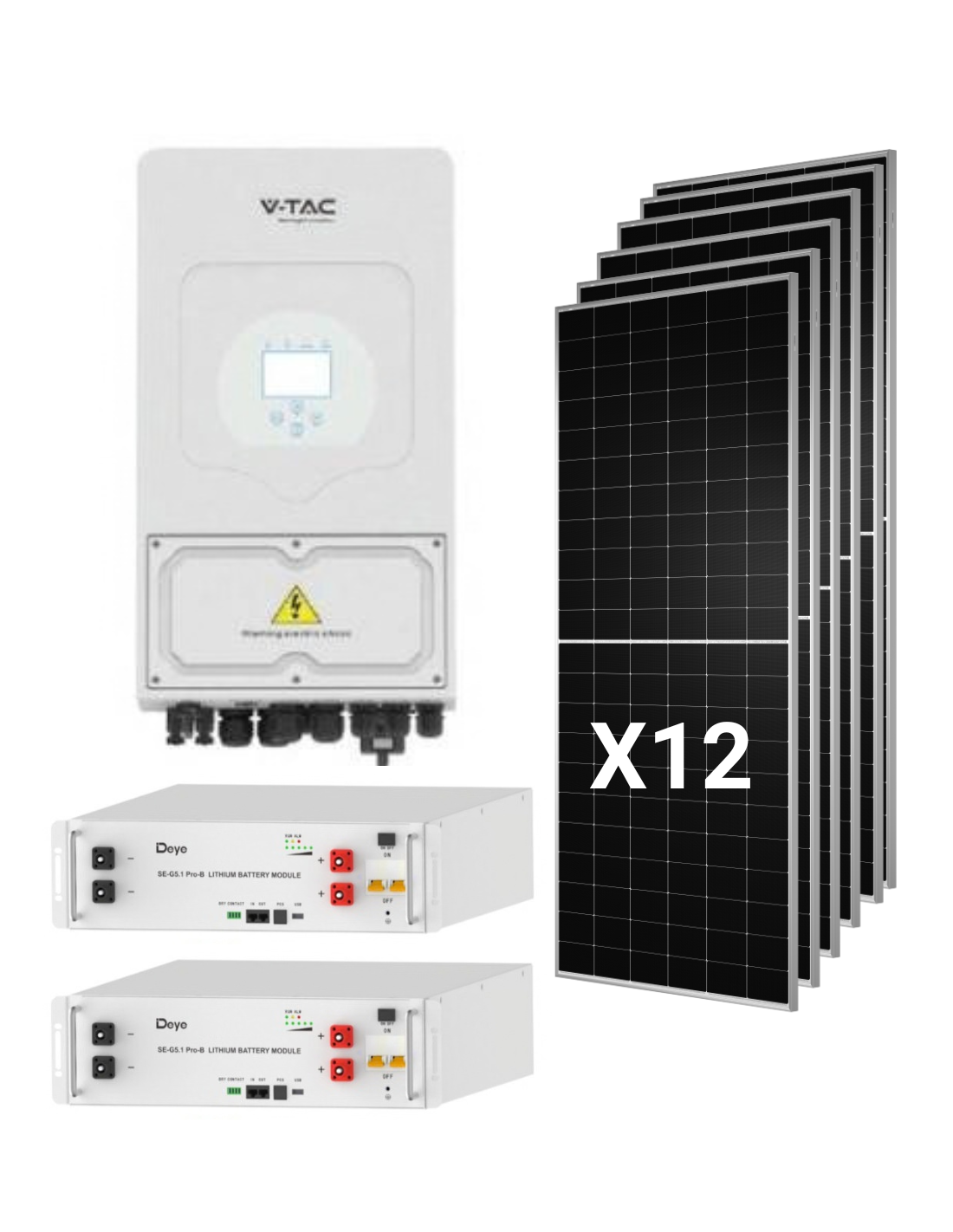

Kit content

• 1 x Hybrid Inverter Deye SUN-6K-SG05LP1-EU of 6.000W single-phase.
• 12 x Solar Panel Tongwei TNC 2.0 Twmnh-66HD630 of 630W N-type bifacial.
• 2 x Lithium battery Deye SE-G5.1 PRO-B of 5,12kwh (10,24kwh in total). Each unit includes serial the connection cable to inverter 3U-Lpcable1500, the 3u-LBCable parallel cable150 to join both batteries, looks for 19 "rack, , stacking brackets and wall brackets with screws.

On Tienda Solar you also have structures for solar panels for any type of cover and the rest of the electrical material to complete the installation.

Technical installation design

Connecting the panels: Two Strings of six modules

With 2 Mppt of a string each and a maximum entry tension of 500V, the 12 panels are distributed in 2 strings of 6 modules in series. Each string works 246,6V at the point of maximum power, within the MPPT range of 150-425V, and its tension in open circuit is 297V under STC conditions. With -10 ° C cell temperature, applying the VOC coefficient -0,24%/°C, the tension goes up to some 322V, with a wide margin of security. The total FV power, 7.560Wp, it is below the top 7,800W maximum entrance of the inverter.

Each MPPT accepts up 13A of operation current, in front of the 15,33A of IMP of the panel. In the moments of maximum irradiance the inverter lightly cut the current, something usual with high power modules, and in exchange the system yields more into weak light hours. The short circuit current stream of the panel (16,18A) it is within the 17A per entrance.

How much energy does it produce and how much?

As an indicative reference, with 5 hours solar peak of average and a global performance of 80%, the generator of 7,56kwp would produce some 30kwh a day of average annual. The two batteries can store 9,2kWh useful, approximately a third of that production, to use it when there is no sun. For example, with a medium night consumption of 1kw, the battery would cover some 9 hours. Real values depend on location, orientation, inclination and consumption habits; in the Blog Tienda Solar you will find guides developed by experts to calculate your installation with precision.

Battery assembly

The two batteries can stack on the floor with the supports included (up to 4 heights,), hang on the wall or install oneself in a rack of 19 ". Each module measures 440 x 133 x 540 mm and weigh 45kg, so the set sum 90kg. Have iP20 Protection, so they must be located indoors, in a dry and ventilated space.

In what cases should this kit be chosen?

Homes with a lot of consumption in the afternoon and the night

If in your house it is cooked, the washing machine is placed or climatized when there is no sun, the 10,24kwh storage allow you to move the energy at noon at those hours and maximize savings.

Homes who want Courts Support

Way off-grid of the inverter, with twices of double their nominal power for 10 seconds, and the greatest battery capacity offer a wider autonomy against unless unable blackouts or networks.

Installers seeking a closed solution

A system with compatible components and validated configuration saves design time. If your client needs another capacity or power, review all our solar kits or combine the team with others inverters solar.

Frequently Asked Questions (FAQ)

1. What advantage do two 5,12kwh batteries have in front of one?

In addition to duplicating stored energy 4,6kwh to 9,2kWh useful, two batteries in parallel admit up 200A, in front of the 100A of a single unit. This is how the entire load and unloading of the inverter, of 135A, and each battery works with less effort.

2. How are the two batteries connected to each other and with the inverter?

The batteries connect in parallel with the 3u-LBCable150 cable, that unites the power and communication between modules. One of them connects to inverter with the 3u-LPCABLE CABLE1500, and communication with the inverter it is done by CAN or RS485. Both cables are included with each battery.

3. Can I legalize the kit and compensate for surpluses?

Yes. The inverter complies with network connection regulations RD 140 and UNE 217002. An authorized installer must be responsible for legalization and procedures with the distributor and the marketing machine to welcome the compensation of surpluses.

4. Is the kit work during a blackout?

Yes. The inverter can work on isolated, feeding consumption with panels and batteries, and supports twices of double their nominal power for 10 seconds. With 9,2kWh useful, autonomy is clearly higher than that of version with a single battery, although it will always depend on consumption and cargo state.

5. Can I add more batteries in the future?

Yes. The range Deye SE-G5.1 PRO-B supports up to 32 units in parallel without external configuration and up to 64 in Total (327kWh). You can start with these two and expand later. You will find more options in our category lithium batteries.

6. What guarantee do equipment have?

The tongwei panels have 12 years of product guarantee and 30 years of linear power guarantee, the batteries Deye they have 10 years warranty and the inverter Deye with 5 or 10 years, according to the final installation site, according to the policy of each manufacturer.

7. How much cover surface do I need?

Each panel measures 2.382 x 1.134 mm, so the 12 modules occupy some 32m² of useful surface, not counting separations or corridors. The weight of each module is 32,2kg and support loads of 5,400 PA Front and 2.400 PA rear.
