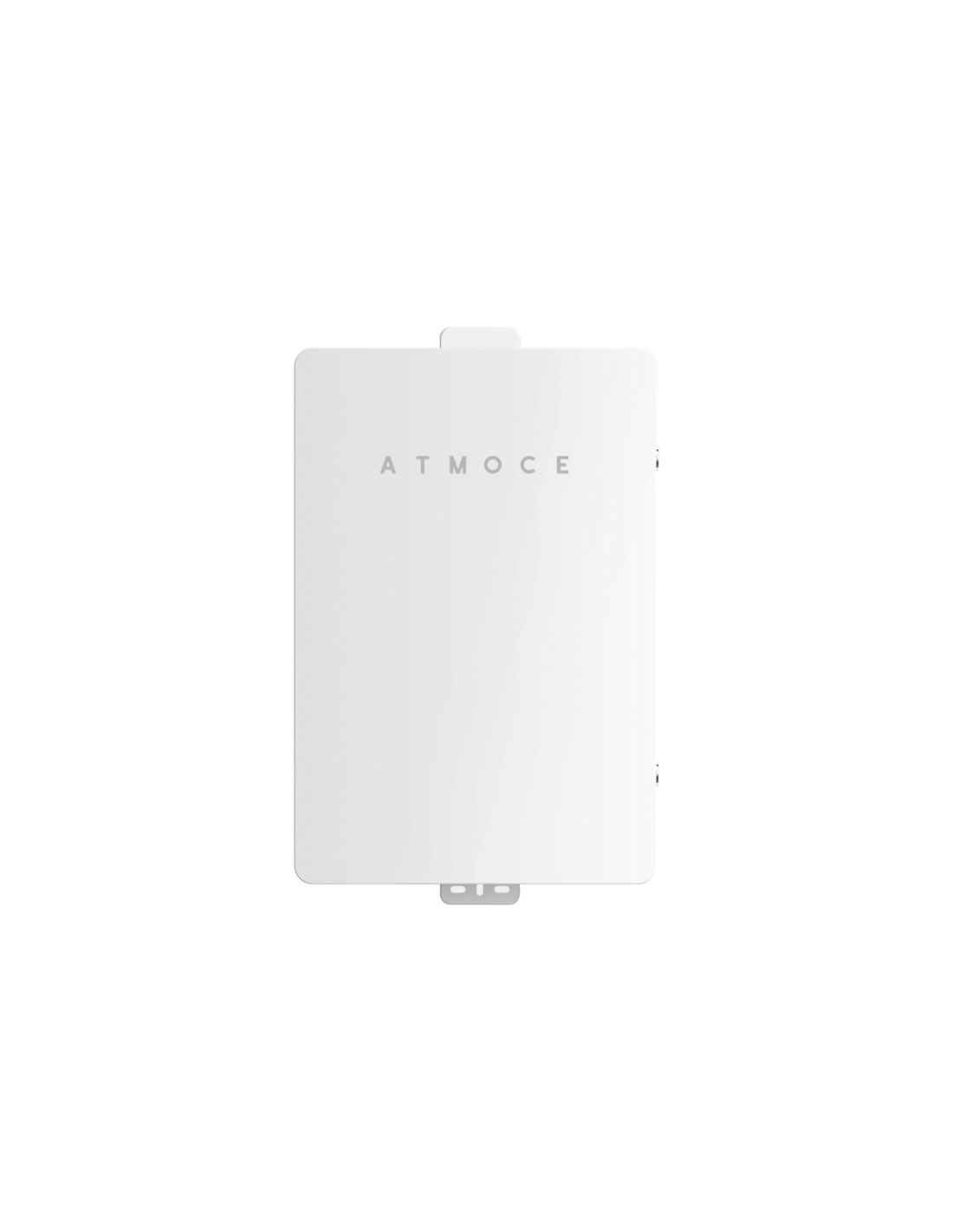

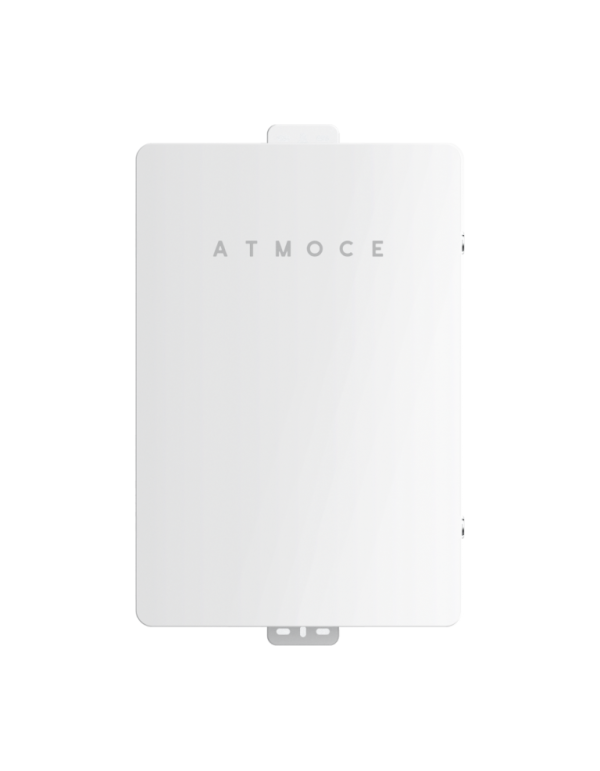

M-Combiner Atmoce MC100 1-phase (2 FV entries)

Why choose the MC100 of 2 FV entries?

When an installation with microinverters It grows beyond a single photovoltaic branch, separately manage the protections of each line complicates both the electrical and maintenance design. The MC100 solve this integrating 2 photovoltaic entries in the same table, with dedicated 20A switches per branch (expandable to 25a) that allow reaching 10kw Power FV of the equipment without the need of additional frames.

Beyond the photovoltaic part, the MC100 acts as a meeting point between generation, lithium batteries and household consumption: precision ct sensors 0.1% independently measure the production of microinverters, the state of the battery and the consumption of the house, sending all this data to the cloud of Atmoce For your analysis in real time from the app.

Industrial grade security in residential format

The network switch of 63A with 100mA RCD, the battery switch also 63a, and protection 20ka SPD Facing overvoltages, make up a set of protections more than commercial facilities than from a conventional residential picture. To this is added the M-Relay MR100-S, a relay up to 50a that manages switching between network and isolated system, and a reinforced insulation that has been validated in Extreme Operating Scenarios According to the manufacturer.

Installation Plug & Play with the APP ATMOZEN

Unlike a traditional electrical panel that requires wiring and manual configuration component component, the MC100 comes Pre-installed and preconnected factory The activation of the system is done through the app Atmozen, which guides the installer throughout the start-up process, reducing installation times and minimizing configuration errors.

Detailed technical characteristics

Electrical parameters:

• Network configuration: Single-phase (1-phase)
• Nominal voltage: 220/230 / 240V
• Voltage range (L A N): 184V ~ 276V
• Nominal frequency: 50 / 60Hz
• Extended frequency range: 45Hz ~ 65Hz
• Photovoltaic tickets: 2
• Maximum current PV per entry: 20A (expandable at 25a, up to 10kW)
• Maximum battery current: 63a
• Maximum battery capacity: 21KWh (exit limited to 11.5kW)
• Nominal current of the CT: 80a
• Overvoltage category: III

Components included:

• Meters-Gateway: 1 x mg100
• Gateway switch: 1 unit, 10A, 2 poles
• PV side switches: 2 units, 20a, 2 poles
• Network Side Switch: 1 unit, 63a, 2 poles, RCD 100mA
• Switch Side Battery: 1 unit, 63a, 2 poles
• Ct microinverter: 1 unit, precision 0.1%
• Battery ct: 1 unit, precision 0.1%
• CN CT interface: 1 unit, precision 0.1%
• Meters-relay: 1 x MR100-S, 50A, 2 poles
• SPD switch: 1 unit, 25A, 2 poles
• SPD: 1 unit, in 20ka, 2 poles

Mechanical parameters:

• Dimensions (an x at x PR): 389 x 616 x 127mm
• Weight: 6,8kg
• Range of room temperature: -30 ° C ~ 50 ° C
• Refrigeration: natural convection
• Degree of protection: IP65, Exterior
• Cable section PV side: 2.5 ~ 6mm²
• Cable section Network: 6 ~ 10mm²
• Cable section Side Battery: 6 ~ 10mm²
• Communication cable section: 0.25 ~ 0.75mm²
• Noise:
• Maximum altitude: 3000m
• Protection class: II
• Degree of contamination: III

Communication:

• Supported protocols: PLC, WiFi, Bluetooth (BLE), Ethernet, Can, RS485
• Platform: Atmoce-Cloud and App Atmozen
• Indicators: 3 LEDs

Certifications: IEC 61439-1 / -2 (safety), IEC 62311 (health), EN 301489-1 / -17, IEC 61000-6-1 / -2 / -3 / -4 (EMC), EN 300328 (radio spectrum), EN 50065-1 / -2 (PLC).

Frequently Asked Questions (FAQ)

1. How many photovoltaic inputs does the MC100?
Has 2 photovoltaic entries independent, each with its own protective switch, allowing reaching up 10kw Power FV total.

2. Can I use it with a single line of microinverters?
Yes, although the team has 2 tickets, you can use only one if your installation has a single photovoltaic branch, leaving the second available for future expansion.

3. What battery can I connect?
Support batteries up 21KWh capacity, with a limited output power to 11,5kw Due to the 63A switch integrated into the equipment.

4. Do I need advanced technical knowledge to install it?
The team arrives Pre-installed and preconnected, and its start-up is guided step by step from the app Atmozen, although we recommend that the electrical installation is carried out by a certified professional.

5. What kind of protections include over-over-overvoltages?
Incorporate a device SPD (Surge Protection Device) of 20ka, in addition to differential switches on the network side with 100ma RCD. Consult more technical content in the Blog Tienda Solar.
