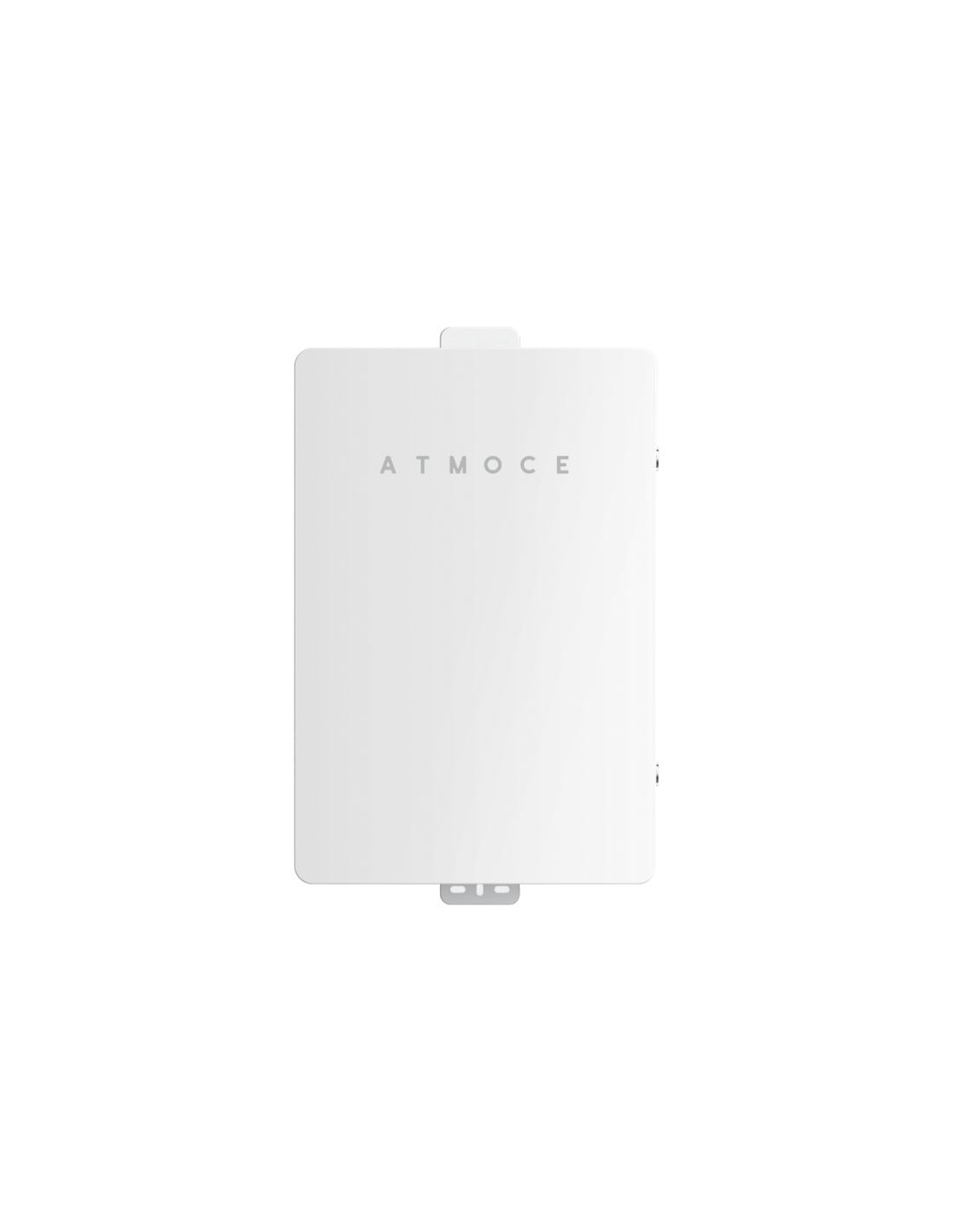

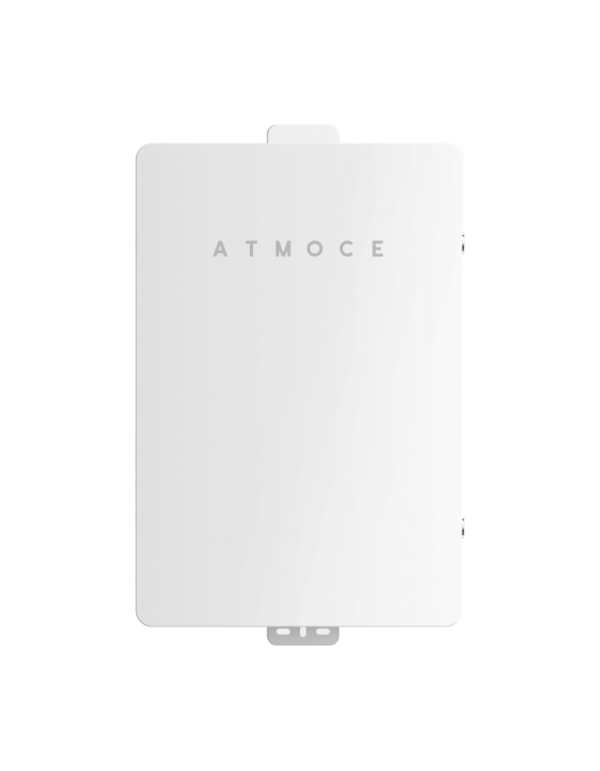

M-Combiner Atmoce MC100-T Three-phase 30kw

The MC100-T: Three-phase power for demanding installations

In front of the single-phase version MC100 (10kw / 21kwh), the MC100-T Virtually tripvoltaic capacity up to 30kw and almost double the battery capacity admitted, up 42kwh, thanks to its three-phase configuration 3 / no ~ with tensions of 220 / 380v or 230 / 400v. This makes it the option indicated for housing with high energy demand, facilities with inverters hybrid three-phase, or projects that combine a high number of microinverters Distributed in several lines.

Unlike the single-phase model, the MC100-T Incorporates switches 4 poles in all its lines (network, battery, PV and SPD), direct reflection of its three-phase nature, as well as double ct sensors (3 for microinverters and 3 for battery, compared to 1 and 1 in the single-phase model), allowing an independent measurement of each phase of the system.

Security and Intelligent Management without concessions

The MC100-T maintains the same level of protection as the rest of the range M-Combiner: reinforced insulation, Verification of reliability in extreme scenarios, a device 20ka SPD Facing overvoltages and a network switch of 63A with 100mA RCD. Your Relay M-Relay MR100-T up to 50a manages switching between network and isolated system, while the app Atmozen Allow a Complete remote management of household electricity, with constant bidirectional communication towards Atmoce-Cloud For monitoring and data analysis in real time.

Preconnected installation, just like the entire range

Like the rest of M-Combiners Atmoce, the MC100-T comes Pre-installed and preconnected Factory, reducing the work of wiring on site. The APP ATMoZEN guides the activation and initial configuration of the Step-by-Step system, and despite integrating twice as much internal components as the single-phase version, maintains a relatively light design (8,6kg) For the dimensions and benefits it offers.

Detailed technical characteristics

Electrical parameters:

• Network configuration: Three-phase (3 / n ~)
• Nominal voltage: 220 / 380V AC, 230 / 400V AC
• Voltage range (L A N): 184V ~ 276V
• Nominal frequency: 50 / 60Hz
• Extended frequency range: 45Hz ~ 65Hz
• Maximum photovoltaic branches: 2
• Maximum current PV per branch: 20A (expandable to 25A, up to 30kW)
• Maximum battery current: 63a
• Maximum battery capacity: 42kwh
• Nominal current of the CT: 80a
• Overvoltage category: III

Components included:

• Meters-Gateway: 1 x mg100
• SPD switch: 1 unit, 25A, 4 poles
• Gateway switch: 1 unit, 10A, 4 poles
• SPD: 1 unit, in 20ka, 4 poles
• PV side switches: 2 units, 20a, 4 poles
• Network Side Switch: 1 unit, 63a, 4 poles, RCD 100mA
• Switch Side Battery: 1 unit, 63a, 4 poles
• Ct microinverter: 3 units, precision 0.1%
• Battery ct: 3 units, precision 0.1%
• CN CT interface: 1 unit, precision 0.1%
• Meters-relay: 1 x MR100-T, 50A, 4 poles

Mechanical parameters:

• Dimensions (an x at x PR): 389 x 616 x 127mm
• Weight: 8,6kg
• Range of room temperature: -30 ° C ~ 50 ° C
• Refrigeration: natural convection
• Degree of protection: IP65, Exterior
• Cable section PV side: 2.5 ~ 6mm²
• Cable section Network: 6 ~ 10mm²
• Cable section Side Battery: 6 ~ 10mm²
• Communication cable section: 0.25 ~ 0.75mm²
• Noise:
• Maximum altitude: 3000m
• Protection class: II
• Degree of contamination: III

Communication:

• Supported protocols: PLC, WiFi, Bluetooth (BLE), Ethernet, Can, RS485
• Platform: Atmoce-Cloud and App Atmozen
• Indicators: 3 LEDs

Certifications: IEC 61439-1 / -2 (safety), IEC 62311 (health), EN 301489-1 / -17, IEC 61000-6-1 / -2 / -3 / -4 (EMC), EN 300328 (radio spectrum), EN 50065-1 / -2 (PLC).

Frequently Asked Questions (FAQ)

1. How is the MC100-T of the MC100 single-phase?
The MC100-T is the version three-phase, with triple photovoltaic power (30kw versus 10kwand twice as much battery capacity (42kwh in front of 21kwh), in addition to 4-pole switches and double CT sensors.

2. How many current sensors (CT) include?
Includes 6 CT sensors In total: 3 to measure the production of microinverters and 3 for the battery, with precision 0,1%, plus 1 additional CT interface of consumption.

3. What battery can I connect?
Support batteries up 42kWh capacity, with a maximum battery current 63a.

4. Is it suitable for installation abroad?
Yes, it has protection Ip65 specifically designed for exterior, with a operating temperature range of -30 ° C to 50 ° C.

5. How is the system managed once installed?
Through the app Atmozen, which guides the initial configuration and allows the Remote management of household electricity via bidirectional connection with Atmoce-Cloud. Consult more technical content in the Blog Tienda Solar.
