M-Combiner Atmoce MC100 Single-phase 10kw
M-Combiner Atmoce MC100 Single-phase 10kw

M-Combiner Atmoce MC100 Single-phase 10kw

MC100-M
€626.78
Tax included

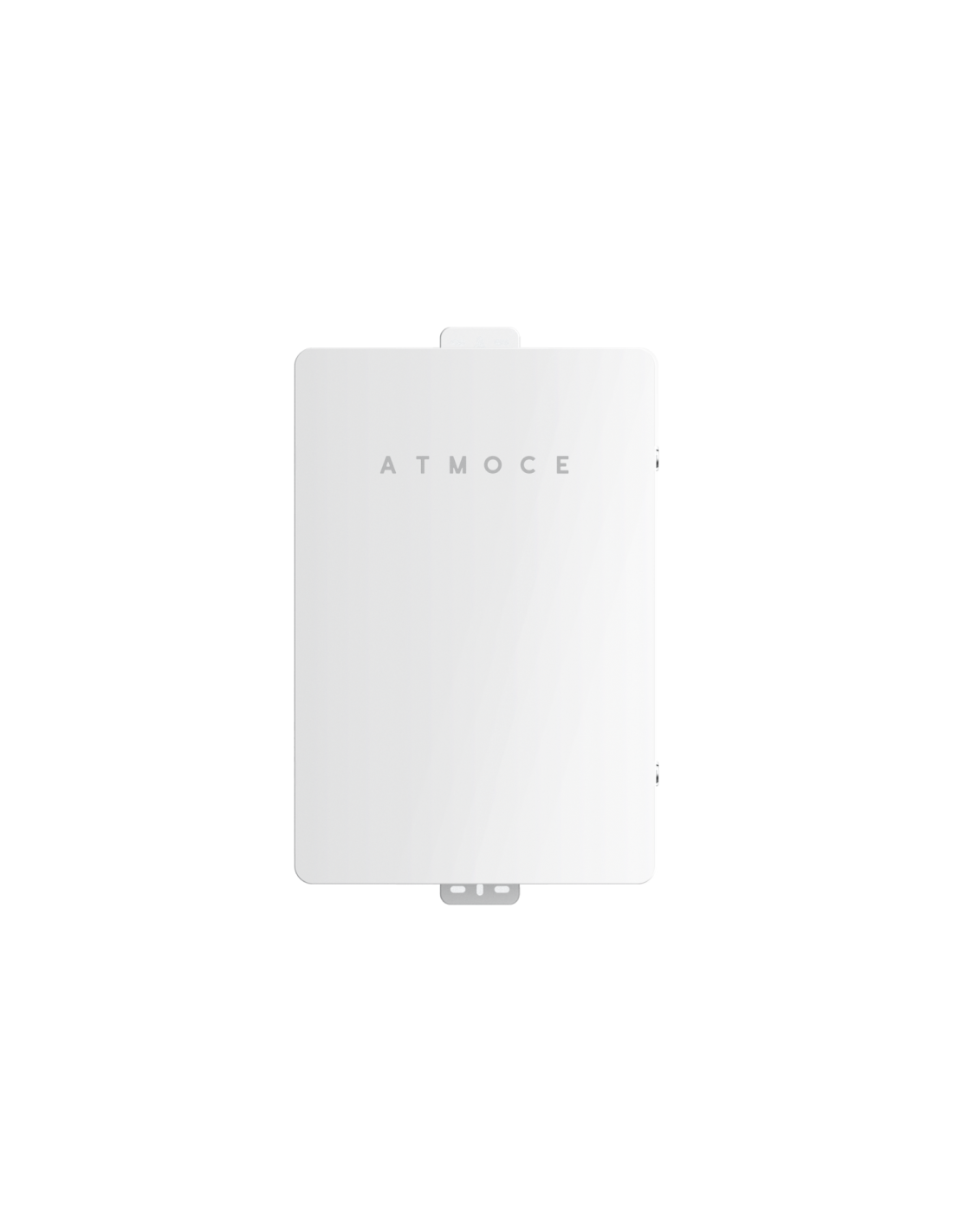

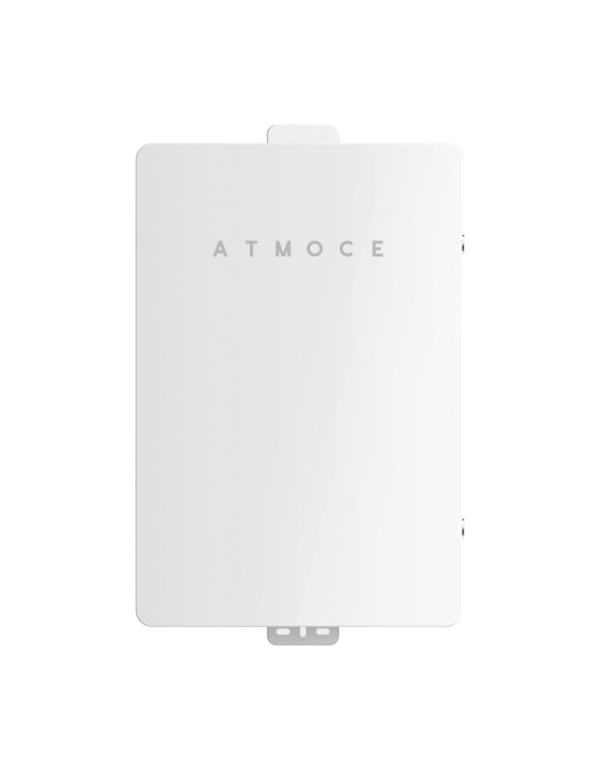

The M-Combiner Atmoce MC100 It is a single-phase energy management team that centralizes in a single frame the protections, measurement and communication of a complete residential photovoltaic installation. Admits a Maximum photovoltaic power of 10KW developed 2 pv branches, and it manages 21KWh battery capacity, with a limited output power to 11,5kw by the integrated 63A switch. Incorporate a factory M-Gateway MG100, automatic net switches, battery and photovoltaic, a Relay M-Relay MR100-S, Surge protection SPD and Current sensors (CT) precisely 0,1%. It has protection Ip65 For installation abroad, communication PLC, WIFI, Bluetooth, Ethernet, Can and RS485, and a weight of just 6,8kg, with pre-installed and factory-preconnected design for fast start-up.



Benefits M-Combiner Atmoce MC100

The MC100 Eliminates the complexity of wiring separately, photovoltaic and battery protections separately: everything arrives Pre-installed and preconnected Factory, significantly reducing installation time against a conventional custom-mounted electrical panel. This makes it the natural complement of an installation with microinverters Atmoce and an ecosystem battery M-ELV, integrating the management of the entire system into a single point.

Their Current sensors (CT) with precision from 0.1% on microinverters, battery and consumption, next to the bidirectional communication with Atmoce-Cloud, allow a Complete remote management of household electricity from the app Atmozen, including real-time monitoring and step-by-step guided configuration. This remote control capability is clearly different from a traditional protection box, closer to an intelligent energy management system than to a simple branch combiner.

At the security level, it incorporates reinforced insulation, protection SPD in front of overvoltages, a Relay M-Relay MR100-S up to 50a and reliability verification in extreme scenarios, guarantees especially relevant when dealing with the point where all the power of the installation converges (network, solar and lithium batteries).

What does the MC100

The MC100 It is not a simple empty picture: it comes from the factory with all the necessary components to operate, including a M-Gateway MG100, Network switch of 63A with 100mA RCD, photovoltaic switches 20a (amplitable at 25a to support up to 10kW), battery switch 63a, a M-Relay MR100-S, and protection SPD with the capacity of 20ka. This integration reduces the number of components that an installer must acquire and wire separately, also simplifying the future maintenance of the system.

Detailed technical characteristics

Electrical parameters:

  • Network configuration: single-phase
  • Nominal voltage: 220/230 / 240V
  • Operating voltage range (L A N): 184V ~ 276V
  • Nominal frequency: 50 / 60Hz
  • Extended frequency range: 45Hz ~ 65Hz
  • Maximum photovoltaic branches: 2
  • Maximum current PV per branch: 20A (expandable at 25a, up to 10kW)
  • Maximum battery current: 63a
  • Maximum battery capacity: 21KWh (exit power limited to 11.5kW)
  • Nominal current of the CT: 80a
  • Overvoltage category: III

Components included:

  • Meters-Gateway: 1 x mg100
  • Gateway switch: 1 unit, 10A, 2 poles
  • PV side switch: 2 units, 20a, 2 poles
  • Network Side Switch: 1 unit, 63a, 2 poles, RCD 100mA
  • Switch Side Battery: 1 unit, 63a, 2 poles
  • Ct microinverter: 1 unit, precision 0.1%
  • Battery ct: 1 unit, precision 0.1%
  • CN CT interface: 1 unit, precision 0.1%
  • Meters-relay: 1 x MR100-S, 50A, 2 poles
  • SPD switch: 1 unit, 25A, 2 poles
  • SPD: 1 unit, in 20ka, 2 poles

Mechanical parameters:

  • Dimensions (an x at x PR): 389 x 616 x 127mm
  • Weight: 6,8kg
  • Range of room temperature: -30 ° C ~ 50 ° C
  • Refrigeration: natural convection
  • Degree of protection: IP65, Exterior
  • Cable section PV side: 2.5 ~ 6mm²
  • Cable section Network: 6 ~ 10mm²
  • Cable section Side Battery: 6 ~ 10mm²
  • Communication cable section: 0.25 ~ 0.75mm²
  • Noise:
  • Maximum altitude: 3000m
  • Protection class: II
  • Degree of contamination: III

Communication:

  • Supported protocols: PLC, WiFi, Bluetooth (BLE), Ethernet, Can, RS485
  • PV side: PLC, Can
  • Network side: Consumer CT interface, Ethernet, E / S Digital (4x12V do, 3xDI), RS485
  • Side Battery: WiFi 2,4GHz, Ethernet
  • Side load: Bluetooth 2,4GHz
  • Platform: Atmoce-Cloud and App Atmozen
  • Indicators: 3 LEDs

Certifications: IEC 61439-1 / -2 (safety), IEC 62311 (health), EN 301489-1 / -17, IEC 61000-6-1 / -2 / -3 / -4 (EMC), EN 300328 (radio spectrum), EN 50065-1 / -2 (PLC).

Frequently Asked Questions (FAQ)

1. What photovoltaic and battery power admits the MC100?
Admits 10KW Photovoltaic Power on 2 branches and even 21KWh battery capacity, although the output power of the battery is limited to 11,5kw by the integrated 63A switch.

2. What exactly includes the equipment?
Includes a M-Gateway MG100, network switches, PV and battery, a M-Relay MR100-S, Current sensors (CT) and protection SPD, all pre-installed and preconnected from the factory.

3. Can it be installed abroad?
Yes, it has protection Ip65 specifically designed for exterior installation, with a temperature range of -30 ° C to 50 ° C.

4. How is the system managed and monitored?
Through the app Atmozen, which guides the installation and configuration, and by bidirectional communication with Atmoce-Cloud For remote management of home electricity.

5. Can I expand the maximum current by photovoltaic branch?
Yes, the standard 20A switch by PV branch can be replaced by one of 25a, allowing reaching the 10KW maximum photovoltaic power of the equipment. Consult more technical content in the Blog Tienda Solar.
