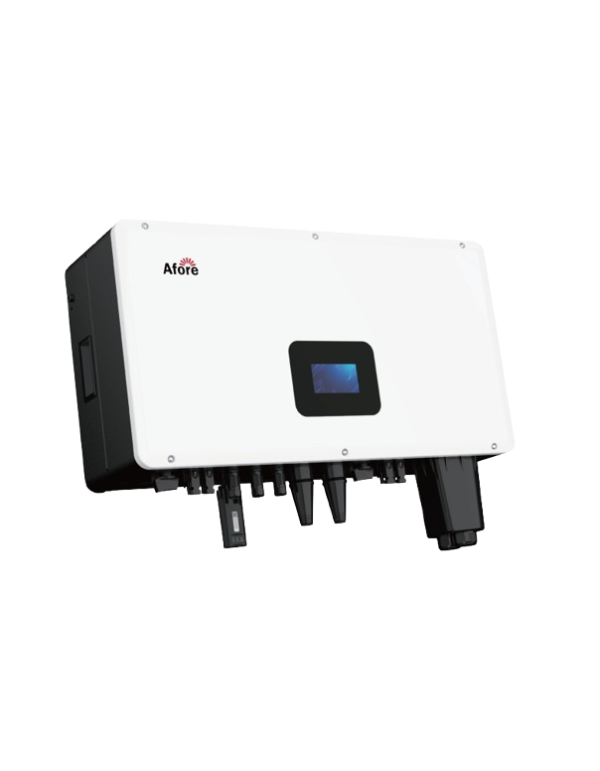

Hybrid Inverter AFORE AF10K-SLP 10KW

Benefits hybrid Inverter AFORE AF10K-SLP

The Af10k-SLP It belongs to AFORE's low voltage series, designed to optimize the energy management of residential facilities that combine photovoltaic generation with lithium battery storage. In front of a inverter networking conventional, this equipment allows you to manage intelligently when to load the battery, when to self-consuming and when to pour or buy power to the network, applying strategies Peak Shaving To reduce hired power peaks and optimize savings on the electricity invoice.

Continuity of supply with function UPS

One of the great advantages of AF10K-SLP in front of others inverters hybrid of the market is your function UPS with switching time of less than 10ms, virtually imperceptible, which guarantees the continuous supply of the critical charges of the home before a network cut. In addition, in mode backup The team admits a Peak overload up to 150%, allowing to start without problems appliances with high boot peaks, such as water pumps or air conditioners.

Maximum flexibility of photovoltaic design

With 3 independent MPPT channels and a chain configuration 1 + 1 & 2, AF10K-SLP supports installations with different roof orientations without penalizing the overall performance of the system. Its ability to Overdimensioned up to 1.5 times The nominal power allows to take full advantage of the available surface of solar, Maximizing production even under conditions of low irradiance thanks to its wide MPPT range of 80 to 500V.

Scalability and intelligent installation management

AF10K-SLP supports 6 units in parallel, which allows you to scale the power of the installation in higher consumption residential projects or in small commercial facilities, all by maintaining a single reference model. This flexibility, combined with its compatibility with Low voltage lithium batteries (40-60V), makes it an ideal component to complement systems lithium batteries Modular, allowing dimensioning the storage capacity according to the real needs of each home.

Monitoring and advanced connectivity

The team incorporates a Color LCD touch screen easy to use, in addition to multiple communication interfaces (RS485, Can, Wi-Fi, GPRS and 4G) that allow remote monitoring and firmware update without the need for technical displacement. It also includes Integrated anti-pour function (anti-feed-in), especially useful in countries or communities where the injection to the network is limited or penalized. To deepen the dimensioning of hybrid systems with storage, you can consult the technical guides of the Blog Tienda Solar.

Detailed technical characteristics

Photovoltaic entrance (PV INPUT)

• Maximum entry power: 15 kW
• Maximum voltage FV: 550 V
• MPPT range: 80 to 500 V
• Complete MPPT range: 130 to 500 V
• Nominal voltage: 360 V
• Starting voltage: 100 V
• Maximum input current: 18.5 A x 3
• Maximum short circuit: 26 a x 3
• No. of Followers MPPT / No. of FV chains: 3/1 + 1 + 2

Battery port

• Maximum loading / unloading power: 10 kW
• Maximum loading / unloading current: 240 a
• Nominal battery voltage: 51.2 V
• Battery voltage range: 40 to 60 V
• Type of compatible battery: Li-ion / lead-acid, etc.

Red CA and diesel generator (optional)

• Maximum continuous current: 46 a
• Maximum continuous power: 10 kVA
• Name nominal current: 46/44 a
• Nominal network voltage: 198 to 242V @ 220V / 207 A 253V @ 230V
• Nominal network frequency: 50/60 Hz
• Power factor: 0,999 (Adjustable 0.8 overexcited 0.8 underexcited)
• Thd of current:

Load output CA (AC Load Output)

• Maximum continuous current: 46 a
• Maximum continuous power: 10 kVA
• Maximum peak current (10 min): 69/66
• Maximum power of peak (10 min): 15 kVa
• Nominal voltage AC L-N: 220/230 V
• Nominal frequency CA: 50/60 Hz
• Switching time: Continuous transfer (Seamless)
• Thd of tension:

Efficiency

• European efficiency: 98,1%
• Maximum efficiency: 96,8%

Protection

• Reverse polarity protection FV: Yes
• Reverse polarity protection of battery: Yes
• Overcurrent / overvoltage protection: Yes
• Anti-Isla Protection: Yes
• Protection against short circuit: Yes
• Residual current detection: Yes
• Earth failure monitoring: Yes
• FV arc detection (PV ARC Detection): Yes
• LEVEL OF PROTECTION OF THE CASH: IP65 / NEMA4X

General data

• Dimensions (an x at x p): 785 x 614 x 258 mm
• Weight: 43 kg
• Topology: No transformer (transformer)
• Refrigeration: smart fan
• Relative humidity: 0% to 100%
• Operational temperature range: -25 ° C at 60 ° C (with derateo from 45 ° C)
• Operational altitude: up to 2,000 m
• Consumption in Standby:
• Assembly: wall support
• Communication with RSD: Sunspec
• Communication interfaces: LCD, LED, RS485, Can, Wi-Fi, GPRS, 4G
• Certifications: NRS097, G98, EN50549-1, C10 / C11, AS4777.2, VDe-AR-N4105, VDe0126, IEC62109-1, IEC62109-2
• EMC: EN61000-6-2, EN61000-6-3
