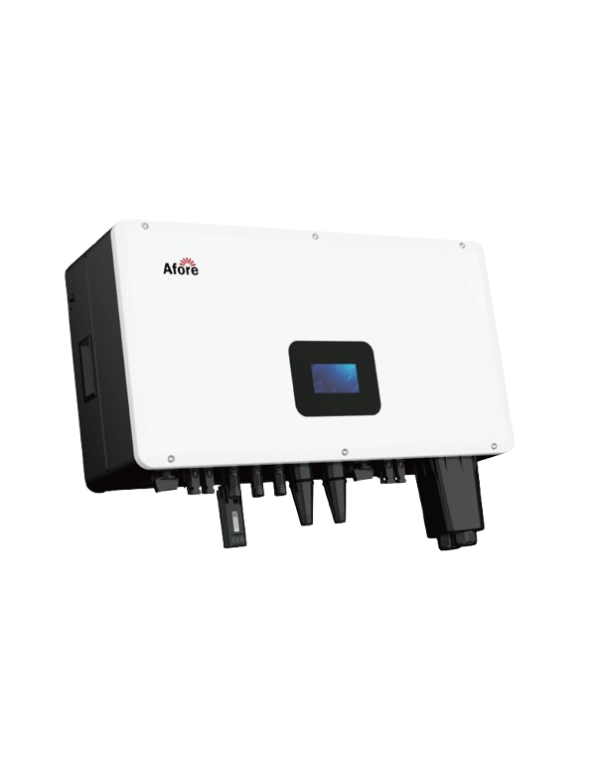

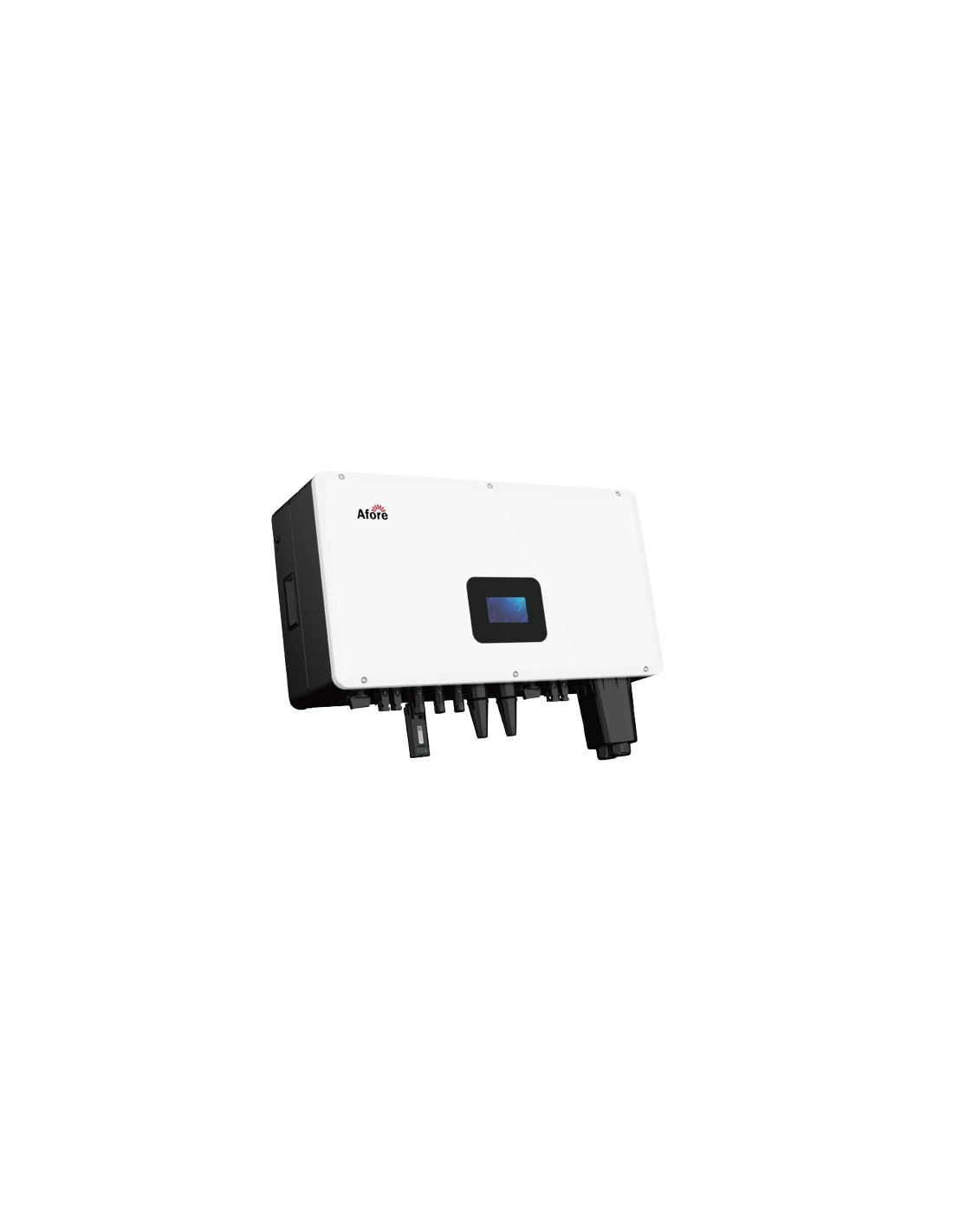

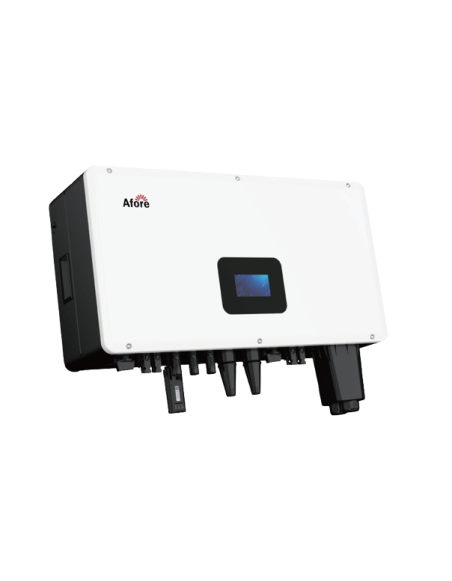

Inverter Solar Hybrid Single-phase AFORE 8KW AF8K-SLP

Benefits Inverter Solar Hybrid Afore 8kw AF8K-SLP

The AFORE AF8K-SLP Mark the difference in the segment of high single-phase power thanks to its architecture with 3 independent MPPT channels (3/1 + 1 + 2 configuration), which allows you to manage complex deck designs with different orientations or partial shadows without losing overall performance. Its high entry capacity admits up 12 kW of photovoltaic field, capturing a 150% of overpower in CC To maximize the generation in hours of low radiation or load batteries while feeding the consumption of housing.

Reaches a Maximum efficiency of 98.1% (96.8% European efficiency), guaranteeing an optimal use of the generated energy. Dimensions 785 x 614 x 258 mm, degree of protection Ip65 / nema4x and 43 kg, It has a robust chassis designed for mural mounting. Combining this advanced converter with our solar panels mounted solar Guarantees a Sustainable and Safe Self-Consumption System with Direct Backup Tienda Solar.

Uninterrupted supply (UPS

Operational security is paramount in the range Af8k-SLP. In front of cuts in the electricity grid, the team activates its Type backup mode UPS with an uninterrupted switching time less than 10 ms, avoiding the fall or restart of critical loads. In this emergency mode, it delivers a Continuous nominal power of 8.0 kVA (37 a) and can withstand demand peaks up 12.0 kVA (55.5 a) for 10 minutes.

For large-scale projects or increasing consumption demands, it admits Apilation in parallel of up to 6 units, increasing the usable power of the system. It is fully compatible with lithium batteries, as well as with banks of Gel batteries or systems with Inverters AGM, working in the safe voltage range of 40 V to 60 V (51.2 V Nominal) With loading and unloading currents up 200 A (8.0 kW).

Color touch interface, generator support and maximum security

The control of the equipment is extremely simple and intuitive thanks to its Integrated color LCD touch screen, backed by LED indicators and advanced communication interfaces (RS485, Can, Wi-Fi, GPRS and 4G). Supports rate management of rates (time-of-use), set zero settings (anti-feed-in) and remote firmware update.

Your smart CA port allows you to integrate directly Auxiliary generators (generators). In terms of protection, it incorporates Detector and Bow Fault Interruption (AFCI), Reverse polarity protection in DC and battery, short circuits in ca, residual current and ground leakage supervision. The refrigeration system by smart fan ensures continuous operation in thermal ranges of -25 ° C to +60 ° C. To consult assembly and manual schemes, do not hesitate to visit the Blog Tienda Solar.

Detailed technical characteristics

• Product model: AFORE AF8K-SLP

• Maximum entry power in CC (FV): 12 kW (FV 1,5x oversioned)

• Maximum input voltage FV: 550 V

• MPPT voltage range: 80 V - 500 V

• MPPT rank at full load: 150 V - 500 V

• Starting voltage: 100 V

• Number of MPPT / Number of FV Strings: 3 MPPT / 3 (Configuration 1 + 1 + 2)

• Maximum entry current by MPPT: 18.5 A x 3

• Maximum short circuit current by MPPT: 26.0 to x 3

• Nominal battery voltage: 51.2 V

• Battery voltage range: 40 V - 60 V

• Admissible battery type: Lithium (Li-ion) / Lead-acid, etc.

• Maximum load power / battery discharge: 8.0 kw

• Maximum loading / battery discharge: 200 a

• Continuous power output in AC (Network / Backup): 8.0 kVA / 8.0 kW

• DC Current in AC (Network / Backup): 37.0 A / 35.0 A

• Maximum power of peak in CA (10 minutes): 12.0 kVA (150% overload)

• Maximum peak current in CA (10 minutes): 55.5 A / 52.5 A

• Switching time UPS (Backup):

• Maximum conversion efficiency: 98,1%

• European efficiency: 96,8%

• Parallelization capacity: Up to 6 units in parallel

• Integrated protection systems: AFCI (arc failure switch), CC reverse polarity / battery, CA short, anti-Iceland, Earth leakage

• Degree of protection of the chassis: IP65 / NEMA 4X

• Dimensions (wide X high x deep): 785 x 614 x 258 mm

• Net weight: 43 kg

• Screen and user interface: Color LCD touch screen, LED, RS485, Can, Wi-Fi, GPRS, 4G

• Certifications: NRS097, G98, EN50549-1, C10 / C11, AS4777.2, VDe-AR-N4105, VDe0126, IEC62109-1, IEC62109-2

Frequently Asked Questions (FAQ)

1. How many I can connect to inverter AFORE AF8K-SLP?

Allows you to connect up 12 kW maximum power in the solar field, which represents a Overdimensioning 150% in cc Regarding the nominal exit AC of 8 kW.

2. What advantages do the 3 MPPT followers of AFORE AF8K-SLP provide?

By having 3 independent MPPT, you can install chains of In up to three different orientations or inclinations (for example, East, South and West) optimizing photovoltaic production without suffering tension decouple losses.

3. Is it possible to connect several inverters AFORE AF8K-SLP to expand the power?

Yes. This model supports the Parallel connection of up to 6 units, which allows you to scale single-demand single-phase installations in a modular way.

4. Does the team continue to supply energy to housing during an electricity office?

Yes, your function UPS Switches the supply in less than 10 ms, delivered up 8 kVA continuous and allowing peak supports up 12 kVA for 10 minutes For starter starters or charges demanding.

5. Where can I acquire compatible components for this hybrid Inverter?

On Tienda Solar You will find a full selection of inverters hybrid, Inverters Networking, Microinverters and Inverters solar.
