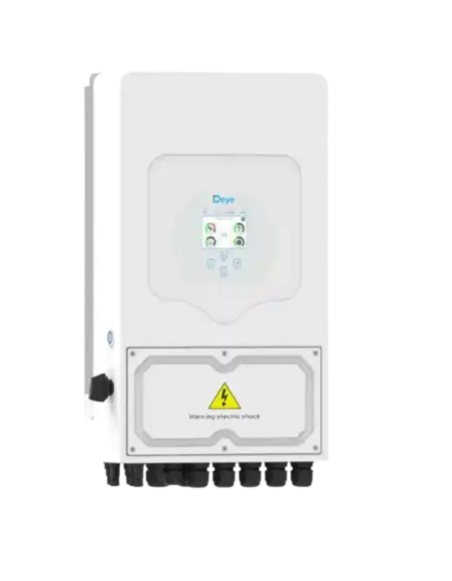

Hybrid Inverter Deye 3.6kw single-phase - SUN-3.6k-sg05lp1-EU-am2-page

Benefits Hybrid Inverter Deye SUN-3.6k

The hybrid Inverter by Deye represents a reliable solution for the home, designed to maximize energy independence along with lithium batteries of 48V.

Total control and intelligent monitoring

Thanks to your screen LCD Touch Color, the user can configure up 6 periods of time For the loading and unloading of the batteries, adapting to the most convenient electric rates. On Tienda Solar We highlight its versatile connectivity (WiFi, Bluetooth, GPRS, 4G and LAN Optional), which allows you to monitor the performance of the system from anywhere. Its system Intelligent air cooling Ensures stable operation even under conditions of high heat demand.

Maximum compatibility and scalability

The serie SUN-SG05 Deye It stands out for its adaptability to different battery chemicals by Auto-adaptation to the BMS, being compatible with the main brands of lithium batteries 48V of the market. In addition, Supports energy storage from a diesel generator, guaranteeing the supply in isolated facilities or before prolonged cuts. A prominent feature is its ability to AC coupling (Retrofit): can be added to the AC output of an existing solar system to incorporate battery storage without replacing the inverter original. Is the perfect core for our Solar kits of intelligent self-consumption.

Large PV Range and High Efficiency

With a 125V boot voltage, a 150V Tension Range of 150V to 425V and one Nominal PV tension of 370V, this inverter It offers an optimal use of solar production from first time. Your Maximum efficiency of 97.6% (Euro-efficiency of 96.5%) and a MPPT efficiency greater than 99% place it between the most efficient teams in its category, ideal together with solar panels High performance

Protections and Certifications

Incorporates Inverse Polarity Protection DC, Protection of overcurrent and overvoltage at AC output, DC component detection, anti-island, Insulation resistance detection and Residual current detection, fulfilling regulations such as IEC 61727, IEC 62109-1 / 2 and EN 50549, among others. If you have doubts about how to size your battery bank, consult the Blog Tienda Solar.

Detailed technical characteristics

• Model: SUN-3.6k-sg05lp1-EU-am2-page
• Nominal output power AC: 3600w
• Maximum PV input power: 7200w
• Maximum maximum power of exit AC: 3960va
• Nominal output current AC: 16,4a
• Maximum output current AC: 18a
• POWER PICO (OFF-GRID): 2 times the nominal power for 10 seconds
• Type of battery: Lead-acid or lithium (Auto-adaptation to the BMS)
• Battery voltage range: 40V - 60V
• Maximum load current: 90a
• Maximum discharge current: 90a
• Number of battery entries: 1
• PV boot voltage: 125v
• MPPT voltage range: 150V - 425V
• Nominal PV tension: 370v
• Thdi:
• DC injection current:
• Adjustable power factor: 0.8 in advance to 0.8 in delay
• Maximum efficiency: 97,6%
• Euro-efficiency: 96,5%
• MPPT efficiency: > 99%
• Refrigeration: by air, smart
• Degree of protection: Ip65
• Noise level:
• Operating temperature: -40 ° C A + 60 ° C (Derification from 45 ° C)
• Admitted humidity: 0-100%
• Maximum altitude: 2000m
• Dimensions (an × prof): 330 × 580 × 232 mm (without connectors or supports)
• Weight: 24.9 kg
• Communication: RS485 / RS232 / Can
• Monitoring: GPRS / WIFI / Bluetooth / 4G / LAN (optional)
• Parallel connection: Up to 16 units
• Compatibility with diesel generator: Yes
• Warranty: 5 or 10 years, according to country and installation conditions

Frequently Asked Questions (FAQ)

1. Can I use this inverter Without batteries?
Yes, the inverter Deye It can work in injection mode to network without batteries, although to make the most of its hybrid and backup functions, the use of lithium batteries.

2. What happens if the light is going?
The inverter It has a backup output that quickly switches in the case of supply cut, maintaining the critical loads of your home using the energy of the or batteries.

3. Is it difficult to configure?
Its interface LCD Touch Color It is very intuitive, allowing to configure up 6 times schedules Charging / unloading without the need for a computer, in addition to allowing remote updates through its monitoring platform.

4. Can I expand my system in the future?
Yes. This model allows you to connect up 16 units in parallel, which allows you to start with 3,6kw and expand the power of your home as your needs grow.

5. Is it compatible with a diesel generator?
Yes, the equipment admits the energy storage from a diesel generator, a useful function for isolated installations or areas with unstable electrical network.

6. Can I integrate it into a solar installation that I already have?
Yes, thanks to its function of AC coupling (Retrofit), you can add this inverter at the AC output of your existing solar system to incorporate battery storage without replacing your inverter current.
