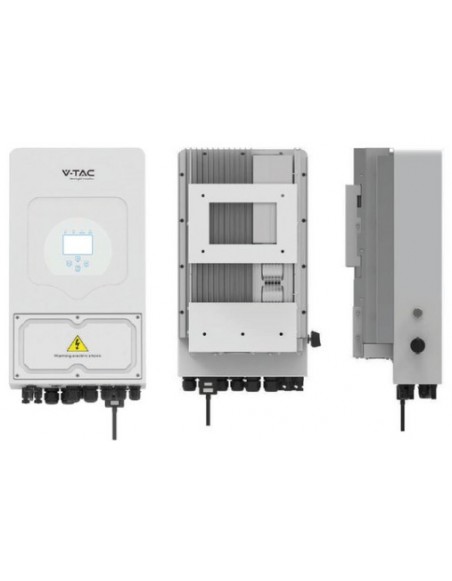

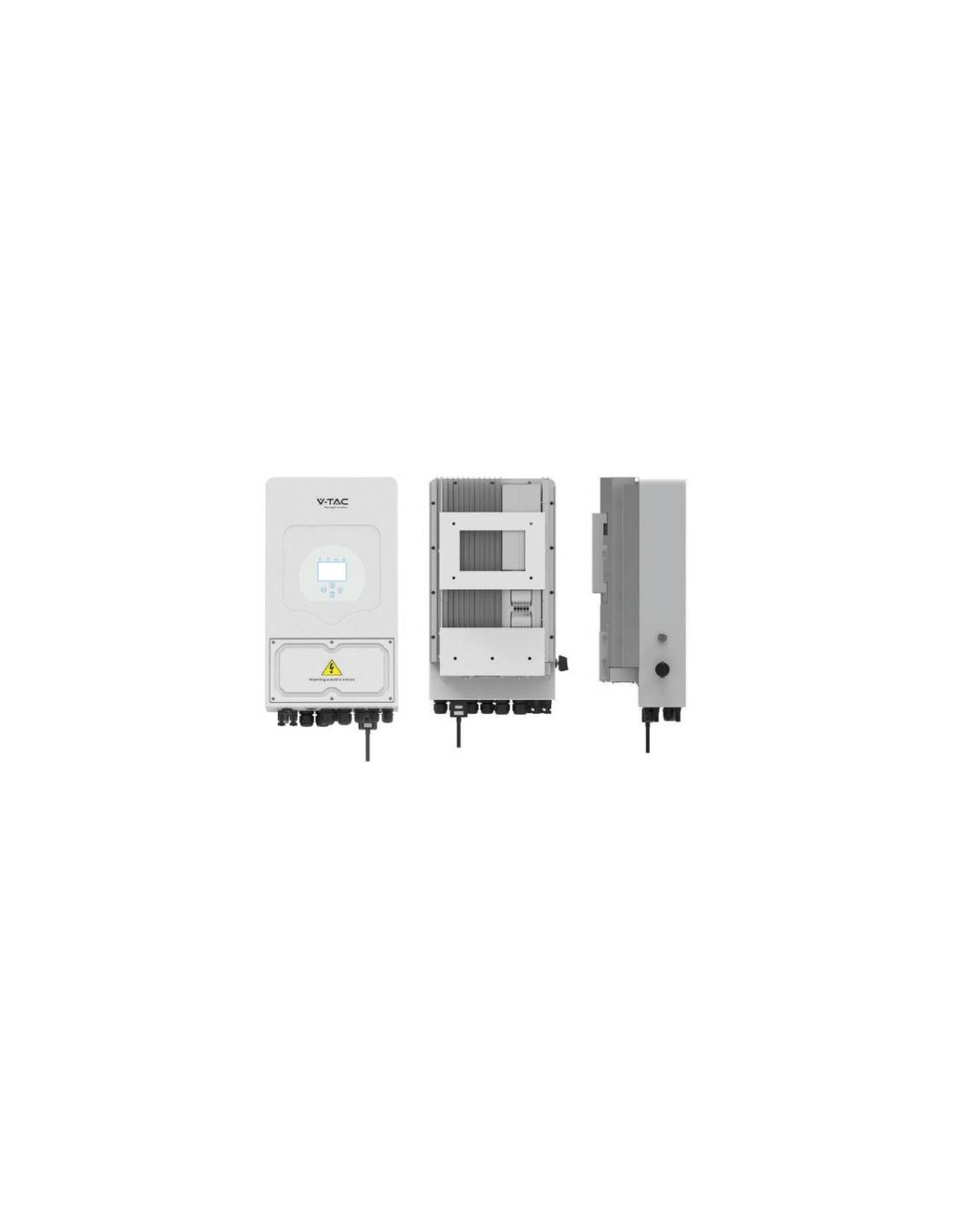

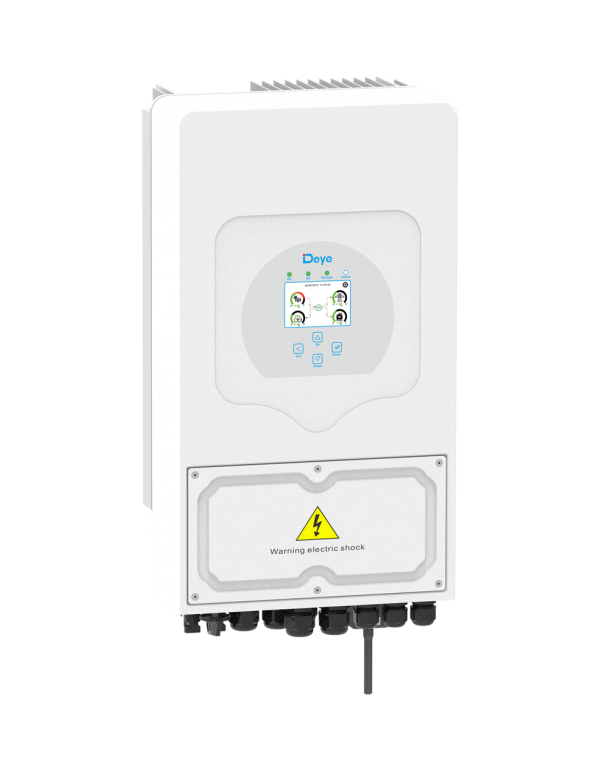

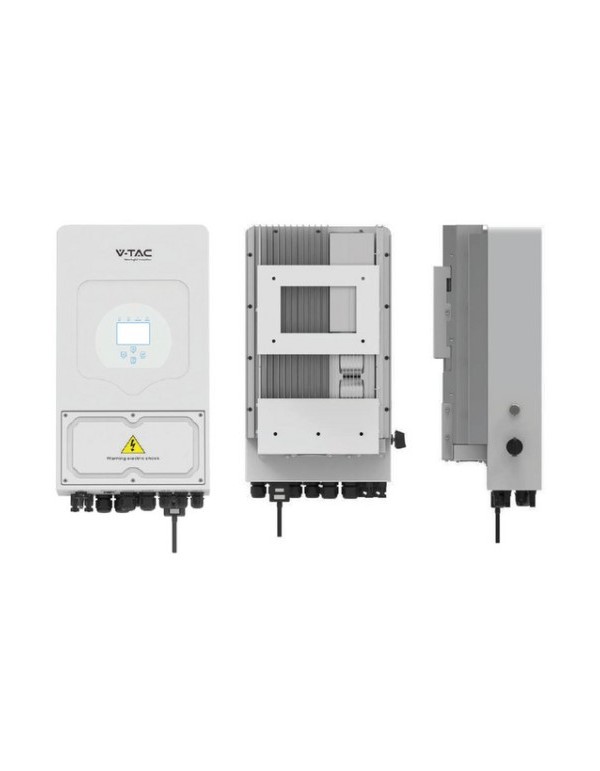

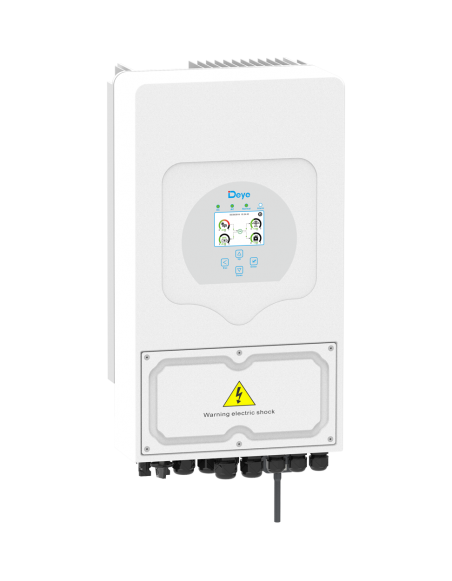

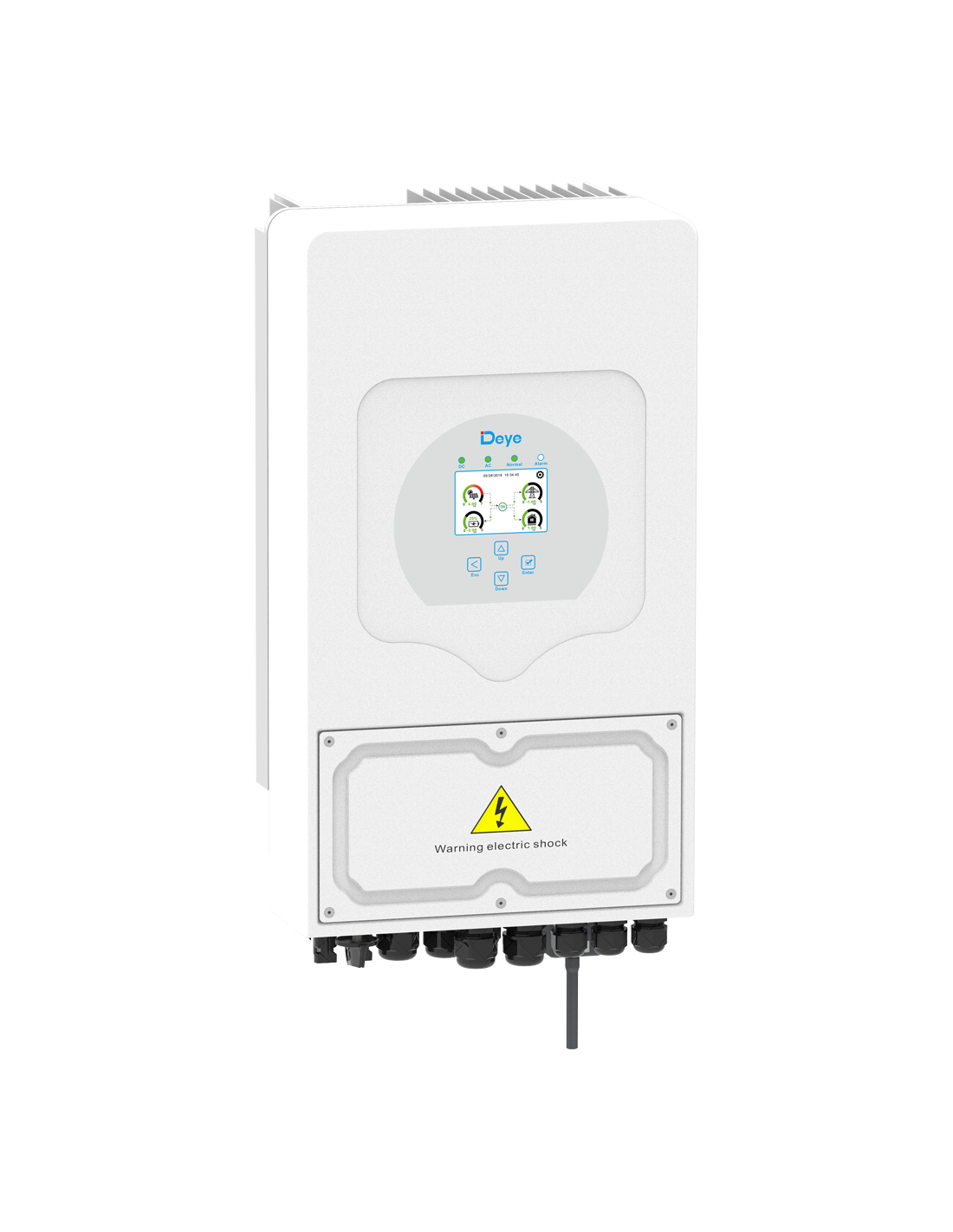

Hybrid Inverter Single-phase Deye 6kw SUN-6K-SG05LP1-EU 48V

Benefits Hybrid Inverter Single-phase Deye 6kw SUN-6k-sg05lp1-EU

The inverter Deye SUN-6k-sg05lp1-EU highlights within the residential and light industrial market by combining high-end conversion benefits with the versatility of operating on a bus of 48V low voltage batteries (40V voltage range to 60V). This topology avoids the need to install high voltage batteries, considerably reducing the costs in the purchase of accumulators. Designed to support 7.800 WP power in solar panels, the equipment maximizes electrical performance through a Maximum efficiency of 97.6%, a European efficiency of 96.5% and a Performance of MPPT greater than 99%.

Thanks to its advanced thermal management by Intelligent air cooling, the inverter works optimally in temperature ranges -40 ° C to +60 ° C with a highly silent acoustic emission level (). Combined solar panels set solar approved, customers Tienda Solar Get a reliable installation backed by up to 10 years of official guarantee.

135A massive load, switching UPS and AC Coupling functionality

Its accumulation interface provides a 135A continuous loading and loading current, ensuring fast energy transfers to and from banks lithium batteries for periods of maximum solar radiation or taking advantage of their 6 programmable time slots To manage the cycles according to the rate cost.

In the face of sudden failures in the public network, the support function UPS (EPS) commute in less than 10 milliseconds, delivering a Power of peak in isolated mode of up to 2 times the nominal power for 10 seconds (12,000W) To respond to the start of inductive motors or high demand appliances. Its ability to AC Coupleing and DC Coupleing It allows hybridizing the equipment with existing solar plants driven by Inverters Networking, also integrating a dedicated entry for the management and automatic boot of Support diesel generators.

Scalability up to 16 units, IP65 grade and integral security

For expanding facilities, the SUN-6k-sg05lp1-EU Allow to connect Up to 16 units in parallel both in operation connected to the network (On-gridas out of network (Off-grid). Your metallic cabinet has Degree of protection IP65, prepared for direct assembly on external walls exposed to dust and humidity.

In terms of electric protection, integrate DC Type II and AC Type II surge downloaders, protection against reverse polarity in cc, Supervision of insulation in continuous current, monitoring of ground failures, Protection against short circuits in CA and RCD residual current detector. It has a color LCD touch screen to adjust zero injection parameters locally. To consult wiring schemes, installation guides and explanatory manuals prepared by specialists in photovoltaic energy, visit the Blog Tienda Solar.

Detailed technical characteristics

• Team model: Deye SUN-6k-sg05lp1-EU

• Nominal output power AC / UPS: 6,000 W (single-phase L + N + PE, 220 / 230VAC)

• Maximum apparent power of exit AC: 6,600

• Maximum input photovoltaic power (PMAX): 7,800 WP

• Nominal battery voltage: 48 V (Functional range of 40 V to 60 V)

Frequently Asked Questions (FAQ)

1. Can this work inverter If a cut occurs in the general electrical network?

Yes, it works like a hybrid Inverter Real with emergency exit UPS (EPS). Commute in milliseconds to feed the consumption of housing using the energy of the Solar and batteries.

2. Is 48V lithium batteries compatible with other manufacturers?

It is fully compatible with 48V low voltage accumulators (Pylontech, Dyness and deye). It is communicated directly via CAN or RS485 ports with the BMS of the battery to coordinate the automatic load.

3. Can I connect a diesel generator to support the equipment?

Yes, it incorporates a multifunction port prepared to connect and integrate a support diesel generator set, allowing to load batteries or supplement consumption when there is no solar radiation or network.

4. What expansion capacity offers the Derye 6kw model if I need more power in the future?

The team supports the Parallel connection of up to 16 units. This allows you to scale the nominal output power of the installation until reaching 96KW both in connected network and in isolated mode.
