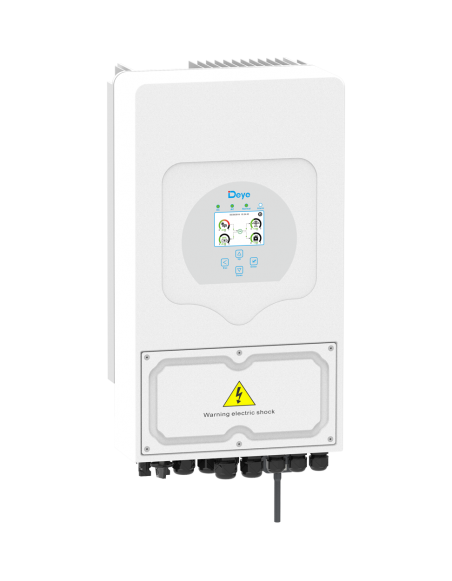

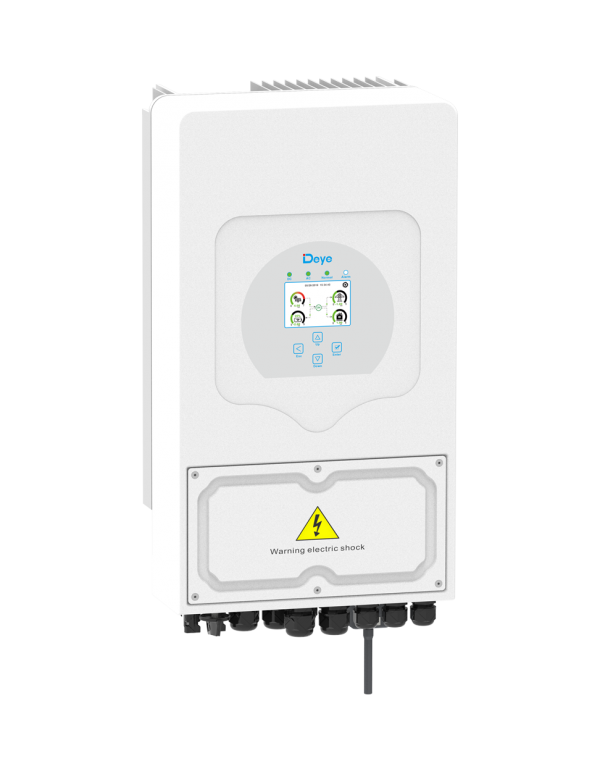

Hybrid Inverter Three-phase deye 6kw | Sun-6K-SG04LP3-EU | 48v

Benefits Hybrid Inverter Three-phase deye 6kw SUN-6k-sg04lp3-EU

The inverter DEYE SUN-6k-sg04lp3-EU highlights in the photovoltaic sector when combining the delivery of a balanced three-phase network (3L / N / PE 230 / 400VAC) with the economic advantage of working with low voltage accumulation systems in 48v. Operate in battery ranges 40V to 60V allows you to configure powerful storage banks with a noticeably less investment than high voltage alternatives. Capable of managing 7.800 WP installed solar power, the team ensures a complete use of radiation with a 99.9% MPPT follower efficiency and one global maximum efficiency of 97.6%.

Your conversion topology supports 100% unbalanced outputs per phase, contributing to the 50% of the nominal power on a single line to cover asymmetric consumption peaks without resorting to the network. By combining this equipment with solar panels mounted structures for solar approved, users access a versatile solution available in the catalog of Tienda Solar.

Double mppt, protected UPS and coupling in alternates

To optimize solar uptake on roofs with different orientations, the inverter has 2 independent MPPT followers with a support of a string per channel (1 + 1) and one maximum entry current of 13A + 13A. This ensures that partial shadows or different orientations do not affect generation globally.

In case of cutting on the public network, its function of emergency output (UPS) commutely commute, offering a power peak in isolated equivalent to 2 times the nominal power for 10 seconds (12,000w) for the start of inductive loads. In addition, it includes a configurable port for recharge through diesel generator and supports configurations Accurate and Dc coupling, facilitating integration with plants equipped with Inverters Networking previous.

Parallel scalability, IP65 protection and zero pouring control

Designed to adapt to future extensions, the equipment supports the parallel of up to 16 units both in connected mode and island (Off-grid). His wrapping envelope has degree of protection IP65 for outdoor installation, operating in a thermal range of -45 ° C to +60 ° C with a very reduced sound level ().

Incorporates dC Type II and AC Type III Overvoltage, Reverse Polarity Protection, Isolation monitoring and residual current protection RCD. By color LCD touch screen and its communication ports RS485 and Can, it is synchronized with the Chint DDSU666-H vatmeter to perform absolute zero injection control. To learn more for dimensioning guides and technical articles developed by specialists, visit the Blog Tienda Solar.

Detailed technical characteristics

• Team model: DEYE SUN-6k-sg04lp3-EU

• Nominal output power AC / UPS: 6,000 W (three-phase 230 / 400Vac)
• Maximum output power AC: 6,600 W
• Maximum input photovoltaic power (PMAX): 7,800 WP
• Nominal battery voltage: 48 V (operating range of 40 V to 60 V)
• Type of compatible battery: Lithium-ion or lead-acid (automatic adaptation BMS)
• Maximum loading / battery discharge: 150 A / 150 A
• Number of MPPT / Strings followers by MPPT: 2 independent MPPT / 1 + 1
• Maximum PV input current per MPPT: 13 a + 13 a
• Maximum short circuit current (ISC): 17 a + 17 a
• Nominal voltage of PV input: 550 V (range 160V - 800V)
• System start voltage: 160 V
• MPPT voltage range: 200 V to 650 V
• Maximum efficiency / European efficiency: 97.60% / 97.00%
• Efficiency of the MPPT follower: 99,90%
• Power peak in isolated mode (OFF-GRID): 2 times the nominal power for 10 seconds
• Unbalanced output management: 100% per phase (up to 50% of the nominal power per phase)
• Degree of protection of the chassis: Ip65 (Apt for aperture)
• Sound emission level:
• Physical dimensions (wide x high x deep x): 422 x 699.3 x 279 mm
• Net weight of the chassis: 33.6 kg
• Parallelization capacity: Up to 16 units in parallel
• Integrated overvoltage protections: DC Type II / AC Type III Downloaders
• Communication interfaces: Ports RS485 and CAN integrated
• Commercial guarantee: 10 years of the manufacturer's official

Frequently Asked Questions (FAQ)

1. Can I connect batteries Pylontech of 48V to this inverter three-phase deye of 6kw?

Yes, it is one of its greatest technical advantages. Unlike other three-phase equipment that demand high voltage accumulation, the deye SUN-6K works in low voltage (48v), being fully compatible with the lithium batteries Pylontech US3000C, US5000, Dyness and V-TAC.

2. What happens if the supply of the electrical network is interrupted?

The inverter automatically activate your emergency output (UPS). It maintains the three operational phases using the instantaneous generation of the plates and the reserve accumulated in the batteries to feed the housing or business burdens.

3. Is it suitable for a small industrial or business ship?

It is ideal for small businesses with constant three-phase consumption. In addition, if the commercial activity grows and requires more power, up to 16 units in parallel can be connected to expand the system.

4. What preventive maintenance does the equipment require?

Maintenance is null. His cabinet with iP65 protection and its intelligent cooling system protect the components of dirt and humidity. It is recommended only to carry out an inspection of terminals and electrical connections once a year.

5. What other technologies or families inverters they are in Tienda Solar?

In the general catalog of Inverters solar of Tienda Solar have multiple solutions: from Microinverters modular, inverters hybrid single-phase and three-phase, up to traditional isolated equipment for use with Gel batteries or Inverters AGM.
