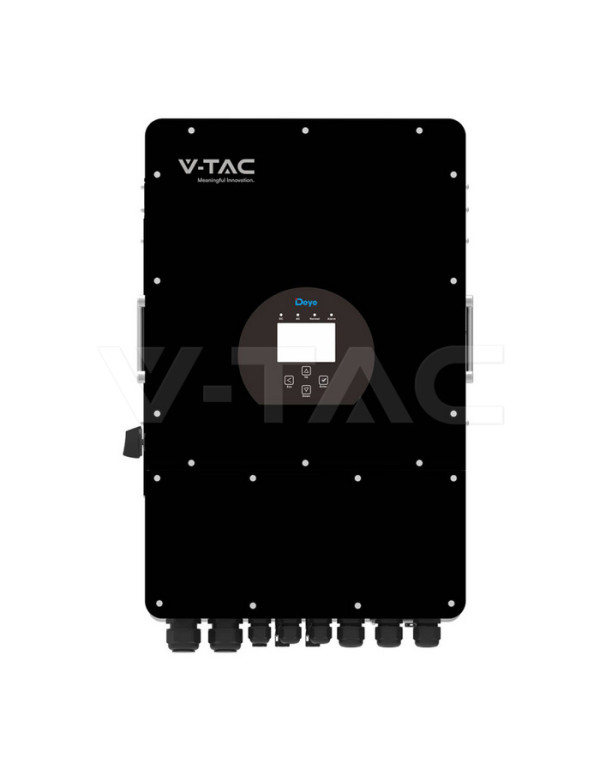

Hybrid Inverter Three-phase Deye 10kw SUN-10K-SG05LP3-EU 48V

Benefits Hybrid Inverter Three-phase deye 10kw SUN-10k-sg05lp3-EU

The inverter DEYE SUN-10k-sg05lp3-EU revolutionize the residential and industrial three-phase photovoltaic sector by allowing directly to a battery bus in low voltage 48V (operating range of 40V to 60V). This architecture eliminates the obligation to implement costly high-voltage accumulators, significantly optimizing the financial investment of the system. Designed to manage up 13,000 WP of installed solar power, the team takes advantage of radiation through a maximum efficiency of 97.6%, a european efficiency of 97.0% and a mPPT yield of 99.9%.

Your conversion topology supports a output 100% unbalanced by phase, which allows you to feed asymmetric consumption by supplying until 50% of the total nominal power in a single phase without consuming from the network. Integrated in plants composed by solar panels set structures for solar approved, this equipment available in Tienda Solar includes a guarantee of 10 years.

210A load power, switching UPS and ac coupling

Your power stage for storage administers a maximum loading and download of 210A, allowing to recharge in an ultra-fast banks lithium batteries during solar generation peaks or according to the programming of your 6 configurable periods.

Before network falls or in isolated installations, its emergency exit UPS (EPS) act in milliseconds, offering a power peak in isolated up to 2 times the nominal power for 10 seconds (20,000W) to support startups of inductive motors. It has functions of AC Coupleing and DC Coupleing to be coupled to systems with Inverters Networking existing, integrating a dedicated port for automatic control and start support diesel generators.

IP65 protection, scalability up to 100KW and anti-poured control

The watertight of the model SUN-10k-sg05lp3-EU he holds a degree of protection IP65, suitable for outdoor within a temperature range of -40 ° C to +60 ° C with a sound level below 45 dB thanks to his intelligent cooling.

For greater projects, it admits the parallel connection of up to 10 units, reaching power of up to 100kw in both network and in isolated mode. It has protections of overvoltage DC Type II and AC Type III, Isolation, Earth Fault Detection and RCD module. It is compatible with the Chint DDSU6666-H vatmeter to limit the injection to the net from its color touch screen. To consult electrical schemes, manuals and technical articles developed by professionals, visit the Blog Tienda Solar.

Detailed technical characteristics

• Team model: DEYE SUN-10k-sg05lp3-EU

• Nominal output power AC / UPS: 10,000 W (three-phase 3L / N / PE 230 / 400VAC)

• Maximum apparent power of exit AC: 11,000 VA

• Maximum input photovoltaic power (PMAX): 13,000 WP

• Nominal battery voltage: 48 V (operating range of 40 V to 60 V)

• Type of compatible battery: Lithium-ion or lead-acid (automatic adaptation via BMS)

• Maximum loading / battery discharge: 210 A / 210 A

• Number of MPPT / Strings followers by MPPT: 2 independent MPPT / 2 + 1 (3 tickets in total)

• Maximum PV input current per MPPT: 26 a + 13 a

• Maximum short circuit current (ISC): 34 to + 17 a

• Nominal voltage of PV input: 550 V (Functional Range 160V to 800V)

• System start voltage: 160 V

• MPPT voltage range: 200 V to 650 V

• MPPT voltage range at full load: 350 V at 650 V

• Maximum efficiency / European efficiency: 97.60% / 97.00%

• Efficiency of the MPPT follower: 99,90%

• Power peak in isolated mode (OFF-GRID): 2 times the nominal power for 10 seconds (20,000 W)

• Maximum current of continuous passage in CA: At

• Degree of protection of the chassis: IP65 (suitable for outdoor mounting)

• Sound emission level:

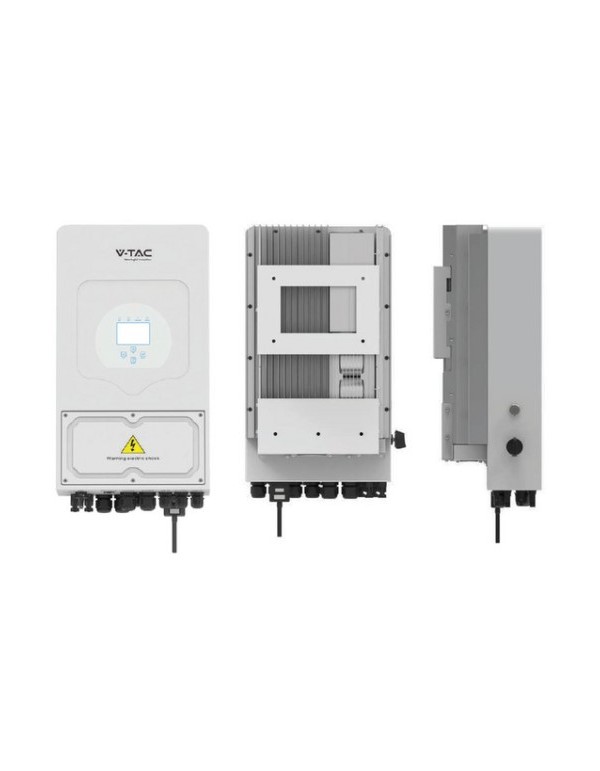

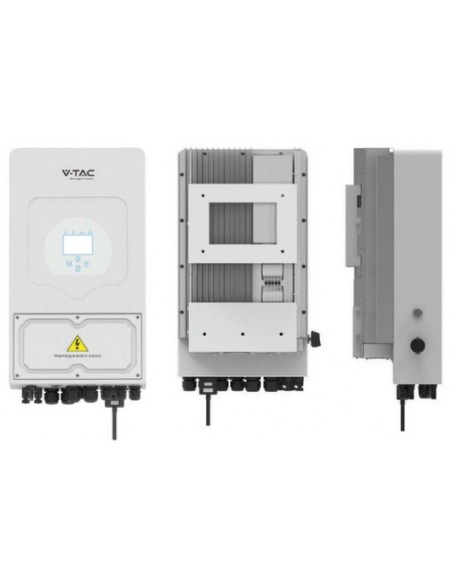

• Physical dimensions (wide x high x deep x): 422 x 699.3 x 279 mm

• Net weight of the team: 33.6 kg

• Parallelization capacity: Up to 10 units in parallel

• Integrated overvoltage protections: DC Type II / AC Type III Downloaders

• BMS communication interfaces: Ports RS485 and CAN integrated

• Commercial guarantee: 10 years of the manufacturer's official

Frequently Asked Questions (FAQ)

1. Why choose a inverter 10KW three-phase using 48V batteries?

Most of the Inverters solar three-phase require the use of high voltage batteries, which have a higher cost. The 10KW team allows you to work with accumulation of 48v (such as Pylontech or Dyness), Reducing the initial disbursement and simplifying future extensions.

2. Is it suitable for feeding machinery or high-phase high-power consumption?

Yes, it supplies 10,000 W nominal balancedly between the three phases and tolerate upload imbalances up to the 50% of the nominal power per phase, being suitable for heat pumps, motors and inductances.

3. What degree of protection does it present for its outdoor assembly?

It has a cabinet with envelope Ip65, which guarantees complete protection against dust and weathering. It can be installed directly on facades or outer areas without additional protection cabinets.

4. Is it possible to monitor production and performance from the mobile phone?

Yes Tienda Solar we supply the inverter prepared with Wi-Fi / LAN remote connectivity to monitor energy efficiency in real time through the free official application.

5. What other investment technologies offer Tienda Solar?

In the catalog of Tienda Solar you will find multiple solutions according to your type of project: modular systems by Microinverters, full ranges of inverters hybrid single-phase or three-phase, and installations for isolated compatible with Gel batteries or Inverters AGM.
