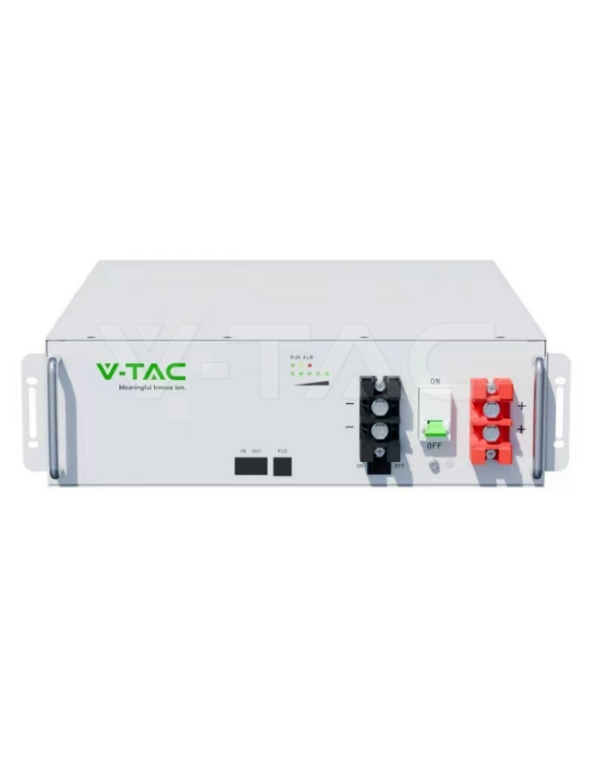

V-TAC Lithium Battery 5.12KWh - VT-51201-W | 48v

Battery Benefits V-TAC VT-51201-W

The model Vt-51201-w V-TAC represents the perfect balance between performance and versatility. Designed as a unit of 100ah to 51,2V nominal (cell configuration 1p16s), this battery Lifepo4 is the preferred option in Tienda Solar For those who seek a reliable storage system that can grow together with their energy needs.

Unprecedented scalability

What makes highlighting the VT-51201-W is its expansion capacity. V-TAC allows the parallelized of up 64 modules (up to 32 units without the need for an external Can-Box), reaching 327kwh, or even 655kwh With the additional can box. This means that you can start with a single block of 5.12kwh for your home and end up with a large commercial capacity system. Its native compatibility with inverters hybrid of 48V ensures immediate integration, in addition its system of self-networking Eliminates the need to configure DIP switches manually.

Technology LIFEPO4: Safety and top life cycle

On Tienda Solar We prioritize durability. When using chemistry LIFEPO4 (LFP), this battery offers a prominent thermal stability, incorporating a Integrated circuit breaker (circuit breaker) and non-toxic ecological materials. With a recommended depth of discharge (DOD) 90%, it allows you to take advantage of much of your nominal energy without compromising your useful life ≥6000 cycles (25 ° C ± 2 ° C, 0.5c / 0.5c, 60% EOL). Combine it with lithium batteries Additional to climb your installation while loading your solar panels During the day.

Intelligent management with advanced BMS

The heart of the battery is your BMS high precision, with indicators Status LED (5 LED for SOC from 20% to 100%, and 3 LED for operation, alarm and protection). This system supports Loading and unloading 1C, allows the remote monitoring and the Online Firmware Update, and it has activation by external feed that prevents the battery suspension. With a wide thermal range of -20 ° C at 55 ° CIt works reliably in demanding climates.

Installation flexibility

The VT-51201-W supports installation in Wall, floor (stacked) or in rack (With a minimum depth cabinet of 600mm), adapting to any technical room configuration. If you also need to reinforce the assembly of your generation installation, in the store you will find solar adapted to any type of cover or soil.

Detailed technical characteristics

• Model: Vt-51201-w
• Chemistry of the battery: Lifepo4
• Nominal capacity: 100 ah
• Nominal voltage: 51,2v
• Operating voltage range: 44,8V - 57.6V
• Nominal energy: 5,12 kWh
• Cell configuration: 1p16s
• Scalability: Max. 64 units in parallel (327kWh), up 655kwh with External Can-Box
• Maximum continuous loading / unloading: 100a
• Current peak: 200A (10 seconds)
• Depth of recommended download: 90% DOD
• Dimensions (an × prof × al): 440 × 540 × 133 mm
• Approximate weight: 44 kg
• Degree of protection: Ip20
• Working temperature: Load 0 ° C to 55 ° C / Download -20 ° C to 55 ° C
• Storage temperature: 0 ° C to 35 ° C
• Relative humidity: 95%
• Maximum altitude: ≤2000 m
• Lifetime: ≥6000 cycles (25 ° C ± 2 ° C, 0.5c / 0.5c, 90% DOD, 60% EOL)
• Installation: Wall, floor (stacked) or rack (Wardrobe ≥600mm deep)
• Communication: Can2.0, RS485
• Certifications: UN38.3, MSDS, IEC 61000, IEC 62619, CEI 0-21
• Warranty: 5 years

Frequently Asked Questions (FAQ)

1. Is it compatible with my inverter If it is not deye?
Yes, in Tienda Solar We have checked its excellent operation with a wide range of inverters hybrid 48V that use communication protocols RS485 or Can2.0.

2. What does the maintenance of this battery include?
Thanks to technology Lifepo4, Maintenance is minimal. The BMS Integrated is responsible for managing the health of cells automatically. We only recommend keeping the equipment within the temperature and humidity range indicated by the manufacturer to optimize its performance.

3. How is it installed if I do not have a rack cabinet?
This model is extremely flexible: its design allows you to fix it directly on the Wall, or place it stack on the floor. If you plan to expand the system with many units, the assembly rack (With at least 600mm depth cabinet) is the most ordered option.

4. How many units can I connect in parallel?
You can connect up 32 units without the need for external Can-Box, or even 64 units (327kWh) using the additional can box, can reach up 655kwh In expanded configurations.

5. What guarantee does the VT-51201-W have?
The manufacturer offers 5 years warranty, backed by a certified life of ≥6000 cycles under standard laboratory conditions.

6. Can I know the load state without connecting to an app?
Yes, the battery includes a Integrated LED indicator: 5 LED show the level of SOC (20% to 100%) and 3 additional LEDs report on operation, alarms and active protections, without the need to consult the Blog Tienda Solar o An external application for a quick look.
