Inverter Solar Fronius Symo 5.0kw -3-M Light | Inverters Three-phase solar network efficient

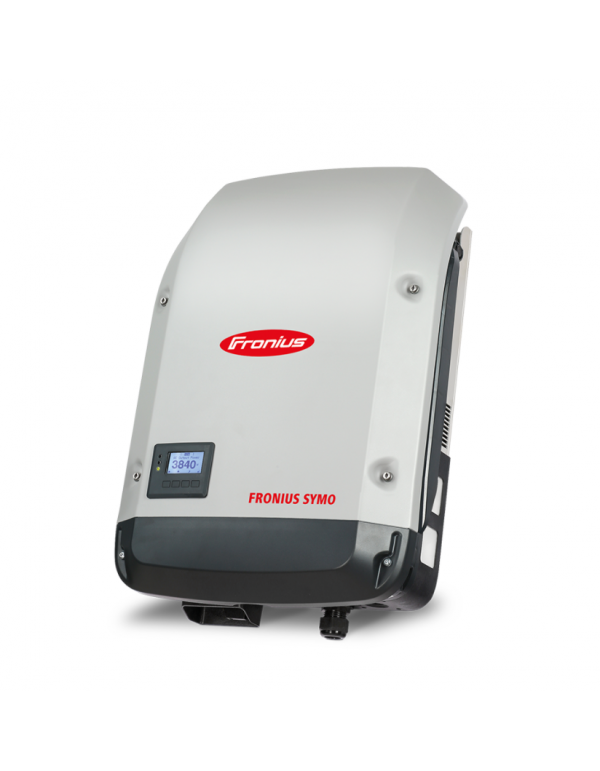

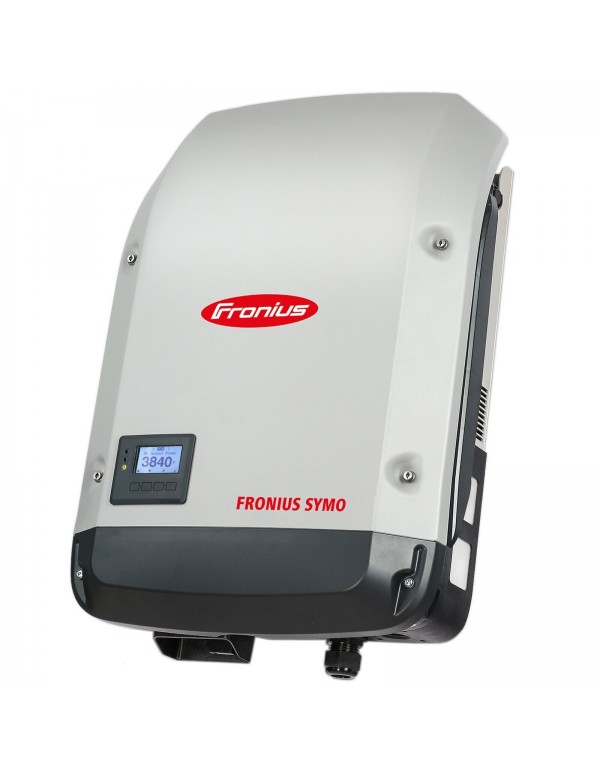

Fronius Symo 5.0kw Light: Maximum Strings Flexibility in Three-phase Systems

The installation of a system of 5000w In a three-phase network requires a core inverter High reliability capable of balancing production impeccably. The inverter network Fronius Symo 5.0-3-M Light assume this responsibility with the robustness of Austrian engineering, simply synchronizing the energy captured by your solar To cover your diurnal consumption in real time and drastically decrease the cost of your electric bills.

Economic advantages of the LIGHT series in photovoltaic projects

The great advantage of the inverters solar Fronius in their variant Light LATES IN THE HARDWARE COST OPTIMIZATION. When you delete the WLAN network and factory Ethernet interface, the user avoid paying for native remote monitoring functions that may not need. This configuration is widely used in projects where several are installed inverters In parallel to expand power, since it is enough for one of the units to be the "Full" model to act as a data centralizer of the entire plant in the portal Solar.web.

Double Advanced MPPT and Modularity Snapinverter

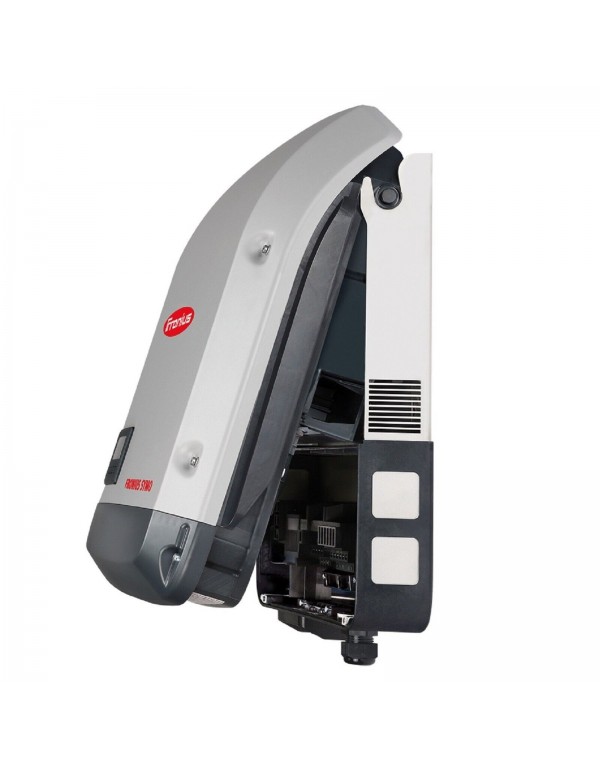

On Tienda Solar We prioritize the equipment that facilitates the technical deployment. Thanks to its modular design Snapinverter, the assembly is extremely simple: the fixed wall base is installed independently receiving all the wiring of the photovoltaic plates, and the power stage is coupled on it later. Also, when having 2 MPPT Followers, allows designing series In roofs with different orientations (for example, roofs to two east-west waters). His algorithm Dynamic Peak Manager It performs a periodic scan of the power curve to minimize the impact of partial shadows caused by chimneys, trees or clouds, always guaranteeing maximum performance.

Technical specifications (Symo 5.0-3-M Light model):

• Nominal output power (AC): 5000 W (5 kW)

• Maximum input power (DC): 10000 w (Excellent margin that allows to ovenexentize the field of solar)

• Number of MPPT followers: 2

• Start voltage (DC): 200 V

• Nominal input voltage (DC): 595 V

• Maximum input voltage (DC): 1000 V

• Maximum input current (MPPT1 / MPPT2): 16.0 A / 16.0 A

• Short circuit current (MPPT1 / MPPT2): 20.0 A / 20.0 A

• Nominal output current (AC): 7.2 a

• Connection to Network: Three-phase (380V / 400V)

• Degree of environmental protection: IP65 (Total sealing for indoor installation or weathering)

• Serial communications: Light version (DataManager / WiFi card not integrated at the factory / expandable externally)

• Thermal management: Intelligent forced ventilation (Active Cooling)

• Net package of the package: 20.0 kg

Frequently Asked Questions (FAQ)

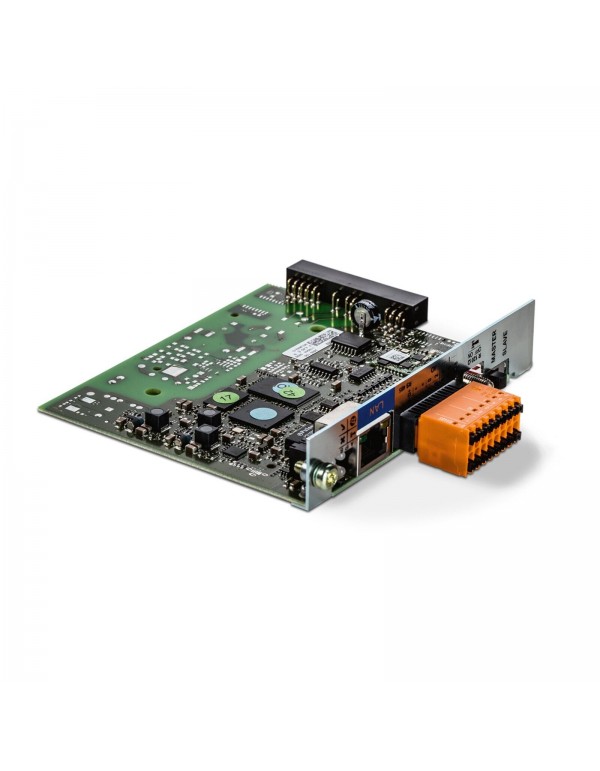

1. What constructive difference does this 5.0kw "Light" model have in front of the "Full" version? The inverter Solar shares exactly the same power components, electrical protections and mechanical design as the full range. The only difference is commercial: the version Light It does not include factory installed the DataManager card to connect to the Internet by WiFi or Ethernet, which significantly harves its initial purchase price.
2. Can I connect lithium batteries to this inverter Fronius Symo de 5000W? Not directly. The conventional Symo series encompasses inverters solar connecting to pure network and does not have a dedicated charge input for lithium batteries. If you are looking for a system with storage capacity to protect your energy surpluses, we suggest you check our category of inverters hybrid Fronius Symo Hybrid.
3. How does Zero injection work on this computer work? To avoid pouring energy to the outer electrical network (for example, if the legalization procedures of your solar panels they are in process), the inverter It automatically reduces its production in milliseconds to equal the instantaneous consumption of the house. Being the LIGHT model, to perform this function requires the external installation of a compatible measuring accessory.
4. Why is Active Cooling essential in this inverter solar? The system Active Cooling Use intelligent internal fans that actively dissipate the heat of the electronics. This avoids the losses of energy efficiency that suffer inverters of passive refrigeration in the hottest months of the year (derating) and substantially lengthens the useful life of internal components.
