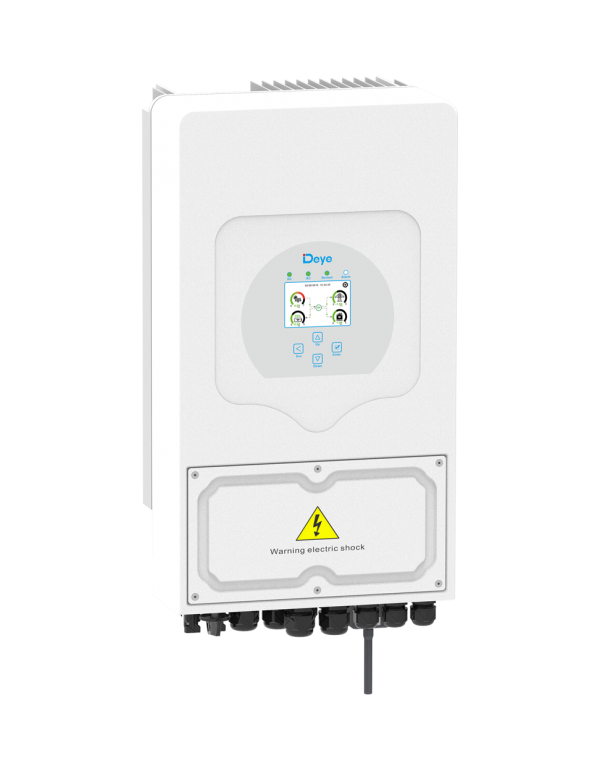

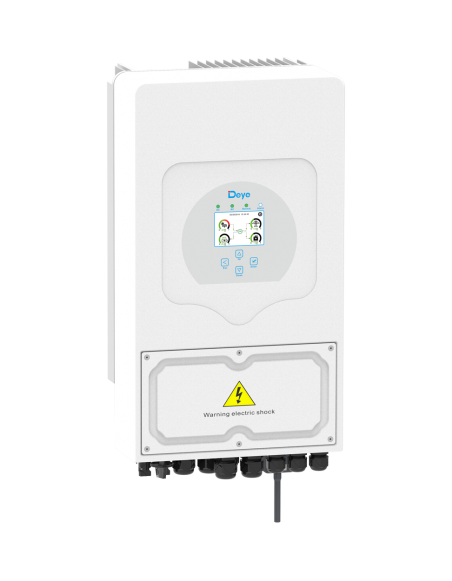

Hybrid Inverter Monophasic Deye 5kw SUN-5K-SG05LP1-EU 48V

Benefits Hybrid Inverter Monophasic Deye 5kw SUN-5k-sg05lp1-EU

The inverter Deye SUN-5k-sg05lp1-EU highlights in the residential photovoltaic sector for its ability to operate with a bus of 48V low voltage batteries (40V to 60V range). This topology significantly harves the initial cost of accumulation compared to high voltage systems. Designed to manage up 6,500 WP power in solar, take full advantage of solar energy thanks to a Maximum efficiency of 97.6%, a European efficiency of 96.5% and a Performance of MPPT greater than 99%.

Its system Intelligent air cooling guarantees efficient operation in a thermal range of -40 ° C to +60 ° C maintaining an ultrasilence sound level (). Installed next to solar panels set in solar approved, users of Tienda Solar enjoy a reliable solution with up to 10 years of official guarantee.

120A load, switching UPS and AC Coupling Capacity

His accumulation stage administers a 120A continuous loading and loading currentallowing to transfer energy quickly towards lithium batteries during the hours of greater radiation or according to the programming of their 6 Configurable time slots according to the electricity rate.

Before cuts in the power supply, the backup function UPS (EPS) commute in less than 10 milliseconds, offering a Power peak in isolated mode of up to 2 times the nominal power for 10 seconds (10,000W) To start inductive engines and demanding loads. Has the capacity of AC Coupleing and DC Coupleing to hybridize the plant with Inverters Networking Pre-existing, also integrating a port for the management and automatic start of Support diesel generators.

Scalability up to 16 units, IP65 grade and integral protection

The model SUN-5k-sg05lp1-EU Allow to connect Up to 16 units in parallel to expand the power both in network connected mode (On-grid) as outside of it (Off-grid). Your metallic chassis has Degree of protection IP65, Suitable for mounting on external walls exposed to dust and humidity.

Includes electrical protections of Overvoltage DC type II and AC type II, protection against reverse polarity in DC, insulation monitoring, ground failure monitoring, CA short-circuit protection and RCD residual current detector. Your color LCD touch screen facilitates the local configuration of zero injection control with the Chint DDSU666-H vatmeter. If you want to consult design guides, wiring schemes and technical manuals written by specialists in photovoltaic energy, visit the Blog Tienda Solar.

Detailed technical characteristics

• Team model: Deye SUN-5k-sg05lp1-EU

• Nominal output power AC / UPS: 5,000 W (single-phase L + N + PE, 220 / 230VAC)

• Maximum apparent power of exit AC: 5,500 VA

• Maximum input photovoltaic power (PMAX): 6,500 WP

• Nominal battery voltage: 48 V (Functional range of 40 V to 60 V)

• Type of compatible battery: Lithium-ion or lead-acid (automatic adaptation via BMS)

• Maximum loading / battery discharge: 120 A / 120 A

• Number of MPPT / Strings followers by MPPT: 2 independent MPPT / 1 + 1 (2 tickets in total)

• Maximum PV input current per MPPT: 13 a + 13 a

• Maximum short circuit current (ISC): 17 a + 17 a

• Nominal voltage of PV input: 370 V (Operating Range Up 500V)

• System start voltage: 125 V

• MPPT voltage range: 150 V at 425 V

• Maximum efficiency / European efficiency: 97.60% / 96.50%

• Efficiency of the MPPT follower: > 99.00%

• Power peak in isolated mode (OFF-GRID): 2 times the nominal power for 10 seconds (10,000 W)

• Maximum current of continuous passage in CA (Grid to Load): 35 a

• Degree of protection of the chassis: IP65 (suitable for outdoor mounting)

• Sound emission level:

• Physical dimensions (wide x high x deep x): 330 x 580 x 232 mm (without connectors)

• Net weight of the team: 24.9 kg

• Parallelization capacity: Up to 16 units in parallel

• Integrated overvoltage protections: DC Type II / AC Type II Downloaders

• Communication interfaces: Ports RS485, RS232 and Canned Can

• Remote monitoring options: GPRS, Wi-Fi, Bluetooth, 4G, LAN (Optional)

• Commercial guarantee: Up to 10 years of the manufacturer's official

Frequently Asked Questions (FAQ)

1. Is it compatible with batteries Pylontech US2000C or US3000C of 48V?

Yes, it is fully compatible with the range of batteries Pylontech 48V (as well as Dyness and Deye) The inverter It is directly communicated via CAN or RS485 with the BMS of the battery to optimize the load.

2. What happens in housing if a cut is produced in the electrical network?

The inverter automatically switches to your output UPS (EPS) in less than 10 milliseconds, supplying uninterrupted energy to housing loads from the Solar and batteries.

3. Can I install the inverter On a terrace or outer space?

Your envelope with degree of protection Ip65 It guarantees sealing against water and dust. However, in Tienda Solar It is recommended to locate it in a protected space from the direct sun to avoid power reductions by high temperatures.

4. Does the zero injection configuration allow the electrical network?

Yes. Integrating a compatible vatimeter as the Chint DDSU666-H, zero injection control can be configured from your LCD to adjust photovoltaic production to instantaneous consumption of housing.

5. What other alternatives inverters and accumulators exist in Tienda Solar?

In the catalog of Tienda Solar You will find a wide range of options such as Inverters solar, Microinverters, inverters hybrid single-phase and three-phase, in addition to accumulation options with Gel batteries or Inverters AGM.
