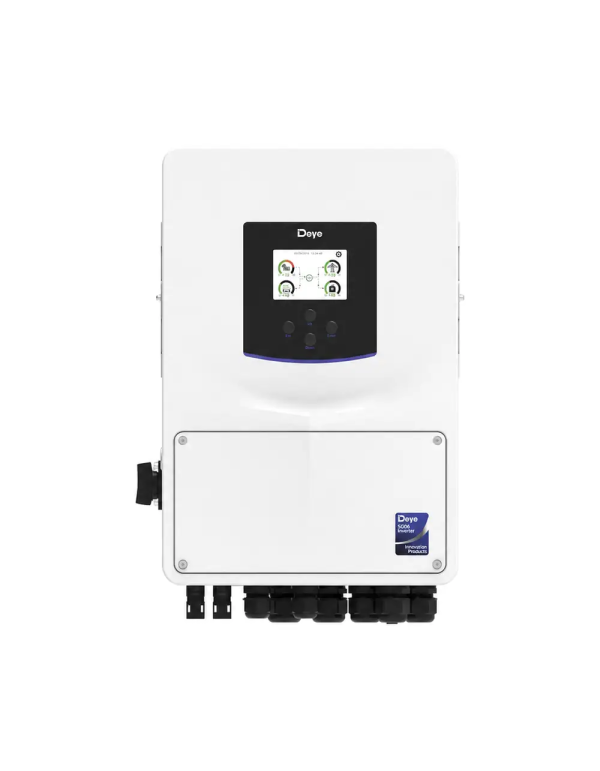

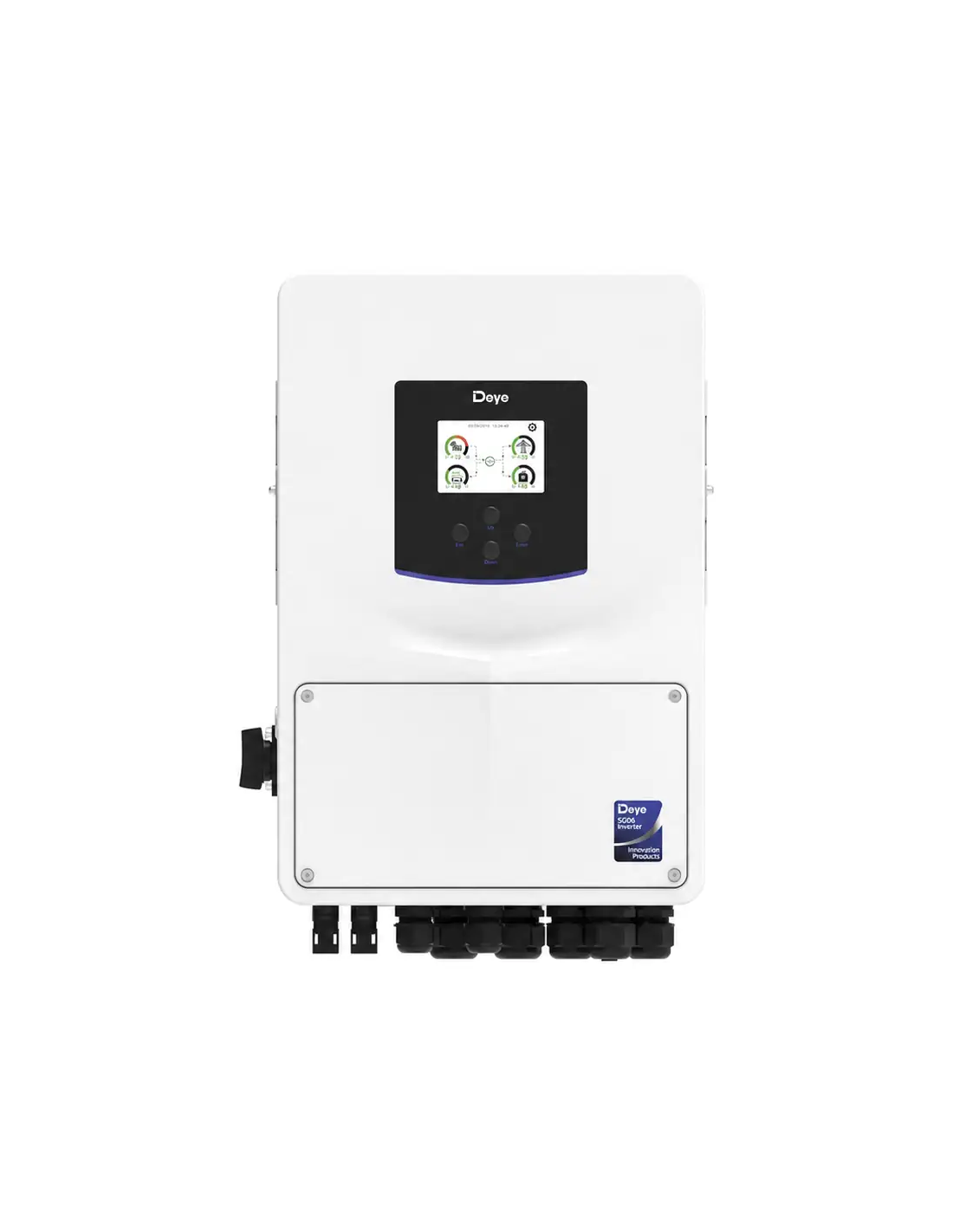

Hybrid Inverter Single-phase Deye 6kw SUN-6k-sg06lp1-EU-bm2

Detailed technical characteristics

Battery entry

• Type of compatible battery: Lead-acid or ion-lithium
• Battery voltage range: 40-60V
• Maximum loading / unloading current: 135A
• Load strategy for lithium batteries: AutoAdaptation to BMS
• Number of battery entries: 1

Photovoltaic entrance (FV)

• Maximum connectable FV power: 12.000W
• Maximum power of entry FV: 9.600W
• Maximum input voltage FV: 500V
• Starting voltage: 125V
• MPPT voltage range: 150-425V
• FV nominal input voltage: 370V
• Maximum current of operation FV: 18A + 18A
• Maximum short circuit: 27A + 27A
• Number of MPPT / strings by MPPT: 2/1 + 1

Entrance / exit AC

• Active power input / output AC: 6.000W
• Maximum apparent power input / exit AC: 6.600VA
• Nominal input / output current AC: 27,3 / 26.1A
• Maximum input / exit current AC: 30A / 28,7
• Maximum continuous step of AC (Network for Consumption:) 50A
• Power peak in isolated mode: 2 times the nominal power for 10 s
• Power factor adjustment range: 0.8 in advance to 0.8 late
• Nominal input / output voltage: 220 / 230V (0.85Un-1.1Un), L + N + PE
• Network frequency / range: 50Hz (45-55Hz) / 60Hz (55-65Hz)
• Total Harmonic Distortion (THDI:) less than 3% of the nominal power
• DC INJECTION: less than 0.5% in

Efficiency

• Maximum efficiency: 97,6%
• European efficiency: 96,5%
• MPPT efficiency: greater than 99%

Protections

• Integrated protections: Reverse polarity DC, , overcurrent AC, , thermal protection, , overvoltment, , short circuit, , dC component monitoring, , antiisla, , dC Driver, , isolation impedance detection and residual current detection
• Protection against electric arc (AFCI:) Optional
• Level of protection against overvoltages: Type II (DC) and Type II (AC)

Interface and Communication

• Screen: LCD Touch Color
• Communication interfaces: WiFi, RS485, Can

General data

• Operating temperature: -40 ° C to +60 ° C (power reduction from 45 ° C)
• Admissible ambient humidity: 0-100%
• Maximum performance altitude: 3.000m
• Noise level: less than 45 dB
• Degree of protection: IP65
• Topology: Not isolated (solar side), isolated (battery side)
• Overvoltage category: OVC II (DC), OVC III (AC)
• Dimensions (an x at x PR:) 310 x 460 x 218 mm (without connectors or supports)
• Weight: 15.6 kg
• Refrigeration: Natural
• Warranty: 5 or 10 years, depending on the final installation country and the manufacturer's warranty policy
• Network connection regulations: IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G99, VDe-AR- N 4105
• Security / CEM: IEC / EN 61000-6-1 / 2/3 / 4, IEC / EN 62109-1, IEC / EN 62109-2

Benefits Hybrid Inverter Deye SUN-6K-SG06LP1-EU-BM2

The serie SG06 it is the direct evolution of the most installed low-voltage single-phase platform of Deye, and in the model of 6kw the jump is noticeable especially in the photovoltaic side. Each one of his two MPPT accepts 18a of operation current and Short-circuit, values designed for current large format and high current modules. This allows you to connect the solar panels of the latest generation without the inverter cut out production by current limitation, something that on teams of previous generations forced to choose smaller modules or lose energy at central hours.

This is added a relationship of overdimensioning of 200%: the team admits up 12,000W FV power connected upon 6,000W output AC, with 9.600W FV input useful. In practice, the production surplus that does not consume housing or is poured into network is intended to charge the battery, maximizing the use of the solar field even in winter or with east-West orientations.

Efficiency and reliability in continuous use

With a maximum efficiency of 97.6%, a european efficiency of 96.5% and a follow-up MPPT greater than 99%, conversion losses are maintained at highly contained levels for a hybrid equipment with integrated charger. The natural cooling, without fans, reduces moving parts susceptible to fault and maintains the noise below 45 dB, a relevant data when the equipment is installed in garages, garages or laundry near habitable areas.

The envelope IP65 and the work range of -40 ° C to +60 ° C they allow its installation abroad, with reduction of power only from 45 ° C. The protections package includes residual current detection, , isolation impedance monitoring, , anti-spawn and unloaders Type II both in DC and in AC, with Optional AFCI for those who need protection against electric arcs in the string.

Compatible with all types of 48V batteries

Unlike many inverters hybrid that only accept lithium of concrete brands, the Deye SG06 manages so much lithium batteries with communication CAN or RS485 and self-admitted load BMS, as accumulators lead-acid, including the aGM batteries and the gel batteries. Your 135a in loading and downloading allows you to move up about 6.5kw of power in 48V batteries, taking advantage of the maximum benches of several modules in parallel.

Hybrid operation: Network, Battery, Generator and Isolated

Intelligent management with 6 slots

The inverter allows you to configure 6 times schedules independent loading and unloading. This fits directly with the rate 2.0TD three periods: the battery is charged from network in valley hours when solar production is scarce and unloading it in a point, reducing the invoice even in the months of lower radiation.

Court-up and power POWER

In Isolated mode the delivery equipment twice its nominal power for 10 seconds, sufficient margin for the start of pumps, compressors or appliances with high current peaks. The continuous step of 50Th Network for Consumption ensures that the house can pull the network without limitations when the demand exceeds what sun and battery contribute.

Integration with diesel generator

The SG06 admits store energy from a diesel generator set, a configuration widely used in farms, field houses and agricultural holdings without connection to a network or with an unstable supply, where the generator acts as backup to recharge the battery in prolonged-free periods.

AC coupling for existing installations

Thanks to coupling in AC, it is possible to add storage to an installation that already has inverters networking without dismantling the original equipment. The Deye manage the energy of the inverter existing and drifting it on battery, converting a pouring installation into a complete hybrid system.

Scalability: Up to 16 Inverters in parallel

One of the differential advantages of this range is the possibility of connecting up to 16 parallel equipment, both in networking like in isolated, sharing various batteries in parallel. This makes the SUN-6K-SG06 on a valid base for large housing, small shops or ships that need to grow by phases without changing platform.

Recommended configuration

For a single-family house with this inverter, a usual combination is a solar field of between 6 and 12kwp distributed in the two MPPT, with structures for solar panels adapted to the type of cover, and a 48V battery bank dimensioned according to night consumption. If you prefer not to calculate each component separately, in our section solar kits you will find sets already dimensioned and compatible with each other.

Regulations and certifications for Spain

The model complies with the RD 140 and the UNE 217002, references applicable to the connection of self-consumption facilities in Spain, in addition to IN 50549, , VDE-AR-N 4105 and CEI 0-21. Communications WiFi, RS485 and Can they facilitate remote monitoring and integration with lithium batteries and energy meters for pouring control.

On Tienda Solar we select each team thinking about professional installers and self-consumption customers who seek reliability and technical support. If you want to deepen dimensioning, comparative or configuration of inverters, consult the Blog Tienda Solar, where our experts publish purchase guides, technical advice and specialized content.

Frequently Asked Questions (FAQ)

1. What is the difference to Deye SG06 of 6KW regarding the SG05 generation?

The main improvement of the SG06 is at the photovoltaic entrance: each MPPT admits 18A of operation current and Short-circuit, with 12,000W FV power connected. This allows you to work without limitations with the high-current panels that dominate the current market and ovenexionize the solar field to the 200% of the power AC.

2. Can I use lead batteries with this inverter or only lithium?

You can use both technologies. The inverter you accept lead-acid batteries (AGM, GEL) and 48v lithium batteries in the range of 40-60V. With lithium, the load was self-autoated to the parameters that communicates the BMS for CAN or RS485, so it is important to verify protocol compatibility before purchase.

3. How many solar panels can I connect to Deye SUN-6K-SG06LP1-EU-BM2?

It depends on the power and tension of the modules. The limit is 12,000W Power FV Connectable, , 500V maximum tension by entrance and 18A by MPPT, with a tracking range of 150-425V. Each string must be calculated with the circuit voltage open at the minimum location temperature so as not to overcome the 500V. If you have doubts, you can start from one of our inverters solar with predimensioned kit.

4. Does it work during an electricity network blackout?

Yes. When it is a hybrid inverter, you can feed the consumption from the plates and the battery when the network fails, with protection antiisla that disconnects the housing from the public network for safety. In Isolated Mode Supplies Peaks double of its nominal power for 10 seconds.

5. Can it be installed abroad?

Yes. Your degree of protection IP65 it does it resistant to dust and water jets, and works between -40 ° C and + 60 ° C. Even so, it is recommended to locate it protected from direct solar radiation, since it reduces power from 45 ° C of room temperature.

6. What guarantee does the inverter?

Deye offers 5 or 10 years warranty depending on the final installation country, according to its guarantee policy. We recommend you to consult us to confirm the current conditions for your installation in Spain or Portugal.

7. Is it compatible with time discrimination rates?

Yes. The programming of 6 slots loading and download allows you to adapt the operation of the battery to the valley, plain and tip periods, charging from network in the cheapest hours and downloading on the most expensive.
