List of products by brand Hoymiles

Engineering and competitive advantage of Hoymiles

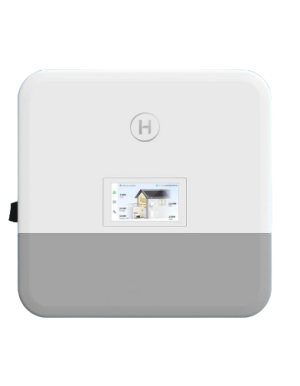

Inverters Single-phase hybrids: HIS series

Models HIS-3.6L-G3S, HIS-5L-G3, HIS-5L-G3S, HIS-6L-G3, HIS-6L-G3S and HIS-8L-G3S Cover powers from 3.6 kW to 8 kW for single-phase residential facilities. Its architecture integrates Double MPPT high current, intelligent management of lithium and lead-acid batteries, and a strategy of TOU (TIME OF USE) It allows to program up to 8 load and download strips to buy cheap energy and consume the stored when the rate is more expensive. In addition, they are compatible natively with heat pumps and backup diesel generators, expanding the use scenarios beyond basic self-consumption.

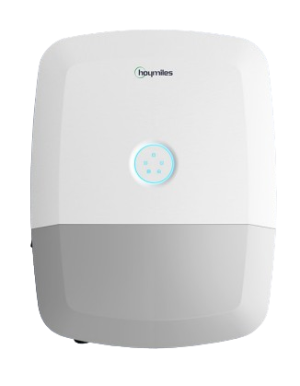

Inverters Three-phase hybrids: HIT series

For higher consumption facilities - large falls, communities or small businesses - the series HIT-6L-G3S, HIT-8L-G3S, HIT-10L-G3S, HIT-12L-G3S, HIT-15L-G3S and HIT-20L-G3S It offers three-phase powers of 6 to 20 kW with a function EMS (ENERGY MANAGEMENT SYSTEM) Able to operate in self-consumption, savings, emergency, flattened peaks and discount rate. These Inverters Networking they reach efficiencies from up to 97,6% and allow to connect up to 10 units in parallel, both in on-grid and off-grid configurations, which makes them a scalable solution for projects that grow over time.

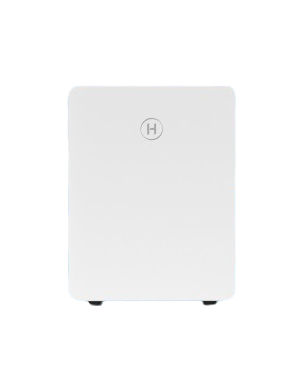

Low voltage lithium batteries: LB series

The range LB-6D-G3, LB-15D-G3 and LB-16D-G3 -All also available in version Heating for cold climates- are batteries Deep cycle lifepo4, designed to work together with the inverters His and low voltage hit (48V). They stand out for their 90% download depth (dod), an estimated service life superior to the 6,000 cycles and protection Ip65, which allows you to install them both indoors and outdoors. They are totally scalable in parallel, reaching up to 257 kWh combining several units LB-16D-G3, and its version with integrated heater (Heating) Maintains load performance in extreme cold conditions, something especially relevant in mountain areas facilities.

Systems Plug-and-Play Hibattery and plug-in batteries Peakshaving: HB series

The serie Hibattery, with the models HEB-1920-ac-sv, HEB-4020-ac, HEB-4020-x and HEB-4020-'s, represents the most recent generation of modular storage "all integrated" Hoymiles. The HEB-4020-x Incorporates battery, inverter of 2,500 W and 4 MPPT Entries On a single team, ideal for balcony facilities or small homes that seek generation and storage in one step; the HEB-4020-ac is your version coupled in alternating current, designed to add capacity of lithium batteries to an existing photovoltaic installation without touching the generator; and the HEB-4020-'s It works as an expansion battery to expand the capacity of any of the two previous ones up to 16 kWh. All incorporate cells Car grade life4 With more than 8,000 cycles, IP66 protection and a management system with IA that recalculates the energy strategy every few hours as a function of the price of electricity and household consumption.

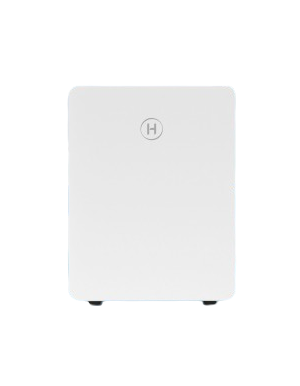

All systems in one Hione and support Hibox

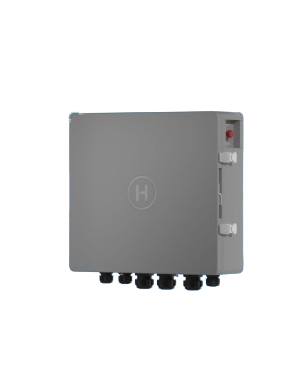

The serie Hione -Available in single-phase versions HiOne-6S-G3, HiOne-8S-G3, HiOne-10S-G3, HiOne-12S-G3 and the stackable battery module HiOne-8B-G3- Integra inverter, Battery and EMS in a single compact body, reducing the installation space against separate components. Your modular design allows you to add additional battery modules with automatic charging status rolling, while the gateway HiBox-100S-G3 enable Total Housing Support (Whole-Home backup) with a switching time 0 ms, Guarantee that even the most sensitive teams notice the supply cut.

Monitoring and Energy Management: CT1 and DTS-WIFI

No hybrid installation is complete without proper export and monitoring management. The current transformer CT1-300A It is used next to the smart counter to accurately measure the flow of energy to the network and apply export limits (Export Power Limit) when the local regulations require it. For its part, the DTS-WiFi-G3 acts as communication gateway between the inverters Hoymiles and the platform S-Miles Cloud, allowing remote supervision, diagnosis and firmware update from anywhere.

Why choose Hoymiles for your self-consumption installation

• Intelligent Energy Management: EMS (self-consumption, savings, emergency, flattened peak) modes adapt system behavior at your rate and consumption habits.
• Safety in storage: chemistry Lifepo4 In the entire range of batteries, with multilayer BMS and certified protections against overload, short circuit and overheating.
• Real scalability: from a battery LB-6D-G3 Individual to configurations of more than 250 kWh or several inverters Hit in parallel, the system grows with you.
• Backup before blackouts: The Hione + Hibox combination offers switching in 0 ms, while the inverters His / hit in mode backup They maintain the critical operating circuits.
• Total monitoring: S-Miles Cloud, along with the DTS-WiFi, offers remote control and diagnosis of the entire ecosystem from the mobile.
• Simplified installation: Hibattery systems are plug-and-play, reducing start-up times against traditional facilities with separate components.

Featured technical characteristics

• Power inverters hybrid: from 3.6 kW (HIS-3.6L-G3S) up to 20 kW (HIT-20L-G3S), in single-phase and three-phase configurations.
• Maximum efficiency: Up to 97.6% in the HIT series and up to 98.5% in Hione systems.
• LB battery capacity: of 6.14 kWh (LB-6D-G3) at 16.08 kWh per unit (LB-16D-G3), scalable up to 257 kWh in parallel.
• Depth of discharge (DOD): 90% throughout the LB and HB range.
• Environmental protection: IP65 (LB series) and IP66 (HB and Hione series), suitable for indoor and exterior.
• Working temperature range: from -20 ° C to + 55 ° C, with heating version available for cold climates.
• Communication: Monitoring in S-Miles Cloud through the gateway DTS-WiFi-G3.
• Export Management: Compatible with smart counter and current transformer CT1-300A.
• Lifetime cycles: greater than 6,000 cycles (LB series) and more than 8,000 cycles (HB Automotive-Grade series).

Frequently asked questions about Hoymiles

1. What is the difference between a hybrid Inverter His and one hit? The serie His are inverters hybrid single-phase, designed for single-family homes with powers of 3.6 to 8 kW. The serie Hit are inverters hybrid three-phase, oriented to higher consumption facilities (large homes, shops or small industries), with powers of 6 to 20 kW and the possibility of connecting up to 10 units in parallel. The choice depends on the type of power supply of your (single-phase or three-phase) housing and the total power you need to manage.
2. Can I combine a LB battery with a HBA hibattery system in the same installation? They are not designed to be combined directly, as they respond to different architectures: the series Lbs is low voltage battery designed specifically to work with inverters Hybrids His and Hit, while the series HB (Hibattery) is a modular system with inverter Integrated, designed as an independent solution or expansion of itself. On Tienda Solar We help you choose the correct combination depending on whether parts of zero or if you already have a hybrid Inverter installed.
3. The systems Hoymiles Dan service during a power supply? It depends on the configuration. The inverters His and HIT incorporate an emergency mode /backup You can feed critical loads during a blackout. For a backup housing with practically instant switching (0 ms), the recommended combination is the all-in-one system Hione along with the gateway HiBox-100S-G3, designed specifically for that purpose.
4. Do I need the CT1-300A and the DTS-WiFi-G3 In all the facilities? The CT1-300A It is necessary when the installation requires limiting the power exported to Network (Export Power Limit) according to the regulations of your area, and you should always pair with the compatible smart counter. The DTS-WiFi-G3, on the other hand, is the gateway that connects your equipment Hoymiles to the cloud S-Miles Cloud; without it, the system continues to work normally, but you lose remote monitoring and alerts in real time, so in Tienda Solar We recommend it in practice all projects.
5. What maintenance requires lithium batteries Hoymiles (LB and HB)? Very reduced. Both families employ chemistry Lifepo4, recognized by its thermal stability and absence of memory effect, together with an intelligent BMS that autonomously manages the rolling of cells and electrical protections. Remote supervision through S-Miles Cloud allows you to detect any performance deviation without the need for periodic revisions.
6. What guarantee does equipment offer Hoymiles and what does it contribute to buy them in Tienda Solar? The inverters Hybrids and batteries Hoymiles They have manufacturer guarantees of several years according to product family (with the possibility of expansion in models such as the LB series). When buying in Tienda Solar As an official distributor, you have the guarantee of acquiring original product, fully covered, along with technical support in Spanish for the sizing, the initial configuration in S-Miles Cloud and the after-sales incident resolution.

If you are looking for an installation of self-consumption with Intelligent energy management, safe lithium storage and real backup against supply cuts, the range Hoymiles available in Tienda Solar -From the inverters hybrid His and hit to all systems in one Hione and the lithium batteries LB and Hibattery- is the reference combination supported by a manufacturer with more than a decade of trajectory in solar power electronics.

Complete your project with solar and solar panels Compatible, and has the technical support of our team to size each component. If you need guidance before buying, visit the Blog Tienda Solar, where you will find purchase and comparison guides prepared by sector specialists.

Discover the full range of Hoymiles on Tienda Solar And take the step towards a more intelligent, safe and scalable self-consumption.
