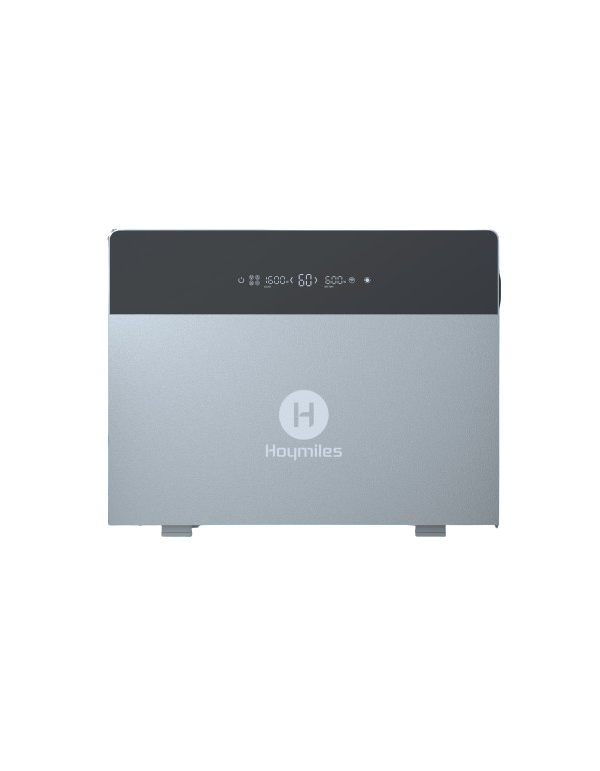

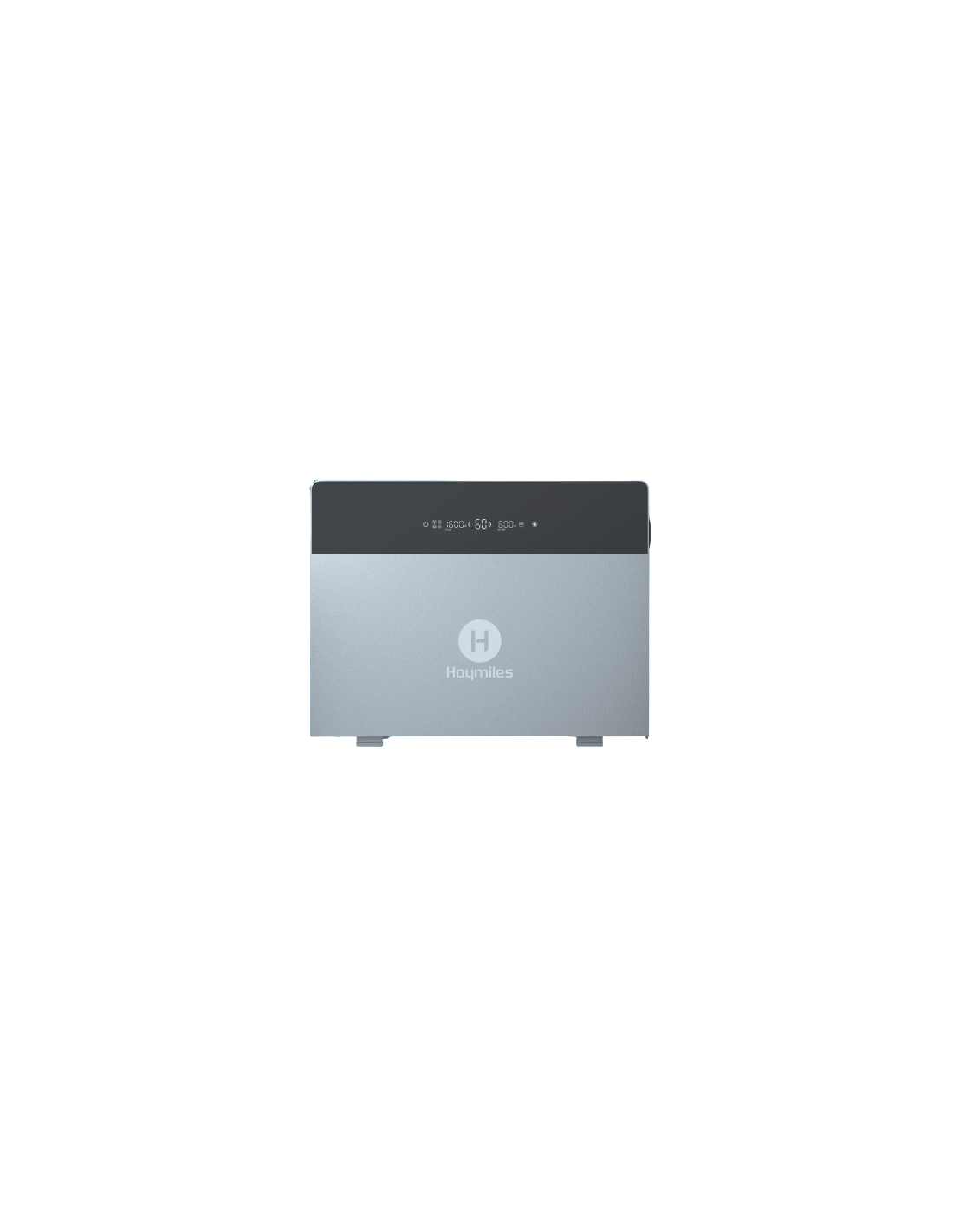

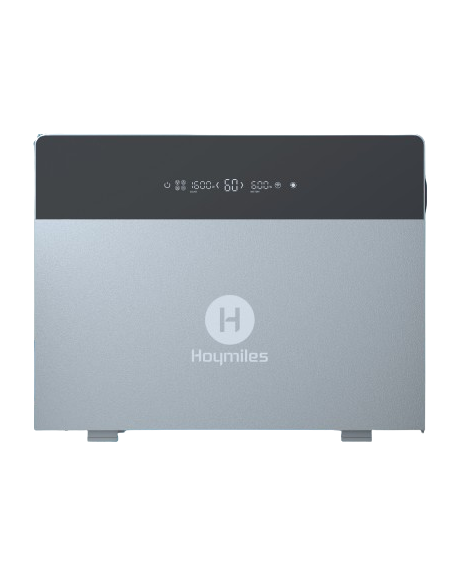

Plug-and-play battery Hoymiles Hibattery AC 4,02KWH HB-4020-AC

Benefits of Plug-and-play battery Hoymiles Hibattery HB-4020-AC

The HEB-4020-ac elevates the concept of plug-and-play battery to a new level: Instead of limiting a small balcony system, combine the 4,02 kWh battery and a inverter Integrated up to 2500W, which makes it a much more versatile self-consumption solution, suitable for both balcony and housing facilities. Unlike a lithium battery conventional that requires a hybrid Inverter Independent, here both components are already integrated and ready to connect.

Their LFP Cells of 314 AH, with a certified life of ≥8,000 70% health status cycles (SOH), it place it very much above the sector average, guaranteeing more than a decade of intensive use without significant loss of capacity. To this adds a Maximum efficiency DC / AC of 96.5%, one of the highest reference values between the current domestic batteries.

The modularity It is another of its strengths: being stackable, it allows to expand the initial capacity of 4.02 kWh to 16 kwh By simply adding additional battery packs HB-4020-S, without replacing the main equipment or modifying the existing installation. This makes it as valid for those who start with a modest energy need that for those who plan to scale their self-consumption in the future, with lithium batteries Additional according to your consumption.

Open compatibility: Third Party Meters and EMS Protocol

One of the most differential aspects of the HB-4020-AC is your open compatibility: In addition to working with headmen of today's, admits Third party meters like Shelly and Everhome, and offers a Open MQTT Protocol To be integrated with external energy management systems (EMS). This eliminates the dependence of a single manufacturer and facilitates its integration in facilities that already have equipment from other brands, including any inverter solar or microinverter of existing network connection.

Professional level security in a domestic team

Behind your simplicity of installation Plug and play, HB-4020-AC incorporates a very complete safety system: its BMS Hoymiles Integra 48 Protection Functions, together with Intelligent cell rolling To prolong the life of the battery, Rolling DC / DC at PACK level, autocalentamiento for its operation in cold climates, and a system of Extinction of fire fires With pressure relief valve and over-temperature protection in the DC terminals. All this, backed by a degree of protection Ip66 That allows its installation outdoors without worries.

Detailed technical characteristics

AC port (network connection):

• Nominal output power: 800 W
• Nominal output current: 3,48 a
• Maximum output power: 800 W
• Maximum output current: 3,48 a
• Maximum entry power: 2,500 W
• Maximum input current: 10.87
• Voltage / Nominal range: 230V (180 to 270V)
• FREQUENCY / NOMINAL RANGE: 50Hz (45 to 55Hz)
• Adjustable power factor: > 0.99 by default; 0.8 in advance ... 0.8 in delay
• Total harmonic distortion (THD):

AC port (off-network):

• Maximum output power: 2,500 W
• Nominal voltage: 230 V
• Nominal frequency: 50 Hz
• Maximum output current: 10.87
• Maximum entry power: 2,500 W
• Maximum input current: 10.87
• Power factor: > 0.99 by default; 0.8 in advance ... 0.8 in delay

Battery:

• Type of cell: LFP
• Lifetime: ≥ 8,000 cycles at 70% SOH
• Nominal capacity: 314 ah
• Nominal energy: 4.020 WH (4.02 kWh)
• Nominal voltage: 12.8 V
• Charging / unloading temperature: -20 ° C at 55 ° C
• Maximum loading / unloading power: 2,000 W
• Nominal loading / unloading power: 2,000 W
• DC / DC voltage: 48 V

General information:

• Dimensions (an × prof): 520 × 384 × 199 mm
• Weight: 42 kg
• Operating temperature: -20 ° C at 55 ° C
• Storage temperature: -30 ° C at 60 ° C
• Humidity: 5% to 100%
• Maximum altitude: 4,000 m
• Noise:
• Refrigeration: Natural convection
• Warranty: 10 years
• Degree of protection: Ip66
• Topology inverter: Isolated

Interface and connectivity:

• Screen: Led
• Communication: Bluetooth and Wi-Fi 2.4 GHz
• Monitoring: Application S-Miles Home

Frequently Asked Questions (FAQ)

1. What is a difference to the HB-4020-AC of a plug-and-play battery conventional for balcony?

Unlike the Batteries Plug and Play of less capacity thought only for balcony, the HB-4020-AC integrates a inverter up to 2500W and a base capacity of 4,02 kWh, expandable until 16 kwh, which makes it also suitable to cover the consumption of a complete home, not just a punctual balcony system.

2. Can I expand the capacity of this battery in the future?

Yes. Its design stackable Allows you to add additional battery packs HEB-4020-'s to scale the total capacity from the initial 4,02 kWh up to a maximum of 16 kwh, without the need to replace the main team.

3. Is it compatible with inverters or meters that are not from today's?

Yes. The HB-4020-AC admits Third party meters like Shelly and Everhome, and has a Open MQTT Protocol To integrate with external EMS systems, in addition to being compatible with any existing residential solar installation, including inverters solar and microinverters Of other brands.

4. What security measures incorporates in front of other domestic batteries?

Your BMS Hoymiles integrates 48 Protection functions, intelligent cell roll, Rolling DC / DC at the PACK level, self-care in cold climates and a system of Extinction of fire fires with pressure relief valve, all under certification Ip66.

5. How many years of useful life can I expect from this battery?

Their cells LFP of 314 ah they are certified for ≥8,000 cycles maintaining 70% of your health status (SOH), well above the middle of the sector, and have a manufacturer guarantee of 10 years.

6. Is this battery noisy if I install it inside the house?

No. Thanks to your system Natural Convection Refrigeration, without fans, the noise level is kept below the 20 dB, being practically inaudible both indoors and outdoors.
