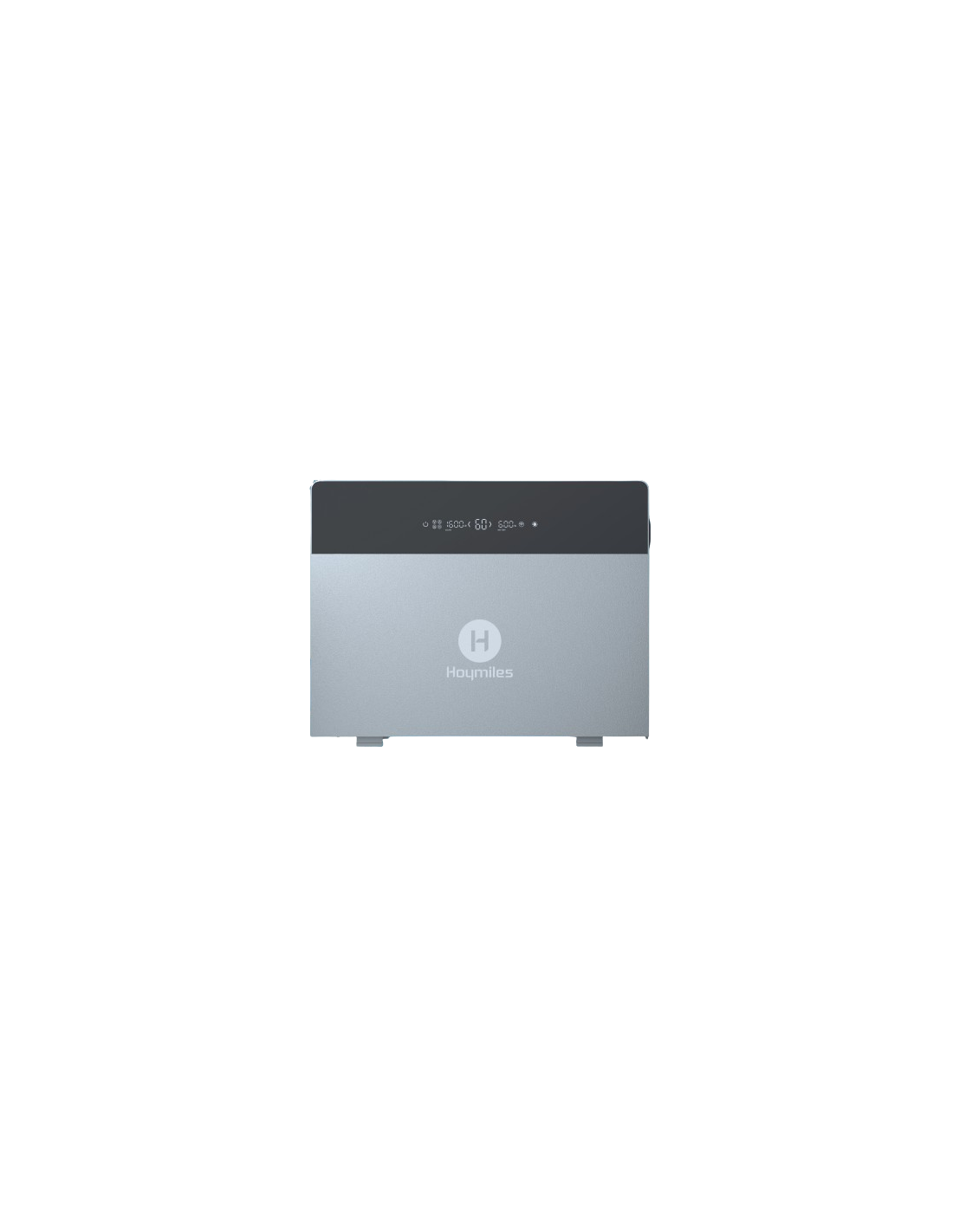

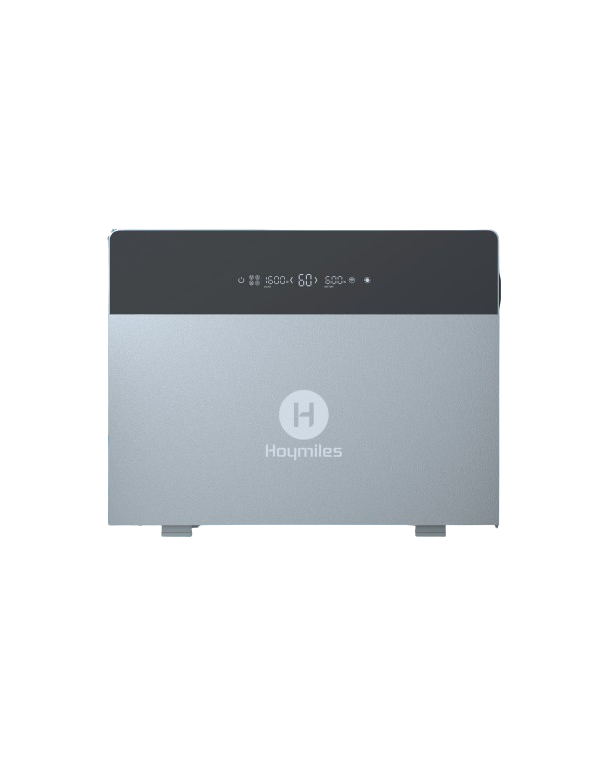

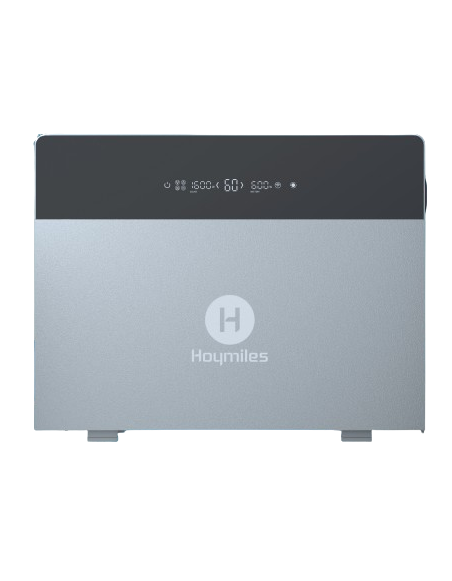

Plug-and-play battery Hoymiles Hibattery x 4,02KWh HB-4020-X

Benefits of Plug-and-play battery Hoymiles Hibattery HB-4020-X

The HEB-4020-x It is the variant of the Hibattery range designed for those who build a solar installation right from the start: Unlike a purely ac-coupled model, it incorporates 4 MPPT inputs with a capacity of up to 4kw photovoltaic power, which allows you to connect directly up 8 solar to the team, without the need for a inverter solar or microinverter additional. This converts the HB-4020-X into a whole-one system: solar panels, inverter and lithium battery in a single device Plug and play.

Their 4 independent MPPT optimize energy upgrading even when They receive different irradiation (for example, in different orientations or with partial shadows), maximizing the use of each connected panel. With a Voltage range MPPT from 16 to 60V and a maximum current of 32A, it supports a wide variety of configurations , including systems with modules of different powers.

Like the rest of the range, your LFP Cells of 314 AH guarantee ≥8,000 70% health status cycles (SOH), and its design stackable Allows you to expand the capacity from the initial 4,02 kWh until 16 kwh Adding Packs HB-4020-S, without replacing the base equipment.

HB-4020-X vs HB-4020-AC: Which one to choose?

The key difference between both models of the Hibattery 4020 range is in the Type of solar energy entry. The HEB-4020-ac It connects exclusively by alternating current, being the ideal option if you already have a photovoltaic installation with hybrid Inverter or microinverters And you only need to add storage. The HEB-4020-x, on the other hand, it incorporates Direct DC Solar Entrance (4 MPPT, Up 4KW), what makes it the best option if you are riding a new installation and want to avoid double conversion DC-AC-DC, thus winning some additional efficiency in the loading process from the .

Security and open compatibility

The HB-4020-X maintains the same level of security as the rest of the range: BMS Amarmiles with 48 protection functions, Intelligent cell rolling, Rolling DC / DC at PACK level, autocalentamiento For cold climates and Extinction of fire fires with pressure relief valve, all under certification Ip66. In addition, its Open MQTT Protocol and compatibility with third-party meters as Shelly and Everhome They allow it to integrate it into existing energy management systems (EMS), without depending on a closed manufacturer ecosystem.

Detailed technical characteristics

Port DC (solar entrance):

• Number of tickets: 4
• MPPT number: 4
• Maximum number of solar: 8
• Maximum entry power: 1,000 W × 4 (4,000 W total)
• Maximum input voltage: 60 V
• Maximum input current: 32 A × 4
• Maximum short circuit: 40 A × 4
• Start voltage Motion / Max: 18/60 V
• MPPT voltage range: 16 to 60 V

AC port (network connection):

• Nominal output power: 800 W
• Nominal output current: 3,48 a
• Maximum output power: 800 W
• Maximum output current: 3,48 a
• Maximum entry power: 2,500 W
• Maximum input current: 10.87
• Voltage / Nominal range: 230V (180 to 270V)
• FREQUENCY / NOMINAL RANGE: 50Hz (45 to 55Hz)
• Adjustable power factor: > 0.99 by default; 0.8 in advance ... 0.8 in delay
• Total harmonic distortion (THD):

AC port (off-network):

• Maximum output power: 2,500 W
• Nominal voltage: 230 V
• Nominal frequency: 50 Hz
• Maximum output current: 10.87
• Maximum entry power: 2,500 W
• Maximum input current: 10.87
• Power factor: > 0.99 by default; 0.8 in advance ... 0.8 in delay

Battery:

• Type of cell: LFP
• Lifetime: ≥ 8,000 cycles at 70% SOH
• Nominal capacity: 314 ah
• Nominal energy: 4.020 WH (4.02 kWh)
• Nominal voltage: 12.8 V
• Charging / unloading temperature: -20 ° C at 55 ° C
• Maximum loading / unloading power: 2,000 W
• Nominal loading / unloading power: 2,000 W
• DC / DC voltage: 48 V

General information:

• Dimensions (an × prof): 520 × 384 × 199 mm
• Weight: 42 kg
• Operating temperature: -20 ° C at 55 ° C
• Storage temperature: -30 ° C at 60 ° C
• Humidity: 5% to 100%
• Maximum altitude: 4,000 m
• Noise:
• Refrigeration: Natural convection
• Warranty: 10 years
• Degree of protection: Ip66
• Topology inverter: Isolated

Interface and connectivity:

• Screen: Led
• Communication: Bluetooth and Wi-Fi 2.4 GHz
• Monitoring: Application S-Miles Home

Frequently Asked Questions (FAQ)

1. What is the difference to the HB-4020-X of the HB-4020-AC?

The HB-4020-X incorporates 4 MPPT inputs with a capacity of up to 4kw photovoltaic power, allowing you to connect Solar directly to the team (DC input). The HB-4020-BC, on the other hand, only admits connection by alternating current, being more appropriate if you already have a inverter solar or microinverters installed.

2. How many I can connect to this plug-and-play battery?

Until 8 solar, distributed in their 4 independent MPPT inputs (2 per ticket maximum), with a maximum power of 1.000W per entry and a total of 4.000w of admitted photovoltaic power.

3. Can I expand storage capacity in the future?

Yes. Thanks to its design stackable, You can add additional battery packs HEB-4020-'s to scale the capacity from the initial 4,02 kWh up to a maximum of 16 kwh, without replacing the main team.

4. Is it compatible with energy management meters or systems of other brands?

Yes. The HB-4020-X admits Third party meters like Shelly and Everhome, and has a Open MQTT Protocol To be integrated with external EMS systems, avoiding dependence on a closed ecosystem.

5. What security measures does the battery incorporate?

Your BMS Hoymiles integrates 48 Protection functions, along with intelligent cell roll, Rolling DC / DC at the PACK level, autocentament for cold climates and a system of Extinction of fire fires, all certificate with degree of protection Ip66.

6. Do I need an electrician to install this battery?

Thanks to its design Plug and play, the system can be operational in approximately 1 minute. However, since it incorporates direct DC solar input, we recommend that the connection of the Be reviewed by a qualified installer to ensure compliance with local regulations.
