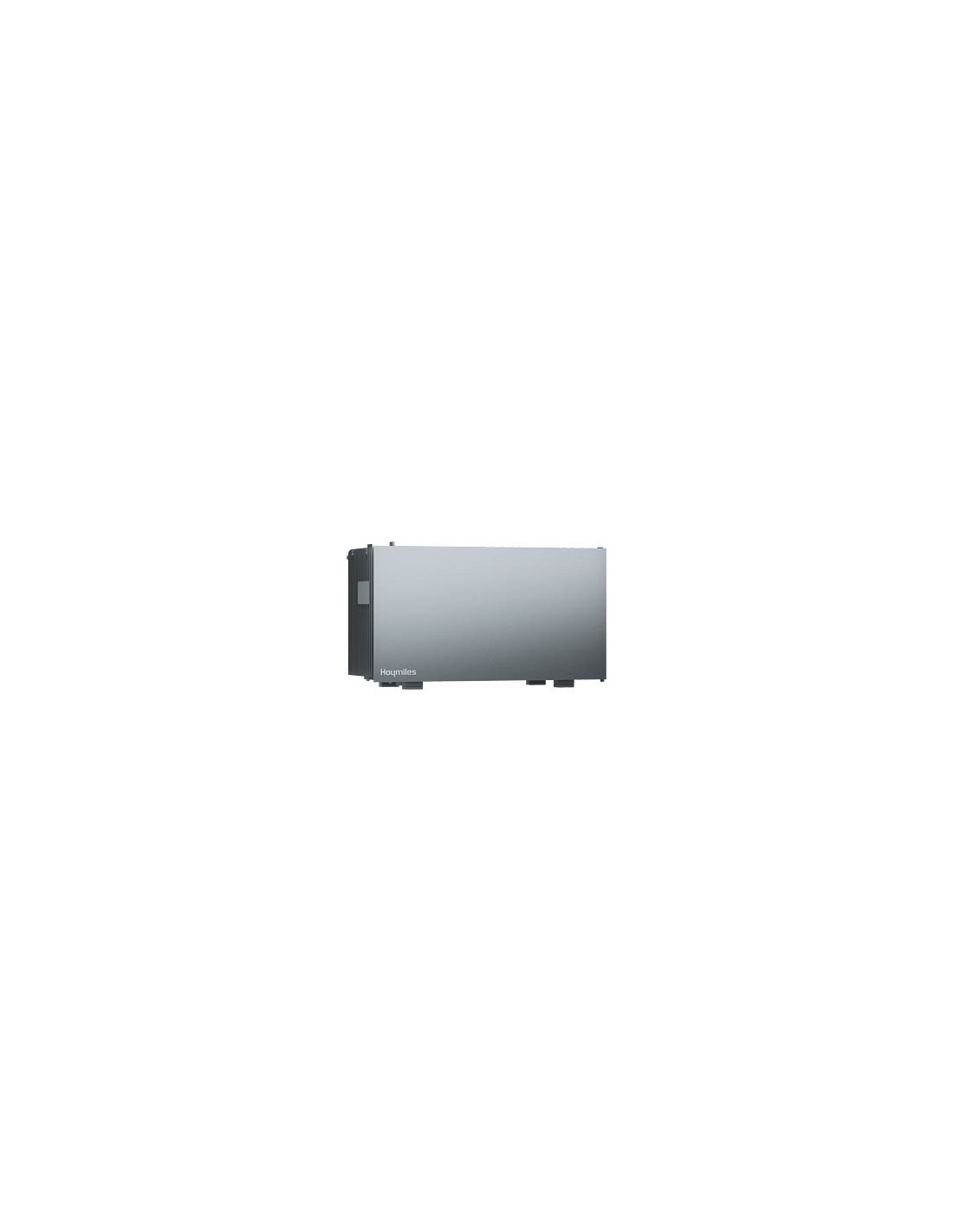

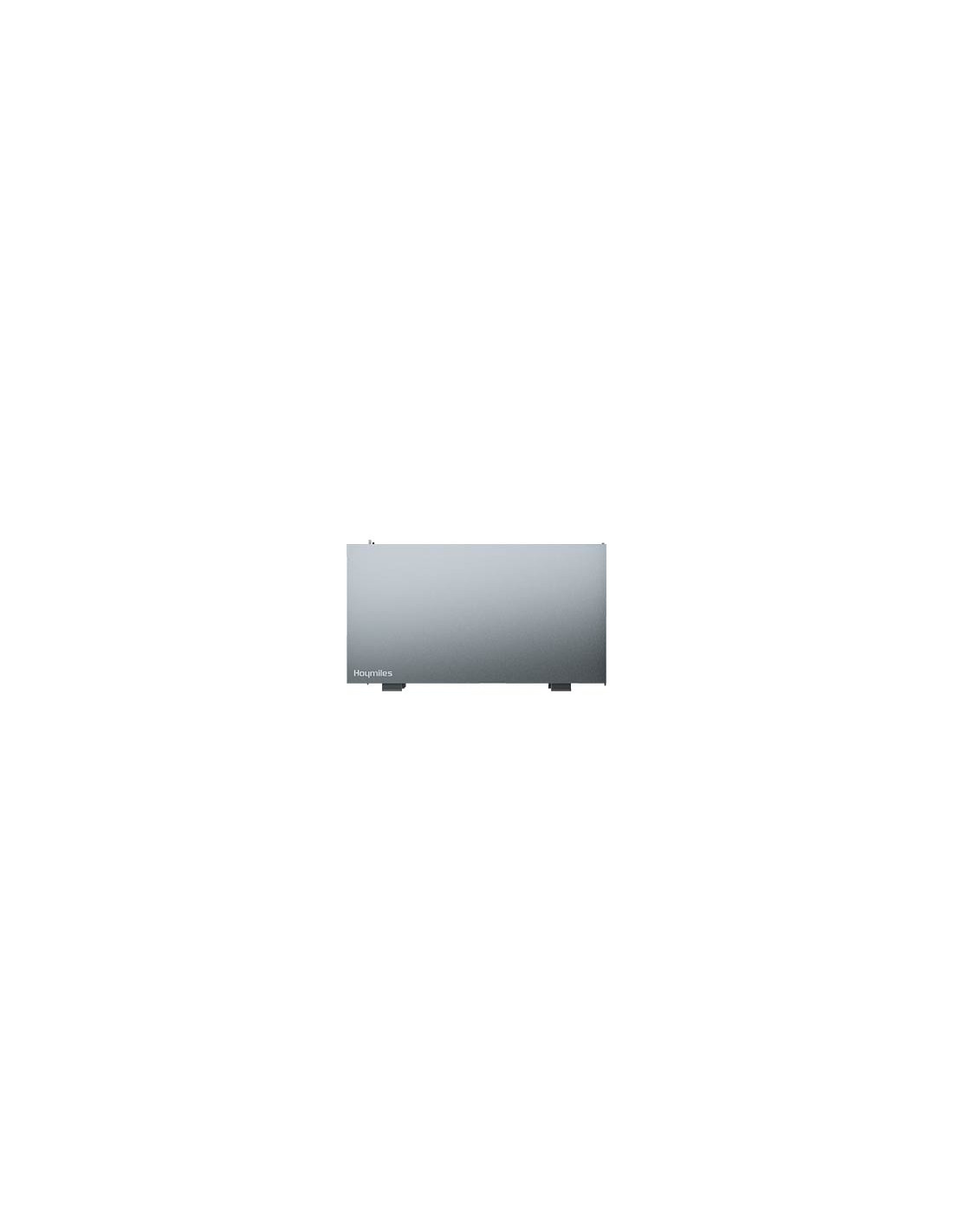

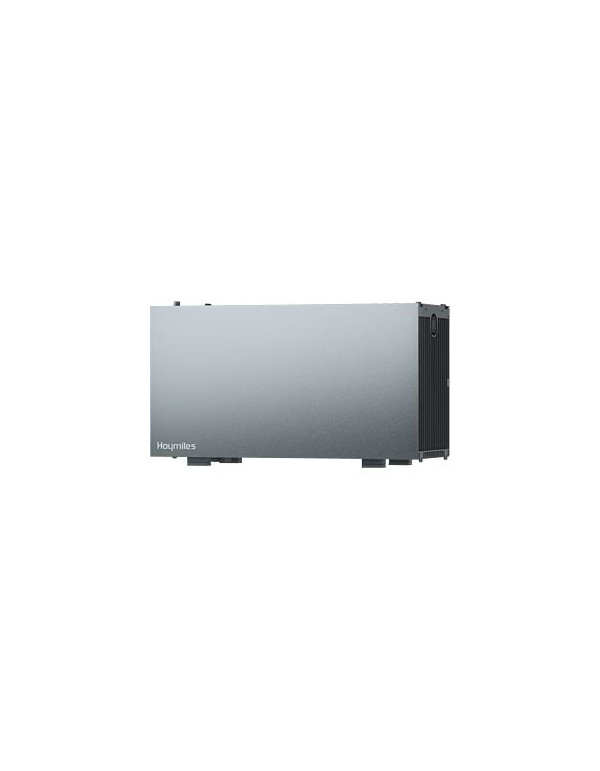

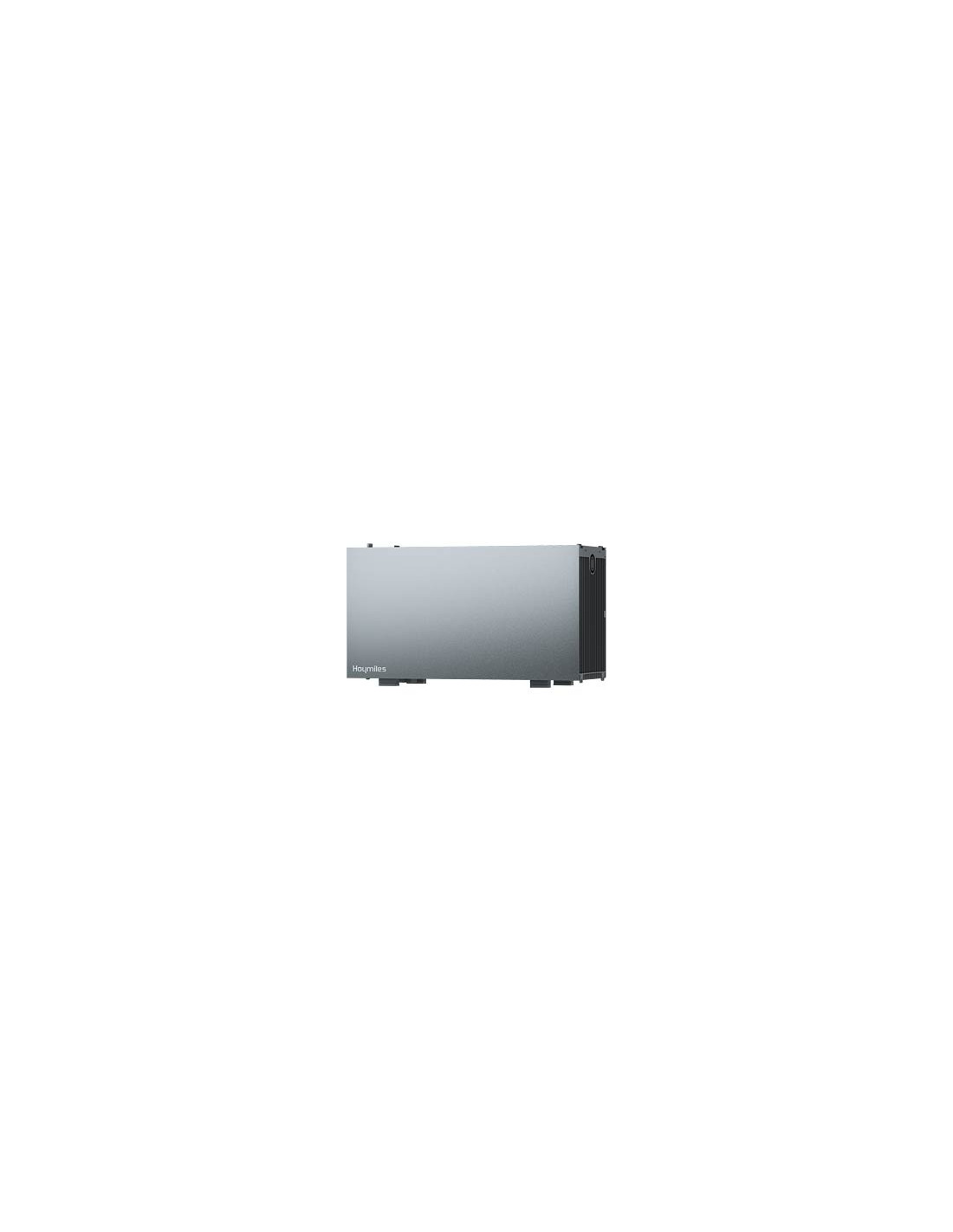

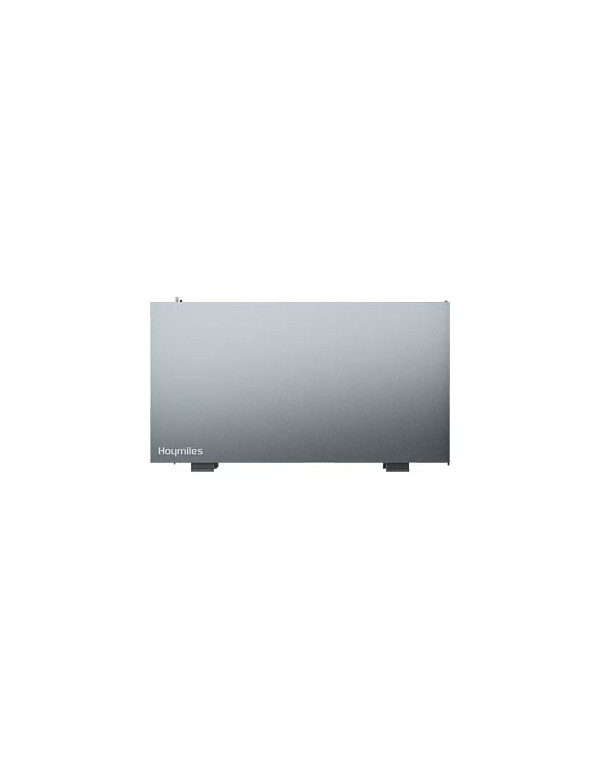

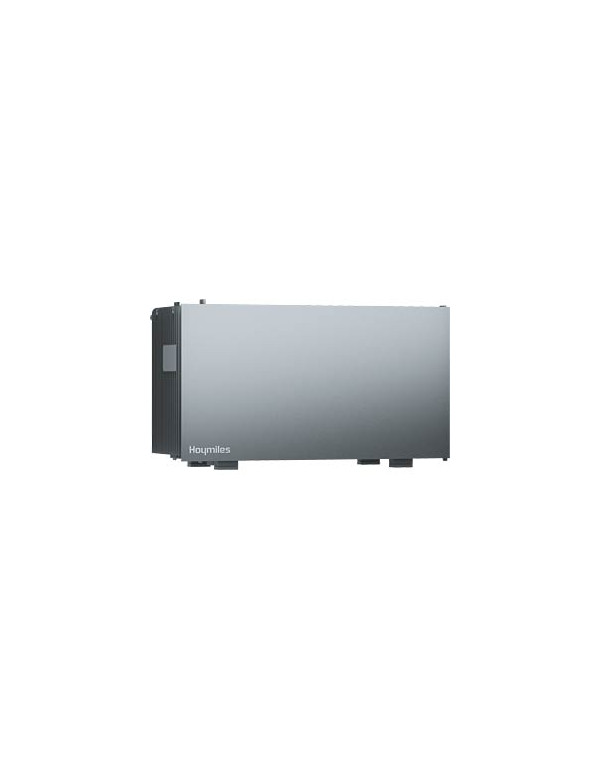

Expansion Battery Plug and Play Hoymiles Hibattery S 4,02KWh HB-4020-S
HB-4020-S
€936.54
Tax included
The HEB-4020-'s is the expansion battery of the Hibattery range of Hoymiles, designed to expand the capacity of your system Plug and play HB-4020-AC or HB-4020-X up to a maximum of 16 kwh, combining up 3 additional packs. With 4,02 kWh per unit and cells LFP of 314 ah, it offers ≥8,000 70% SOH cycles and a nominal tension of 12.8 V (range of 11.2 to 14.6 V). Its installation is as simple as connecting it to the base computer, without the need for additional controllers or complex installation. Incorporates Intelligent cell rolling, Rolling DC / DC, protection Ip66 and silent operation by natural convection (Less than 20 dB), inheriting the same level of security as the rest of the Hibattery family. Ideal for those who already have an HB-4020-AC or HB-4020-X and want to increase their storage capacity progressively.
Benefits of the Hibattery HB-4020-S expansion battery
The HEB-4020-'s it is not an independent team, but the expansion module that allows climbing the ability of a plug-and-play battery HB-4020-AC or HB-4020-X already installed. This makes it the ideal solution for those who want to start with a capacity of 4,02 kWh and expand progressively, without the need to replace the main equipment or add a hybrid Inverter or additional controller.
Share the same lFP Cells of 314 AH that the rest of the range, with a certified life of ≥8,000 70% health status cycles (SOH), which guarantees a total compatibility and homogeneous degradation between the base equipment and the expansion packs, even combining modules of different antiques thanks to rolling DC / DC at PACK level.
When you connect 3 units HB-4020-S to a base team, the total capacity of the system can reach the 16 kwh, a particularly interesting option for those seeking to maximize their self-consumption or apply strategies of peak Shaving more ambitious, covering longer consumption peaks without depending on the electricity grid.
Compatibility: HB-4020-AC and HB-4020-X
The HB-4020-S is designed to be combined with any of the two base models of the Hibattery 4020: The HEB-4020-ac, designed to add storage to an existing solar installation by alternating current connection, and HEB-4020-x, which also integrates 4 MPPT for direct solar connection. In both cases, the HB-4020-S extends the storage capacity without the need to modify the inverter solar nor microinverters already installed, keeping open compatibility intact with third-party meters and MQTT protocol of the main team.
Safety and durability
Although it is an expansion module without own conversion electronics, HB-4020-S maintains the same level of physical protection as the rest of the range: degree of protection IP66, , autocalentamiento for its operation in cold climates, and a robust construction that allows to operate safely between -20 ° C and 55 ° C. Its system natural Convection Refrigeration, without fans, keeps the noise below the 20 dB, as silent as the base team to which it connects.
Detailed technical characteristics
Battery:
- Type of cell: LFP (LifePO4)
- Nominal energy: 4.020 WH (4.02 kWh)
- Nominal capacity: 314 ah
- Nominal voltage: 12.8 V
- Voltage range: 11.2 to 14.6 V
- Lifetime: ≥ 8,000 cycles at 70% SOH
- Maximum loading / unloading power: 2,000 W
- Nominal loading / unloading power: 2,000 W
- Charging / unloading temperature: -20 ° C at 55 ° C (with self-care)
General information:
- Dimensions (an × prof): 520 × 275 × 199 mm
- Weight: 35 kg
- Refrigeration: Natural convection (without fans,
- Degree of protection: Ip66
- Warranty: 10 years
Frequently Asked Questions (FAQ)
1. Can I use the HB-4020-S as a separate battery?
No. The HB-4020-S is a expansion module designed exclusively to expand the capacity of a base equipment HEB-4020-ac or HEB-4020-x, which are those that incorporate the inverter and management electronics. It does not have inverter own, nor can it work autonomously.
2. How many units HB-4020-S can I add to my system?
Until 3 Expansion Packs HB-4020-S, which allows climbing the total capacity of the system from the 4,02 kWh initials of the base equipment up to a maximum of 16 kwh.
3. Is it compatible with the HB-4020-AC and with the HB-4020-X?
Yes, the HB-4020-S is compatible with both base models of the Hibattery 4020 range, regardless of whether your system is connected by alternating current (HB-4020-BC) or has direct solar input with 4 MPPT (HB-4020-X).
4. Can I combine packs of different seniority?
Yes. Thanks to rolling DC / DC at PACK level, the system automatically manages the load state differences between new and already used modules, facilitating progressive expansion without criminalizing overall performance.
5. What safety measures does this expansion module incorporate?
Share the same level of physical security as the base computer: cells LFP of 314 ah with ≥8,000 cycles, protection Ip66, self-care for cold climates and a robust construction prepared to operate safely both indoors and outdoors.
6. Is it more noisy when adding several expansion packs?
No. Each unit uses natural Convection Refrigeration, without fans, so the noise level remains below the 20 dB regardless of the number of packs connected to the system.
If you want to calculate how many packs HB-4020-S you need for your installation, understand better peak Shaving or solve doubts about compatibility with your base team, visit the Blog Tienda Solar, where our team of experts publishes purchase guidelines and specialized technical content. Discover also the rest of our catalog in the main page Tienda Solar.
