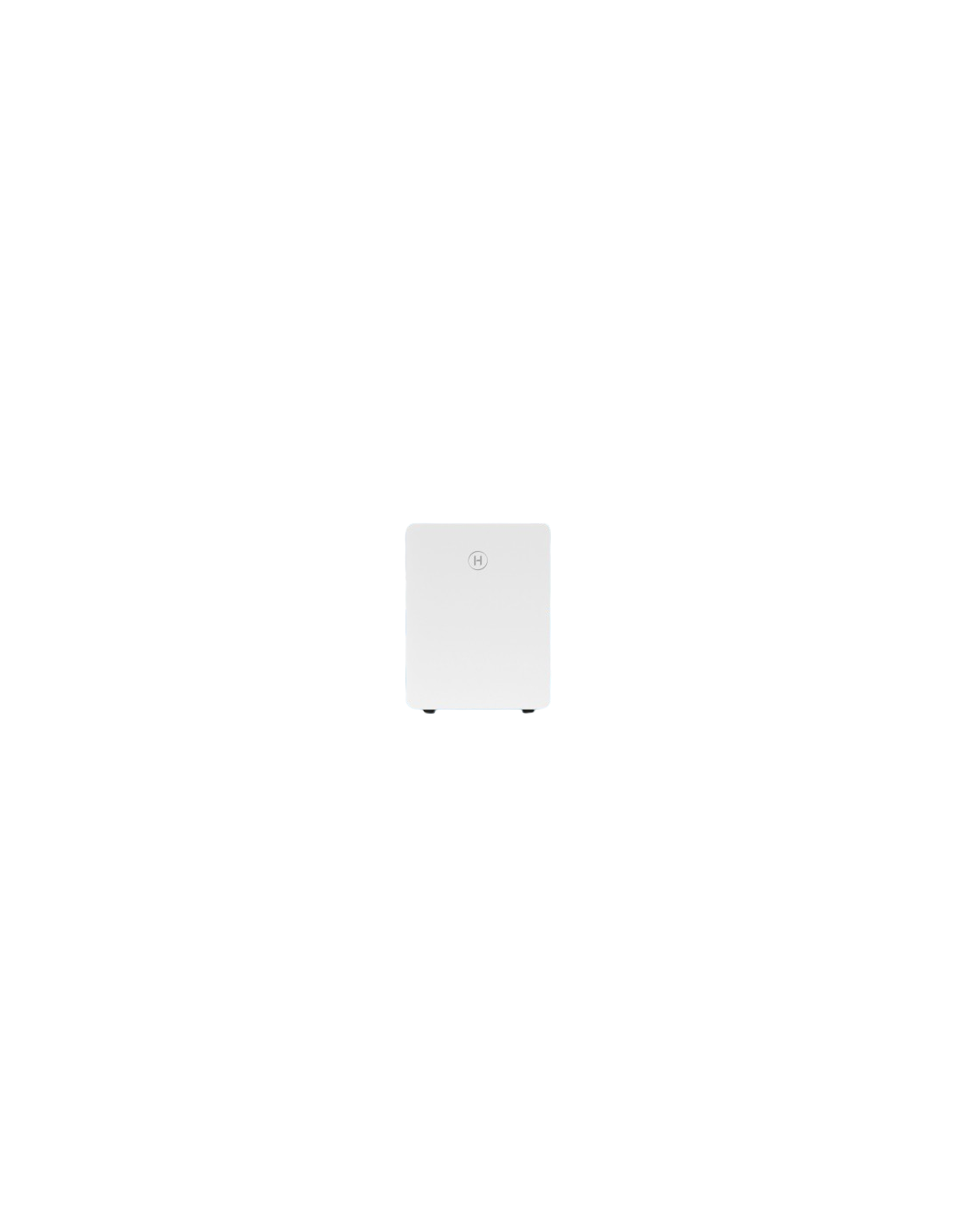

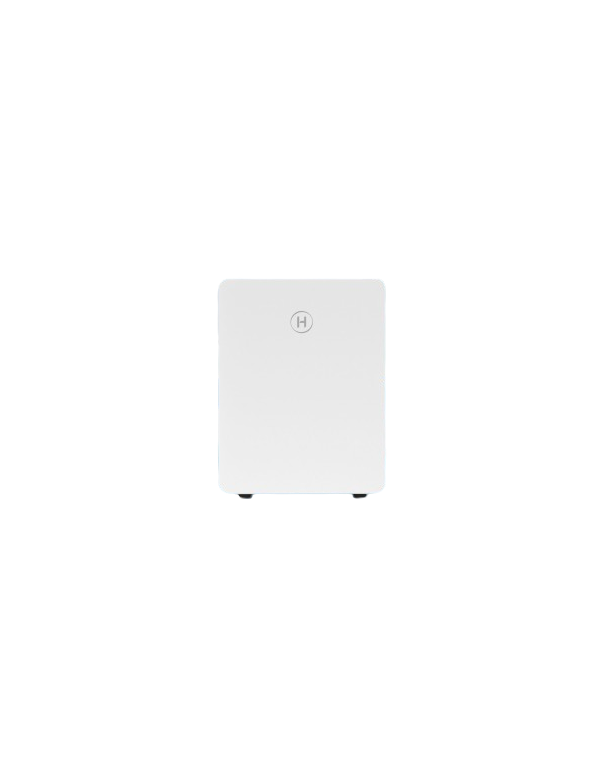

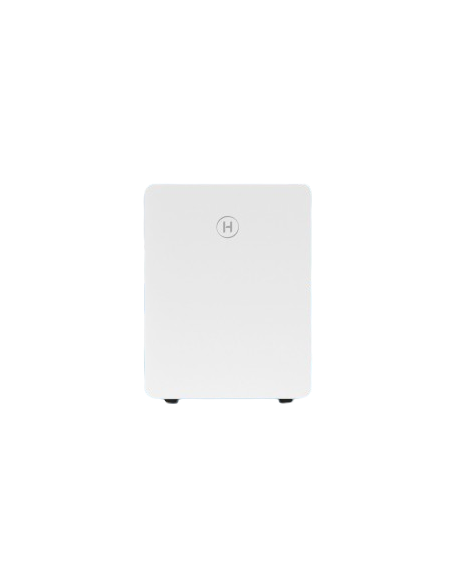

Lithium battery Hoymiles 6kwh LB-6D-G3 Low

Benefits of lithium battery Hoymiles LB-6D-G3

The LB-6D-G3 belongs to the category of lithium batteries of low voltage, designed to combine with a hybrid Inverter that manage the loading and unloading from the equipment itself, unlike high voltage batteries that incorporate their own control electronics. Their LIFEPO4 cells of 314 ah offer a Certified useful life of 8,000 cycles keeping a 70% Health State (EOL) even working at 90% depth of discharge (DOD), one of the highest reference values in the domestic batteries in this category.

An especially remarkable aspect is your Integrated DC-DC module, which allows combining batteries of different ages or levels of wear within the Bank without the oldest units penalizing the performance of the newer, thus facilitating the progressive expansion of the installation over the years.

Your Modular and stackable design allows climbing capacity from 6 kWh of a single unit up to a maximum of 96 kwh combining 16 Batteries in parallel, covering from self-consumption of a single-family home to facilities with higher energy consumption.

Compatibility with Hybrid Inverters Hoymiles

The LB-6D-G3 work in a Voltage range of 44,8 to 60V, which makes it directly compatible with the series of inverters hybrid Hoymiles His- (3-6) L-G3, designed to operate with ion-lithium batteries or lead between 40 and 60V by communication Can and autoadaptation to the BMS of the battery. This compatibility allows you to combine the LB-6D-G3 With any power of the range, from the 3kw of His-3L-G3 to the 6KW HIS-6L-G3, adapting the storage capacity to the power of the inverter and the real consumption of housing.

Flexible installation: interior, exterior and cold climates

With a degree of protection Ip65, the LB-6D-G3 It can be installed both indoors and outdoor, with assembly option mural or on the floor According to the available space (the wall support is sold optionally). Your discharge temperature range -20 ° C A + 55 ° C, together with the function of Optional heatingIt allows its operation in cold climates where a conventional lithium battery would see its performance reduced or directly could not be loaded.

Detailed technical characteristics

System data:

• Type of battery: Lifepo4
• Nominal capacity: 314 ah
• Total energy: 6 kwh
• Nominal voltage: 51.2 V
• Voltage range: 44 to 60 V
• Maximum continuous loading / unloading: 60 a
• Current loading / unloading: 90 A (10 s)
• Communication: Can
• Recommended discharge depth (DOD): 90%
• Maximum number in parallel: 16 units (up to 96 kWh)

Protection:

• Protection against overvoltage and subtension: Integrated
• Protection against overcurrent: Integrated
• Protection against overtemperature and sub-streak: Integrated
• DC automatic switch: Integrated
• Heating: Optional

General information:

• Dimensions (an × prof): 410 × 519 × 236 mm
• Weight: 55 kg
• Installation environment: Indoor / outdoor
• Assembly: Mural or on the floor
• Wall support: Optional
• Charging temperature: 0 ° C A + 55 ° C (-20 ° C A + 55 ° C with optional heating)
• Discharge temperature: -20 ° C A + 55 ° C
• Degree of protection: Ip65
• Refrigeration: Natural convection
• Maximum altitude: ≤2,000 m
• Useful life (25 ° C, 0.5c): 8,000 cycles, 90% dod, 70% eol
• Certification: IEC 62619, A 38.3, CE-EMC
• Warranty: 5-10 years

Frequently Asked Questions (FAQ)

1. With what inverters it is compatible LB-6D-G3?

Is compatible with any hybrid Inverter that admit batteries in the range of 44.8 to 60V by CAN communication, like the series Hoymiles His- (3-6) L-G3, available in powers from 3KW to 6KW.

2. How many batteries LB-6D-G3 Can I install in parallel?

Until 16 units, reaching a total capacity of 96 kwh, which allows you to scale the installation from the basic self-consumption of a home to cover higher electrical consumption.

3. Can I combine new batteries with previously installed batteries?

Yes. Thanks to his Integrated DC-DC module, the system allows the mixed use of new and used batteries within the Bank, without the older units penalizing the overall yield of the whole.

4. Is it suitable for installation abroad or in cold climates?

Yes. It has a degree of protection Ip65 suitable for indoor and exterior, and it supports download until -20 ° C.. For the load in cold climates, it has a function of Optional heating that extends the load range until -20 ° C.

5. How many years of useful life does this battery have?

Their cells Lifepo4 they are certified for 8,000 cycles keeping a 70% Health State (EOL) working 90% depth of discharge, and has a manufacturer's guarantee between 5 and 10 years according to the applicable conditions.

6. Do I need an additional support to install it?

Depends on the type of assembly chosen: it supports installation mural or on the floor; If you opt for wall mount, the corresponding support is sold optionally.
