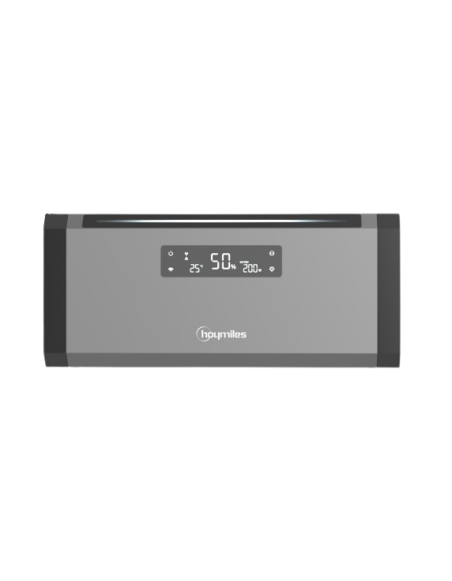

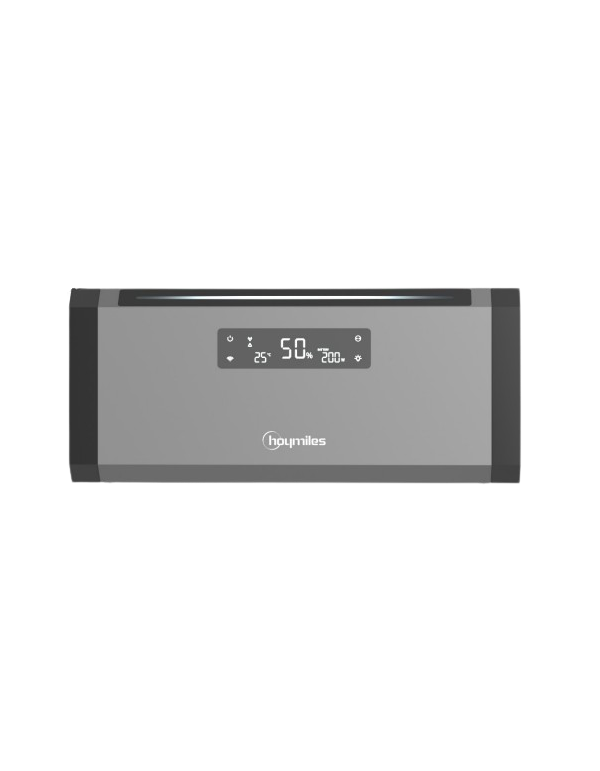

Plug-and-play battery Hoymiles Hibattery AC 1,92KWh HB-1920-AC-SV

Benefits of Plug-and-play battery Hoymiles Hibattery HB-1920-AC-SV

The Hibattery HB-1920-AC-SV It belongs to the category of Batteries Plug and Play: Compact storage systems, connected by CA, which do not require complex electrical installation and that are integrated in minutes on any solar balcony installation. Unlike a lithium battery conventional coupled in continuous current to a hybrid Inverter, this type of device is connected directly to a plug or a microinverter Existing, without the need to redesign the photovoltaic installation.

Among its main technical advantages, the Cell LifePo4 (Lithium ferrophosphate), recognized for its thermal stability and its life cycle higher than 6,000 cycles, well above the average lead batteries or other less robust lithium chemists. Your Maximum bidirectional efficiency of 96.5% guarantees that the stored energy takes advantage of almost entirely, while the 87% full cycle efficiency Confirm a solid behavior even after multiple daily loading and unloading cycles.

Another strong point is your Range of loading and unloading temperature of -20 ° C to 55 ° C, which allows its exterior installation, terraces or balconies without additional thermal protection, thanks also to your Integrated autocentalization system For cold climates.

This battery is fully compatible with microinverters Hoymiles and other brands, as well as with any inverter solar of network connection that has a standard AC output, which makes it the perfect solution to expand self-consumption in existing facilities without the need to replace the generating equipment.

Peak Shaving: The function that maximizes the savings of this plug-and-play battery

One of the great advantages of HEB-1920-ac-sv is your ability to apply Peak Shaving (or "peak cut"): An energy management strategy consisting of downloading the battery during the highest price hours or greater network demand, and loading it during the valley hours or when there is solar surplus. This technique has been applied in large photovoltaic installations for years by inverters hybrid And large capacity batteries, but until now it was not enough accessible to the middle domestic user, especially in homes where it is not viable or you do not want to undertake a complete photovoltaic installation.

Thanks to Batteries Plug and Play like HEB-1920-ac-sv, any user can benefit from this strategy by simply plugging the battery to a domestic outlet or connecting it to a microinverter Balcony, without installation procedures, without the need for a certified installer in most cases, and with a much more agile investment return than that of a traditional photovoltaic system. The Mode TOU (Time of Use) integrated with artificial intelligence From this equipment automates the entire process: learn home consumption patterns and electric fee-timing strips, optimizing loading and unloading without manual intervention.

Installation and connectivity

Its design Plug-and-play It allows mounting it on wall or on the floor (stand sold separately), integrate by Bluetooth and Wi-Fi 2.4 GHz With the S-Miles Home application, and monitoring in real time the state of charge, temperature and consumption from the mobile. Your Schuko type shot In the off-network port, it also facilitates its use as a basic backup system against supply cuts.

Detailed technical characteristics

Battery:

• Capacity: 1,92 kWh
• Type of cell: Lifepo4
• Duration in cycles: ≥ 6,000 cycles
• Charging temperature: -20 ° C at 55 ° C
• Discharge temperature: -20 ° C at 55 ° C
• Apparent nominal power (loading and unloading): 1000 VA
• Maximum apparent power (loading and unloading): 1000 VA

AC output (network port):

• Apparent power output: 800 VA
• Maximum apparent output power: 800 VA (customizable up to 2000 goes via App S-Miles Home)
• Type of network: Single-phase
• Nominal voltage range of AC: 230V (180 to 270V)
• Nominal frequency range: 50Hz (45 to 55Hz)
• Nominal output current: 3,48 a
• Maximum output current: 3,48 a
• Adjustable power factor: > 0.99 (0.8 capacitive ... 0.8 inductive)

Input and exit of AC (off-network):

• Apparent power of maximum output: 800 VA
• POWER PICOPLE OF OUTPUT: 1200 goes for 10 s
• Connector type: Schuko takes
• Nominal AC voltage: 230 V
• Nominal frequency: 50 Hz
• Maximum output current: 3,48 a
• Total harmonic distortion (THD):
• Maximum input power: 1800 VA
• Maximum input current: 7.83

General information:

• Weight: 24 kg
• Dimensions (L × an × al): 460 × 240 × 203 mm
• Degree of protection: Ip66
• Assembly: Wall or floor (stand sold separately)
• Refrigeration: Natural Convection, No Fans
• Noise: Less than 17 dB (A)
• Connectivity: Bluetooth and Wi-Fi 2.4 GHz
• Interface: LED and mobile application
• Warranty: 10 years

Regulations and certifications:

• Network compliance: VDE-AR-N 4105: 2018
• Security: IEC 62477-1, IEC 62619, IEC 63056, A 38.3
• CEM: EN 61000-6-1 / -2 / -3 / -4, EN 61000-3-2 / -3

Frequently Asked Questions (FAQ)

1. What is a plug-and-play battery And how is it different from a conventional solar battery?

A plug-and-play battery is a compact storage system that is connected directly to an outlet or a microinverter, without needing to be integrated into the direct current circuit of a photovoltaic installation. In the case of HB-1920-AC-SV, its main function is to load energy in the cheapest hours and download it in the peaks of higher price or demand thanks to its Peak Shaving smart, something that is achieved by traditional facilities combining inverters hybrid with lithium batteries of greater capacity.

2. Do I need a microinverter Specific to use the HB-1920-AC-SV?

It is not essential to be a specific brand. The battery is connected by its AC port to any microinverter Compatible or directly to a standard household take, thanks to its Plug-and-Play design.

3. Can it work as a backup system before a light cut?

Yes, it has a separate AC input and output port of the network with Schuko connector, capable of delivering up 800 goes continuously and peaks 1200 goes for 10 seconds, suitable for feeding small appliances or electronic devices during a short cut.

4. How many years of useful life does the battery have?

Their cells Lifepo4 they are certified for more than 6,000 cycles loading and unloading, and the manufacturer offers a 10-year warranty, which places this team among the most durable options of its category.

5. Is it noisy or generated a lot of heat during its operation?

No. Your refrigeration system by Natural Convection No Fans maintains the noise level below the 17 dB (a), being practically inaudible, ideal for installation on balconies, terraces or housing interiors.

6. How is the operation of the equipment controlled and monitored?

Through the application S-Miles Home, connected by Bluetooth and Wi-Fi 2.4 GHz, from where the operating mode (self-consumption or tou with IA is configured, the output power is adjusted and the charge and consumption status is supervised in real time.
