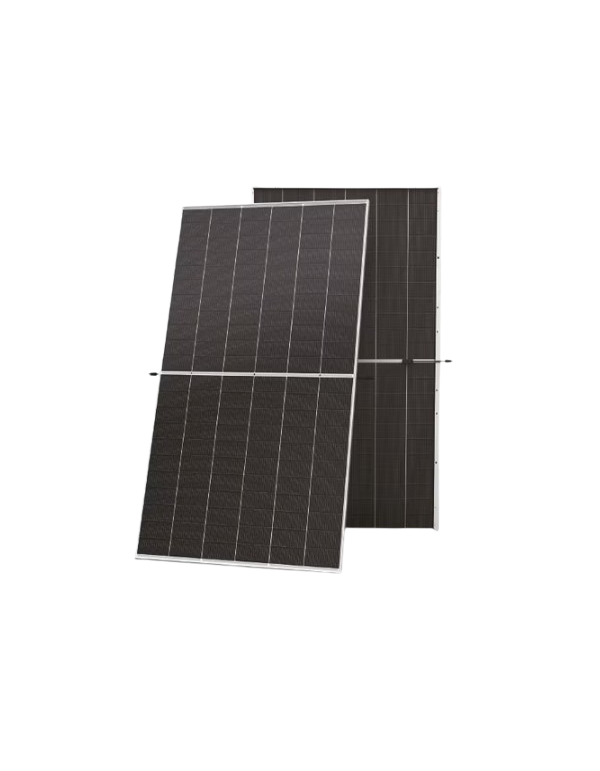

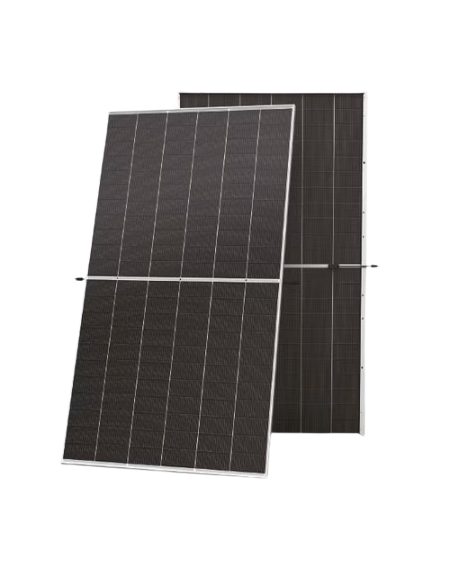

Solar panel Trina Vertex N 720WP | Double Bifacial Module N-TYPE I-Topcon Ultra

Trina Solar Vertex N 720W: The Bifacial Revolution for Industrial Photovoltaic Macroprojects

In the large-scale renewable energy sector, reduce the leveling cost of energy (LCOE) and optimize system balance costs (BOS) is crucial to profitable investment. . The photovoltaic panel Trina Solar 720WP vertex has been designed under the innovative 210 mm wafer technological platform , becoming the flag component for demanding industrial projects that demand a massive energy density and an accelerated financial return rate.

Ultra I-Topcon technology and double glass bifacial gain

The technological core of this module is based on cells N-Type I-Topcon, a composition of pure silicon immune to light-induced degradation (LID) and temperature wear (Letid). . This ensures that the panel render optimally in extreme climates, with a topily temperature coefficient of just -0.29% / ° C. . Its design of low voltage allows strings or chains by 35% more powerful that conventional technologies, drastically reducing wiring and combination boxes in the field. To better manage these high density chains, it is essential to connect the system to our Inverters Three-phaseIndustrial SolarEdge, which are prepared to squeeze the performance of large-scale commercial plants.

The great competitive advantage of the vertex n 720w is your active bifacial capacity with a bifiality factor of 80%. . By incorporating a back face of 2,0 mm thermostered temperate glass , the panel not only captures direct sunlight on the front, but absorbs the reflection of the soil (albedo) on the back, injecting a extra energy return between 10% and 20% as well as. . Depending on the level of rear radiation, this 720W nominal panel can scalar real until 756W or even 814W maximum power outgoing. If you are going to set these robust large-format modules in solar or covered orchards, we recommend using our heavy range of structures for solar, designed specifically to resist static loads of of Large Dimensions.

Mechanical Robustez and Long Term Reliability

The alloy framework 33 mm anodized aluminum provides absolute structural rigidity , allowing the panel to support severe wind and snow pressures without risk of microfixes thanks to its non-destructive cuts of high density. . Your Connection Box with Certification Ip68 it has dissipation technologies that cancel hot spots or hot-spots. For those installers who seek to optimize the individual performance of each module and protect the installation against cross shadows or dirt, we advise coupling this panel with the Power optimizer SolarEdge P950, which perfectly tolerates the raised nominal currents of this photovoltaic giant.

Technical specifications (Model TSM-Neg21C.20 - 720W):

• POWER PICO MAXIMUM (WP): 720 W
• Output power tolerance: 0 / +5 W
• Maximum power voltage (VMPP): 41.30 V
• Maximum power current (ImpP): 17.44
• Voltage in open circuit (VOC): 49,40 V
• Short circuit current (ISC): 18.49
• Real Efficiency of the Module: 23,2%
• Power with 5% rear gain: 756 W
• Power with 10% rear gain: 792 W
• Power with 15% rear gain (BNPI condition): 798 W
• Type of cells: N-Type I-Topcon Ultra monocrystallines
• Number of cells: 132 Cells Makes (Half-Cut)
• Dimensions of the module: 2384 x 1303 x 33 mm
• Structural net weight: 38.3 kg
• FRONT GLASS: Glass 2.0 mm, with antirefly treatment (AR) hardened
• Subsequent glass: Glass 2.0 mm, High strength thermosetting
• Panel frame: Alloy 33 mm robust anodized aluminum
• Connection box: Grade of total insulation Ip68 with bypass diodes
• Output cables: Photovoltaic cable 4.0 mm2 (Portrait length: 370/230 mm)
• Factory connectors: Terminal compatibility TS4 / TS4 Plus / MC4 EVO2
• Maximum admissible tension: 1500 V DC (IEC / UL certification)
• Maximum series fuse: 35 a

Frequently Asked Questions (FAQ)

1. What real benefits provides bifacial design in solar solar plants? Bifacial design allows the back face of the module to absorb light reflected by the environment. . On clear surfaces (such as gravel, sand or white reflective covers), this panel 720W nominal can provide between 10% and 20% additional real energy , reaching stable delivery peaks of up to 814W of real power per module without increasing the physical space of the installation.
2. Why does Trina use double glass of 2.0 mm instead of rear plastic sheet? For a large panel as the vertex N 720W , the double glass (2.0 mm forward and 2.0 mm back) provides superior mechanical stiffness against wind gusts and severe snow loads. . In addition, it is completely isolating silicon cells against moisture and aggressive chemical environments (ammonia on farms or salinity in coastal areas) , guaranteeing the useful life of the system.
3. What kind of inverters are compatible with the high current of this panel? Since this panel works with a short circuit current (ISC) from 18.49 to and a nominal current (ImpP) 17.44, it is necessary to use inverters modern commercials or inverters of state-of-the-art industrial string whose direct current (CC) entries are prepared to support high MPPT amperage without suffering limitations or saturation losses.
4. How are official guarantees distributed in this VERTEX N module? Trina Solar it offers exceptional protection adapted to the standards of the international energy industry: a 12-year product guarantee for physical and manufacturing components of the module , together with a 30-year linear power guarantee. . Thanks to the technology type , the manufacturer certifies that the first year's wear will be less than 1% and the subsequent annual degradation it will not exceed 0.4% until the year 30.
