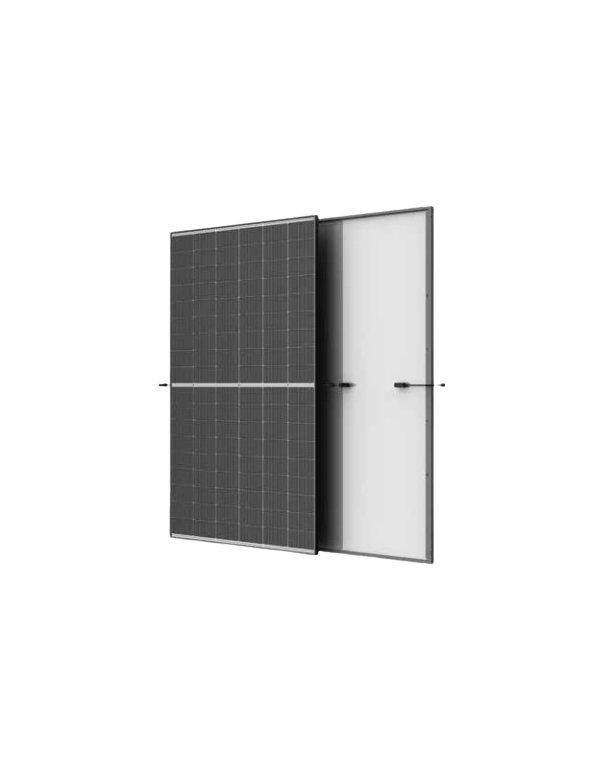

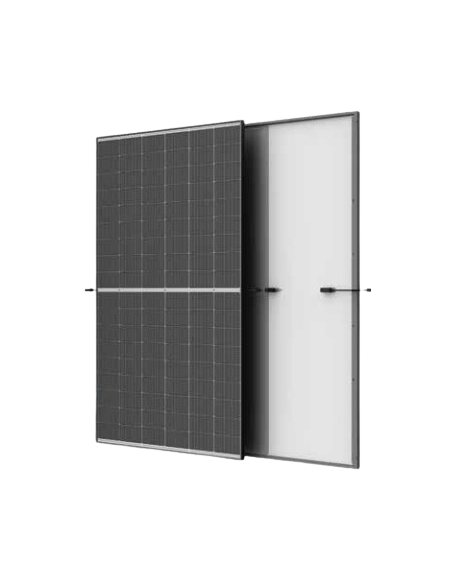

Solar panel Trina Vertex S + 515WP | Double Module N-Type I-Topcon

Technology N-Type I-Topcon and maximum structural resistance

The key to the great efficiency of this module (which reaches the 23,1% in his model 515w) LATES IN ITS INTERNAL CHILD OF TYPE N. Unlike conventional cells, wafers No-type they are totally immune to the effects of light-induced degradation (Lid). This allows Trina Solar certify a maximum degradation of just 1% during the first year of use and a guaranteed annual attenuation of only 0.4% since the second year until the year 30 of operation. If you want to squeeze each kw of your roof to the maximum, we recommend you combine this module with our Inverters Solar and three-phase solar latest generation, which take advantage of these advanced generation curves with total stability.

In our online store we prioritize durability against adverse climates. The vertex s + replaces the traditional rear plastic sheet by a structure of double tempered glass of 1.6 mm on both sides. . This design provides a excellent resistance to fire, a hermetic protection against environments with high humidity or salinity and prevents the appearance of microfixes in a structural way. . In addition, its robust alloy framework of 30 mm black anodized aluminum it allows you to tolerate severe mechanical loads: it supports up 5400 PA Snow Load on the front face and 2400 PA wind pressure on the back. To ensure that this great chassis resists inclement weather, we have a specialized section structures for solarReinforced that guarantee a perfect and lasting anchor.

Universal compatibility and guaranteed security

The architecture of low voltage of this photovoltaic panel facilitates the configuration of strings or chains of greatest power, which allows a universal compatibility with the main brands of inverters central and microinverters of the global market. If your roof has partial shadows due to chimneys or trees, you can associate these plates with our Intelligent power optimizers to independent the performance of each module.

Your Certification Sleeca Connection Box Ip68 has 3 bypass diodes, completely isolating electronics against local overheating and hot spots (Hot-Spots). . With a weight content of only 23.5 kg, it is a highly agile panel to manipulate and install on any type of cover.

Technical specifications (Model TSM-Neg18R.28 - 515W):

• POWER PICO MAXIMUM (WP): 515 W
• Output power tolerance: 0 / +5 W
• Maximum power voltage (VMPP): 33.9 V
• Maximum power current (ImpP): 15.2
• Voltage in open circuit (VOC): 40.9 V
• Short circuit current (ISC): 15.96
• Real Efficiency of the Module: 23,1%
• Type of cells: N-Type I-Topcon Monocrystallines
• Number of cells: 108 cells
• Dimensions of the module: 1961 x 1134 x 30 mm
• Net weight: 23.5 kg
• FRONT GLASS: Glass 1.6 mm, with anti-reflective treatment (AR) and thermally hardened
• Subsequent glass: Glass 1.6 mm, hardened thermally
• Panel frame: Alloy 30 mm anodized aluminum, Color finish black
• Connection box (J-BOX): Degree Ip68 with 3 bypass diodes integrated
•  Output wiring: Photovoltaic technology cable 4.0 mm2 section
• Type of terminals: Quick connectors TS4 / TS4 Plus / MC4 EVO2
• Maximum system tension: 1500 V DC
• Top-supported series fuse: 30 a

Frequently Asked Questions (FAQ)

1. What real advantages does the double glass technology offer in the TRINE 515W panel? Unlike conventional with plastic rear sheet (backsheet), the structure of double glass (1.6 mm per each face) also isolate the solar cells of the external agents. . This eradicates the risk of moisture degradation, gives it a excellent resistance against fire and prevents wind or snow pressures from providing microcracks in silicon, ensuring outstanding mechanical stability over the decades.
2. What does it mean that this module is N-Type I-Topcon? The cells of N they are manufactured with a high purity doped silicon that eliminates the initial chemical wear caused by contact with oxygen when exposed to the sun (LID phenomenon). . The architecture i-Topcon drastically improves the flow of electrons inside the cell. . This translates into a solar panel that starts before in the mornings, yields better on cloudy days and guarantees a superior energy production (efficiency of 23.1%).
3. Does this 515w panel compatible with inverters conventional residential? Yes, it is completely compatible. . Its electric design low voltage allows you to connect a high number of modules in the same String without exceeding the voltage limit of the inverters standard. . However, due to its maximum power current (ImpP 15.20 A), It is important to verify on the technical sheet of the inverter or microinverter that your input range admits high nominal currents.
4. How does the extended warranty of the Vertex S + series work? Trina Solar it offers one of the most robust hedges in the photovoltaic market: a 25-year protection guarantee on manufacturing materials and labor of the product, added to a linear guarantee of electricity generation of 30 years. . The manufacturer ensures that the panel will retain at least the 99% of its capacity in the first year and will maintain a minimum performance of 87.4% at the end of its thirtieth year continuous.
