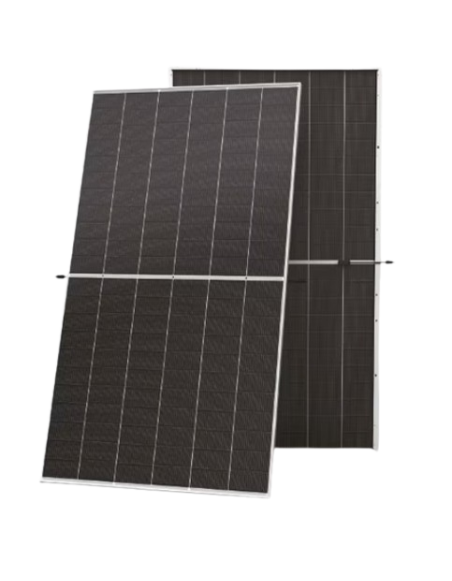

Solar Panel Trina Vertex N 730W (TSM-Neg21C.20) | Bifacial Dual Glass I-Topcon

Trina Vertex N 730W: The new era of photovoltaic efficiency

Panel 730W vertex n trina It is not just a high power module; It is a engineering tool designed to optimize each square meter of your installation. Thanks to cell technology n, this solar panel offers superior performance under diffuse light and high temperatures, far exceeding solar Conventional p type.

Bifacial and double glass performance

On Tienda Solar We prioritize long-term durability. This model has a structure of Double 2.0 mm glass On both sides, which gives it a superior structural rigidity and total protection against moisture and saline corrosion. Being bifacial, Take advantage of the soil albedo (especially on clear or gravel surfaces) to increase total energy production, achieving a combined power that can exceed 800W under optimal conditions of reflection.

Latest Generation I-Topcon Technology

The implementation of technology I-Topcon It allows to minimize losses by electron recombination and improve the temperature coefficient up to -0.29% / ° C.. This means that, on hot summer days, the panel maintains a much more stable production. In addition, its design of non-destructive cut It drastically reduces the risk of micro-fissures, ensuring that your investment is protected for decades.

Technical specifications (Model TSM-730-Neg21C.20):

• Nominal power (PMAX): 730w

• Efficiency of the module: 23,5%

• Open circuit voltage (VOC): 48,0v

• Short circuit current (ISC): 19,40a

• Tension at maximum power (VMP): 40,2v

• Current at maximum power (imp): 18,17a

• Type of Cell: Monocrystalline N-Type I-Topcon (132 cells)

• Dimensions: 2384 × 1303 × 33 mm

• Weight: 38.3 kg

• Glass: Double 2.0 mm glass (tempered and antireflejante)

• Degree of protection: Ip68

• Power guarantee: 30 years (annual degradation

• Maximum static load: 5400 PA (Snow) / 2400 Pa (wind)

Frequently Asked Questions (FAQ)

1. What real benefit does it provide to be "type N"? N (N-Type) cells virtually eliminate light-induced degradation (LID) and have a better behavior before heat. This translates into a greater generation of KWH for each KW installed throughout the system's life.
2. How much extra energy can I get through the back face? It depends on the installation surface. On a white or very clear surface, bifacial gain can reach 25%-30%. On concrete or ground surfaces, it is usually pounded between the 10% and 15%.
3. Why is the double double glass in front of the conventional panel? The double glass is much more resistant to chemical agents and pid degradation (induced potential degradation). In addition, when eliminating the backsheet of plastic (backsheet), the panel is much safer in front of fires and micro-cracks.
4. Is it compatible with inverters residential? Due to its high output current, it is essential to verify that the inverter or microinverter High inlet current support. Is an ideal panel for inverters String of great power or optimized systems for high current.
5. Where is it better to install these solar? To maximize bifiality, installments on clear surfaces (white gravel or reflective covers). You can see our options for Solar To optimize the inclination.
