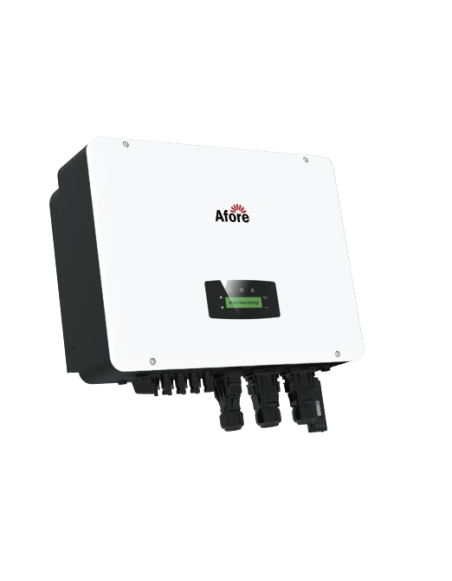

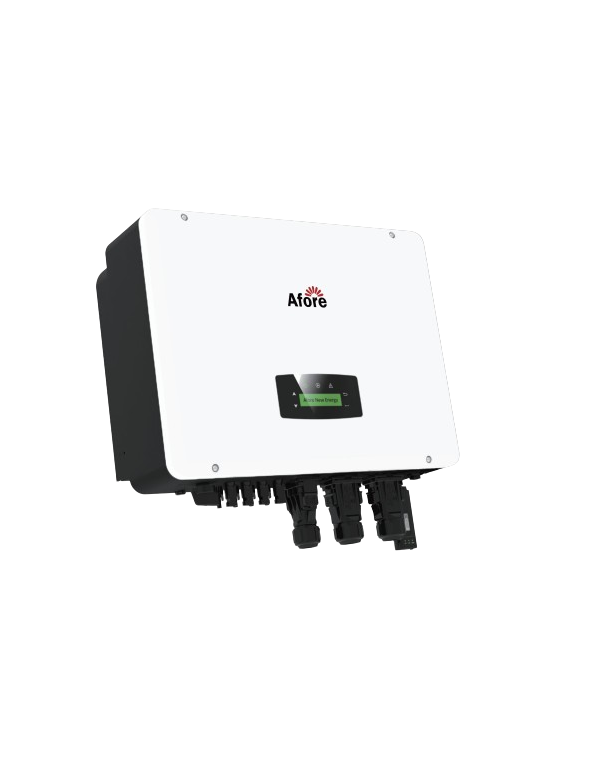

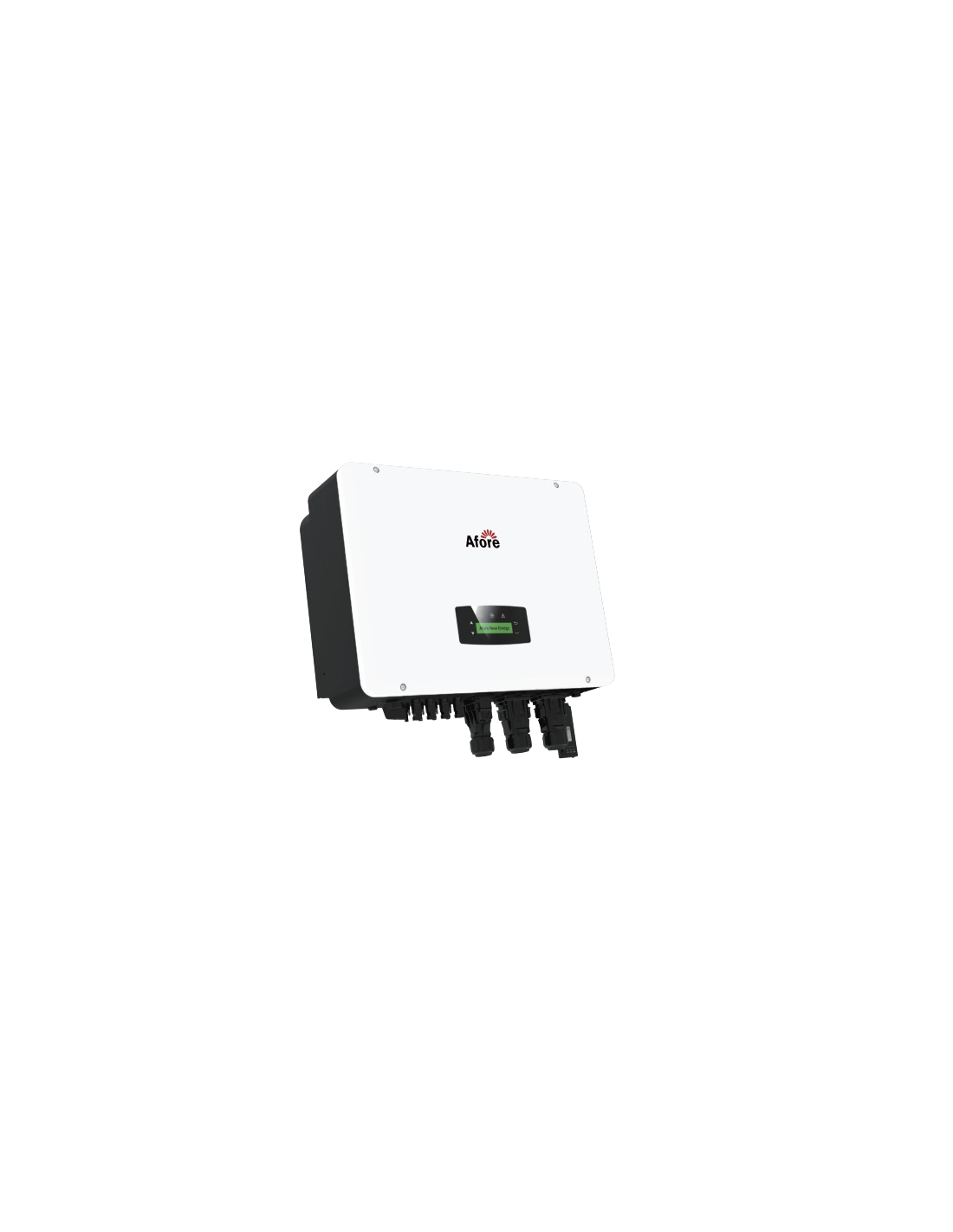

Hybrid Inverter Three-phase afore 30kw AF30K-TH

Benefits Hybrid Inverter AFORE AF30K-TH

The Af30k-th it is positioned as a robust solution for projects of three-phase self-consumption of great power, whether in high consumption single-family homes, energy communities or small commercial and industrial facilities. In front of others inverters hybrid of the market, this model of AFORE stands out for its multi-battery flexibility, admitting lithium, lead-acid technologies and the most novel battery metallic sodium chloride, which allows adapting the system to the budget and specific needs of each project without depending on a single manufacturer lithium batteries.

Your european efficiency of 98.10% and maximum efficiency of 98.50% reduce DC / BC conversion losses, translation of greater use of energy generated by solar throughout the useful life of the installation. To this adds a topology without transformer (transformerless) that lightens the weight of the equipment (36 kg) and improves the overall performance with respect to designs with transformer.

In terms of electrical protection, AF30K-TH incorporates reverse polarity protection, overcurrent, overvoltage, anti-island, AC short, leak detection and ground failure monitoring, all under one housing with IP65 degree of protection, Fit for outdoor installation without the need for additional cabinets.

Self-consumption optimization and Peak Shaving

One of the strengths of this series is its ability to intelligent management of time rates, allowing to program the battery charge and unloading depending on the price of electricity price. In facilities where the contracted power is a limiting factor, the equipment allows to apply strategies of peak Shaving, reducing demand peaks billed to the electric company through the punctual contribution of stored energy, thus complementing the savings that is already obtained with the own photovoltaic self-consumption.

Function UPS and backrest against supply cuts

Thanks to his switching time of less than 10 ms, AF30K-TH Acts as a real SAI (UPS) For the critical loads of the installation, avoiding perceptible cuts in sensitive equipment. In backup mode, it supports a peak overload up to 150% on its nominal power, which facilitates charging boot with high consumption peaks, such as motors or compressors, without the need to oversize the equipment.

Detailed technical characteristics

Photovoltaic entrance (PV INPUT)

• Maximum entry power CC: 45 kW
• Maximum voltage FV: 1000 V
• Nominal input voltage CC: 620 V
• Input voltage range CC: 150-1000 V
• MPPT voltage range: 150-850 V
• Complete MPPT range: 500-850 V
• Starting voltage: 160 V
• Max Entry CC: 40A x 2
• Maximum short circuit current: 60A x 2
• No. MPPT / Strings followers: 2/4

Battery port

• Nominal battery voltage: 550 V
• Battery voltage range: 150-800 V
• Maximum loading / unloading current: 60 a
• Maximum loading / unloading power: 30 kW
• Cargo curve: 3 stages
• Type of compatible battery: Lithium (Li-ion) / Lead-Acid / Metallic Sodium Chloride

Red CA (AC Grid)

• Nominal power output: 30 kW
• Maximum power input / output: 45/33 kVA
• Maximum output current CA: 48 a
• Nominal voltage CA: 230/400 V
• Nominal frequency: 50/60 Hz
• Power factor: 1 (Adjustable -0.8 to 0.8)
• Thd of current:

Charging output (backup mode / back-up)

• Nominal output power: 30,000 VA
• Nominal exit tension: 230/400 V
• Nominal output frequency: 50/60 Hz
• Nominal output current: 43.5 a
• POWER PICO DEAL: 33,000 goes for 60 s
• THDV (with linear load):
• Switching time:

Efficiency

• European efficiency: 98,10%
• Maximum efficiency: 98,50%
• Charging efficiency / battery discharge: 98,00%

Protections

• Protection against reverse polarity
• Protection against overcurrent / overvoltage
• Protection anti-Island
• Protection against short circuit
• Leak detection
• Earth Fault Monitoring
• Network monitoring
• Degree of housing protection: IP65
• Overvoltage protection CA / CC: Type II

General data

• Dimensions (an x at x fo): 558 x 535 x 260 mm
• Weight: 36 kg
• Topology: No transformer (transformer)
• Refrigeration: Smart fan
• Relative humidity: 0-100%
• Range of operating temperature: -25 to 60 ° C
• Operational altitude:
• Noise emission:
• Consumption in Standby:
• Screen and Communication: LCD, LED, RS485, Can, Wi-Fi, GPRS, 4G
• Certifications: NRS097, G98 / G99, EN50549-1, C10 / C11, AS4777.2, VDe-AR-N4105, VDe0126, IEC62109-1, IEC62109-2
• EMC: EN61000-6-2, EN61000-6-3

Frequently Asked Questions (FAQ)

1. What types of battery are compatible with the AFORE AF30K-TH? It is compatible with lithium batteries (Li-ion), , lead-acid and metallic sodium chloride, in a voltage range of 150 to 800V, which offers great flexibility when choosing the installation storage system. You can check the entire range available in our section of lithium batteries.

2. How much photovoltaic power can I connect to this inverter? The team admits up 45 kW input power cc, with an oversizing up 1.5 times its nominal power, distributed in 2 Followers MPPT and 4 Strings, which allows you to take advantage of broad photovoltaic generators with different orientations.

3. What autonomy or response offers function UPS before a supply cut? AF30K-TH switches as a backup in less than 10 ms, practically imperceptible for most electronic equipment, and admits a peak overload up to 150% for the start of demanding loads during the network cut.

4. Is this adequate inverter for industrial facilities or only residential? When it is a team three-phase 30 kW, it is apt both for single-consumption single-family homes and for small and medium commercial or industrial facilities that require a solution to inverters hybrid of greater power.

5. What is the difference between self-consumption optimization and Peak Shaving? Self-consumption optimization prioritizes the direct use of generated solar energy and battery charge with surplus, while the peak Shaving it uses the energy stored to trim the power peaks demanded to the network at the moments of greater consumption, thus reducing the term of power contracted.

6. Can it be installed abroad without additional protection? Yes, the AF30K-TH has degree of protection IP65, which allows you to operate in a temperature range -25 to 60 ° C and relative humidity of 0-100%, being suitable for outdoor installation without the need for additional protection cabinets.
