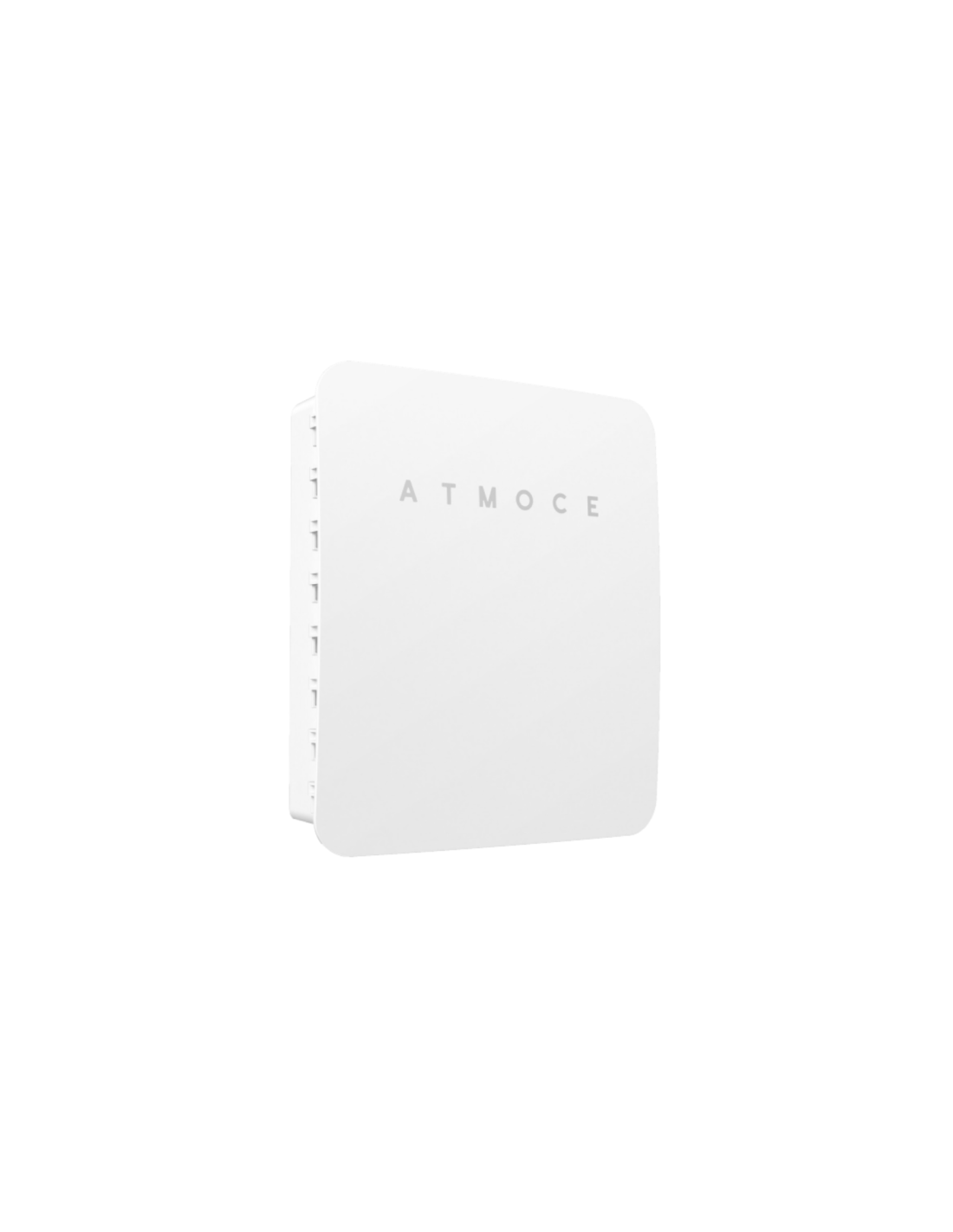

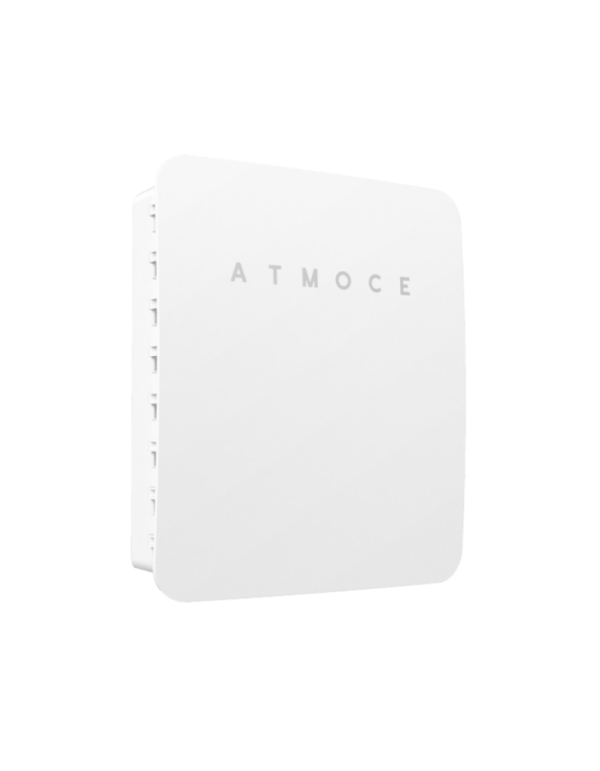

BackUp Atmoce MU100-S Single-phase 80a

Function of theBackUp in the system Atmoce

TheBackUp It acts as the switching point between the electrical network, the housing scan and the generation and storage system Atmoce (microinverters, lithium batteries and M-Combiner). Your bypass switch It allows to derive the feed directly from the network in case the backup system is not available or requires maintenance, without the need to interrupt the power supply of the home during that process.

With a Maximum current of 80a Both on the network and distribution side, this equipment is dimensioned to support the entire load of a home with standard single-phase installation, acting as a safety piece and continuity of service within the ecosystem of inverters hybrid and backup systems Atmoce.

Robustez for exterior installation

With protection Ip65 and a range of operating temperature of -30 ° C to 50 ° C,BackUp MU100-S It is prepared to be installed abroad without the need for additional protections, in line with the rest of the range equipment M-Combiner and M-ELV Battbank Atmoce. Your communication through protocols Can and DO (digital output) It allows integration with the rest of the energy management system, coordinating switching between network and automated backup.

Detailed technical characteristics

Components included:

• Combiner / load switch: 1 unit, 80A, 2 poles
• Bypass switch: 1 unit, 80A, 2 poles
• Network switch: 1 unit, 80A, 2 poles

Electrical parameters:

• Network configuration: single-phase
• Nominal voltage: 220/230 / 240V AC
• Voltage range (L A N): 184V ~ 276V
• Nominal frequency: 50 / 60Hz
• Extended frequency range: 45Hz ~ 65Hz
• Maximum combiner / load current: 80a
• Maximum network current: 80a
• Maximum current of distribution box: 80a
• Overvoltage category: III

Mechanical parameters:

• Dimensions (an x at x PR): 447 x 389 x 124mm
• Weight: 3,6kg
• Range of room temperature: -30 ° C ~ 50 ° C
• Refrigeration: natural convection
• Degree of protection: IP65, Exterior
• Cable section Combiner / load side: 16 ~ 25mm²
• Cable section Network: 16 ~ 25mm²
• Cable section Side Distribution Box: 16 ~ 25mm²
• Communication cable section: 0.25 ~ 0.75mm²
• Noise:
• Maximum altitude: 3000m
• Protection class: II
• Degree of contamination: III

Communication: Can, DO (Digital Exit)

Certifications: IEC 61439-1 / -2 (safety), IEC 62311 (health), EN 301489-1 / -17, IEC 61000-6-1 / -2 / -3 / -4 (EMC), EN 300328 (Radio spectrum).

Frequently Asked Questions (FAQ)

1. What exactly is the M-BackUp? It is the switching box between the electrical network, the housing distribution box and the generation / storage system Atmoce, allowing to maintain the supply through its function of bypass.

2. What maximum current does it support?
Support 80a Both on the network and distribution side, sufficient for most residential single-phase installations.

3. Is it suitable for outdoor installation?
Yes, it has protection Ip65 and a range of operating temperature of -30 ° C to 50 ° C, designed specifically for exterior.

4. Is there a three-phase version?
Yes, the same Datasheet documents a three-phase version of the M-BackUp With 4-pole switches and a weight of 6kg, for installations with three-phase rush.

5. How do you communicate with the rest of the system Atmoce?
Via protocol Can and digital output (Do), integrating with the M-Combiner and the rest of energy management teams Atmoce. Consult more technical content in the Blog Tienda Solar.
