Industrial Combiner Box Atmoce MC100-Wye-8in1
Industrial Combiner Box Atmoce MC100-Wye-8in1

Industrial Combiner Box Atmoce MC100-Wye-8in1

MC100-Wye-8in1
€2,236.08
Tax included

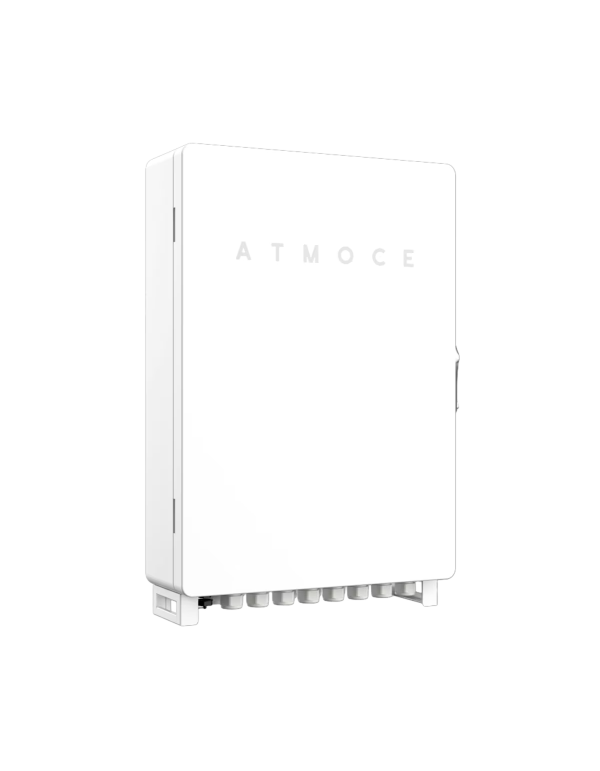

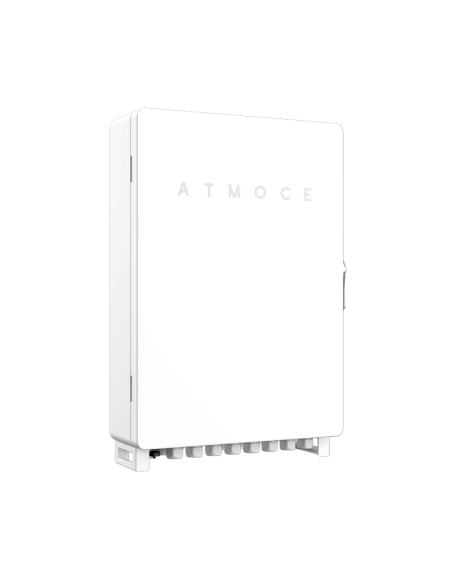

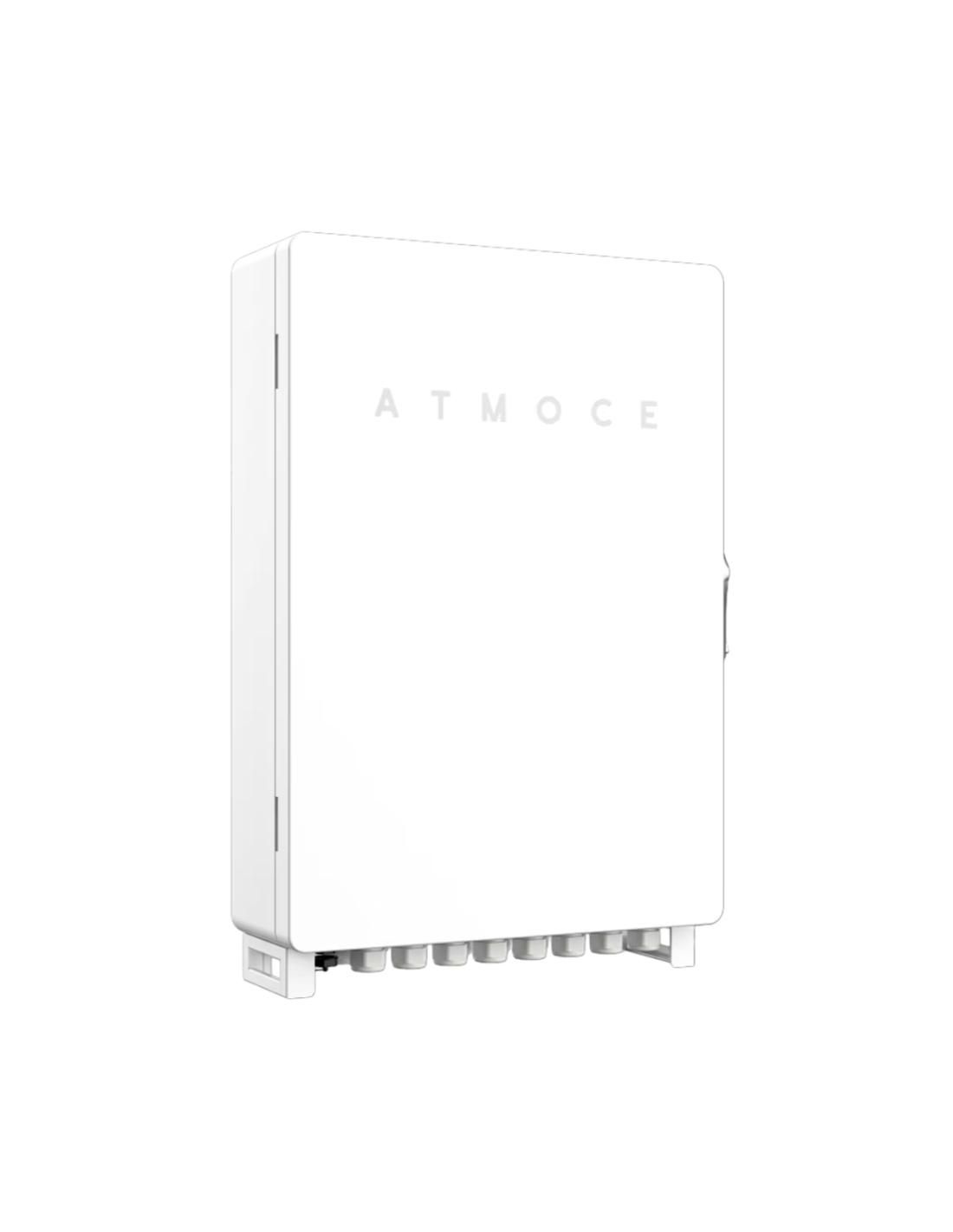

The Atmoce Meters-combinerx MC100-Wye-8in1 It is a three-phase combiner picture of use industrial and commercial, designed to centralize up 8 Photovoltaic and / or battery entries On a single team. Each entry It has its own switch 32A to 4 poles, while a general switch of 250a Manage network connection, supported for NSP controller (protection of network and system) and 3 CT sensors 250A accurately 0.5%. Its configuration Master-Scalable slave to MW level Allows you to integrate multiple units in large facilities scale, both photovoltaic and of energy storage scale. With protection Ip65 to Exterior, Communication PLC (more than 350m), Ethernet (up to 800m), WiFi, Bluetooth and RS485, and a weight 42kg, it is managed entirely from the app Atmozen and the platform Atmoce-Cloud.



A combiner designed for industrial scale

The M-Combinerx MC100-Wye-8in1 it gives a scale leap compared to the residential family MC100/MC100-T: his 8 independent 32a entries allow you to connect a very superior number of branches microinverters or battery lines, while the 250A general switch and the cable sections up 120mm² on the network side they reflect a power handling capacity much higher than that of a residential box. This architecture makes it ideal for commercial facilities, industrial buildings or larger distributed generation projects.

Your master Master Slave Configuration at MW Level it is perhaps its most differential feature: several M-Combinerx units can work coordinated with each other to manage very high power installations, something that no residential range of the range Atmoce allows. This scalability, together with joint integration of photovoltaic and storage systems, Take this equipment into the centerpiece of large-scale industrial self-consumption projects.

Protection and monitoring of industrial level

The team incorporates a nSP Controller (Network and System Protection) with his corresponding nSP Contactor, a specific protection element for higher power systems that does not appear in the residential range. To this they are added 2 units of SPD signal (Up≤30v), a protection 20ka General SPD and 3 CT sensors 250A with precision of 0.5%, allowing a robust measurement of the current in each phase even in high demand scenarios.

Communication is also reinforced for environments of greater demand: the PLC reaches more than 350 meters of range and the Ethernet up to 800 meters, distances much higher than those of a residential combiner, designed for ships or generation plants where the equipment may be away from the central supervision point.

Detailed technical characteristics

Electrical parameters:

  • Network configuration: three-phase (3 / n ~)
  • Nominal voltage: 220 / 380V, 230 / 400V, 240 / 415V AC
  • Voltage range (L A N): 176V ~ 276V
  • Nominal frequency: 50 / 60Hz
  • Extended frequency range: 45Hz ~ 65Hz
  • Overvoltage category: III

Components included:

  • Meters-Gateway: 1 unit
  • SPD: 1 unit, in 20ka, 4 poles
  • SPD switch: 1 unit, 25A, 4 poles
  • Gateway switch: 1 unit, 10A, 4 poles
  • PV / Battery Switches: 8 units, 32a, 4 poles
  • General network switch: 1 unit, 250a, 4 poles
  • PV sensors CT: 3 units of 250A, precision 0.5%
  • NSP controller: 1 unit (Network protection and system)
  • NSP Contactor: 1 unit
  • SPD signal: 2 units, up≤30v

Mechanical parameters:

  • Dimensions (an x at x PR): 600 x 850 x 200mm
  • Weight: 42kg
  • Range of room temperature: -30 ° C ~ 50 ° C
  • Refrigeration: natural convection
  • Degree of protection: IP65, Exterior
  • Cable section PV side: 4 ~ 6mm²
  • Cable section Network: 95 ~ 120mm²
  • Communication cable section: 0.25 ~ 0.75mm²
  • Noise:
  • Maximum altitude: 3000m
  • Protection class: I
  • Degree of contamination: III

Communication:

  • PV side: PLC
  • Side device: Ethernet (100MB / 10MB, up to 400m to 100MB / 800m to 10MB), RS485
  • Toward Atmoce-Cloud: WiFi 2,4GHz, Ethernet (100MB / 10MB)
  • APP Atmozen: Bluetooth (BLE) 2,4GHz

Certifications: IEC 61439-1 / -2 (safety), IEC 62311 (health), IEC 61000-6-1 / -2 / -3 / -4 (EMC), EN 301489-1 / -17, EN 300328 (radio spectrum), EN 50065-1 / -2 (PLC).

Frequently Asked Questions (FAQ)

1. How many photovoltaic or battery entries do you admit?
Admits 8 independent entries, each with its own switch 32A to 4 poles, being able to combine photovoltaic and battery lines according to the needs of the project.

2. What is the difference to this team from the residential combiners MC100/MC100-T?
Is a team of industrial scale: Your 250A general switch, your cable sections up to 120mm² on the network side and your MW level master-slave configuration are located well above the capacity of the residential range.

3. Can multiple units be connected to each other?
Yes, the team supports a scalable master-slave configuration to MW level, allowing coordinating multiple units in high power installations.

4. What is the NSP controller?
Is the network Protection Controller and System (Network and System Protection), an additional security element present in this industrial model that does not appear in the residential combiners of the range.

5. What range does the communication of this equipment have?
The PLC reaches more than 350 meters and the Ethernet up to 800 meters, distances designed for largest industrial installations. Consult more technical content in the Blog Tienda Solar.

Complete your project in Tienda Solar with microinverters, , solar and lithium batteries for commercial and industrial facilities.
