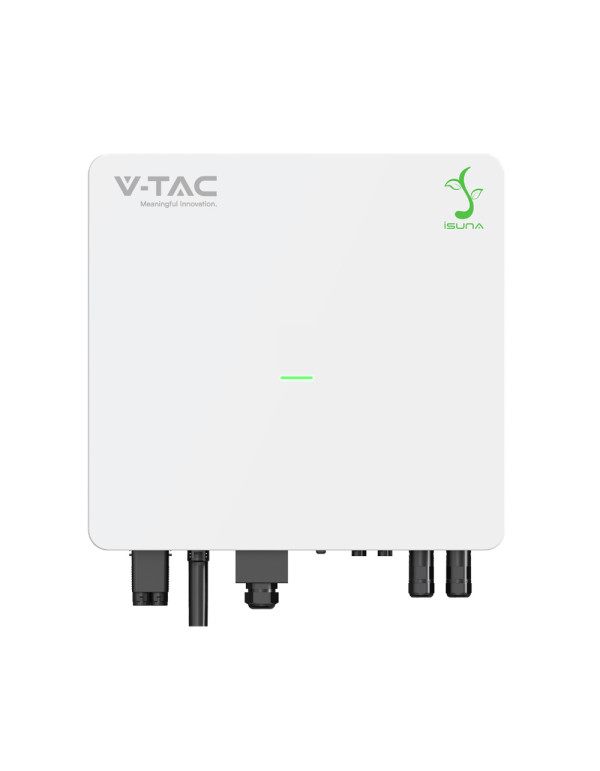

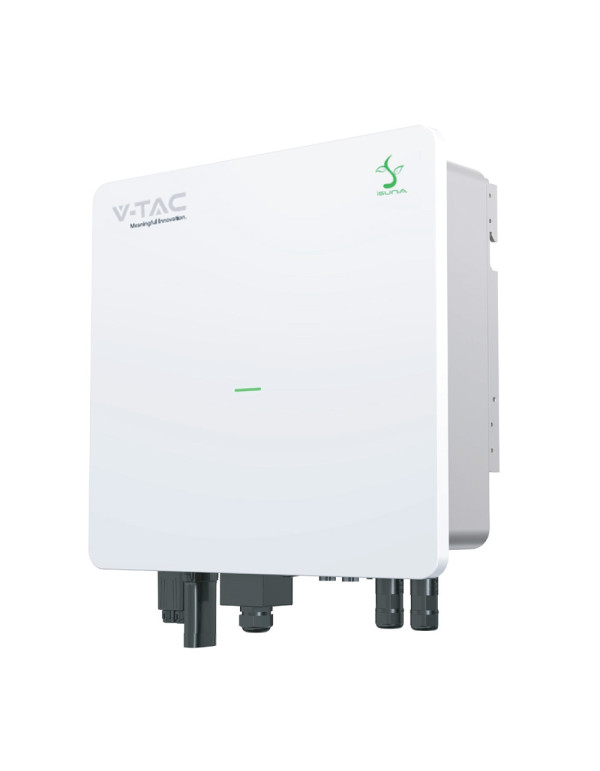

Inverter Solar Hybrid V-TAC 5KW single-phase - Dual MPPT 48V

Benefits Hybrid Inverter V-TAC 5KW

The Inverter V-TAC of 5KW It is the perfect solution for those seeking the ideal balance between power and cost in its photovoltaic installation. This hybrid Inverter acts as the brain of your system, automatically coordinating the use of your energy , storage in your 48V lithium batteries and the consumption of your home or business. Is the central component for a Solar Kit High performance, built on technology Sic That improves the global efficiency of the team.

Prepared large

Thanks to its entry capacity of 18A by MPPT, V-TAC 5KW has no limitations with solar panels More powerful on the market. Their 2 MPPT Followers Independent (1 String by MPPT) allow to install two different orientations on the roof, maximizing production since dawn (starting voltage 95v) until sunset, with a range of work 80V to 550V (350-500V at full load).

Self-consumption without interruptions: ON / OFF-GRID

This equipment is able to function connected to the electrical network (network voltage range 184-264vfrequency 45-65hz) to maximize savings and, simultaneously, offer a mode Back-up (EPS) Isolated with quick switching in case of supply cut, keeping your essential consumption in operation.

Scalability and total control

Do you need more power in the future? The V-TAC system is totally scalable, allowing you to connect up 15 units in parallel, in addition to having 2 independent battery ports who admit the mixed use of old and new batteries, together with lithium batteries Additional as they grow your needs.

Maximum safety and monitoring

Includes PV insulation resistance detection, Residual current monitoring, anti-island and Reverse polarity protection (PV), along with connectivity Led / app / WiFi / 4g / Bluetooth and ports Rs485 / can / dred / do. If you have doubts about how to size your complete system, see the guides of the Blog Tienda Solar.

Detailed technical characteristics

• SKU: 12158 (EAN 3800170224780)
• Nominal output power: 5000W AC
• Nominal output current: 22,7a
• Maximum output current: 22,7a
• Maximum current of entry from Network: 27,2a
• Network tension: 230v (range 184-264v)
• Frequency: 50 / 60hz (range 45-65hz)
• Thdu:
• Maximum photovoltaic power: 7500wp
• MPPT number: 2 (1 String by MPPT)
• Maximum input current: 18A / 18A
• Starting voltage: 95v
• Maximum input voltage: 600v
• MPPT voltage range: 80V - 550V
• MPPT voltage range at full load: 350-500v
• Nominal input voltage: 360v
• Type of battery: Lithium-ion
• Nominal battery voltage: 51,2v
• Battery voltage range: 42V - 58V
• Maximum load voltage: ≤60v
• Maximum loading / battery discharge: 100a
• Maximum efficiency: 98%
• European efficiency: 97,5%
• Charging efficiency / battery discharge: 97,5%
• Dimensions (L × an × al): 500 × 470 × 180 mm
• Weight: 21 kg
• Noise level:
• Operating temperature: -25 ° C A + 60 ° C
• Refrigeration: natural
• Degree of protection: Ip65
• Monitoring: LED / APP / WIFI / 4G / Bluetooth

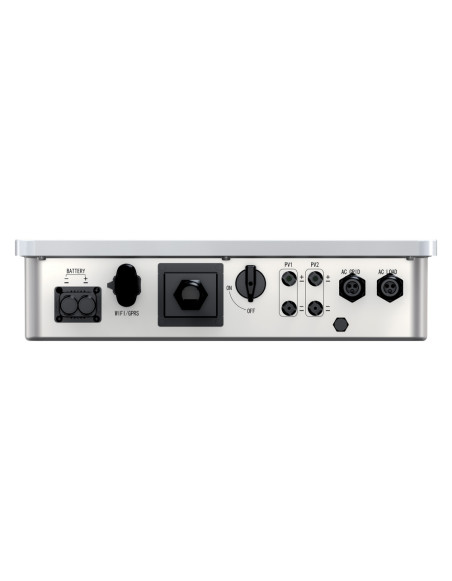

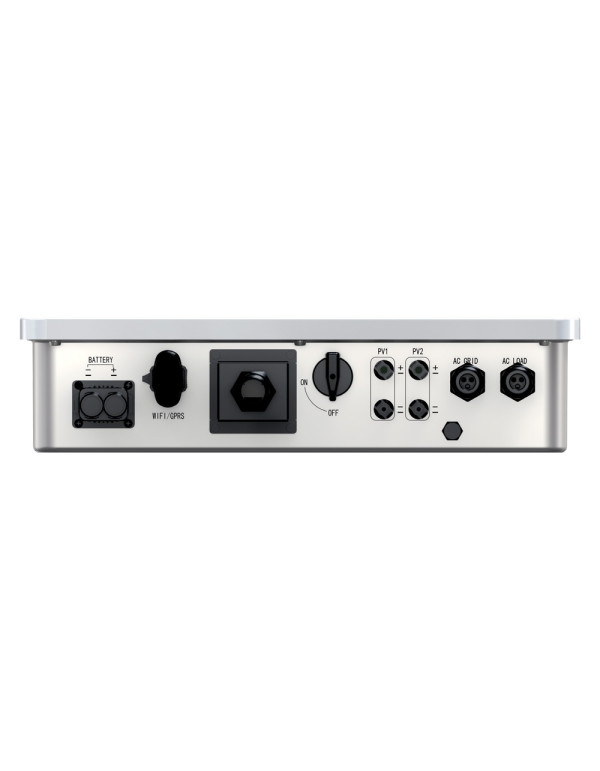

• Communication: RS485 / CAN / DRED / DO / PORTALLY HARM
• Parallel connection: up to 15 units

Frequently Asked Questions (FAQ)

1. Can I expand my installation later with this inverter? Yes. This model allows you to connect more lithium batteries of 48V in parallel and, if you need even more output power, you can add another inverter V-TAC in parallel, up to a maximum of 15 units.

2. What batteries are the most recommended in Tienda Solar?
Although it is compatible with most brands of 48v (range 42-58V), we recommend V-TAC lithium batteries or Pylontech for your excellent data communication with the inverter, which optimizes the useful life of the cells.

3. What is the difference between this inverter and the 6kw version?
Both share dimensions, weight and most electrical input specifications, but the 5KW version offers a Nominal output power of 5000W in front of the 6000w of the upper model, as well as a Maximum PV power of 7500WP Facing the 9000WP of the 6KW.

4. What happens if the light is going?
The inverter has a function EPS, which acts as an uninterrupted feeding system, allowing you to continue feeding your essential consumption in case of power supply.

5. What maintenance do you need?
Practically none. Thanks to his natural cooling and to protection Ip65, the equipment is protected against dust and moisture, requiring only a periodic review of electrical connections.

6. Is it compatible with remote monitoring systems?
Yes, incorporate connectivity WiFi, 4G and Bluetooth, In addition to an own app, allowing you to supervise your installation from the smartphone at any time.
