Lithium Battery V-Tac 5.12KWh 48V - VT48100E-W Mural LifePo4

Benefits of the V-TAC Battery VT48100E-W

The V-TAC VT48100E-W redefines domestic solar storage when combining an efficient capacity of 5,12kwh With a mural format that releases useful space. On Tienda Solar, we recommend this model for those looking for a clean and professional installation, anchoring the energy directly to the wall of your garage or technical room, complementing any Photovoltaic Solar Kit.

Safety LIFEPO4 and stable performance

This accumulator uses cells Iron and lithium phosphate (LifePO4), the most stable and safe chemistry of the current market. Your 42,0V discharge cut voltage protects the cells against excessive downloads, while the 56,8V charging voltage Ensures controlled and safe load cycles. Your own management BMS constantly monitors voltages and temperatures, protecting the investment against any electric anomaly, in line with others lithium batteries of the range

Point power for consumption peaks

With a 20A standard loading / unloading current and a capacity of up 100A in continuous, this battery is ready to absorb sudden demand peaks without compromising the stability of the system, being an ideal complement to inverters hybrid Low voltage 48V.

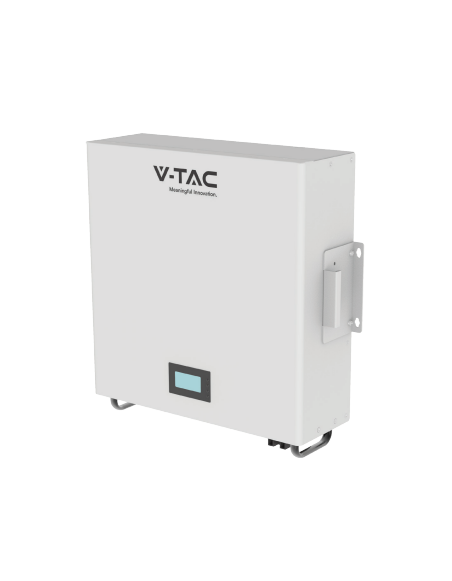

Mural design that saves space

Dimensions 443 x 450 x 150 mm and a weight of 43 kg, this thin wall mount format is ideal for installations where space on the floor is limited, leaving the surface free for other equipment as inverters solar o Electrical frames. If your project also needs anchors or additional supports, see the installation guides in the Blog Tienda Solar.

Wide range

Its operating temperature range -0 ° C to 60 ° C on load and -20 ° C at 60 ° C in download- Together with an admitted relative humidity up 95% RH, it is suitable for different installation environments, from garages to technical rooms with seasonal temperature variations.

Detailed technical characteristics

• Model: Vt48100e-w
• SKU: 11526 (EAN 3800157693608)
• Type of battery: Lifepo4
• Nominal capacity: 100ah (@ 0.2c, 25 ° C)
• Nominal voltage: 51,2v
• Nominal energy: 5,12kwh (@ 0.2c, 25 ° C)
• Load tension: 56,8v
• Standard load current: 20a (@ 25 ° C.)
• Maximum continuous load current: 100a (@ 25 ° C.)
• Standard discharge current: 20a (@ 25 ° C.)
• Maximum continuous discharge current: 100a (@ 25 ° C.)
• Discharge tension: 42,0v
• Charging temperature: 0 ° C A + 60 ° C
• Discharge temperature: -20 ° C A + 60 ° C
• Relative humidity admitted: ≤95% RH
• Degree of protection: Ip20
• Dimensions (an × prof × al): 443 × 450 × 150 mm
• Weight: 43 kg approx.
• Certifications: CE, RoHS
• Warranty: 5 years

Frequently Asked Questions (FAQ)

1. Can I install it myself on the wall?
The battery weighs 43 kg, so a solid wall (brick or concrete) and help for anchor is required. On Tienda Solar We always recommend that the installation is verified by a professional to guarantee security.

2. What is the difference between the standard current and the maximum of this battery?
The Standard current of 20a is the recommended for continuous and prolonged use that maximizes the useful life of cells, while the 100A maximum current It is available to cover point peaks of high consumption.

3. Under what environmental conditions can this battery work?
Supports a temperature range of 0 ° C to 60 ° C during loading and of -20 ° C at 60 ° C During the download, in addition to a relative humidity of up to the 95%, which makes it suitable for garages, storage rooms and technical rooms with thermal oscillations.

4. What degree of protection does it have and where can it be installed?
It has a degree of protection Ip20, so it is indicated for indoor installation, protected from direct rain and excess moisture or dust environments.

5. What guarantee does the manufacturer offer?
The VT48100E-W has a guarantee of 5 years, backed by certifications CE and ROHS that prove compliance with European quality and safety standards.

6. Can I combine this battery with other equipment from my installation?
Yes, this battery 48v can be combined with inverters hybrid Low voltage compatible with this nominal voltage. If you have doubts about compatibility with your inverter concrete, we recommend you consult it with our technical team in Tienda Solar Before purchase.
