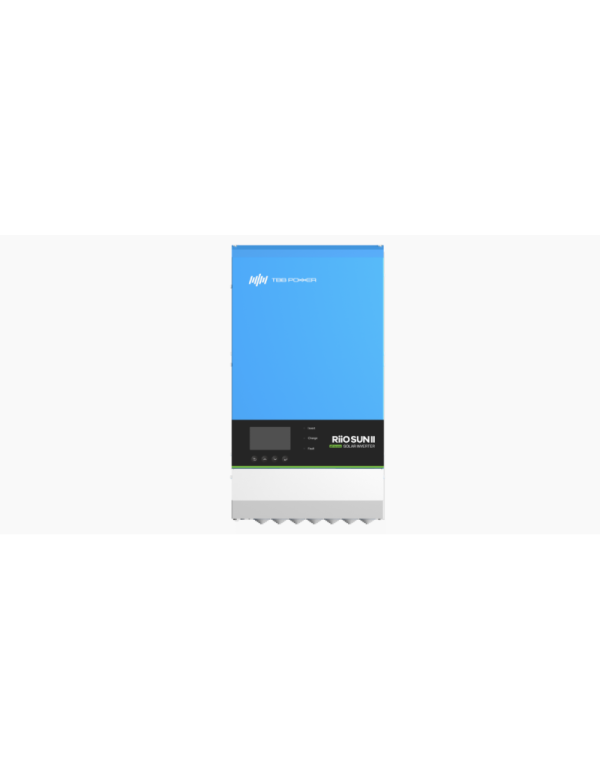

Inverter Solar TBB POWER Riio Sun II 5KVA-S

The inverter Solar all in one TBB POWER RIIO SUN II 5KVA-S offers AC-coupling features with the energy injection in the AC surrounding, to maximize its performance in self-consumption. This hybrid Inverter It also has the AGS functions; Power Assist and Power Control that allows functionalities with Limited AC inputs (network or generator) where you can automatically adjust the load current taking into account the AC power limitation or synchronize to increase the temporary peak power.

Main features

• - Integral "Plug and Play" design for a simple installation
• - With a transformer, it easily supports overcurrent peaks.
• - Suitable for renewable energy systems isolated, energy storage storage, self-consumption and backup energy
• - Supports both the parallel and the three-phase (requires the Riio Mate accessory).
• - Supports energy injection in the network.
• - It can work without the need for a battery (optional).
• - 2 power monitors and photovoltaic MPPT load current
• - Completely programmable by application
• - Eco mode is incorporated to reduce the use of batteries.
• - The main lithium battery brands are compatible.
• - The maximum efficiency of inverter It is 94%, while the maximum efficiency of the MPPT is 98%.

Technical characteristics

• - Nominal voltage: 48 V
• - CC input voltage range: 42 - 68 V
• - Output voltage: 230 VAC
• - Power Pico: 10000 W
• - Maximum battery charge current: 60 A
• - Voltage range of MPPT: 65 - 245 V
• - Number of MPPT: 2
• - Max / Current Current Current: 36 + 36/40 + 40 A
• - Dimensions: 570 x 310 x 154 mm
• - Weight: 29 kg
