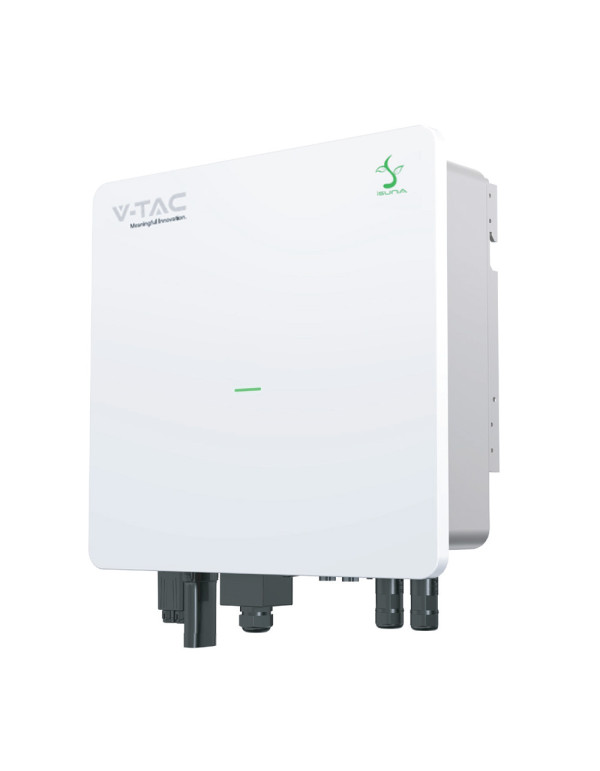

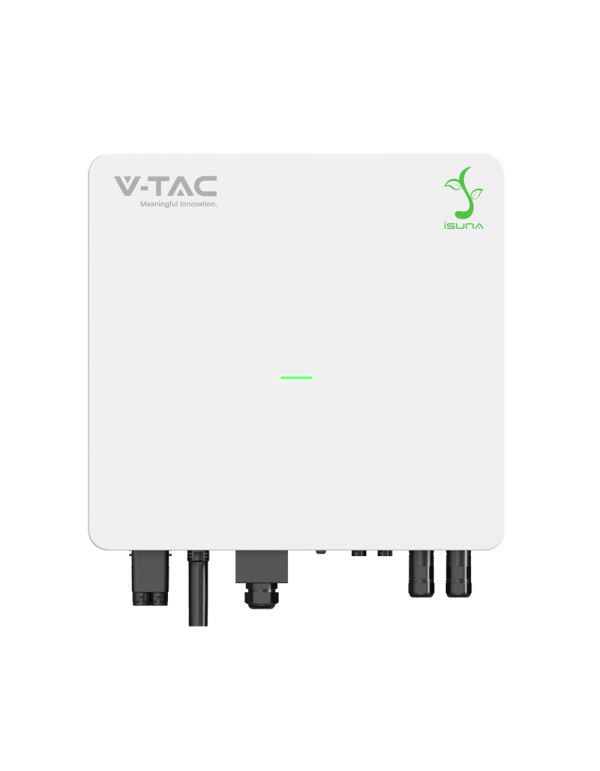

Inverter Solar Hybrid Single-phase V-TAC 6KW - Dual MPPT 48V

Benefits Hybrid Inverter V-TAC 6KW

The Inverter V-TAC 6KW It is the ideal heart for photovoltaic installations that require superior performance. Designed to maximize the use of solar energy, this hybrid Inverter intelligently manage the electrical flow between your , your consumption and your 48V lithium batteries. Is a robust option for those seeking a Solar Kit Powerful and scalable, thanks to its technology SIC (silicon carbide) that improves efficiency and prolongs the useful life of the team.

Optimized for new generation

Thanks to its entry capacity of 18A by String in their 2 MPPT Followers (1 String by MPPT), V-TAC 6KW is fully compatible with Modern solar solar. Its wide range of MPPT voltage (80V - 550V, with 350-500v at full load) Ensures an early start 95v and an optimal use of solar radiation throughout the day.

Hybrid Mode: Connected to Network and Isolated (UPS)

This equipment stands out for its duality: can inject energy to the electric grid (with a maximum injection current of 27,2a) or operate in isolated mode (OFF-GRID) in case of failure in the supply. Its back-up function (EPS) Acts as an uninterrupted feeding system with fast switching, ensuring that your critical teams never stop.

Industrial scalability and security

For greater projects, the inverter V-TAC 6KW allows the parallel connection up to 15 units, in addition to having 2 independent battery ports They admit the mixed use of old and new batteries. On Tienda Solar We prioritize security, so this model includes PV insulation resistance detection, Residual current monitoring, anti-island, Reverse polarity protection and a housing Ip65 Fit for outdoor and interiors.

Monitoring and advanced connectivity

The equipment has complete monitoring through LED, App, WiFi, 4G and Bluetooth, in addition to communication ports RS485, Can, Dred, Do and Paralose Port, with preparation for integration VPP (Virtual Power Plant). If you need to correctly dimension the bank of Solar batteries that accompanies this inverter, consult the guides of the Blog Tienda Solar.

Detailed technical characteristics

• Model / SKU: 12156 (EAN 3800170224766)
• Nominal output power: 6000W AC
• Maximum photovoltaic power: 9000wp
• Nominal output current: 27,2a
• Maximum injection current from Network: 27,2a
• Network tension: 230v (range 184-264v)
• Frequency: 50 / 60hz (range 45-65hz)
• MPPT number: 2 (1 String by MPPT)
• Maximum input current: 18A / 18A
• Starting voltage: 95v
• Maximum input voltage: 600v
• MPPT voltage range: 80V - 550V
• MPPT voltage range at full load: 350-500v
• Nominal input voltage: 360v
• Type of battery: Lithium-ion
• Nominal battery voltage: 51,2v
• Battery voltage range: 42V - 58V
• Maximum load voltage: ≤60v
• Maximum loading / battery discharge: 100a
• Maximum efficiency: 98%
• European efficiency: 97,5%
• Charging efficiency / battery discharge: 95,2%
• Dimensions (L × an × al): 500 × 470 × 180 mm
• Weight: 21 kg
• Noise level:
• Operating temperature: -25 ° C A + 60 ° C
• Refrigeration: natural
• Degree of protection: Ip65
• Monitoring: LED / APP / WIFI / 4G / Bluetooth
• Communication: RS485 / CAN / DRED / DO / PORTALLY HARM
• Parallel connection: up to 15 units

Frequently Asked Questions (FAQ)

1. Can I install this inverter in a housing with a lot of consumption?
Yes, with 6000w Output power can cover most appliances from a medium-high house simultaneously. In addition, in Tienda Solar we advise you to size the bank of Solar batteries appropriate.

2. Do you work with batteries Pylontech or Dyness?
Yes, it is compatible with low voltage lithium batteries 48v (Rank 42-58V) of the main brands of the market, in addition to the range of lithium batteries V-TAC.

3. What maintenance do you need?
Practically none. Thanks to his natural cooling (without fans) and to protection Ip65, The equipment is protected against dust and moisture. It is only recommended to review electrical connections periodically.

4. What happens if the light is going?
The inverter has a function EPS (Emergency Power Supply), which acts as an uninterrupted feeding system, allowing you to continue feeding your critical consumption in case of power supply.

5. Can I combine old and new batteries?
Yes, thanks to your 2 independent battery ports, the system admits the mixed use of old and new batteries, facilitating the progressive expansion of your installation with more lithium batteries.

6. Is it compatible with remote monitoring systems?
Yes, incorporate connectivity WiFi, 4G and Bluetooth, in addition to own app and preparation for integration VPP, allowing you to monitor your installation from the smartphone at any time.
