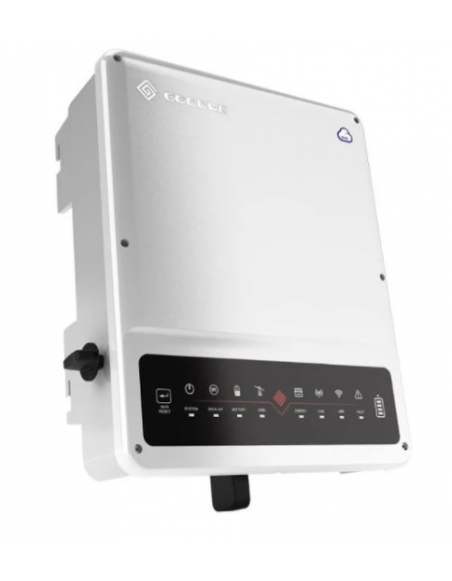

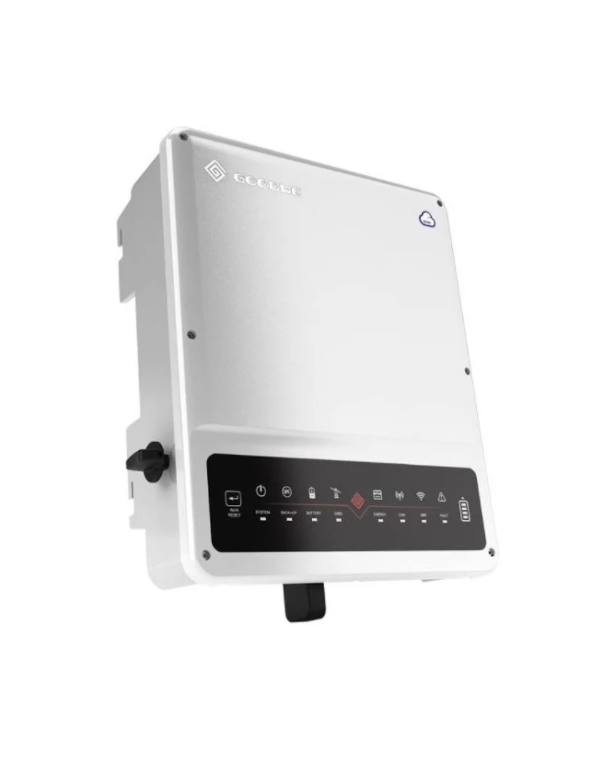

Hybrid Inverter Goodwe GW3048-EM - Single-phase
GW3048-EM
€623.15
Tax included
Inverter Solar Hybrid Single-phase Hybrid GOODWE 3048-EN Connection to the Electric Network that allows the load of solar batteries either through the Solar as of the electric network. The model GoodWe 3000W AC allows 3900W of solar panel power with a maximum input voltage of 550V and maximum current of 11A
This Inverter Solar is compatible with 48V batteries like the Pylontech US2000 and US3000. Your MPPT allows the optimization of energy produced by Solar either for self-consuming or to charge solar batteries
The inverter GoodWe GW3048-EM has a yield of 97.7% and a product warranty is 5 years. Hybrid Inverter of great quality compatible with Batteries of Lt, 48V
The GoodWe GW3048 is a inverter solar Hybrid Network Connection with 1 MPPT with prepared input to connect 1 String, with a maximum current of 11A input by string, with a working voltage by MPPT of between 100 to 500V per MPPT. This efficient inverter, It allows easy installation in both residential and industrial areas.
One of the great advantages of inverter GW3048 is that it compatible with the vast majority of Lt's Batteries at 48V avoiding the use of high-voltage batteries which makes the installation and start-up easy inverter-baterías
It would be GoodWe it has Wi-Fi module that allows the monitoring of the production of solar installation using the sem platform in the cloud that facilitates connectivity through any mobile device
TheGoodWe Monophasic GW3048 is a inverter only available for those solar self-consumption installations with network connection that want to use 48V lithium solar batteries
This inverter can be connected to the vatimeter GoodWe in order to monitor consumption of housing either from the electrical network or the photovoltaic system.
The Hybrid Series of GoodWe is undoubtedly a great option quality recommended price from Tienda Solar.
In the following link you can find the detail of the accessories supplied next to the product: https://drive.google.com/file/d/1Ff2LdriFav_-nDAu3yWzJ746g6_ACbiQ/view?usp=sharing.
|
Model |
Gw3048-em |
|
Entrance (DC) |
|
|
Max. PV power by array (WP)
|
3900 |
|
Max. DC voltage (V) |
500 |
|
Nominal operating voltage DC (V) |
360 |
|
Max. Input intensity (A) |
11 |
|
Max. Short circuit intensity (A) |
13,8 |
|
Range of Tension MPPT (V) |
280-500 |
|
Operative start voltage (V) |
150 |
|
Number of Followers MPP |
1 |
|
Strings per follower MPP |
1 |
|
Departure (AC) |
|
|
Nominal AC (VA) power |
3000 |
|
Max. Power AC (VA) |
3000 |
|
Nominal network voltage (AC tension range) (V) |
230 |
|
Nominal Network Frequency / Range (Hz) |
50/60 |
|
Nominal Intensity AC (A) |
18,8 |
|
Max. Intensity AC |
23,6 |
|
Displacement of the power factor |
0.8 Leading - 0.8 Lagging |
|
THDI, power ratio (%) |
|
|
DC output (battery) |
|
|
Working voltage (V) |
48v |
|
Recommended battery voltage (V) |
48v |
|
Current loading / maximum discharge (a) |
50a |
|
Communication Batteries |
Can / rs485
|
|
Protection Front Reverse Rencess |
If |
|
PROTECTIONS |
|
|
Overvoltage |
Yes |
|
Current protection |
Yes |
|
Monitoring Impedance DC Insulation |
Yes |
|
Monitoring Earth Ensure |
Yes |
|
DC injection monitoring |
YES |
|
RCD protection |
YES |
|
Security |
Iec62109-1 / -2 |
|
EMC |
En61000-6-1; En61000-6-3; En61000-3-2; En61000-3-3 |
|
Certifications |
G98; As4777; Vde4105; En50549; Ce10-21 |
|
Environmental limits |
|
|
Degree of proaection (based on IEC60529) |
Ip65 |
|
Operating temperature range (ºC) |
-25; +60 (Derrating at 45) |
|
Max. Operation altitude (M) |
|
|
Humidity (%) |
0-100 (Sin-condensation) |
|
Storage temperature (ºC) |
-25; +60 |
|
Typical noise emission (DB) |
|
|
Dimensions and weight |
|
|
Dimensions (WXHXD) (mm) |
347 x 432 x 175 |
|
Weight (kg) |
16 |
|
Ventilation type |
Natural |
|
Type |
Non-isolated |
|
Communications interface |
WiFi |
|
LCD DISPLAY |
Yes |
|
Standard Guarantee (Years) |
5 |
- Power (kW)
- 3 - 5.9
- Phase Type
- Single phase
- Max Current Input (A)
- 11 - 11.99
- Compatibility list
- Dyness BX51100
Dyness Power Box
Pylontech Force L2
Pylontech US2000C / US3000C / US5000
Pylontech US3000C
Pylontech US5000 / Force L2
Turbo Energy (Slim)
