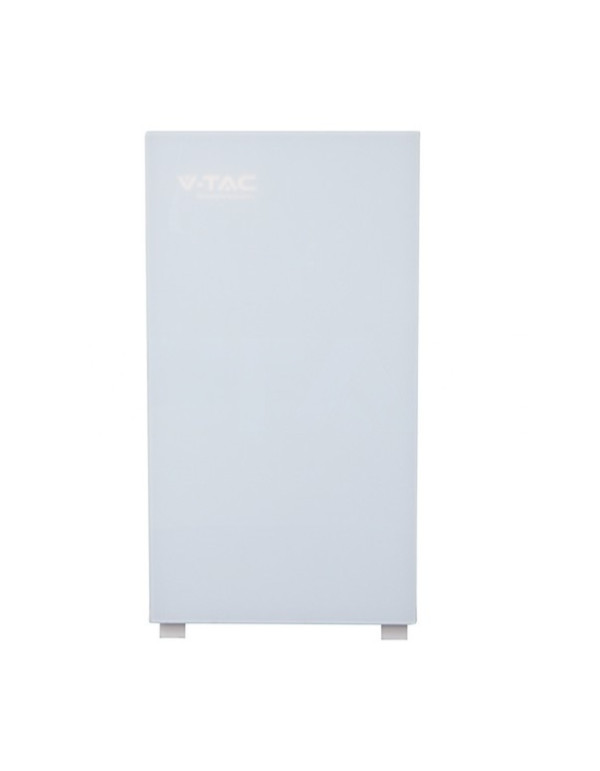

Battery Benefits V-TAC 16.07KWh
In a scenario where energy efficiency is fundamental, the 16.07 kWh V-TAC lithium battery It is positioned as the perfect ally for your solar installation. Thanks to his huge nominal capacity, this battery allows you to store the surpluses of your solar panels During the day to cover practically all night consumption, drastically reducing dependence on the electrical network.
Your Standard loading / discharge current 140A, expandable up to a maximum of 150a, It allows to feed large simultaneous consumption and recharge the system quickly at the hours of maximum solar production. With a Internal resistance of only 16MΩ, minimizes energy losses and improves the overall efficiency of the system against lower-end batteries.
Latest Generation LifePo4 Technology
Security is the first thing in Tienda Solar. This battery uses cells Lithium Ferrophosphate (LifePO4), the safest and most stable technology in the market. With a life superior to the 7000 cycles, it offers exceptional durability backed by 10 years warranty. Its sophisticated integrated BMS protects the system against overloads, overloads and extreme temperatures, ensuring impeccable operation in any Photovoltaic Solar Kit.
Intelligent design and total control
The V-TAC model of 16.07kwh is not only powerful, but also intelligent. Has tactile screen For instant local monitoring and is compatible with mobile applications for remote monitoring. Its port of communication Can It facilitates a perfect synchronization with the parameters of the inverter. In addition, the system allows the parallel connection with multiple units, climbing your storage in a simple way together with lithium batteries Additional of the same series.
Aesthetic and functional installation
With an elegant and robust design, this battery is designed to integrate indoors (garages, storage rooms or technical rooms). Its optimized dimensions of 510 x 242 x 862 mm They allow you to have a large energy reserve without sacrificing useful space. If your project also requires a physical support for the , in the store you will find solar adapted to any type of installation.
Range of work voltages
The system operates with a Standard load voltage of 57.6V, a Upper load limit of 57.6V and one 43,2V-purpose end voltage, key parameters that you must configure correctly in your hybrid Inverter To maximize the performance and life of the battery. If you have doubts about the optimal configuration, see the guides of the Blog Tienda Solar.
Detailed technical specifications
- Model: Vt-16076
- Nominal capacity: 16.07 kwh
- Cell capability (ah): 314 ah
- Nominal voltage: 51,2v
- Standard loading / unloading current: 140a
- Maximum continuous loading / unloading: 150a
- Communication: Can
- Internal resistance: 16mω
- Dimensions (d × an × al): 510 × 242 × 862 mm
- Degree of protection: Ip20
- Charging temperature range: 0 ° C to 55 ° C
- Discharge temperature range: -20 ° C at 60 ° C
- Standard load voltage: 57,6v
- Top Limit Tension of load: 57,6v
- End voltage discharge: 43,2v
- Structure: 16 series and 1 parallel
- Useful life (cycles): ≥7000 cycles
- Warranty: 10 years
Frequently Asked Questions (FAQ)
1. With what inverters it is compatible in Tienda Solar?
Is compatible with most inverters hybrid low voltage (48V-51,2V) that support the communication protocol Can, available in the range of Tienda Solar.
2. Can I install it myself?
Due to the need to correctly configure the BMS With the voltage parameters of the inverter, in Tienda Solar We recommend that the installation be carried out by a qualified professional to guarantee the safety and validity of the guarantee.
3. How much real energy can I use this battery?
Thanks to your lithium chemistry Lifepo4, this battery allows a very high use of its nominal capacity securely, offering a real energy reserve very close to the 16,07kwh rated.
4. How many life cycles does the VT-16076 have?
The manufacturer certifies a lifespan of ≥7000 cycles, superior to other models of the lower capacity V-TAC range, which translates into more than a decade of intensive daily use.
5. Can I combine several units in parallel?
Yes, the system allows the parallel connection of multiple units to scale the total storage capacity, ideal if in the future you need to expand your installation with more lithium batteries.
6. What is the difference between the standard current and the maximum current?
The Standard 140A current is the recommended for continuous and prolonged use, while the maximum current of 150a It is designed for punctual peaks of consumption or fast loading at times of maximum solar production.
