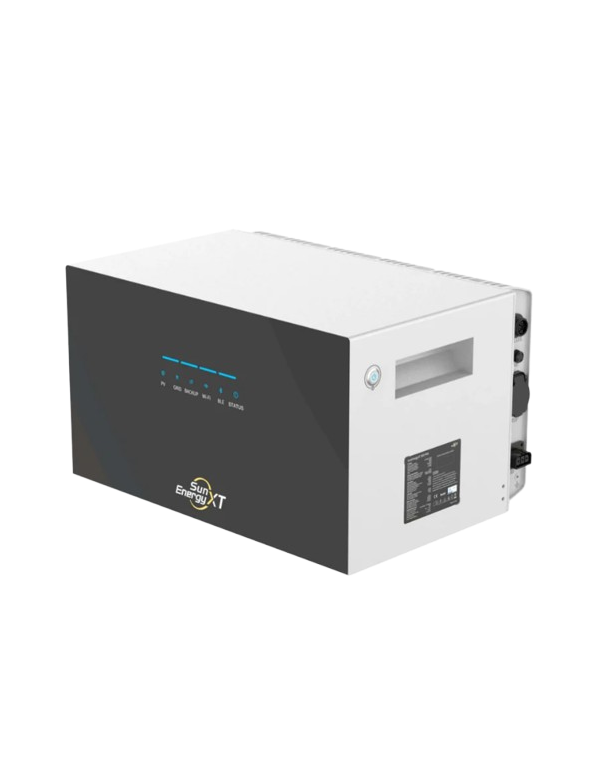

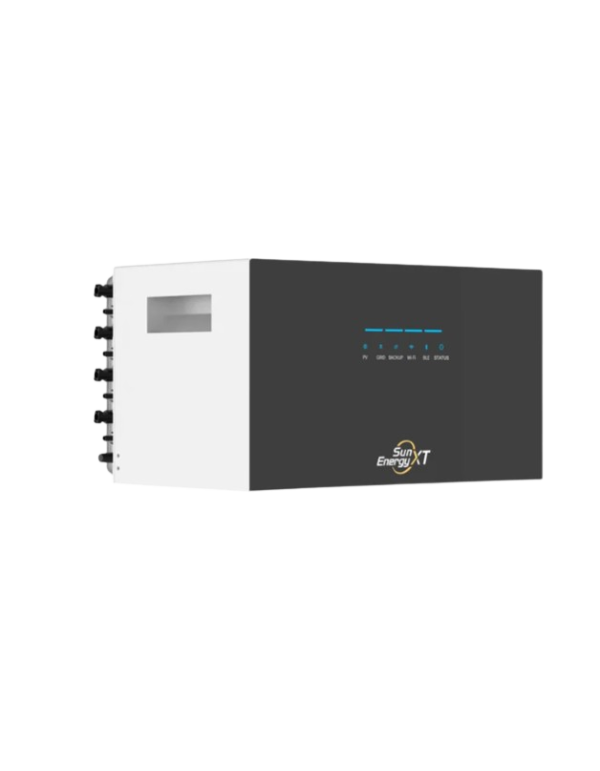

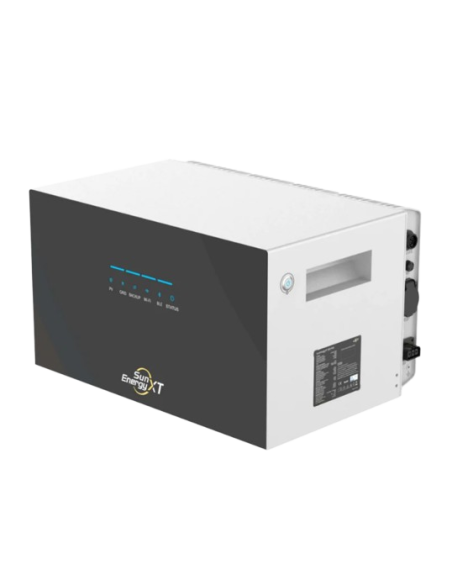

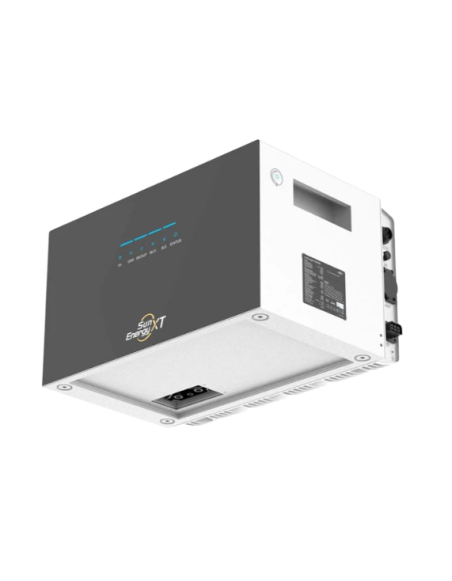

Battery with Inverter Integrated SunenergyXT 500 5KWh 800W Plug & Play

Benefits of the SunenergyXT 500

The great advantage of the Sunenergyxt 500 Faced with a conventional self-consumption system is your installation Without Electrician and No Additional Authorization Proceedings: By limiting the injection power to Network A 800w, this battery with inverter Integrated Allows you to connect and start producing energy immediately, being especially suitable for balconies, terraces, garages or carports where a high power installation is not sought, but simplicity and rapid start-up.

Despite its network injection limit, this Battery all in one Do not waive the power available for your own home: your departure OFF-GRID of 2,400W It allows directly supplying high-consumption appliances such as a coffee machine, an electric grill or tools, without that energy pass by the limitation of the 800W injection. That is, the user has much more power than it is finally poured into the public network.

As in the rest of the SunenergyXT range, this lithium battery with hybrid Inverter Use Premium Cells EVE LIFEPO4 with more than 10,000 load cycles, which translates into an estimated service life close to the 30 years. Your metallic housing with certification Ip65 allows you to install it both indoors and abroad without the need for additional protection, and your system of Extinction of fire fires Integrated in each module provides an extra layer of safety against other market storage solutions.

Like his older sister, the SunenergyXT 500 Pro, this system is totally scalable: starting from a single 5kwh module it is possible to add up 5 B500 expansion batteries, reaching the 30kWh of total capacity, without the need to replace the main equipment or modify the electrical installation already performed. This makes this lithium battery In a solution that grows with the needs of the home, from a simple balcony kit to a complete domestic backup system.

For whom is this battery ideal with Inverter Integrated 800W?

The SunenergyXT 500 is especially indicated for users who want to start generating their own energy without complications: tenants, floor owners with balcony or terrace, or who have a garage or carport and prefer to avoid the associated paperwork to facilities of greater power. When connecting directly up to 4 solar panels Through its integrated MPPT regulators, the user can have his operating system in a matter of hours, without works or intervention of a certified installer.

It is also an interesting option as a first step within a progressive self-consumption strategy: you can start with this equipment 800W injection and, later, if the greater roof surface is available or to maximize savings, complement it with a higher power system or expand its storage capacity with additional B500 batteries.

If you are not clear if this variant of 800w or the version 2.400W best fits your home and your electricity consumption, in Tienda Solar Our team can help you choose the appropriate configuration. Also, in the Blog Tienda Solar You will find detailed comparatives between both models, purchase guides for solar balcony kits and technical items on self-consumption regulations that will help you solve all your doubts before buying.

Detailed technical characteristics

General Specifications

• Dimensions: 536 x 314,7 x 307mm
• Weight: 45 kg
• Protection class: Ip65 (suitable for exterior use)
• Operating temperature: -20 ° C A + 55 ° C (with automatic battery heating below 0 ° C)
• Refrigeration: Passive, without fan, silent

Hybrid Inverter Integrated (output CA)

• ON-GRID power: 800W (230V)
• Off-Grid power / Emergency energy: 2.400VA (230V)
• Switching time SAI: ≤ 10 ms

Details of the battery lifePO4

• Chemistry of Cells: Lifepo4 (Premium Eve cells)
• Nominal capacity: 5.024Wh (4.8kWh useful)
• Lifetime: > 10,000 cycles
• Active security: Integrated aerosol extinction system

Photovoltaic / MPPT Entrance

• Channels: 4 independent MPPT followers
• Maximum entry power: 4 x 625W (or 2 x 800w)
• MPPT voltage range: 20V - 60V

Smart features

• Zero injection: Compatible with Smart Meters (eg. Shelly Pro 3em), power adjustment in 1 second
• Integration Home Assistant: Local API available, without cloud dependence
• Control by app: Monitoring and configuration in real time via Sunenengyxt App

Scalability of this battery all in one

• Base capacity: 5.024wh (1 main module)
• Large maximum capacity: 30.144wh (with 5 B500 expansion batteries)
• ON-GRID power: it is maintained in 800w Regardless of the number of batteries added

Delivery content

• 1 x Main Module SunenergyXT 500
• 1 x 3M Network Connection Cable
• 1 x Unlock tool set
• 1 x User's Manual

Warranty

• 5 years manufacturer's warranty, expandable to 10 years by registration in the manufacturer's bulletin

Frequently Asked Questions (FAQ)

1. What is the difference between the SunenergyXT 500 and the SunenergyXT 500 Pro? The main difference is in the On-Grid injection power: The SunenergyXT 500 limits the injection to Network A 800w, while the PRO version allows 2.400w. The rest of components (4,8kwh battery useful, MPPT regulators and expansion capacity) are equivalent in both models.

2. If the injection to network is limited to 800W, can I use higher consumption devices at home? Yes, thanks to your departure OFF-GRID of 2,400W, You can directly connect higher consumption appliances such as a coffee machine or an electrical tool, without that energy go through the 800W limit of injection to the public network.

3. Do I need to hire an electrician to install this battery with inverter integrated? The SunenergyXT 500 is designed as a system Plug & Play: By limiting the injection to 800W, its installation is simple and does not require an intervention of an electrician in most cases, although it is always advisable to consult the applicable local regulations before start-up.

4. Can I expand later the storage capacity of this all-in-one battery? Yes, like the rest of the SunenergyXT range, this system allows you to add up 5 B500 expansion batteries, reaching a total capacity of 30kwh, without modifying the injection power of 800W or replacing the main module.

5. What happens in case of power supply? The system automatically activates the mode SAI (UPS), commute to battery supply in less than 10 millisecond, so that essential devices such as the refrigerator, router or lighting continue to function without perceptible interruptions.
