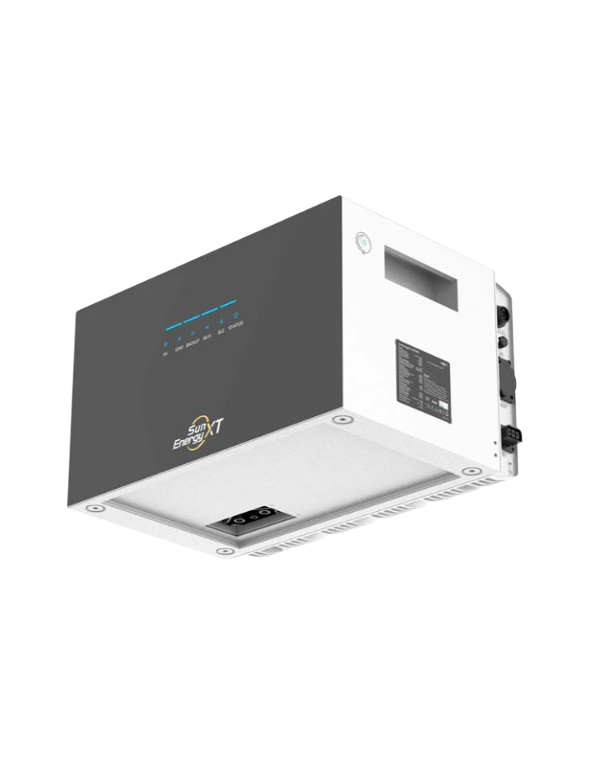

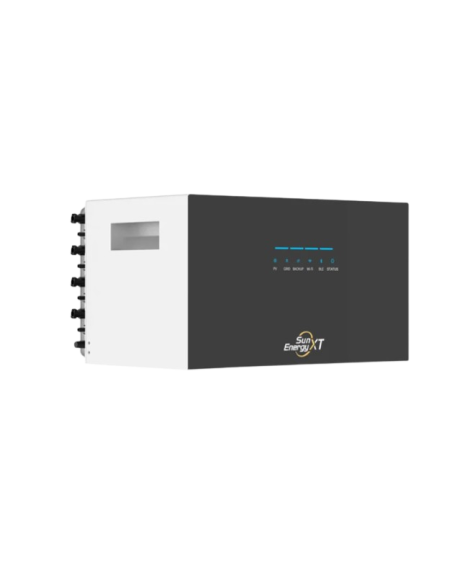

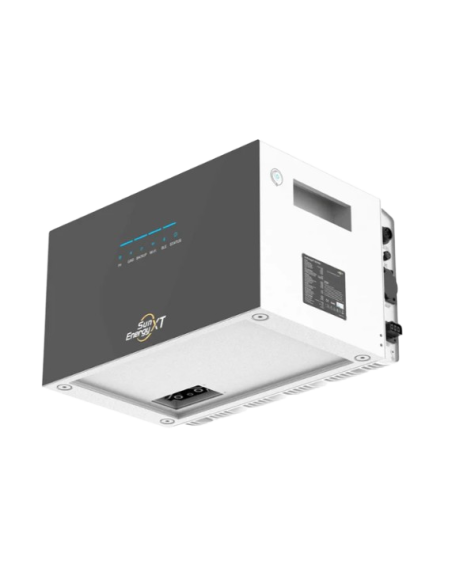

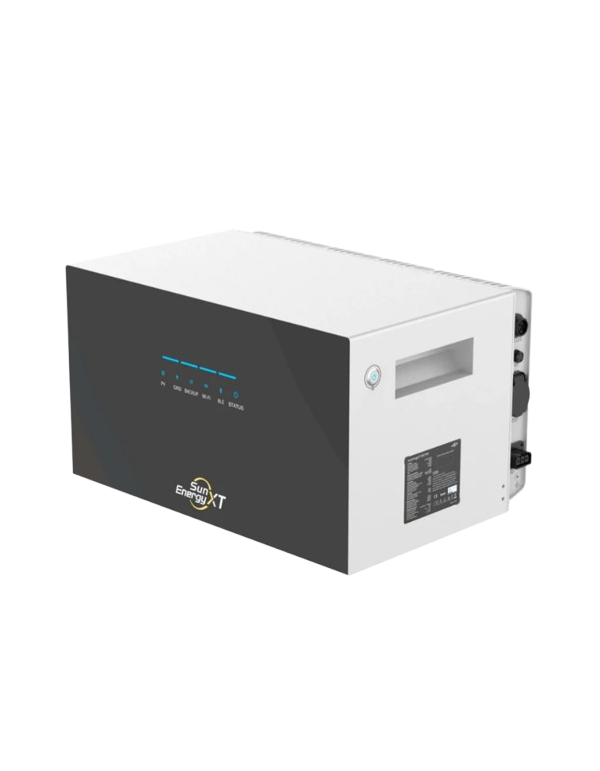

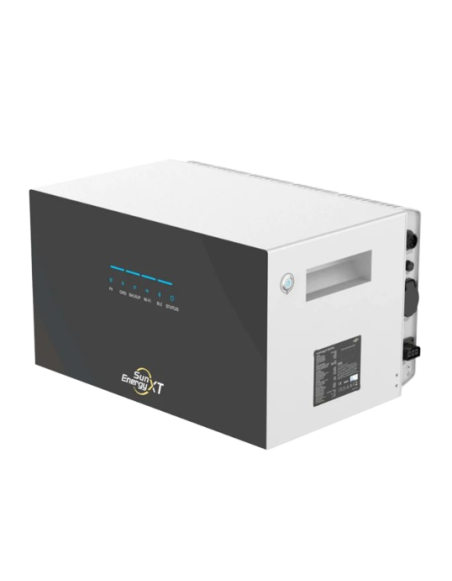

Battery with Inverter Integrated SunenergyXT 500 Pro 5kwh 2.400W

Benefits of the SunenergyXT 500 Pro

Choose a battery with inverter integrated Since the SunenergyXT 500 PRO represents a radical simplification against traditional self-consumption systems, which require installing a loading regulator separately, a inverter and a battery, with the wiring, the flaw points and the labor costs that leads it. Is Battery all in one condenses 3 devices in 1 single unit, integrating in a compact casing 536 x 314,7 x 307mm Everything you need to start generating and storing solar energy immediately.

Unlike configuring your own lithium battery with hybrid Inverter Combining components of different manufacturers, this system already incorporates a battery 4,8kwh service useful with premium cells Eve, known for your thermal stability and your life cycle superior to 10,000 loads, which translates into a real life near the 30 years With minimal maintenance.

One of the highlights of this battery with inverter incorporated is your climbing capacity: Starting from a single 5KWH module, the user can add up 5 B500 expansion batteries, reaching the 30kWh of total capacity, without the need to replace the main equipment or make a new installation from scratch. This makes it a modular alternative to the lithium batteries traditional, with the added advantage of bringing the hybrid Inverter already integrated at the factory.

In terms of security, each battery unit includes a Extinction system by aerosol own, and the set has IP65 certification, which allows its installation on both balcony, garage or carport and outside, without the need for additional protection against dust or humidity. In addition, the function of mode SAI (UPS) commute to battery supply in less than 10 millisecond Given a network cut, maintaining the essential equipment of the home as a refrigerator, router or lighting.

Cases of use and where to install your battery with Inverter Integrated

For its compact, silent and certified design Ip65, the SunenergyXT 500 PRO adapts to multiple scenarios of residential self-consumption. On Balconies and terraces, allows you to install a basic generation and storage system without works, directly connecting up to 4 Solar thanks to its integrated MPPT regulators. On Garages and storage rooms, its passive and silent cooling avoid annoying noises while in Solar Carports Your weather resistance allows you to dispense with additional technical cabinets.

It is also an interesting solution for Second residences or cabins That look for partial energy independence, thanks to its off-grid mode and the possibility of expanding the ability progressively as the needs of the household grow, without having to plan a large installation from the first day.

If you have doubts about what configuration of o What battery capacity best suits your electricity consumption, in Tienda Solar You will find specialized advice and all components compatible with this system. Also, in our Blog Tienda Solar You can check comparatives between different battery models with inverter Integrated, purchase guides for self-consumption systems and detailed technical items that will help you make the best decision before investing in your installation.

Detailed technical characteristics

General Specifications

• Dimensions: 536 x 314,7 x 307mm
• Weight: 45 kg
• Protection class: Ip65 (suitable for exterior use)
• Operating temperature: -20 ° C A + 55 ° C (with automatic battery heating below 0 ° C)
• Refrigeration: Passive, without fan, silent

Hybrid Inverter Integrated (output CA)

• ON-GRID power: 2.400W (230V)
• Off-Grid power / Emergency energy: 2.400VA (230V)
• Switching time SAI: ≤ 10 ms

Details of the battery lifePO4

• Chemistry of Cells: Lifepo4 (Premium Eve cells)
• Nominal capacity: 5.024Wh (4.8kWh useful)
• Lifetime: > 10,000 cycles
• Active security: Integrated aerosol extinction system

Photovoltaic / MPPT Entrance

• Channels: 4 independent MPPT followers
• Maximum entry power: 4 x 625W (or 2 x 800w)
• MPPT voltage range: 22V - 60V

Smart features

• Zero injection: Compatible with Smart Meters (eg. Shelly Pro 3em), power adjustment in 1 second
• Integration Home Assistant: Local API available, without cloud dependence
• Control by app: Monitoring and configuration in real time via Sunenengyxt App

Scalability of this battery all in one

• Base capacity: 5.024wh (1 main module)
• Large maximum capacity: 30.144wh (with 5 B500 expansion batteries)
• Charging / unloading power: it is maintained in 2.400w / 2.400va Regardless of the number of batteries added

Delivery content

• 1 x Sunenergyxt 500 Pro Main Module
• 1 x 3M Network Connection Cable
• 1 x Unlock tool set
• 1 x User's Manual

Warranty

• 5 years manufacturer's warranty, expandable to 10 years by registration in the manufacturer's bulletin

Frequently Asked Questions (FAQ)

1. What is a difference to a battery with inverter Integrated a conventional lithium battery? A battery with inverter integrated as the sunenergyxt 500 pro already includes the hybrid Inverter Bidirectional 2,400W in the same unit, while a conventional lithium battery requires acquiring and installing a inverter separately and connect it by additional wiring.

2. How many Can I connect directly to this battery all in one? Thanks to his 4 independent MPPT regulators of 625W each, you can directly connect up to 4 strings from solar panels, taking advantage of the maximum available energy even with partial shadows in one of the entries.

3. What happens if a power supply cut occurs? The system has mode SAI (UPS) that automatically switches to battery supply in less than 10 millisecond, As far as devices such as the refrigerator, router or lighting continue to function without perceptible interruption.

4. Can I expand the capacity of this lithium battery with hybrid Inverter later? Yes, the system is modular and allows you to add up 5 B500 expansion batteries, reaching a total capacity of 30kwh, Ideal if in the future you incorporate an electric vehicle or move to a housing with greater consumption.

5. Is it necessary to install this battery with inverter Built-in indoor or can be placed outside? Thanks to its certification Ip65 and its passive refrigeration system without a fan, the Sunenergyxt 500 Pro can be installed both indoors and outdoors (balcony, garage, carport), without the need for additional protective cabinet against rain or dust.
