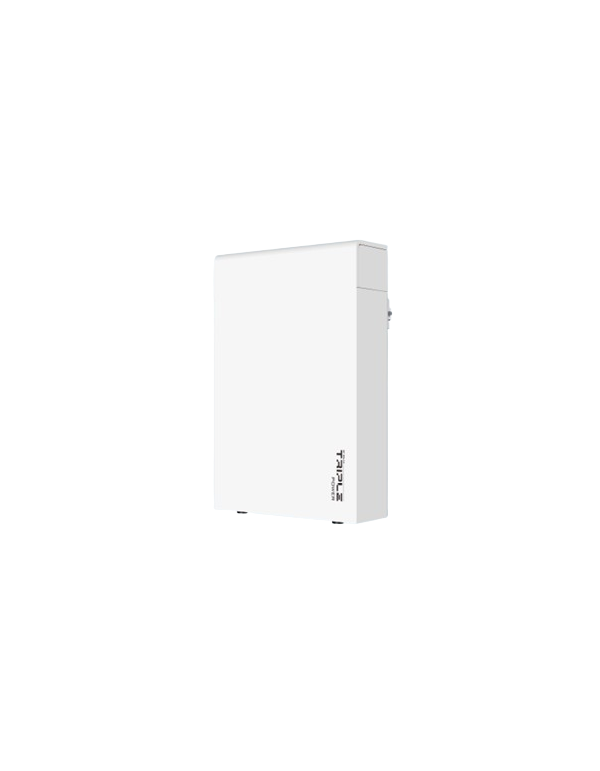

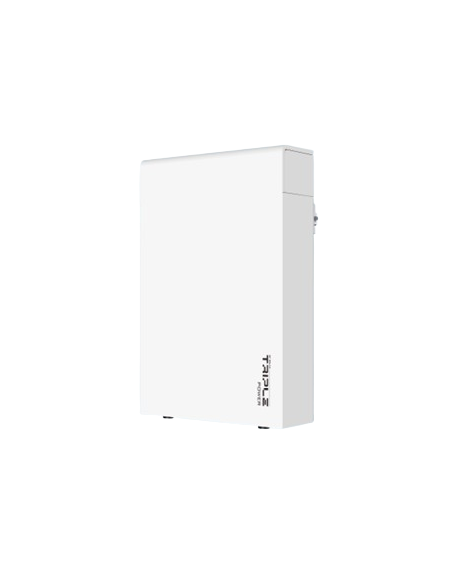

Lithium battery Solax Triple Power T58 Slave V3 | Expansion Module HV11550 (H) 5.8KWh

Solax Triple Power T58 Slave V3: Intelligent High Voltage Expansion and Advanced Climate Resistance

The intelligent accumulation of surplus is the fundamental pillar to achieve an energy-protected and protected housing against the court cuts. The accumulation module Solax Triple Power T58 Slave V3 (HV11550 H V3) it has been specifically conceived to integrate natively into scalable storage systems. By acting as a slave unit, this pack multiplies the useful home useful kilowatts directly, offering a safe, stable and high efficiency storage that is coupled in series under the supervision of the master module master.

Premium LFP cells of great durability and thermal flexibility

The internal architecture of this device uses cells with technology LFP (Lithium Ferrophosphate), free of toxic heavy metals and internationally recognized by its high thermal stability and intrinsic resistance against principles of ignition. Thanks to this composition, the module offers more than 6000 life cycles keeping a minimum gradient, guaranteeing decades of constant electricity supply. One of its biggest innovations is the system of integrated two-level flexible heating, which heats the cells internally automatically when the thermometer lowers zero, allowing the loading process to continue without penalties. To effectively coordinate the diurnal energy storage with the photovoltaic generation of the house, it is ideal to link these accumulation groups with our range of inverters hybrid latest generation, ensuring an instantaneous network transition.

The versatility of the T58 V3 series lies in its wide capacity for modular scalability. A single inverter with double battery port allows you to connect up to 12 units in total (distributed in clusters), which raises the maximum capacity of the system to some impressive 69.7 KWh, covering from demanding domestic consumption to small commercial demands. If you want to plan the full enlargement of your photovoltaic system or add new accumulation modules to your home, you can explore all capacity options available within our specialized catalog of batteries high voltage lithium for self-consumption.

IP66 hermetic protection and structural modularity

The exterior chassis of the HV11550 (H) V3 has a robust shield with degree of protection Ip66, which certifies a total isolation against the entry of fine powder and powerful water jets at high pressure, allowing its placement on terraces, garages or outdoor facades with total tranquility. With a weight of 59.5 kg and a compact stylized profile design, the module supports both the supported assembly as well as the direct clamping. If you are parallel, you are going to install the solar uptake field on your roof to feed this lithium block, we advise you to ensure the anchor of your plates using our structures for reinforced aluminum, designed to support severe climatic loads.

Technical specifications (Model T58 Slave V3 - HV11550 H V3):

Parameters of performance and capacity:

• Nominal capacity of the module: 5.8 kwh

• Real usable energy: 5.5 kwh

• Depth of admitted download (DOD): 95%

• Nominal operating voltage: 115.2 V

• Work voltage range: 100 - 131 V

• Standard loading / unloading current: 35 a

• Load current / maximum discharge: At

• Charging Efficiency / Farradic Download: 99%

Mechanical and environmental characteristics:

• Type of Chemistry / Cell: LFP (Lithium Ferrophosphate / Lifepo4)

• Physical dimensions: 474 x 715 x 150 mm

• Structural net weight: 59.5 kg (± 1 kg)

• Degree of external protection: IP66 (suitable for interior and interiors)

• Communication interfaces: CAN 2.0 / RS485

• Operating temperature range: -30 ° C A + 50 ° C (with active heating function)

• Maximum work altitude: 2000 meters

• Guaranteed life cycles: > 6000 loading and unloading cycles

• System certifications: IEC62619, IEC63056, CE, UN38.3

Frequently Asked Questions (FAQ)

1. Can I install the T58 Slave V3 module independently in my inverter? No, the slave units (HV11550 H V3) Do not incorporate the BMS upper module (Battery Management System), which acts as the communications brain. Therefore, a Slave unit requires a Master module T-BAT H 5.8 V3, which is in charge of managing internal electronics and communicating directly with the inverter of the installation.
2. How many SLAVE modules can I add to expand the capacity of my system? Each String or Basic Storage Cluster allows you to connect in series a Master module next to a range of 1 to 5 additional Slave units, which allows to reach an accumulated capacity of 34.6 kWh by cluster. If you inverter it has two specific battery ports, the system is able to duplicate by connecting up to 12 units in total to offer a massive storage of 69.7 KWh.
3. How does it benefit heating technology integrated in cold climates? Traditional lithium batteries suffer severe performance drops and load restrictions when temperatures fall from 0 ° C. The Triple Power V3 series solves this problem by incorporating a two-level intelligent heating system. If the module detects environmental freezing, it uses a small fraction of energy to condition the cells internally, allowing the battery to load and unload safely.
4. What does it mean that this module allows 95% depth of discharge (DOD)? The depth of discharge of the 95% indicates that the module is designed to take real advantage of almost all of its stored energy without compromising chemical health of cells. While other technologies force them to reserve 20% or 30% security so as not to be damaged, the Solax Triple Power Squeeze 5.5 kWh useful of its 5.8 kWh nominal, Maximizing the return on your investment in each night cycle.
