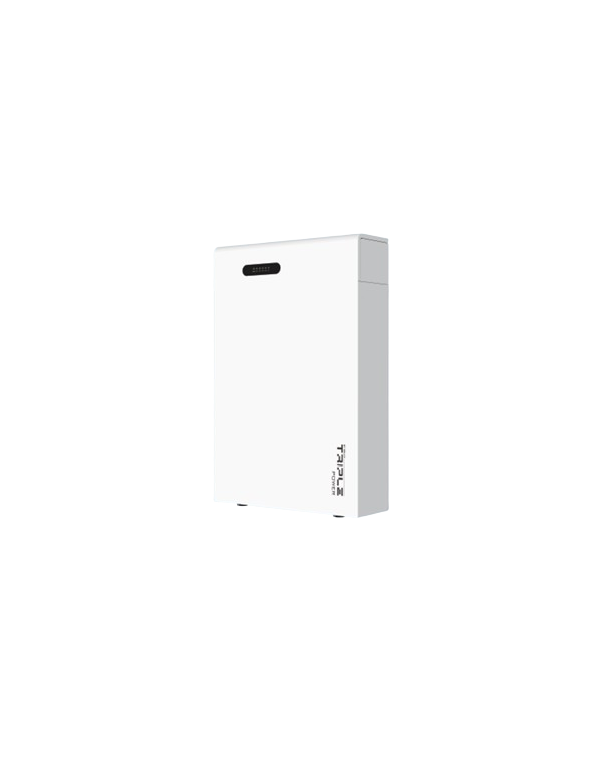

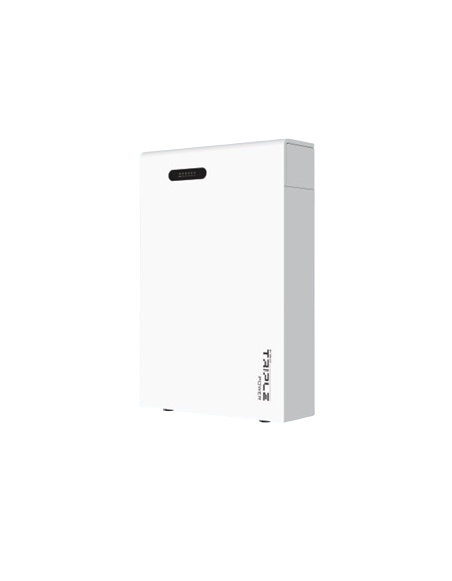

Lithium battery Solax Triple Power T58 Master V3 | Main accumulation module T-BAT H 5.8 (H) 5.8KWh

Solax Triple Power T58 Master V3: Centralized BMS Management, High Voltage LFP Chemistry and Flexible Heating

Achieving a 100% self-consumption rate requires storage systems capable of processing energy quickly, safety and impeccable electronic management. The monocanal battery Solax Triple Power T58 Master V3 (T-Bat H 5.8 V3) It fulfills this function by acting as the nodrizes and indispensable unit of the entire photovoltaic set. Unlike the simple enlargement modules, the master incorporates in its upper section the BMS High Performance Battery Management System, which monitors the tensions of each cell, executes balanced in real time and centralizes the data readings to the system brain.

Brain BMS integrated, remote diagnosis and spray security

The internal engineering of this main module stands out for using premium chemistry LIFEPO4 (Lithium Ferrophosphate), free of cobalt and heavy degrading materials, guaranteeing a Lifespan superior to the 6000 working cycles. In addition to his intrinsic safety against overheating, Solax has endowed the V3 series of a system of Precise protection by fire suppression, shielding the house before any electrical anomaly. The integrated BMS allows you to make firmware updates, Preventive maintenance and diagnosis of failures of 100% remote way, speeding up after-sales service. To orchestrate with total fluidity the derivation of solar energy and startups in isolated mode (back-up), this master block communicates natively with our specialized selection of inverters hybrid Of last generation.

The fundamental characteristic of the Master model is its ability to govern the scalability of the system. Acts as the mandatory base to which the rest of the expansion modules are coupled in series, allowing a cluster of up to 6 units by inverter To total 34.6 kWh. If your goal is to dimension a storage adapted to your daytime and night consumption guidelines, we invite you to explore the different modular combinations and lithium capabilities by reviewing our complete catalog of batteries High voltage

Intelligent defrosting function and flexible installation

The Battery T58 Master breaks the geographical limitations of conventional lithium thanks to its Two-level flexible heating function. When detecting environments with low zero temperatures, activate an internal thermal circuit that conditions the cells optimally, allowing stable load cycles even to -30 ° C.. With a sealing Ip66, It is fully protected from bursts of fine dust and torrential rains, facilitating its outdoor assembly by means of support on floor or wall anchor. If you are going to take advantage of your roof space to feed this intelligent accumulation system, we suggest you guarantee the maximum clamping of your plates using our Aluminum reinforced with high strength screws.

Technical specifications (Model T58 Master V3 - T-BAT H 5.8 V3):

Electrical and control parameters:

• Nominal block capacity: 5.8 kwh

• Real useful storage energy: 5.5 kwh

• Real discharge depth (DOD): 95%

• Built-in management module: Intelligent High Voltage BMS Integrated in Header

• Nominal operating voltage: 115.2 V

• System voltage range: 100 - 131 V

• Load current / nominal unloading: 35 a

• Load current / maximum discharge: At

Mechanical, Physical and Security Characteristics:

• Chemical cell technology: LFP (Lithium Ferrophosphate / Lifepo4)

• Dimensions of the Master module: 474 x 715 x 150 mm

• Structural net weight: 61.5 kg (± 1 kg) (Includes the weight of the BMS hardware)

• Degree of external isolation: IP66 (suitable in weathering)

• Integrated active security: Extinguish Anti-Fire Fire Spray

• External communication ports: CAN 2.0 / RS485

• Thermal range of operation: -30 ° C A + 50 ° C (Active preheating systems)

• Guaranteed useful life cycles: > 6000 full cycles

• Conformity / Certifications: IEC62619, IEC63056, CE, UN38.3

Frequently Asked Questions (FAQ)

1. Why is it mandatory to acquire the Master V3 model when starting my installation? The Master model (T-BAT H 5.8 V3) Includes in its structure the hardware of the BMS Central Control. Without this component, batteries can not communicate with the hybrid Inverter of the installation, or regulate the load voltages. All installation with technology Solax Triple power Strictly requires starting with a master unit, which will act as the brain of storage.

2. What is the real difference in dimensions and weight between the Master and Slave module? Both devices exactly share the same external dimensions of 474 x 715 x 150 mm, which facilitates a symmetrical and aesthetic stack in column or wall. The only physical difference is the weight: the Master module weighs 61.5 kg Due to the additional electronics of the BMS at its header, while the Slave module weighs 59.5 kg By hosting only the chemical energy storage cells.

3. How do you manage the Master's module the general safety of the battery bank? The Master unit exerts an active surveillance 24 hours a day. If it detects any internal anomaly such as overvoltage peaks, thermal variations or external short circuits, the BMS immediately isolates the system to protect the inverter And the house. Also, it has a FIRE INTEGRATORY AEROSOL FIRE DISPRESSION SYSTEM, providing a level of mechanical and electronic protection without rival.

4. How much real energy can I take advantage of this main lithium module? Thanks to the excellent chemical development of your LFP cells, this storage panel supports a depth of download of the 95% (DOD). This means that, from its 5.8 kWh of total nominal capacity, the system allows you to extract really 5.5 kWh useful power of clean energy in each night discharge cycle, avoiding having to oversize the battery bank to protect the cells from critical voltage drops.
