- On sale!

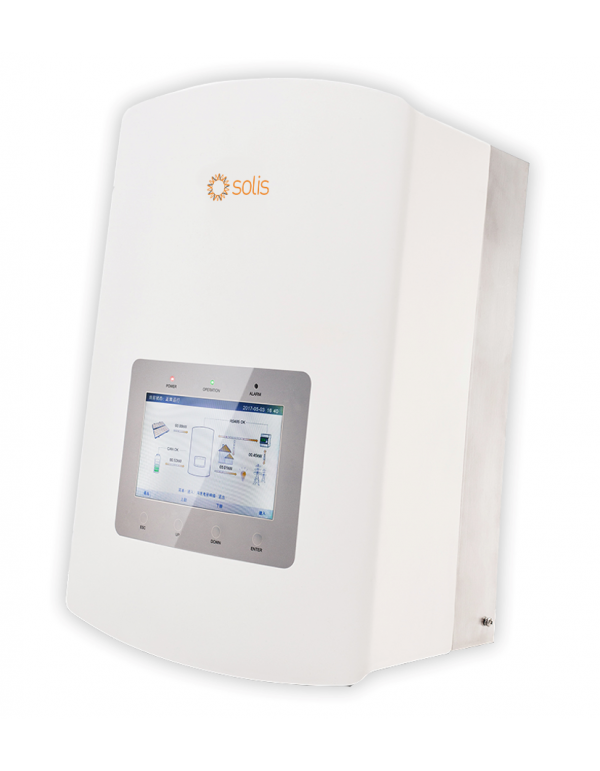

Inverter solar hybrid Solis EH1P3K-L of 3KW-48V
EH1P3K-L
€774.40
Tax included
Consult availability
Inverter Solar Hybrid Single-phase Solis 3KW and 48V of the EH-L series. Included Back Up + Energy Meter
Inverter Solar hybrid single-phase network connection Solis From 3000W allows you to connect 48V acid or lithium lead batteries. With an efficiency greater than 98.8% and 2 MPPT's, it allows to connect up to 7000W of solar power with a maximum input voltage of 600V.
The series of inverters Single-phase hybrids Solis They are a highly recommended option for storage solutions both inside and outside the network, having an integrated BMS system to increase the reliability of the batteries. It has protection against short circuits, overloads and high temperatures.
Its guarantee is 5 years and are certified within the international framework.
The inverters hybrid Solar Rhi-48h of different powers of Solis they offer many advantages and have a very flexible technology for current residential facilities:
- Uninterrupted power supply.
- 5KW backup power to support more important loads.
- Change capabilities and safe power peaks for the network.
- Multiple modes of work to maximize self-consumption and
- increase the benefit.
- Greater load-unloading efficiency, improving economic benefits.
- Compatible with lithium and lead-acid batteries, greater variety in different markets.
- Design without a fan with long service life.
- Smart BMS function to improve the reliability of batteries.
- Fully intelligent energy management 24 hours, real-time understanding of the state of the photovoltaic plant.
- Remote control and update function, causing the digital maintenance of the installation at your fingertips.
Technical characteristics of the inverter:
|
Model |
Eh1p3k -l |
|
DC current input (photovoltaic side) |
|
|
Maximum input power (Wpage) |
7000 |
|
Maximum input voltage (V) |
600 |
|
Nominal voltage (V) |
330 |
|
Boot voltage (V) |
120 |
|
MPPT voltage range (V) |
90-520 |
|
Maximum input current (A) |
11 |
|
Maximum short circuit current |
17,2 |
|
Mppts |
2 |
|
Drums |
|
|
TYPE |
Lithium or lead-acid |
|
Voltage range (V) |
42-58 |
|
Capacity (ah) |
50-2000 |
|
Load-maximum load current (A) |
62.5 |
|
Maximum load power (W) |
3000 |
|
AC current output (storage) |
|
|
Nominal output power (VA) |
3000 |
|
POWER PICO DEAL (VA) |
4000 |
|
Nominal exit voltage (V) |
220/230 |
|
Nominal frequency (Hz) |
50/60 |
|
Nominal output current (A) |
13 |
|
AC current output (Electric network) |
|
|
Nominal output power (VA) |
3000 |
|
POWER PICO DEAL (VA) |
3300 |
|
Maximum output intensity (A) |
15,7 |
|
General characteristics |
|
|
Dimensions (mm) |
333 x 505 x 249 |
|
Weight (kg) |
17 |
|
Communication |
RS485, optional: WiFi, GPRS |
|
Refrigeration |
Natural convection |
- Power (kW)
- 3 - 5.9
- Phase Type
- Single phase
- Max Current Input (A)
- 15 - 15.99
- Compatibility list
- BYD LVL
Dyness BX51100
Dyness Power Box
LG RESU
Pylontech Force L2
Pylontech US2000C / US3000C / US5000
Pylontech US3000C
Pylontech US5000 / Force L2
