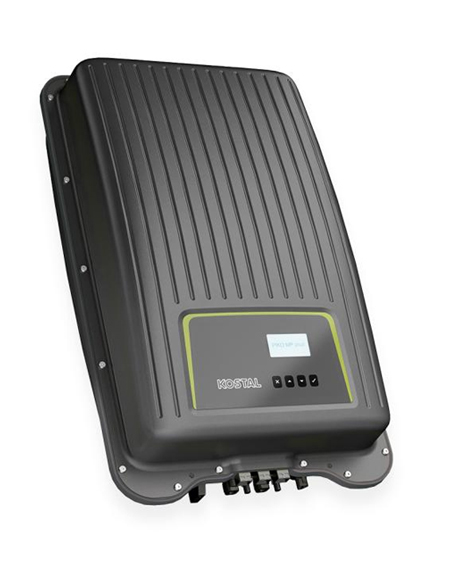

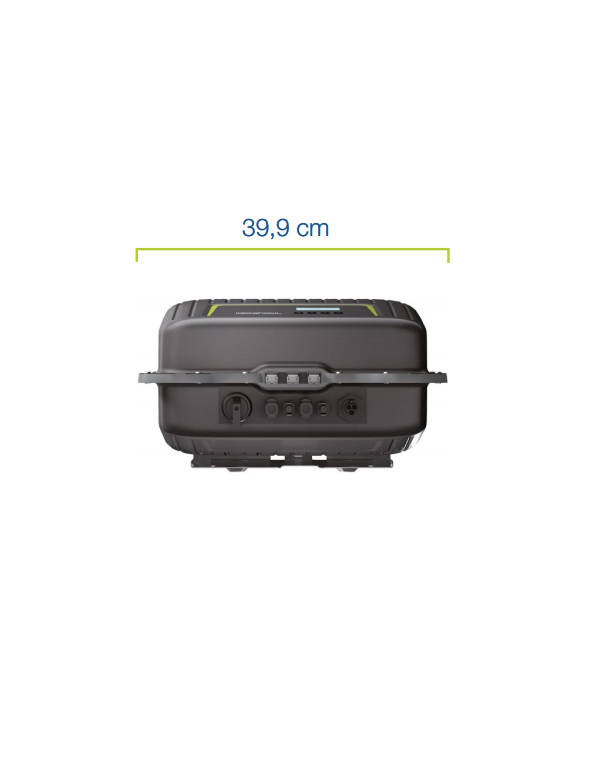

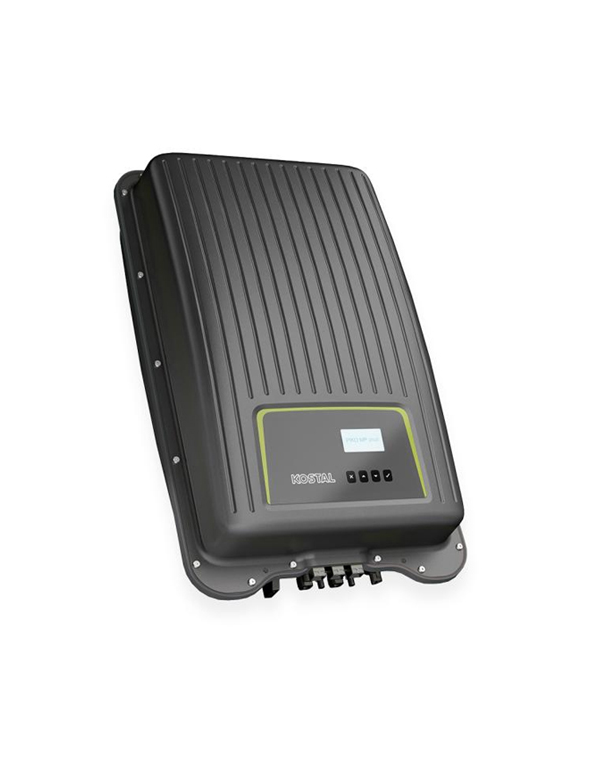

Inverter solar Kostal Piko MP Plus 4.6-2
Kostal PIKO MP plus 4.6-2
€1,186.41
Tax included

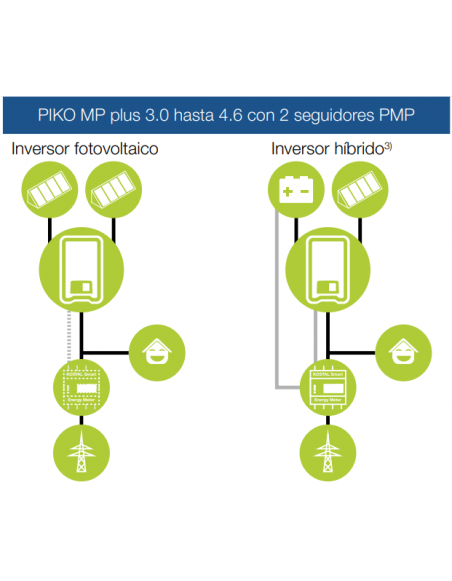

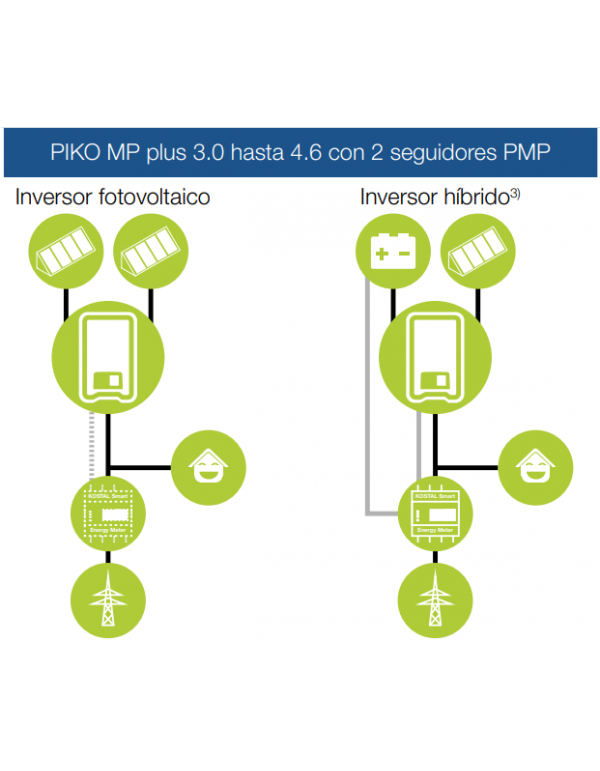

Inverter SOLOPASIC CONNECTION SOLAR OF 4.6 KW Network Kostal Pico MP-2 Plus. This inverter It has 2 MPPT's (Maximum Power Point Tracker) that allows you to use them to connect solar power or optionally for high voltage batteries. This option is available with the use of Kostal Smart Energy Meter.
This inverter Solar has a built-in solar power disconnector, IP65 protection which allows you to install abroad. Incorporates the monitoring system of Kostal Solar Portal, delivers 99.8% efficiency and Kostal It provides 5 years warranty. Its new technology allows the monitoring of the solar installation 24 hours a day.
The family of inverters Kostal Single-phase MP-2 peak are flexible, easy to communicate with its different accessories and dockable with lithium batteries. The main advantages of inverters solar Kostal from this series are:
- - They have 1 or 2 mppt's
- - Each MPpts can be used bidirectionally either to connect solar or high voltage batteries.
- - The use of an MPPT as a battery input is possible thanks to Kostal Smart Energy Meter
- - Wide range of higher power point tracking (MPPT) with 97% yield
- - Inverter high-performance 97%
- - Monitoring of the inverter solar 24h (also at night time)
- - Inverter solar with possibility of injection 0
- - Data Logger, screen, monitoring system inverter integrated in the inverter
- - Access to the solar system using the app Kostal Portal
- - Continuous switch integrated in the inverter solar
- - IP65 which allows installation on the outside of inverter
|
Model |
Piko MP Plus 4.6-2 |
|
INPUT (DC) |
|
|
Max. Power PV for Array (WP) |
6900w |
|
Max. DC voltage (V) |
750 |
|
Nominal DC Operation (V) |
360 |
|
Max. Current Input (A) per MPPT |
13 |
|
Max. Current per MPPT |
15 |
|
Range Voltage MPPT (V) |
180-600 |
|
START UP VOLTAGE (V) |
75 |
|
Number of MPP |
2 |
|
Strings per MPP |
1 |
|
OUTPUT (AC) |
|
|
Nominal POWER (You) |
4600 |
|
Max.POWER AC (VA) |
4600 |
|
Nominal AC (AC Range of Tension) (V) |
220/230/240 |
|
Nominal / Range (Hz) |
50/60 |
|
Range of Grid (V) |
185/276 |
|
Max. Current AC (A) |
22 |
|
Displacement of the power factor |
0.8 Leading - 0.8 Lagging |
|
THDI, RATIO OF POWER (%) |
|
|
EFFICIENCY |
|
|
Effiency Euro (%) |
98% |
|
Efficiency Max. (%) |
97,5 |
|
PROTECCIONS |
|
|
Grounding |
YES |
|
Reverse Polarity |
YES |
|
DC switch |
YES |
|
SPD Class |
I / III |
|
Safety |
IEC 62116, IEC 61727, IEC 61683, IEC 60068 (1,2,14,30), IEC 62109-1 / 2 |
|
EMC |
En61000-6-1; En61000-6-3; En61000-3-2; En61000-3-3; En61000-3-11; En61000-3-12 |
|
Grid Standards |
AS 4777, VDE V 124-1 0 V 0 0, VDE V 0126-1-1, VDE-AR-N 4105, G83 / 2, C10 / 11, RD 1699 |
|
OTHER |
|
|
Degree of Protection |
Ip65 |
|
Temperature Range (ºC) |
-25; +60 |
|
Max. Altitude (m) |
|
|
Humidity (%) |
0-100 (Non-Condensation) |
|
Storage Temp (ºC) |
-25; +60 |
|
Noise (db) |
|
|
Dimmensions |
|
|

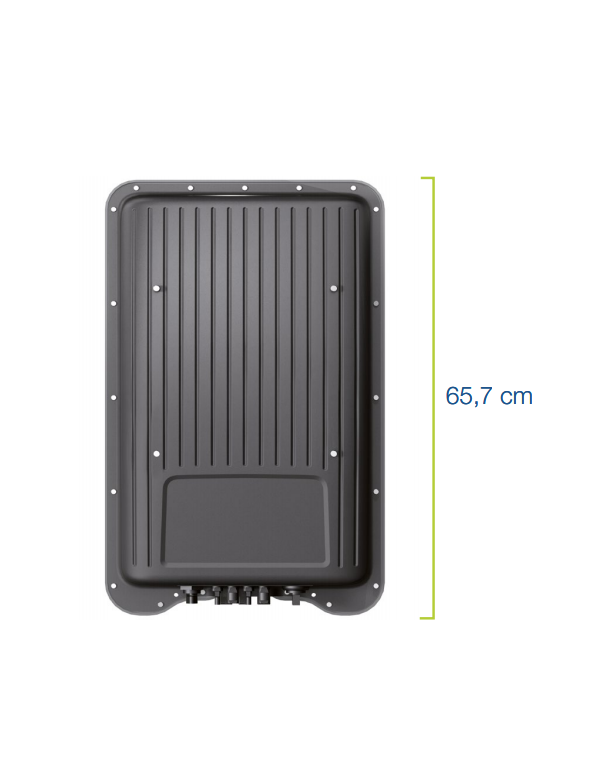

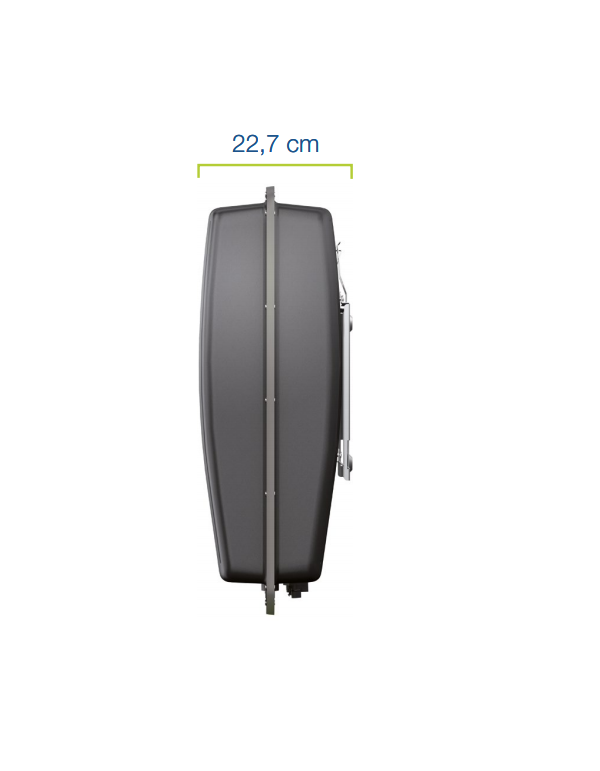

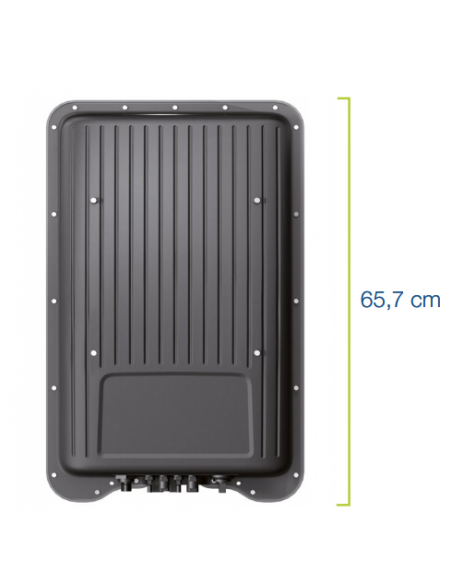

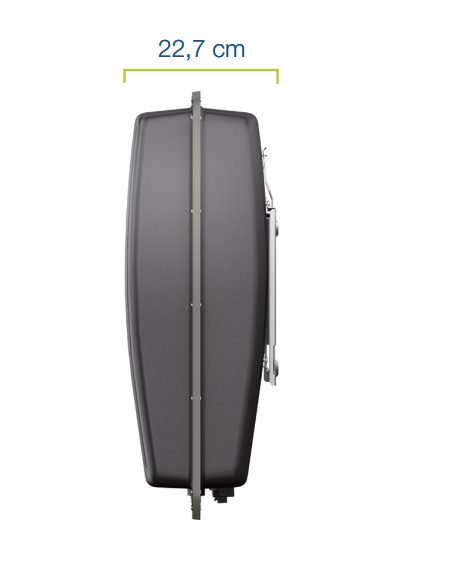

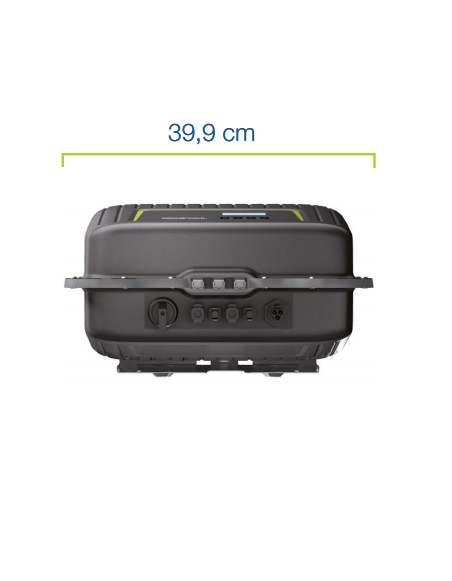

DIMENSIONS (WXHXD) (mm) |
657 x 222 x 399 mm |
|
Weight (kg) |
14 |
|
Ventilation |
Natural |
|
Tipology |
Non-isolated |
|
Comms Interface |
RS485, WiFi / Ethernet (RJ45) |
|
LCD DISPLAY |
Yes |
|
Warranty (Years) |
5-10 |
- Power (kW)
- 3 - 5.9
- Phase Type
- Single phase
- Max Current Input (A)
- 13 - 13.99
- Compatibility list
- BYD HVS / HVM
