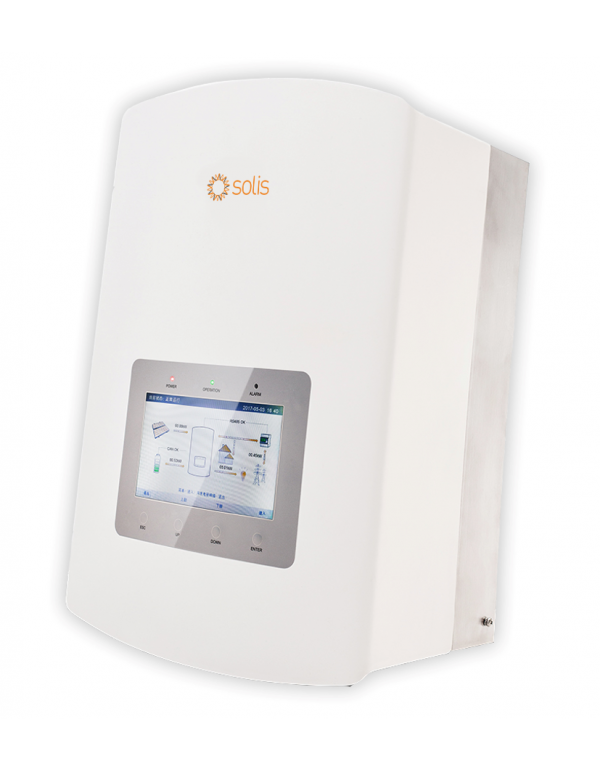

Inverter Solar Hybrid Single-phase Solis 3,6KW 48V EH1P3.6K-L | Back-up and Energy Function Putting included

Solis EH-L Series model EH1P3.6K-L: Efficient conversion of 98.8%, 48V multi-battery flexibility and intelligent energy management 24 hours

The modernization of residential self-consumption requires inverters able to make the use of photovoltaic surpluses without compromising home security. The serie Solis Eh -l it responds with solvency to this challenge by unifying the network electronics and a powerful smart battery charger in a compact chassis, ideal to optimize the electricity invoice through home energy retention strategies.

Large solar capacity, efficient loading and integrated emergency back

One of the greatest virtues of Solis Eh1p3.6k -l lATES IN ITS DC section, which tolerates a maximum power in solar plates up 7000 WP. This margin allows to duplicate the nominal injection capacity, ensuring that the system is able to feed the active household appliances and, simultaneously, derive energy towards the accumulators at a load rate of up to 3000 W with a maximum current of 62.5 A.

In front of unforeseen or conventional power supply, the team acts as an uninterrupted power supply thanks to its function of Back-up integrated. The system manages safe power peaks and offers a backup output capable of supporting essential critical charges of home without flashing or critical cuts. If you are designing a solar installation on tiles or residential metal covers to feed this inverter, we suggest you explore our catalog structures for aluminum of high mechanical strength.

To supplement photovoltaic infrastructure and ensure optimal storage with this low voltage equipment, you can check the available options in our section of batteries stationary lithium and lead-acid.

Smart BMS, Absolute Silence and Digital Connectivity in the Cloud

The care of the accumulators is entrusted to a integrated smart BMS system that monitors and equalizes the cells, mitigating the risks by short circuits, overloads and temperature elevations. The engineering design of Solis completely dispenses with external mechanical fans, adopting a system of natural convection for thermal dissipation. This eradicates the noise in the domestic environment and prolongs the hardware life by avoiding the input of fine powder or insects into the casing.

The management of the flows is carried out completely digitally 24 hours a day. The energy meter (Energy Meter) Included in the commercial package instantly reads the consumption of the housing, allowing the user to monitor and update the remote firmware through optional wireless communication modules. If in the future you need to transition to three-phase industrial or commercial scale projects, we invite you to inform you in our specialized menu inverters hybrid of great power.

Technical specifications (model EH1P3.6K-L):

CC current entrance (photovoltaic field):

• Maximum recommended power of the FV field: 7,000 WP (7 kWp).

• Maximum input voltage in CC: 600 V.

• Nominal operating voltage: 330 V.

• Starting voltage Inverter: 120 V.

• Work range of the MPPT follower: 90 V at 520 V.

• Maximum entry current by MPPT: 11 A.

• Maximum short circuit current by MPPT: 17.2 A.

• Number of independent MPPT followers: 2 MPPT.

Interfaces and parameters of the battery bank:

• Chemical compatibility: Lithium or low-voltage lead batteries.

• Dynamic range of battery voltage: 42 V at 58 V.

• Supported capacity range: 50 Ah to 2,000 ah.

• Maximum loading and unloading: 62.5.

• Maximum power in loading process: 3,000 W.

• Battery monitoring system: Intelligent integrated BMS.

AC current output (backup / storage mode):

• Nominal output power (Back-up): 3,000 VA.

• Power Emergency Exit Peak: 4,000 VA.

• Nominal exit tension supported: 220 V / 230 V.

• Nominal output current in emergency: 13 A.

• Nominal network frequency: 50 Hz / 60 Hz.

AC current output (connection to general electrical network):

• NOMINAL INJECTION POWER TO NETWORK: 3,600 W (3.6 kW).

• Maximum apparent output power: 4,000 VA.

• Maximum output current in CA: 17.3 A.

• Maximum conversion efficiency: 98.8%.

Physical data, included elements and connectivity:

• Accessories included as standard: Integrated Back-Up function + Energy Meter (Vatimeter).

• Thermal refrigeration method: Passive natural convection (design without fan).

• Communication interfaces: RS485 port series (optional modules for Wi-Fi or GPRS).

• Dimensions of the chassis (an x at x PR): 505 mm × 333 mm × 249 mm.

• Net weight of the device: 17 kg.

Frequently Asked Questions (FAQ)

1. What advantages does the inverter Solis EH1P3.6K-L Include the Energy Meter and the Back-up? The fact of including these serial components represents a crucial economic and logistic savings in the installation. The Energy Meter (or vatimeter) allows the inverter read in real time the exact consumption of the house to decide if it keeps the solar energy left over the batteries or if it consumes it instantly, avoiding pouring electricity to the network if it is not desired. For its part, the output of Back-up it guarantees that if there is a general blackout, the home appliances of the house (such as the refrigerator, the lighting or the router) continue to function uninterrupted using the stored energy.
2. What types of 48V batteries can I connect to this hybrid Inverter? This model has a very flexible load management technology. It is fully compatible with both traditional lead-acid batteries (such as stationary glasses OPZs or gel blocks) as with the modern 48V lithium modules of the main market manufacturers. Its internal software includes specific communication protocols to connect to the lithium BMS, optimizing cycles and protecting chemical health from the accumulator.
3. Why is the designless design of this model of this model beneficial Solis? Passive natural convection cooling systems dissipate heat through the aluminum chassis itself without the need to use mobile mechanical fans. This brings two great advantages: first, the functioning of the inverter it is completely silent, which allows you to install it near habitable areas without causing noise discomfort. Secondly, because there are no moving parts prone to wear or forced air flow, the accumulation of internal dust is minimized, drastically increasing the reliability and useful life of the equipment.
4. Can I put more power in solar than the inverter delivery in alternation? Yes, and it is highly recommended. The inverter admits up to 7000 WP in solar in continuous current, even though its nominal output power to the network is 3.6 kW. This allows you to "oversimensize" the photovoltaic installation so that the system gives up to the maximum at low radiation hours (such as cloudy days, dawn or sunset). In the central hours of the day, the solar surplus that is not injected to the house is intended simultaneously to load the battery to a power of up to 3000w.
