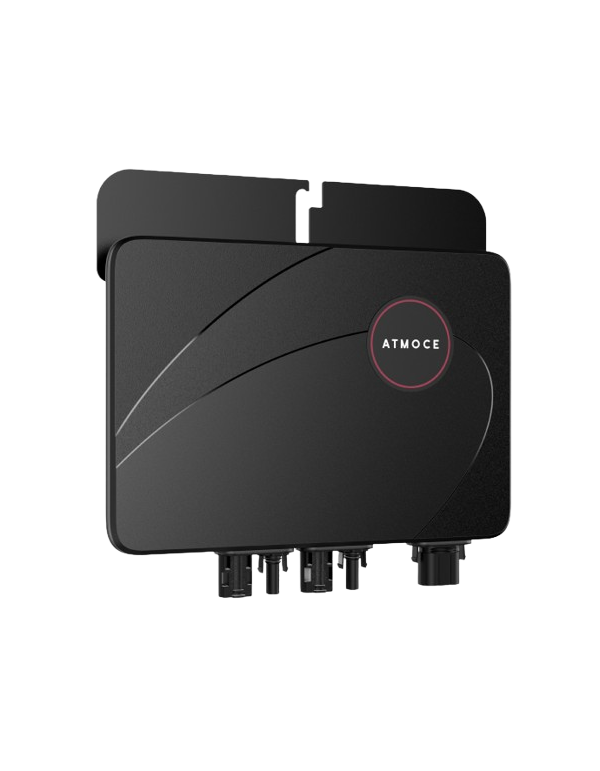

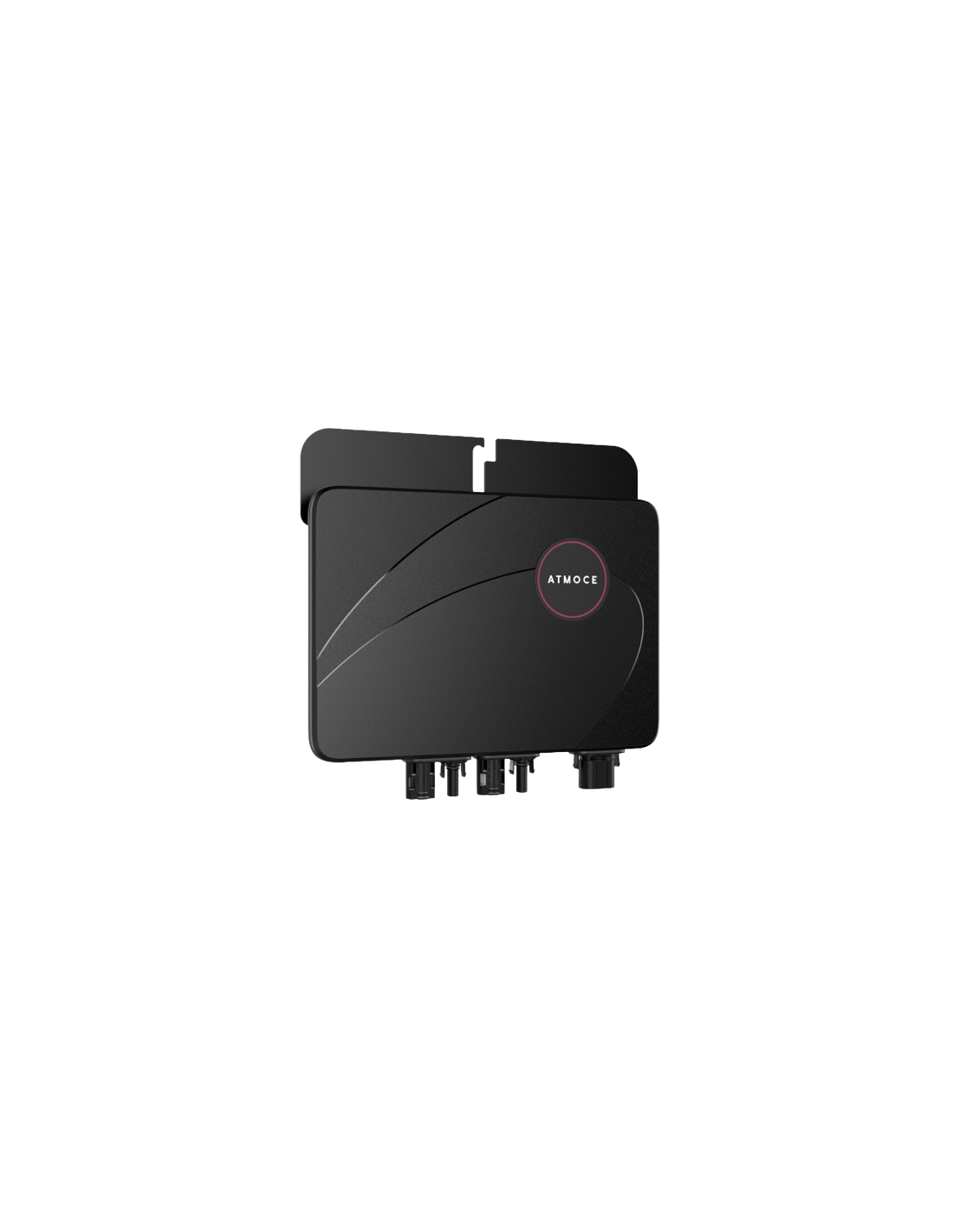

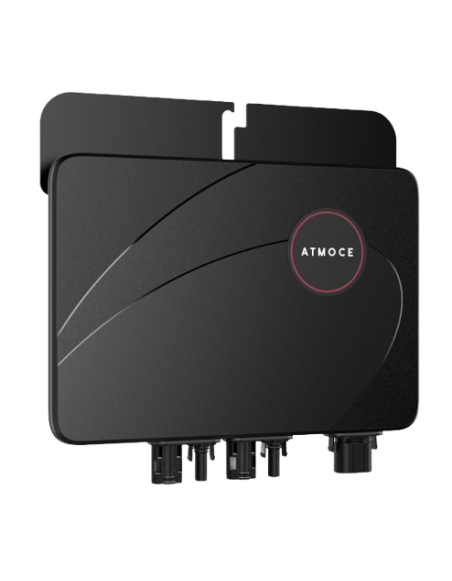

Microinverter Atmoce MI-500 500W 1 MPPT Entrance

Benefits Microinverter Atmoce MI-500

As a model of greater power of the Single Entry series, the MI-500 is designed to Solar of higher individual performance, managing 1 Only panel Completely independently. This architecture is especially advantageous in covers with different orientations, inclinations or shading levels, where a low-performance module does not drag the rest of the system, unlike what happens with inverters hybrid or inverters networking Traditional connected in series.

With a 97.4% peak efficiency and one MPPT efficiency of 99.9%, the MI-500 Take advantage of practically all available panel energy that manages, even working at the upper end of the power of the series. Your Safety voltage in DC and the Management at the levelvoltaic module level provide additional security guarantees, especially relevant in facilities with solar of greater power and surface.

The 25-year warranty, backed by 1.000.000 of Hours of Reliability Verification, convert to MI-500 In a solid and lasting investment for demanding residential facilities.

Light and simple installation

With a weight of just 1,3kg, the MI-500 It maintains the same ease of installation as the rest of the series despite being the most powerful model. Your Cable plug-and-play speed up assembly, while the Flexible configuration Module module It allows to expand the system progressively. The communication plc Integrated Removes additional communication wiring. It is compatible with the Meters-combiner of Atmoce, that integrates microinverters, Batteries and loads in the same energy management system with network connection.

Detailed technical characteristics

Input parameters:

• Compatibility of photovoltaic module: 54/108, 60/120, 66/132 and 72/144 cells (whole / stockings)
• Maximum power of compatible module: 700w
• Minimum voltage / maximum input: 16V ~ 60V
• Maximum power tracking voltage range: 33V ~ 55V
• Nominal input voltage: 36v
• Voltage range of MPPT: 16V ~ 60V
• Input voltage at startup: 22v
• Maximum continuous entry current: 16a
• Maximum current of input short circuit: 20a
• Survival class of Puerto CC: II
• Puerto CC feedback current: 0a
• Configuration of the photovoltaic set: 1x1 grounded matrix 1x1

Output parameters:

• Nominal voltage: 230v
• Voltage range: 184V ~ 276V
• Nominal output power: 500w
• Maximum apparent power: 500va
• Nominal output current: 2,17a
• Maximum output current: 2,28a
• Max. microinverters by circuit of 20a: 7
• Max. microinverters by circuit of 25a: 9
• Nominal frequency: 50 / 60Hz
• Extended frequency range: 45Hz ~ 65Hz
• Power consumption at night: 0mw
• Puerto Ca overvoltage class: III
• Total harmonic distortion (THDI):

Efficiency parameters:

• Peak efficiency: 97,4%
• EU efficiency: 97,0%
• MPPT efficiency: 99,9%

Mechanical parameters:

• Range of room temperature: -40 ° C ~ 65 ° C
• Storage temperature range: -40 ° C ~ 85 ° C
• Relative moisture range: 4% ~ 100%, condensing
• DC connector: MT-02502-D, 1 pair
• AC connector: MT-02502-A (requires MW cables), 1 pair
• Dimensions (without support): 247.2 x 168 x 38.5mm
• Weight (without support): 1,3kg
• Refrigeration: natural convection
• Degree of protection: Ip67
• Maximum altitude: 3000m
• Noise:
• Communication: PLC
• Indicator: 1 LED

Certifications: IEC 62109-1 / -2 (safety), IEC 61000-6-1 / -2 / 3 / -4, EN 62920 (EMC), VDE 0124, VDE 4105, UTE 0126, EN 50549, EN 50530 (Compliance with electrical network).

Frequently Asked Questions (FAQ)

1. How many Solares manages the MI-500?
This microinverter managed by 1 SOLON SOLAR By means of its only MPPT entry, being the model of the highest power of the MI single-input series.

2. What maximum panel power does it support?
It is compatible with photovoltaic modules of up to 700w, offering oversized margin with respect to its nominal output power (500W).

3. Is it suitable for outdoor installation?
Yes, it has protection Ip67 and is approved for wet places, with a range of operating temperature of -40 ° C to 65 ° C.

4. How do you communicate with the monitoring system?
By means of technology PLC (Power Line Communication), without the need for additional communication wiring, simplifying the installation.

5. What guarantee does this offer microinverter?
The manufacturer offers a 25-year warranty, backed by 1.000.000 of Hours of Reliability Verification. Consult more technical content in the Blog Tienda Solar.
