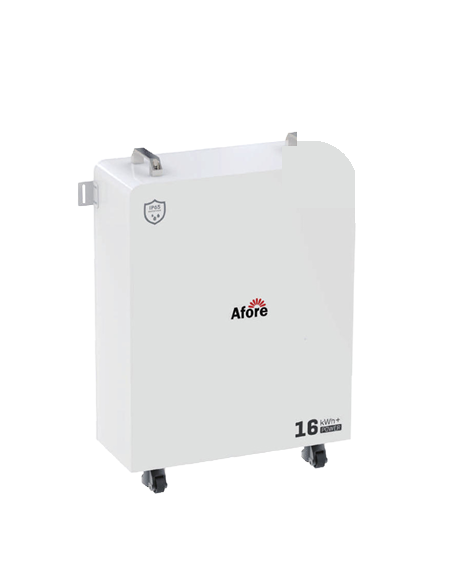

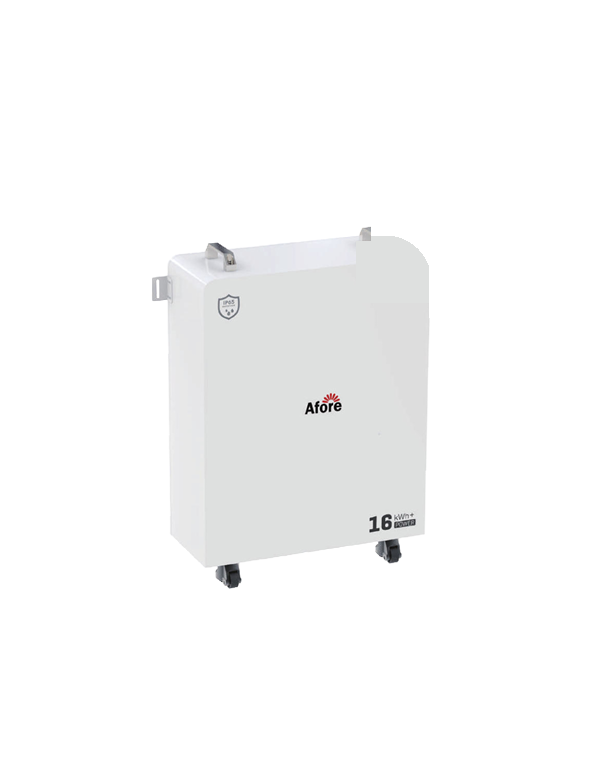

Lithium battery Afore 16.076kwh lv51314h

Benefits of lithium battery Afore Lv51314h

One of the most remarkable aspects of this lithium battery is that it offers a Useful capacity identical to its total capacity (16,076kWh), that is, practically all stored energy can be used without significant restrictions, an advantage over others lithium batteries of the market that limit its depth of real discharge. With a Nominal power of 7kw, also coinciding with its maximum load and unloading power, this system is capable of holding high loads stably, without performance peaks that degrade quickly.

The Life cycle greater than 6000 cycles, next to a SoH of 80% guaranteed at 10 years, converts the LV51314H into a solid long-term investment for residential self-consumption facilities. To this adds a Integrated Fire Protection System, an additional security function that not all AGM batteries or Gel batteries Conventional incorporate as standards, and that provides an extra level of tranquility in domestic facilities.

The heating function, oriented to improve performance at low temperatures, next to a loading temperature range of -10 ° C A + 55 ° C and download of -20 ° C A + 55 ° C, allows this battery to operate in demanding climates without penalizing its useful life, optimally complementing facilities with inverters hybrid Afore.

Intelligent monitoring and low noise emission

The LV51314H incorporates Intelligent monitoring with WiFi and Bluetooth connectivity, allowing the user to consult the load state (SOC) directly from the integrated LED indicator or remotely through the application. Its system natural cooling, without noisy mechanical components, maintains a Emission of noise lower than 29dB, a data especially relevant for installations in inhabited spaces such as garages or technical rooms attached to housing.

Detailed technical characteristics

Performance specifications:

• Battery capacity: 16.076kwh
• Useful battery capacity: 16.076kwh
• Nominal power: 7kw
• Power of maximum loading and unloading: 7kw
• Nominal voltage: 51.2v
• Operating voltage range: 44.8V ~ 57.6V
• Life cycle and SoH: > 6000 cycles, 80% SOH at 10 years

Communication:

• Display: Load status indicator (SOC) and LED indicator
• Communication: RS485 / Can

General Specifications:

• Dimension: 710 x 580 x 240mm
• Weight: 117kg
• Type of installation: standing
• Operating temperature: load -10 ° C to + 55 ° C, download -20 ° C to + 55 ° C
• Maximum performance altitude: 3000m
• Installation environment: indoor / outdoor
• Relative humidity: 5% ~ 95%RH
• Refrigeration: natural
• Degree of protection: Ip65
• Noise emission:
• Cell technology: Iron and lithium phosphate (LifePO4)
• Inverters compatible: Afore
• Certifications: EC, IEC62619, UN38.3, ROHS

Frequently Asked Questions (FAQ)

1. What real capacity can I take advantage of this lithium battery?
The Useful capacity of the LV51314h is 16,076kWh, Identify to your nominal capacity, so you can take advantage of practically all the energy stored in each cycle.

2. Can it be installed on the outside?
Yes, thanks to your Degree of protection IP65 and corrosion resistance C4, it admits installation both in indoors, although the manufacturer recommends prioritizing indoor installation and consulting the user manual for outdoor installations.

3. With what inverters Is this lithium battery compatible?
It is compatible with inverters Afore, communicating through protocol Rs485 / can. You can check the full range in Inverters solar.

4. What performance guarantee does it offer in the long term?
The manufacturer indicates a Life cycle greater than 6000 cycles, maintaining a SOH 80% at 10 years, that is, the battery will retain at least 80% of its original capacity after a decade of use.

5. Do you make a lot of noise during your operation?
No, your system natural cooling (without mechanical fans) maintains a Emission of noise lower than 29dB, similar to that of a conversation in a low voice. Find more Technical Guides in the Blog Tienda Solar, with tips prepared by experts.
