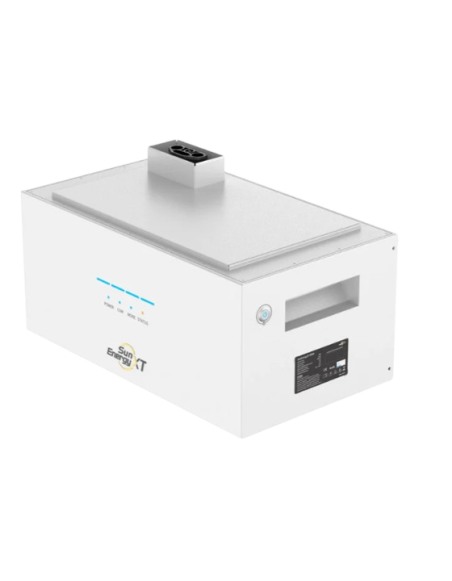

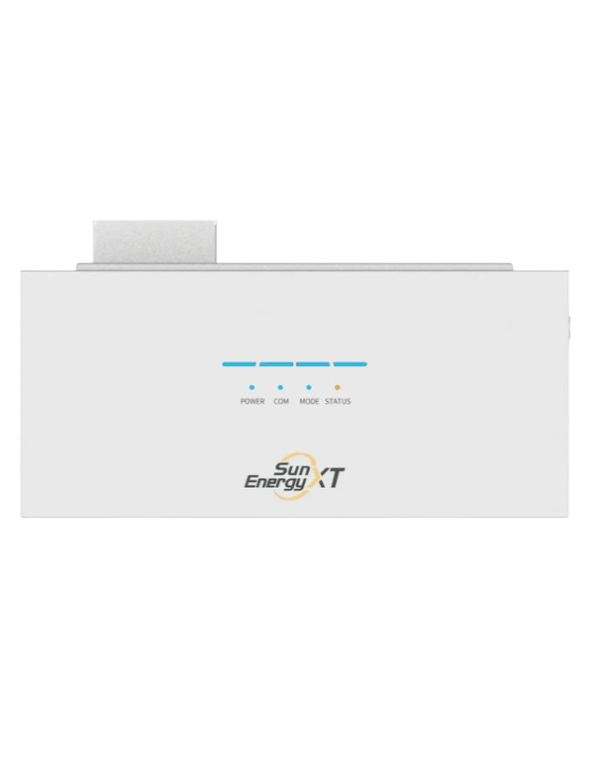

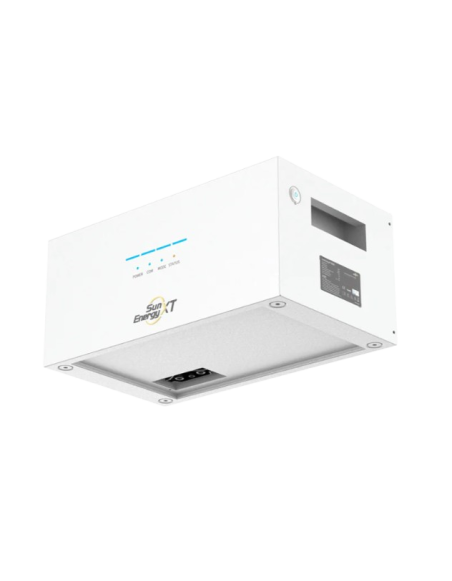

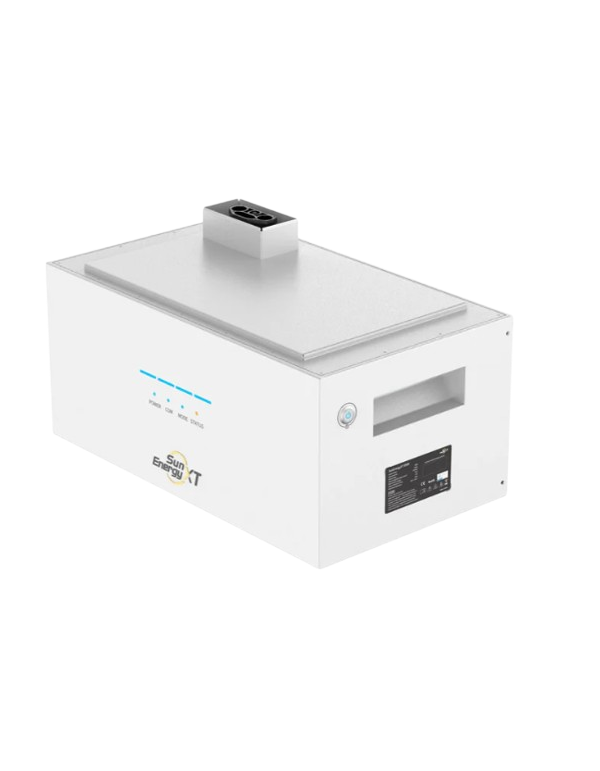

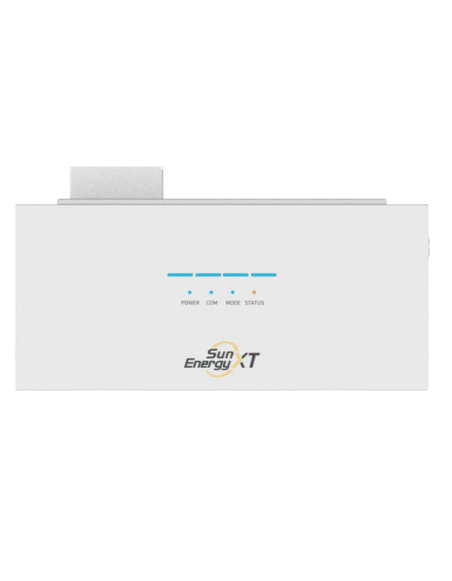

Expansion Battery SunenergyXT B500 5KWH LIFEPO4

Benefits of the SunenergyXT B500

The main advantage of the SunenergyXT B500 It is the simplicity with which it allows you to scale a storage system already installed: just attach it to the main module Sunenergyxt 500 or SunenergyXT 500 Pro To immediately duplicate the available capacity, without the need to reconfigure the system, without additional complex wiring and without having to replace any already installed component. It is the ideal solution for those who started with a single 5KWH module and now need more stored energy, either because they have incorporated an electric vehicle, household consumption have increased or simply seek greater autonomy against supply cuts.

As for security, the B500 is not limited to betting on the already stable chemistry Lifepo4: each battery module incorporates its own system of Extinction of fire fires Individually. This is a relevant difference against other stackable storage systems on the market, since any anomaly is deleted locally in the affected module, without putting at risk the rest of the batteries stacked in the same tower.

Its useful life is also a strong point: with premium cells Eve of 314Ah and more than 10,000 load cycles, even with a full daily download the system can accompany the user during almost 30 years, what makes this lithium battery In a long-term investment with a very competitive cycle cost against other storage technologies.

Finally, your certification Ip65 and its automatic heating system below 0 ° C guarantee a reliable operation on balcony, terrace or carport throughout the year, even in extreme cold conditions of up -20 ° C., without affecting the load and unloading capacity of the system.

Compatibility and how to expand your storage system

The SunenergyXT B500 is not an independent product, but an expansion module specifically designed to work together with the main unit Sunenergyxt 500 or SunenergyXT 500 Pro. Its installation consists of stacking the expansion module under the main module, aligning the connection interfaces and fixing both units with each other, without the need for specialized tools or modifying the existing photovoltaic installation.

It is important to keep in mind that the load and unloading power of the system (800W or 2,400W, according to the main module used) it does not increase When adding B500 batteries: what is expanded is exclusively the available storage capacity, passing from the 5,024Wh of a single module up to 30.144Wh that are obtained by combining the main module with the 5 units of expansion allowed

If you have doubts about how many B500 units you need according to your daily consumption, or if your main system is compatible with this expansion, in Tienda Solar We can help you calculate the optimal configuration for your home. Also, in the Blog Tienda Solar You will find Step-step guides on how to expand your storage system, capacity comparatives between different configurations and practical advice to maximize your self-consumption as your energy needs grow.

Detailed technical characteristics

General Specifications

• Dimensions: 536 x 314,7 x 307mm
• Weight: 45 kg
• Protection class: Ip65 (suitable for exterior use)
• Operating temperature: -20 ° C A + 55 ° C (with automatic heating function below 0 ° C)
• Refrigeration: Passive, without fan, silent

Details of the battery

• Chemistry of Cells: Lifepo4 (Premium Eve cells, 314Ah)
• Nominal capacity: 5.024Wh (4.8kWh useful)
• Lifetime: > 10,000 cycles
• Active security: Integrated aerosol extinction system, individual by module

Compatibility and scalability

• Compatible with: Sunenergyxt 500 and SunenergyXT 500 Pro
• Maximum number of B500 stackable modules: 5 units
• Total maximum system capacity: 30.144wh (Main module + 5 B500 units)
• Charging power / system download: determined by the main module, do not change By adding B500 units

Delivery content

• 1 x SunenergyXT B500 (storage expansion module)

Warranty

• 5 years manufacturer's warranty, expandable to 10 years by registration in the manufacturer's bulletin

Frequently Asked Questions (FAQ)

1. Can I use the SunenergyXT B500 as an independent system, without a main module? No, the B500 is a expansion module and you need to connect to a main unit Sunenergyxt 500 or SunenergyXT 500 Pro, which is the one that incorporates the inverter and the MPPT regulators needed to manage energy.

2. Does the power of my system increase if I add several B500 batteries? No, add B500 modules Only increase storage capacity Available (WH), not the loading or unloading power of the system, which is still determined by the main module (Sunenergyxt 500 of 800W or 500 pro of 2,400W).

3. What happens if a failure occurs in one of the stacked batteries? Thanks to System of extinguishing for individual spray That incorporates each B500 module, any anomaly is managed locally on the affected unit, without putting at risk the operation of the rest of the batteries stacked in the same system.

4. Do I need to reconfigure my photovoltaic installation when adding a B500 battery? No, the installation of a B500 unit does not require modifying the connection of your solar panels nor the configuration of the MPPT regulators of the main module; It simply is physically and electrically coupled to the existing tower.

5. Can the B500 be installed on the outside throughout the year? Yes, thanks to your certification Ip65 And to your automatic heating system below 0 ° C, the sunenergyxt B500 maintains a reliable loading and downloading capacity on a balcony, terrace or carport even with temperatures up -20 ° C..
